Secure and precise workholding for metalworking productivity
Workholding devices such as workpiece clamps and chuck systems provide absolute positional stability and vibration damping during milling, turning, drilling and grinding, ensuring parts remain free of play under high CNC cutting and feed forces. By transferring clamping loads into the machine table or spindle without deforming the component, a well engineered workholding solution improves machining accuracy, surface finish and process reliability while reducing set-up times. Modular systems from machine vices and chucks to zero-point systems and specialised fixtures enable fast changeovers and support both serial and single-part production, delivering consistent clamping force, repeatability and enhanced throughput.
99.5x73x50mm Soft Jaws For VQC Vises - Vertex
Precision soft jaws built for stable, protective clamping: compact dimensions and a substantial mass combine to reduce workpiece marking and improve repeatability. Benefit from quick integration with Vertex VQC vises and confident handling of delicate components — order the VQC-100FJ via Metav Werkzeuge or consult the Metav team for compatibility advice. VQC-100FJ Soft Jaws for VQC vises — 99.5×73×50 mm, 2.97 kg (Vertex) The VQC-100FJ soft jaws are designed to provide protective, adaptable clamping for VQC vises in precision machining and assembly applications Compatible with VQC vises Compact 99.5×73×50 mm profile Weight 2.97 kg for stable clamping Increased protection for sensitive workpieces Soft-contact clamping provided by these soft jaws reduces surface damage and the need for secondary finishing. The compliant clamping faces distribute force more evenly than hard-steel jaws, lowering the risk of localised deformation during tightening. For operations where appearance or dimensional tolerances matter, this protection translates into fewer rejects and less rework, improving overall process yield and saving operator time. Compact footprint, greater bench flexibility The small external dimensions of 99.5×73×50 mm make these jaws suitable where space is limited or multiple fixtures share a workbench. Their compact profile supports flexible fixturing without adding undue bulk to the vise setup, enabling quicker changeovers and simpler handling during assembly or measurement tasks. The mass of 2.97 kg helps maintain positional stability under typical clamping loads, contributing to consistent results across batches. Seamless fit for VQC clamping systems Designed specifically for compatibility with Vertex VQC vises, the VQC-100FJ integrates without modification, allowing straightforward replacement of standard jaws. This direct fit reduces downtime during tool changes and simplifies inventory management for workshops using the VQC range. Clear alignment features and matching mounting points ensure reliable seating and repeatable clamping behaviour in every cycle. Robust service life that supports productivity A focus on practical durability underpins the design of these soft jaws: stable contact during holding phases and reduced need for retightening lead to smoother production flow. By preventing damage to finished surfaces, the jaws indirectly preserve downstream processes such as coating, inspection and assembly. The result is a workholding accessory that supports efficiency while protecting product quality. Contact Metav Werkzeuge to arrange supply of Vertex VQC soft jaws (VQC-100FJ) and receive tailored advice on integration and delivery from Emmerich — our consultants will confirm fitment and dispatch options Technical Data Article number: VQC-100FJ GTIN: 4061905084256 Brand: Vertex Data Dimensions: 99.5×73×50 mm Weight: 2.97 kg eClass: 21029107 Special features Designation: Soft jaws Application: for VQC vises Assets: Technical drawing and detailed images available FAQ What workpiece protection do the soft jaws provide? The VQC-100FJ soft jaws protect sensitive surfaces by distributing clamping force and reducing point loads, which lowers the chance of marks and the need for corrective finishing. Are these jaws compatible with all VQC vise sizes? Compatibility is intended for VQC vises; the VQC-100FJ fits standard Vertex VQC mounting interfaces. Check the vise model to ensure full alignment. Can the jaws be used for precision measurement setups? Yes, the soft clamping surface supports measurement tasks by reducing distortion and offering repeatable seating for delicate components. How does the weight affect clamping stability? At 2.97 kg, the jaw mass contributes to steady contact and helps resist shifts during tightening, improving repeatability in machining cycles. Is a modification required to fit these jaws to an existing vise? No modification is generally required for Vertex VQC systems; the VQC-100FJ is designed for straightforward installation on the corresponding vise models. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
126mm Movable Assembly Aid, DIN 69871A - Vertex
Take advantage of a movable assembly aid that combines space-saving design, compatibility with BT30 tapers and straightforward handling to keep tool-change routines efficient. Order directly via Metav Werkzeuge or contact our consultants for tailored advice. VTL-BT30 Assembly aid — movable, DIN 69871A compatible (Vertex) The VTL-BT30 is a movable assembly aid designed for safe, compact handling of BT30 taper toolholders and compliant with DIN 69871A standards for workshop and production environments. Movable design for flexible positioning Compatible with DIN 69871A tapers Compact footprint 116 x 91 mm Lightweight at 4.2 kg for easy handling Optimised handling to speed up tool-change workflows The movable design and compact footprint provide tangible efficiency gains in cluttered workspaces. By placing the assembly aid close to the machine spindle, downtime during tool change is reduced and handling becomes more reliable. The small 116 x 91 mm base minimises bench space requirements while the 4.2 kg mass balances stability with manoeuvrability. For operations that prioritise throughput and repeatability, this fixture supports quicker set-up without adding complexity. Compatibility and conformity that simplify process planning Built to match the dimensions of BT30 tapers, conformity with DIN 69871A ensures predictable fitment with standard toolholders and spindles. This predictable interface reduces the need for bespoke adapters and simplifies inventory management. The unit’s classification under standard industry codes aids procurement and machine-setup documentation, contributing to a smoother integration into established workflows and quality systems. Robust, practical design that supports daily use A movable mounting solution provides a blend of robustness and user-friendly ergonomics: the compact base allows stable placement while the construction supports repeated handling in production environments. The device serves as a reliable support during assembly tasks, reducing the risk of accidental damage to precision tapers. The straightforward design also means limited maintenance and uncomplicated training for shop-floor personnel, making it suitable for both skilled technicians and general workshop teams. Contact Metav Werkzeuge in Emmerich for personalised advice on the Vertex VTL-BT30 assembly aid; email info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data SKU: VTL-BT30 GTIN: 4061905084522 Brand: Vertex Core specifications Footprint: 116 x 91 mm Height: 126 mm Weight: 4.2 kg Special features Movable assembly aid For BT30 taper (DIN 69871A) Classification: eCl@ss 21029203 FAQ What is the primary purpose of this assembly aid? The assembly aid is designed to support safe handling and temporary holding of BT30 taper toolholders during installation and removal from the spindle. Is the VTL-BT30 compatible with all BT30 toolholders? Compatibility is ensured with toolholders conforming to the BT30 interface standard; the unit is built to match DIN 69871A dimensions for reliable positioning. How much bench space does the unit require? The compact base measures 116 x 91 mm, allowing close placement to the machine without occupying significant workbench area. Can the device be moved between stations easily? Yes, the movable design and moderate mass of 4.2 kg permit straightforward relocation between workstations while maintaining stability during use. Which manufacturer produced this assembly aid? The assembly aid is supplied by Vertex and identified as SKU VTL-BT30 for procurement and documentation. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
12mm Pneumatic Plunger Clamp 1,500N Push Force, 3,700N Holding Force, Zinc Cast Body - Kukamet
The combination of a zinc‑plated cast body, dependable 1,500 N thrust and high 3,700 N holding force delivers secure, repeatable clamping for assembly and machining fixtures; the compact 1.09 kg design keeps integration effort low. Order the Pneumatic Push‑rod Clamp 673 directly via Metav Werkzeuge or ask our consultants if needed. Pneumatic Push‑rod Clamp 673 — Zinc‑plated cast body, 1,500 N thrust (Kukamet) The Pneumatic Push‑rod Clamp 673 is a compact pneumatic clamping solution for production lines, jigs and repeatable fixture applications. Zinc‑plated cast body for industrial durability 1,500 N thrust with quick pneumatic actuation 3,700 N maximum holding force for secure clamping Horizontal foot mounting, 12 mm piston diameter Consistent clamping force for reliable throughput The actuator delivers a controlled 1,500 N thrust combined with a 3,700 N holding force, ensuring that workpieces remain fixed even under machining loads. By separating the pushing and holding metrics, the design provides predictable performance: thrust initiates the clamping stroke while holding force resists movement during processing. For production planners this means fewer rejects and reduced rework, as fixture repeatability improves cycle‑to‑cycle. The mechanism is suitable for frequent cycling thanks to pneumatic actuation that reduces manual effort and increases process speed. Robust construction that simplifies installation Built with a zinc‑plated cast body, the unit resists workshop wear and offers corrosion protection in standard industrial environments. The horizontal foot mounting enables straightforward attachment to fixed plates or modular fixture systems, keeping the clamp’s centre of gravity low for stable assemblies. At 1.09 kg, the component is lightweight enough to position easily yet substantial enough to absorb dynamic loads. The 12 mm piston diameter provides a compact actuator profile without sacrificing force output, allowing integration into confined fixture areas where space is at a premium. Practical advantages for workshops and fixture builders Designed for repetitive operations, the clamp supports automated and semi‑automated workflows by offering quick engagement and disengagement through pneumatic control. The compact actuator reduces the need for large valve banks and, when combined with standard compressed air systems, lowers installation complexity. The mechanical simplicity translates to low service requirements and long operational life under regular maintenance intervals. For engineers specifying clamps for jigs or assembly stations, the unit’s predictable metrics and straightforward mounting reduce engineering time and improve uptime. For reliable supply and technical advice on Kukamet clamping solutions, contact Metav Werkzeuge in Emmerich for tailored consultation and prompt delivery of the Pneumatic Push‑rod Clamp 673. Technical data Article number: 673-3-Q12 SKU: 673-3-Q12 GTIN: 8682843521700 Manufacturer: Kukamet ECLASS: 21041716 ETIM: EC011973 Facts Maximum thrust: 1,500 N Maximum holding force: 3,700 N Piston diameter: 12 mm Weight: 1.09 kg Special features Material: zinc‑plated with cast body Mounting: horizontal foot Category: Spanner UID: 673-3-Q12 FAQ What clamping force can be expected from this pneumatic clamp? The Pneumatic Push‑rod Clamp 673 provides a maximum thrust of 1,500 N and a holding force of 3,700 N, allowing secure positioning during machining and assembly. Is the clamp suitable for fixture integration in small spaces? Yes, the compact actuator with a 12 mm piston diameter and moderate weight of 1.09 kg permits installation in confined fixture arrangements and modular clamping systems. What material and surface treatment does the clamp have? The clamp features a zinc‑plated cast body, offering mechanical strength and corrosion resistance for standard industrial environments. Which SKU identifies this model for ordering and spare parts? The product is listed under SKU 673-3-Q12 (GTIN: 8682843521700) for procurement and parts ordering. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
12mm Pneumatic Pushrod Clamp 1.5kN Thrust, Zinc-Plated Horizontal Foot - Kukamet
Take advantage of the combination of robust clamping performance and corrosion-resistant construction to secure fixtures reliably in serial production or workshop jigs. Benefit from a compact, lightweight design together with clear technical data for straightforward integration — order the clamp directly via Metav Werkzeuge or ask our consultants for application advice. 661 Pneumatic Push-Rod Clamp by Kukamet — galvanised, 1,500 N thrust 661 is a compact pneumatic push-rod clamp designed for workshop and industrial fixtures, offering fast actuation and stable horizontal-foot mounting for repeatable clamping tasks Galvanised corrosion protection 1,500 N pneumatic thrust 2,960 N maximum holding force Horizontal-foot mounting stability Reliable power where it matters The clamp delivers a maximum piston thrust of 1,500 N, supported by a peak holding capacity of 2,960 N, which makes it suitable for medium-duty clamping in production jigs and assembly fixtures. The device’s 12 mm piston diameter is specified to clarify actuation geometry; piston size and supplied air pressure together determine force output, providing a predictable relationship between supply conditions and clamping performance. The galvanised surface ensures resistance to workshop contaminants and damp environments, helping to maintain consistent force transmission over time. Compact installation and durable construction With a weight of just 0.88 kg and a horizontal-foot mounting arrangement, the unit is designed for easy integration into existing fixture plates and conveyor-mounted stations. The galvanised construction reduces corrosion risk without the need for regular surface treatment, lowering maintenance intervals. The low mass minimises additional load on moving fixtures and enables quicker cycle times in automated sequences, while the horizontal foot offers a secure, repeatable attachment point for alignment-critical applications. Ready for fixture integration and series use The design emphasises straightforward compatibility with standard clamping layouts: the compact housing and clear force figures simplify layout calculations for jigs and automated systems. The clamp is appropriate for batch production, inspection fixtures and assembly lines where reproducible clamping and short cycle times are required. Technical documentation and dimension sheets are available to support integration; custom advice can be provided for adapting the device to specific pneumatic controls or manifold systems. Contact Metav Werkzeuge for tailored fixture recommendations and to arrange supply of the Kukamet 661 via the Emmerich team by email or phone Technical Data SKU: 661-3-Q12 GTIN: 8680731503111 Manufacturer: Kukamet Facts Weight: 0.88 kg Piston diameter: 12 mm Max thrust (druckkraft): 1,500 N Max holding force (haltekraft): 2,960 N Special features Material/finish: galvanised Mounting: horizontal foot Category: Spanner Classification: eClass 21041716, ETIM EC011973 FAQ What clamping force can be expected from this pneumatic device? The Kukamet 661 provides a piston thrust of up to 1,500 N and a maximum holding force of 2,960 N, suitable for medium-duty clamping in jigs and fixtures. Is the clamp suitable for humid or workshop environments? Yes, the galvanised finish on the 661 offers corrosion resistance that helps maintain function in typical workshop or damp conditions. How is the clamp mounted in a fixture? The unit uses a horizontal-foot mounting configuration, allowing stable attachment to fixture plates and alignment with linear or rotary tooling. What are the key dimensions relevant for integration? Piston diameter is 12 mm and the overall unit is lightweight at 0.88 kg; detailed dimension sheets are available to support exact layout planning. Can the clamp be used in automated assembly lines? The compact design and clear force specifications make the clamp suitable for integration into automated systems, where repeatable actuation and low inertial load are required. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
12mm Pneumatic Push‑Rod Clamp 1.5kN Push Force, Zinc-Plated, 0.88kg - Kukamet
Take advantage of the combination of robust pneumatic actuation, a compact 12 mm piston and high holding force for dependable fixture clamping. Order the clamp directly via Metav Werkzeuge or consult their specialists for integration advice and delivery from Emmerich. Pneumatic Pushrod Clamp 662 — zinc-plated, 12 mm piston (Kukamet) The Pneumatic Pushrod Clamp 662 is a compact clamping solution designed for horizontal mounting in production fixtures and jigs, offering fast pneumatic actuation and corrosion-resistant zinc plating. Pneumatic actuation with quick response Zinc-plated for corrosion resistance High holding force up to 2,960 N Engineered for dependable fixture clamping The clamp delivers a defined push force of 1,500 N and a holding force of 2,960 N, values that translate into secure workpiece retention for many routine machining and assembly tasks. Pneumatic actuation means the device operates with compressed air and provides a concise linear movement via a 12 mm piston, a specification that balances stroke control and compactness. For purchasers unfamiliar with actuator terminology: push force refers to the force applied during the active clamping motion, while holding force indicates the residual resistance the clamp provides once engaged. The zinc-plated finish increases service life in workshop environments where moisture or cutting fluids are present. Easy integration into production jigs and fixtures A horizontal foot mounting simplifies installation on plates and fixture bases, enabling rapid placement without elaborate adapters. At around 0.88 kg, the actuator remains light enough to be used in modular tooling while retaining the mechanical stability expected in industrial settings. The compact format and consistent actuation make it suitable for semi-automated stations and manual fixtures alike, reducing changeover time and contributing to improved cycle efficiency. The combination of quick pneumatic response and a defined holding specification supports repeatable clamping sequences and less rework. Proven supply and workshop support for long-term use Manufactured by Kukamet and distributed through Metav Werkzeuge, the unit benefits from a reliable supply chain and product range focused on practical workshop requirements. Metav’s role as a precision partner means access to comprehensive assortments and parts, ensuring compatibility across fixtures and replacement cycles. Choosing this clamp supports a pragmatic purchasing strategy: robust component selection, straightforward mounting, and straightforward technical data to aid specification in tender documents or CAD layouts. The product’s straightforward design also facilitates routine inspection and predictable maintenance intervals. For expert advice on fixture design or to arrange delivery of the Kukamet Pneumatic Pushrod Clamp 662 via Metav Werkzeuge, please contact Metav Werkzeuge at info@metav-werkzeuge.com or call +49 2822 7131930 for tailored technical guidance and prompt supply. Technical Data Article number: 662-3-Q12 GTIN: 8680731505931 eClass: 21041716 ETIM: EC011973 Facts Maximum push force: 1,500 N Maximum holding force: 2,960 N Piston diameter: 12 mm Weight: 0.88 kg SKU: 662-3-Q12 Special features Zinc-plated Horizontal foot mounting Pneumatic pushrod actuator Material: zinc-plated finish FAQ What materials is this clamp suitable for? The Pneumatic Pushrod Clamp 662 is a general-purpose clamping device; suitability depends on fixture design rather than material type, and the clamp’s forces (1,500 N push, 2,960 N hold) suit many metal and polymer workpieces when correctly fixtured. Can the clamp be mounted vertically instead of horizontally? The product is specified with a horizontal foot for base mounting; vertical installation would require an adapted fixture or consultation to ensure secure support and correct pneumatic connection. How does the 12 mm piston affect operation? A 12 mm piston provides a compact stroke and reliable linear motion, giving precise actuation suitable for confined fixture spaces while maintaining consistent clamping pressure. Is the clamp suitable for automated production cells? Yes, the pneumatic actuation and repeatable forces make the device a practical choice for semi-automated and automated fixtures when integrated with appropriate pneumatic valves and control logic. What identification details are provided for spare parts and ordering? Use the SKU 662-3-Q12 and GTIN 8680731505931 when specifying the Kukamet Pneumatic Pushrod Clamp for ordering and spare-part queries. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
12mm Push Rod Clamp Horizontal Base 1,500N Thrust, Zinc-Plated Cast Body 0.63kg - Kukamet
Dependable holding force of 1,700 N combined with a compact 0.63 kg body ensures fast fixture changes and stable clamping in workshop environments; the galvanised cast construction increases corrosion resistance and service life. Order the push-rod clamp 535 directly via Metav Werkzeuge or ask our consultants if needed. Push-rod clamp 535 – Horizontal-foot clamp with 1,500 N pressing force (Kukamet) Push-rod clamp 535 is a compact mechanical clamp for horizontal mounting, designed for repetitive fixture and workholding operations in workshops and light industry. Horizontal-foot mounting for stable installation Galvanised cast body for corrosion resistance Maximum pressing force 1,500 N Compact weight 0.63 kg for easy handling Consistent clamping performance for repeatable workflows The clamp delivers a maximum pressing force of 1,500 N and a holding force of 1,700 N, providing a clear performance margin for many assembly and machining tasks. These figures translate into reliable part retention during short-cycle operations and manual machining, reducing rework and misalignment. The mechanism converts operator action into a reproducible axial push, which is preferable where consistent clamping pressure is required. Such predictable behaviour supports planning of cycle times and tool paths in production processes. Durable construction that keeps the workshop running Built with a galvanised exterior and a cast body, the device resists routine wear and corrosive workshop atmospheres better than uncoated components. Galvanising protects exposed surfaces from oxidisation, while the cast main body provides the rigidity necessary to maintain alignment under load. Together these features help to extend mean time between replacements and limit unscheduled maintenance, supporting a steady production flow and lower lifetime operating costs. Fast mounting and compact handling for flexible setups The horizontal-foot design enables secure attachment to machine tables or fixture plates and supports a low-profile installation where space is restricted. The integrated pressure spindle (M8 x 50) allows fine adjustment of contact point and stroke, while the 12 mm piston diameter ensures an efficient transfer of force. At 0.63 kg, the unit is small enough to be repositioned quickly during fixture changes, which speeds set-up times and reduces downtime between jobs. Clear specifications to aid procurement and integration Technical clarity simplifies stocking and replacement planning: the clamp is supplied in a compact, ready-to-install format with standardised connection dimensions and a familiar mounting footprint. The combination of measured performance data—pressing force, holding force, piston diameter—and the robust build makes specification for jigs and fixtures straightforward. For purchasing and inventory control the product is listed under SKU 535-3-Q12-R with GTIN 8682843521236, facilitating traceability and reorder processes. For reliable workshop clamping choose the Kukamet push-rod clamp 535—contact Metav Werkzeuge for procurement advice and ordering at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 535-3-Q12-R GTIN: 8682843521236 SKU: 535-3-Q12-R EClass: 21041716 ETIM: EC011973 Facts Maximum pressing force: 1,500 N Holding force: 1,700 N Piston diameter: 12 mm Weight: 0.63 kg Special features Material: galvanised with cast body Mounting: horizontal foot Pressure spindle: M8 x 50 Category: Clamping FAQ What is the maximum pressing force of this clamp? The clamp provides a maximum pressing force of 1,500 N, enabling secure retention for many manual and light machining operations. Which mounting option does the clamp use? The unit is supplied with a horizontal foot for stable attachment to worktops and fixture plates. Is the clamp suitable for use in corrosive workshop atmospheres? With a galvanised cast body, the clamp offers improved resistance to oxidisation and general workshop humidity compared with uncoated components. What are the connection and adjustment specifications? Adjustment is via a M8 x 50 pressure spindle and the actuator uses a 12 mm piston diameter to deliver the specified force. How is the product identified for ordering and inventory? The product is listed under SKU 535-3-Q12-R and GTIN 8682843521236 for procurement and stock management. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
12mm Push Rod Clamp Horizontal Base 2,500N Thrust, Zinc Plated 2960N Hold Force - Kukamet
Take advantage of a compact, zinc‑plated clamp that combines robust holding power and space‑saving installation for reliable fixture work; its 2,500 N clamping capacity and horizontal mounting foot make it suitable for repetitive operations in jigs and fixtures. Order directly via Metav Werkzeuge or contact the consultants for tailored specification advice. 521 Push‑rod Clamp (Horizontal foot, 2.5 kN) – Kukamet The 521 is a compact push‑rod clamp designed for horizontal mounting in fixtures and assembly jigs, delivering consistent clamping up to 2,500 N with a corrosion‑resistant zinc finish. Quick‑action clamping mechanism Horizontal mounting foot for fixture use Zinc‑plated for corrosion resistance 12 mm piston diameter for compact force transfer Robust holding where space is tight The compact design of this push‑rod clamp supports reliable fixture layouts where flange or rail space is limited. The horizontal mounting foot allows the unit to be secured close to the workpiece, reducing leverage and improving stability during repetitive cycles. With a zinc‑plated finish, the unit withstands humid workshop conditions while remaining easy to integrate into existing tooling. The small footprint and light weight lend themselves to both fixed production jigs and portable assembly rigs, enabling precise positioning without bulky attachments. Consistent clamping force for repetitive tasks Engineered for predictable performance, the device delivers a maximum clamping force of 2,500 N and a maximum holding capacity of 2,960 N, giving a clear safety margin between applied and retained forces. The 12 mm piston transfers clamping energy efficiently, which shortens cycle times and reduces the need for readjustment. For process planners this means fewer stoppages for re‑clamping and a measurable improvement in throughput when the clamp is used in repetitive assembly or inspection stations. Durable materials and practical mounting options Constructed with a zinc‑plated body, the clamp resists corrosion without requiring specialised maintenance. The horizontal foot fixing simplifies alignment and allows the use of common fasteners for installation. The robust thread spindle specification (M8x50) provides secure attachment with standard hardware. These features together lower total lifecycle effort and support predictable service intervals in busy workshops and small production lines. Integration, safety and workshop benefits The clamp’s compact actuation and clearly defined force ratings make it suitable for automated or manual applications where controlled clamping is essential. Because the design separates actuation and holding capacities, planners can select appropriate safety margins for different fixture tasks. For buyers seeking straightforward installation and straightforward spare‑part management, the unit’s standardised dimensions and familiar fastening mean shorter downtimes and easier stock management for maintenance teams. For durable, space‑efficient clamping choose Kukamet’s 521 and contact Metav Werkzeuge for specification support and reliable supply from Emmerich: info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: 521-3-Q12 GTIN: 8680731502756 Brand: Kukamet Weight: 0.39 kg Material: zinc‑plated Facts Maximum clamping force: 2,500 N Maximum holding force: 2,960 N Piston diameter: 12 mm Thread spindle: M8x50 ECLASS: 21041716 ETIM: EC011973 Special features Horizontal foot mounting Compact push‑rod actuation Suitable for fixture and jig work SKU: 521-3-Q12 FAQ What is the maximum clamping force of this clamp? The Kukamet 521 push‑rod clamp provides a maximum clamping force of 2,500 N, with a maximum holding capacity of 2,960 N for secure retention in fixture applications. Which mounting orientation is recommended for installation? The unit is supplied with a horizontal mounting foot designed for installation on flat fixture surfaces; the horizontal foot ensures stable engagement and straightforward alignment in jigs. What is the piston diameter and why does it matter? The piston has a 12 mm diameter, which concentrates force transfer in a small form factor and supports compact fixture designs while maintaining effective clamping power. Is the clamp protected against corrosion in workshop environments? Yes, the body is zinc‑plated, offering basic corrosion resistance suitable for standard workshop and assembly conditions without specialised coatings. Can this clamp be used in automated assembly lines? The clamp’s predictable force characteristics and compact actuation make it suitable for integration into automated or semi‑automated assembly stations where fixed clamping cycles are required. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
12mm Push Rod Clamp Horizontal Foot 2.5kN Thrust, Zinc Plated Cast Body 0.635kg - Kukamet
Take advantage of the combination of robust holding power, simple mounting and corrosion-resistant construction for reliable clamping in serial production. Order the Kukamet push-rod clamp directly via Metav Werkzeuge or consult our specialists for application advice. Push-rod clamp 531 — Kukamet horizontal-base clamp with 3.7 kN holding force The Push-rod clamp 531 is a horizontal-base push rod clamp designed for secure workholding in workshop and light industrial applications Horizontal base for stable mounting Holding force up to 3,700 N Zinc-plated cast body for long life Pressure spindle M8×50 for adjustable contact Consistent clamping for repeatable production A clamp that delivers measurable results reduces scrap and downtime. With a maximum holding force of 3,700 N and a maximum pressing force of 2,500 N, this device secures components reliably during machining, assembly or testing. The adjustable pressure spindle M8×50 permits fine contact pressure setting, making repeatable setups faster to achieve. Translating specification into benefit: fewer re-clamps and more consistent tolerances across batches. Built to withstand workshop environments Robust construction matters where tools are used daily. The unit features a zinc-plated cast body that combines structural rigidity with corrosion resistance, extending service life even in humid or oily surroundings. At approximately 0.635 kg, the clamp offers a favourable weight-to-stability ratio, simplifying handling during fixture changes while maintaining a solid feel when engaged. The material choice minimises maintenance and supports long-term reliability. Faster set-up and safe operation on the shop floor Fast, repeatable clamping reduces cycle time. The horizontal base allows secure bolting to fixtures or workbenches for immediate use, while the compact actuation mechanism and piston diameter 12 mm ensure a direct transfer of force with limited deflection. The mechanical principle is straightforward, enabling quick operator familiarisation and a lower risk of incorrect use compared with more complex systems. The compact design keeps the clamped area clear and accessible for machining operations. Versatile use across fixtures and applications This clamp is suited to general workshop fixturing, assembly stations and jigs where dependable lateral clamping is required. Its form factor and mounting style make it compatible with existing clamping arrays or bespoke fixtures. Where several identical clamps are required for series production, consistent performance supports process stability and predictable throughput. For procurement channels seeking an assured blend of functionality and stock availability, the supply via Metav Werkzeuge offers the additional reassurance of a European quality filter. Contact Metav Werkzeuge for tailored advice on integrating the Kukamet push-rod clamp 531 into existing fixtures and to request technical compatibility information from Emmerich’s quality specialists Technical Data SKU: 531-3-Q12 GTIN: 8680731502800 Weight: 0.635 kg Material: zinc-plated with cast body Facts Maximum pressing force: 2,500 N Maximum holding force: 3,700 N Piston/rod diameter: 12 mm Pressure spindle: M8×50 Special features Horizontal base mounting Category: clamp / spanner Compact design for fixture integration Suitable for workshop and light industrial use FAQ What is the maximum holding force of this clamp? The Kukamet push-rod clamp 531 provides a maximum holding force of 3,700 N for secure workpiece retention. How is the clamp mounted to a fixture? Mounting is performed via the horizontal base; the design is intended for bolting to jigs, fixtures or workbench plates for stable installation. Is the finish resistant to workshop corrosion? Yes, the zinc-plated cast body offers corrosion resistance suitable for typical workshop environments. What adjustments are available for contact pressure? Contact pressure is adjusted using the M8×50 pressure spindle, allowing fine setting of pressing force for different workpieces. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
ER-16 Collet Set With MT-2 Taper And Collet Chuck, 10 Pieces - Vertex
Take advantage of the combination of precision clamping, broad MT-2 compatibility and a complete ER-16 collet set to reduce setup times and improve part quality on the shop floor. Order the equipment directly via Metav Werkzeuge or ask the consultants for tailored advice. Vertex Collet Set V-412 – ER-16 collets with MT-2 Morse taper The Vertex Collet Set V-412 is a compact clamping solution designed for accurate tool holding and reliable spindle interface on machines fitted with an MT-2 Morse taper. ER-16 collets for precise tool clamping MT-2 Morse taper shank for spindle compatibility Complete set covering common tool diameters Robust design for repeatable concentricity Precision clamping for consistent machining results The ER-16 collet system delivers high concentricity and consistent clamping force, which directly reduces run-out and vibration during cutting operations. That reliability translates into fewer rejects and longer tool life, improving throughput and lowering operating costs. Thanks to the standard design of the collet system, repeatable results are achieved without complex adjustment, making it straightforward to maintain machining tolerances in daily production. Broad machine compatibility to speed up setup Fitted to an MT-2 Morse taper, this clamping solution matches a wide range of bench drills and small milling spindles common in toolrooms and job shops. The taper interface provides axial positioning and stable transmission of cutting forces, simplifying mounting and changeover. The combination of MT taper and ER-16 collets allows quick switching between tooling sizes while maintaining a secure grip, enabling faster job changes and reduced machine downtime. Built for workshop durability and reliable repeatability Engineered as a complete collet set, this product supports flexible tooling choices and minimises the need for additional holding devices. The design focuses on repeatable performance under typical workshop conditions, delivering stable concentricity part after part. For teams aiming to streamline Fixturing and improve process reliability, the set offers a pragmatic trade-off between versatility and consistent clamping precision. Contact Metav Werkzeuge in Emmerich for personalised advice on the Vertex Collet Set V-412 and to arrange timely supply and technical guidance Technical data Article number: V-412 GTIN: 4061905083570 Manufacturer: Vertex Facts Weight: 1.05 kg Pieces per set: 10 eClass: 21022190 Special features ER-16 collet system MT-2 Morse taper shank Complete collet set (multiple diameters) Fast availability for workshop supply FAQ What machines are compatible with this collet set? The collet set fits spindles accepting an MT-2 Morse taper; the Vertex Collet Set V-412 is therefore suitable for many bench drills, small milling machines and similar workshop spindles. How does an ER-16 collet improve machining quality? The ER-16 system provides uniform radial clamping, reducing run-out and vibration. This results in better surface finish and longer tool life when using the Vertex collet system. Is the set suitable for frequent tool changes? Yes. The complete set is designed to allow quick swapping of tools while maintaining repeatable concentricity, which helps to keep changeover times to a minimum. Can the collets be used in other ER-16 chucks? ER-16 collets conform to the ER standard and can be used in compatible ER-16 chucks; compatibility with MT-2 spindles depends on the chuck or arbor used with the spindle. What should be checked during routine maintenance? Regular inspection of the clamping surfaces and the taper interface is recommended to preserve concentricity and gripping performance; cleaning debris from the taper and the collet bore helps maintain reliable clamping. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

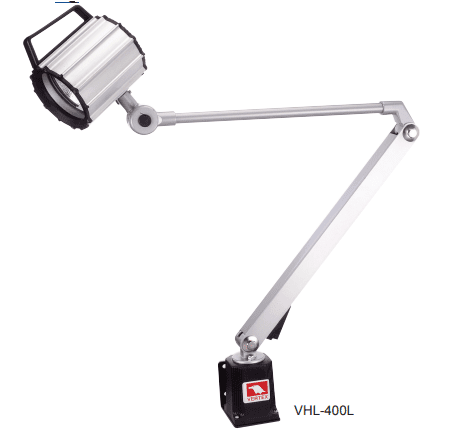

400x400mm Lamp Waterproof Light IP67 Arm IP20 Halogen 12V/50W, 110V/220V Supply - Vertex
Take advantage of the combination of robust reach and flexible illumination for precise workshop tasks: the lamp's 400 x 400 mm arm and halogen 12 V / 50 W option deliver focused light where it is needed, while compatibility with 110 V / 220 V supplies ensures flexible installation. Order the Vertex VHL-400L directly via Metav Werkzeuge or ask our consultants if needed. Vertex VHL-400L lamp — waterproof variants, 12 V / 50 W halogen, 400 x 400 mm arm The Vertex VHL-400L is a task lamp designed for bench and machine illumination, offering adjustable reach and choice of waterproof variants with halogen or LED light sources for industrial and workshop use. Robust 400 x 400 mm adjustable arm Available waterproof variants, halogen or LED 12 V / 50 W halogen option for bright focus Dual supply 110 V / 220 V compatibility Precise, efficient lighting for fine work The lamp delivers focused beam control that supports precision operations and visual inspection. With a 12 V / 50 W halogen option and alternative LED configurations, the design balances luminous output and installation flexibility. The unit’s electrical compatibility (110 V / 220 V) allows integration into diverse power environments, reducing the need for additional transformers and ensuring consistent performance across workshops and production areas. Stable reach and durable mounting for repeatable results An articulated 400 x 400 mm arm provides extended reach and controlled positioning, enabling accurate alignment of the light to the workpiece. At 3.8 kg, the assembly offers a stable feel when fixed to benches or machine frames, helping to prevent drift during measurement or assembly tasks. Waterproof variants are available for harsher environments, and the option between halogen and LED light sources supports selection according to heat, spectral preference and maintenance regimes. Simple system integration and practical workshop benefits The lamp is designed for straightforward installation and reliable day-to-day operation in industrial settings. Compatibility with common voltages (110 V / 220 V) simplifies wiring, and the alternative of LED light sources offers a lower-maintenance possibility where reduced heat or different light characteristics are preferred. Product images and technical references support specification checks, and Metav’s role as a precision partner can assist in selecting the most appropriate variant for a given production or inspection task. Discuss how the Vertex VHL-400L’s flexible arm and waterproof options can improve workshop illumination — contact Metav Werkzeuge for tailored advice and secure delivery from Emmerich. Technical data SKU: VHL-400L GTIN: 4061905084300 Brand: Vertex Weight: 3.8 kg Core specifications Arm: 400 x 400 mm Power supply: 110 V / 220 V Light: 12 V / 50 W (Halogen) Mass: 3.8 kg Features and versions Waterproof variants available Halogen or LED light source options ECLASS: 27110640 ETIM: EC001959 Images available: VHL-400L-main.png, VHL-400L-detail.png FAQ What power options are available for the lamp? The Vertex VHL-400L is compatible with 110 V / 220 V supplies; the standard halogen configuration is 12 V / 50 W, and LED variants are offered as an alternative. Can the lamp be positioned to cover different work zones? Yes, the lamp features an articulated 400 x 400 mm arm that enables adjustable reach and accurate positioning for benches and machine-based tasks. Is there an LED version of this lamp? Yes, LED variants are available alongside the halogen option within the VHL-400L range. What are the lamp’s physical dimensions and weight? The articulated arm measures 400 x 400 mm and the assembly has a mass of 3.8 kg, supporting a stable mounting solution. Which identifiers should be used for ordering or inventory? Use SKU VHL-400L and GTIN 4061905084300; the product is supplied by Vertex. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
12V/50W or 24V/50W Transformer With Replacement Bulb For Halogen Lamp VHL - Vertex
Take advantage of the combination of stable dual-voltage operation and compact, lightweight construction to ensure consistent halogen illumination with minimal downtime; order the unit directly via Metav Werkzeuge or consult our team for compatibility and stock confirmation. V-B15 Transformer and Bulb — Dual-voltage 12V/50W or 24V/50W, Vertex The V-B15 Transformer and Bulb is a compact replacement unit for VHL halogen lamps, designed to provide reliable 50 W illumination in inspection and task-lighting applications. Dual voltage: 12V or 24V 50 W halogen output Compact, lightweight design Consistent power delivery for reliable halogen light The combination of a dedicated transformer and matched halogen bulb ensures a steady light output at either 12 V or 24 V, both rated at 50 W, which reduces flicker and maintains luminous consistency during demanding tasks. This technical pairing benefits precision work where stable illumination supports accurate visual inspection and reduces rework. The integrated arrangement also simplifies replacement logistics compared with sourcing separate components, making maintenance cycles more efficient. Small form factor that minimises downtime and fits confined fixtures Weighing only 0.009 kg, the unit’s compact footprint allows quick installation in fixtures designed for VHL lamps. The small mass and compact profile mean less strain on mounting fittings and faster handling during lamp changes, which translates directly into shorter service intervals and lower indirect labour costs. The modest size also helps when retrofitting into machines or stands with limited space, enabling a tidy installation without major modifications. Clear compatibility and straightforward operating notes for workshop use Designed specifically for use with VHL halogen lamps, the unit is supplied by Vertex and is identifiable by SKU V-B15 and GTIN 4061905084447. For correct operation, the selected voltage must match the fixture and wiring; the transformer–bulb assembly is available in either 12 V / 50 W or 24 V / 50 W variants to suit different systems. When replacing the lamp, allow the bulb and transformer to cool before handling and ensure connections are secure. Metav’s stock handling and distribution from Emmerich provide a dependable supply chain, reducing lead times and supporting uninterrupted workshop operations. Contact Metav Werkzeuge in Emmerich for stock confirmation and technical advice on the V-B15 transformer and bulb — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: V-B15 GTIN: 4061905084447 eClass: 27039101 Facts Weight: 0.009 kg Voltage / wattage: 12 V / 50 W; 24 V / 50 W Special features Compatible with VHL halogen lamp Brand: Vertex Images available: V-B15-main.png, V-B15-detail.png FAQ What voltage options are available for this transformer and bulb? The V-B15 transformer and bulb is available in two variants: 12 V / 50 W and 24 V / 50 W, allowing selection according to the fixture’s requirements. Is this unit compatible with VHL halogen lamps? Yes, the unit is specifically designed for compatibility with VHL halogen lamps and is supplied as a matched transformer-and-bulb assembly. How should the bulb be replaced to ensure safe operation? Allow the bulb and transformer to cool before touching, use appropriate gloves to avoid oil contamination, and ensure the correct voltage variant is fitted and electrical connections are secure. What identifies the product for ordering and stock checks? Order or request stock with SKU V-B15 or GTIN 4061905084447; the unit is supplied under the Vertex brand and listed in eClass 27039101. Is the unit suitable for tight or confined fixtures? Yes, the compact and lightweight design makes the assembly suitable for fixtures with limited space, facilitating retrofit and maintenance. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
12V/6W LED Lamp Reinforced, IP20 220V Supply - Vertex
Benefit from robust construction and an adjustable 400 x 310 mm arm for precise task lighting; the low-power 6 W LED module provides bright, consistent illumination while keeping energy use to a minimum. Order the VLED-30L directly via Metav Werkzeuge or ask our consultants if needed. VLED-30L reinforced LED lamp by Vertex — adjustable arm, low-power LED The VLED-30L is a reinforced LED lamp designed for workshop and inspection tasks, offering a stable light source and a flexible mounting reach for close-up work Reinforced articulated arm 400 x 310 mm Low-power 6 W LED module IP20 rating for indoor use Stable metal construction Precise illumination that supports accurate work The reinforced design places the emphasis on consistent, shadow‑free light where it matters: directly on the workpiece. The lamp’s adjustable arm (400 x 310 mm) allows fine positioning without drift, supporting delicate inspection and assembly tasks. The integrated 6 W LED produces a steady output suitable for extended use, while the specification for the electrical supply is listed as 220 V, enabling straightforward integration into standard workshop installations. These measurable characteristics reduce rework and help maintain production quality. Efficient light output with clear electrical data A compact LED module with a rating of 12 V / 6 W delivers concentrated illumination with low energy consumption, translating into lower running costs and reduced heat at the point of use. The unit’s IP20 protection indicates suitability for dry, indoor environments such as benches, inspection stations and tool rooms; it is not intended for direct exposure to moisture. The combination of low wattage and focused optics makes the lamp an economical choice where reliable task lighting is required without complex installation. Robust mounting and ergonomic handling for everyday tasks The lamp’s reinforced fittings and articulated arm are designed to withstand frequent adjustment and the demands of workshop routines. The robust construction reduces maintenance needs and keeps the light stable during precision operations. With an overall weight of 2 kg the assembly remains manageable for bench mounting while providing the solidity required for repetitive positioning. The design supports ergonomic working postures by bringing light to the required location quickly and securely. Why Metav is a trustworthy procurement partner Selecting the right tool is as important as the tool itself; Metav Werkzeuge provides a practical supply route from its base in Emmerich, acting as a quality filter for the European market. Metav’s long experience and broad product range ensure dependable availability and a central procurement solution for workshops and trade; this partner approach complements the durability and energy efficiency of the lamp, helping to keep operations productive and predictable. Contact Metav Werkzeuge for tailored advice on the Vertex VLED-30L, arrange swift delivery from Emmerich and confirm suitability for specific workshop applications Technical data Article number / SKU: VLED-30L GTIN: 4061905083730 Manufacturer: Vertex Facts Arm: 400 x 310 mm Weight: 2 kg LED rating: 12 V / 6 W Supply: 220 V Protection: IP20 eCl@ss: 27110640 ETIM: EC001959 Special features Reinforced articulated arm Stable metal construction Low energy consumption Intended for indoor, dry environments FAQ Is the lamp suitable for workbench inspection tasks? The VLED-30L is designed for bench and inspection lighting, offering an adjustable 400 x 310 mm arm and a focused 6 W LED for close-up work. What electrical supply does the lamp require? The unit is listed with a supply rating of 220 V and an LED module specified as 12 V / 6 W; please check site requirements before installation. Can the lamp be used in damp or outdoor locations? No, the IP20 rating indicates suitability for dry, indoor environments only; the lamp is not protected against moisture. Who manufactures the lamp and where is it made? The lamp is produced by Vertex; full manufacturer details are provided below. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

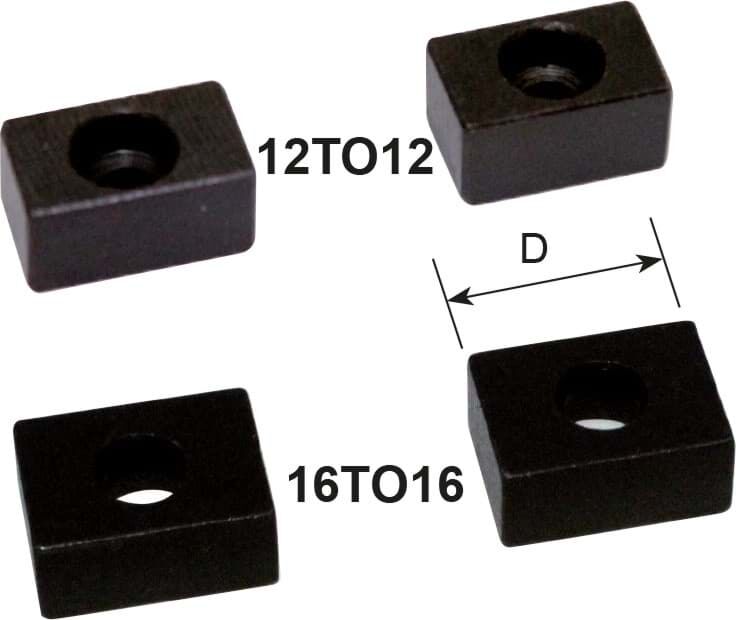

12x20x10mm Block for Guide Rail, M4 T-Slot, S45C Steel, Set of 4 - Vertex
Take advantage of a compact, robust guide-rail block that combines precise dimensions, machinable S45C steel and a threaded M4 fixing for reliable fixture assembly; order components directly via Metav Werkzeuge or request specialist advice from the consultants. Block 12TO12 – Guide-rail block, compact 12 × 20 × 10 mm (Vertex) A Block 12TO12 engineered as a compact guide-rail block for precise positioning and secure mounting in fixtures and small-scale assemblies Compact dimensions 12 x 20 x 10 mm Machined from S45C structural steel Threaded T-slot M4 for secure mounting Supplied as a set of 4 components Precise alignment in minimal space The compact 12 x 20 x 10 mm footprint delivers accurate positioning where space is restricted, ensuring consistent alignment without bulky hardware. Manufactured from S45C, a medium-carbon steel known for its machinability and strength, the component provides a stable base for repetitive operations and light assembly tasks. The design focuses on dimensional consistency and precision, reducing set-up time and minimising the need for frequent re-adjustments in jigs and fixtures. Secure fixing and straightforward integration A threaded T‑slot with M4 engagement enables direct, vibration-resistant fastening to standard guide rails and carrier plates. Supplied as a set of 4, the components simplify procurement for multi-point installations and replace worn blocks in matched groups to maintain parallelism. At 0.07 kg per block the low mass aids handling and keeps dynamic loads low, which benefits automated or semi-automated setups where minimised moving mass improves cycle stability. Robust performance for workshop use Designed for everyday workshop and light industrial environments, the block combines a machinable base material with a finish suitable for sliding and clamping applications on guide rail systems. The construction balances wear resistance with the ability to be reworked or adapted on conventional machine tools, supporting long service life and straightforward maintenance. The Vertex provenance signals consistent production standards, while compatibility with common mounting conventions keeps integration predictable and efficient. For technical clarification or to discuss suitability of Vertex components for specific fixtures, contact Metav Werkzeuge for expert guidance via email at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data Article number: 12TO12 GTIN: 4061905084003 eClass: 23300402 Core specifications Dimensions: 12 x 20 x 10 mm Weight: 0.07 kg Mounting thread: M4 T-slot Pieces per set: 4 Materials & features Material: S45C Intended use: for guide rail applications Supply configuration: set of 4 Manufacturer: Vertex FAQ What is the primary application of this block? The Vertex Block 12TO12 is intended as a compact guide‑rail block for positioning and secure mounting in fixtures, jigs and small assemblies. Is the block sold individually or as a set? The component is supplied as a set of 4, allowing immediate multi-point installation or matched replacements. Which material is used and what are the benefits? Made from S45C, the block offers a balance of machinability and tensile strength, making it suitable for workshop machining and rework if required. Which thread and mounting standard does it use? The block features a threaded T‑slot with M4 engagement, compatible with common guide‑rail fastening practices. Can the block be used on non-ferrous rails such as aluminium? The Vertex Block 12TO12 is primarily specified by material and thread; compatibility with aluminium or other rail materials depends on the assembly design and is typically achievable with appropriate fasteners and surface treatments. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
130mm Semi‑Universal Dividing Head Three-Point, MT2 Taper, 40:1 Ratio, 90° Tilt, 130mm Flange Diameter - Vertex
Take advantage of the combination of precise angular control, robust construction and multi-position capability for reliable indexing in production and workshop tasks; order the Vertex BS-0 directly via Metav Werkzeuge or consult our specialists for application advice. Vertex BS-0 Semi-Universal Dividing Head — 40:1 gear ratio & MT2 taper BS-0 is a semi-universal dividing head for precise indexing and indirect cutting operations on milling machines and drill presses, suitable for vertical and horizontal use Semi-universal design for versatile indexing 40:1 gear ratio for fine angular control 130 mm divider flange for larger workpieces Hardened, ground worm and tapered bearings Accurate angular control for repetitive machining The dividing head delivers repeatable results through its gear ratio 40:1, which enables fine subdivision of rotations with minimal backlash. This level of control reduces rework and shortens setup time when producing evenly spaced features such as gear teeth, bolt circles or fluted profiles. The mechanism’s smooth indexing contributes to consistent finishing results, translating machine capability into measurable production reliability. Flexible mounting and multi-plane operation With an axis height 100 mm and a 130 mm divider flange, the unit accommodates a wide range of workpiece sizes while remaining compact. The head permits dividing in both vertical and horizontal positions and offers a tilt of ±90° for inclined indexing operations. Indexing plates allow subdivision of the circumference into 15–49 parts, which supports common workshop tasks without the need for additional adapters or complex calculations. Built for endurance and precision Critical load-bearing elements are designed for longevity: the unit features a hardened and ground worm and precision tapered roller bearings, providing durable meshing and stable rotation under intermittent loads. The internal MT2 Morse taper enables secure tool or mandrel mounting, while multiple fixing holes accept 16 mm fasteners for rigid attachment to machine tables. The overall mass of 19 kg contributes to vibration damping during cutting, improving surface finish quality. Practical setup and supplied accessories The dividing head arrives with practical accessories and interface features to speed integration: the accessory set includes a TS-1 tailstock, indexing plates, a flange and an MT2 centring tip, simplifying alignment and concentric mounting of work. A base 160 x 91 mm facilitates stable positioning on most machine tables, and the total unit height of 173 mm helps plan clearances during multi-axis operations. These options make the device a versatile indexing solution for both prototype work and small-series production. For precise indexing in the workshop, rely on Metav Werkzeuge to source the Vertex BS-0 and request tailored advice from our technical consultants in Emmerich for an efficient integration into existing machinery. Technical data Article number: BS-0 GTIN: 4061905083273 Manufacturer: Vertex Core technical data Dimensions: 188 x 160 x 173 mm Weight: 19 kg Axis height: 100 mm Divider flange diameter: 130 mm Gear ratio: 40:1 Base size: 160 x 91 mm Fixing hole size: 16 mm Special features Semi-universal dividing head for indirect cutting Smooth tilting 90° for angled indexing Dividing possible in vertical and horizontal position Dividing discs allow 15–49 part divisions Internal MT2 Morse taper for centring/fixtures Accessories: TS-1 tailstock, flange, centring tip Hardened and ground worm Precision tapered roller bearings FAQ What machines is this dividing head compatible with? The Vertex BS-0 dividing head is suitable for use on milling machines and drill presses where an MT2 spindle or appropriate adaptor is provided for secure mounting. How fine can the indexing be with this unit? Indexing is achieved via the 40:1 gear ratio and the supplied dividing discs, enabling divisions of the circumference into 15–49 parts for common workshop requirements. Can the head be tilted for angled work? Yes, the unit provides smooth tilting up to ±90°, allowing indexed features to be produced at inclines as required. Which accessories are included or recommended? Standard accessories shown in the product gallery include a TS-1 tailstock, dividing discs, a flange and an MT2 centring tip; these simplify setup and ensure concentric clamping. Is the construction suitable for heavy-duty workshop use? The presence of a hardened and ground worm together with precision tapered roller bearings and a mass of 19 kg make the head robust for repeated workshop tasks while damping vibration. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

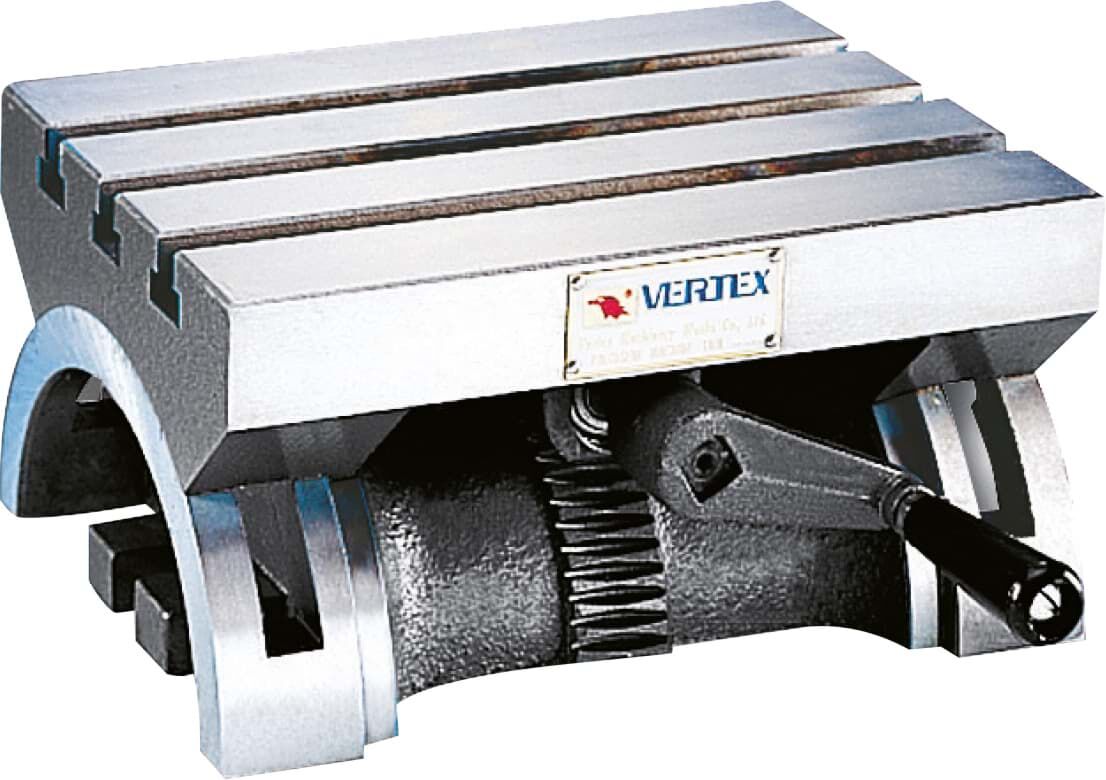

132x185mm Tilting Vice Table 45° Swivel, 95mm Height, 6 Kg Load Capacity - Vertex
Take advantage of the combination of FC25 cast iron stability, a compact 132×185 mm work surface and a 45° swivelling function to speed up setup times and secure small workpieces with repeatable accuracy. Order the VP-180 directly via Metav Werkzeuge or ask the Metav consultants for application advice. Vertex VP-180 Tilting Clamping Table – 45° swivel, 132×185 mm work surface The VP-180 tilting clamping table is a compact workholding device designed for precise angular positioning in milling, drilling and inspection tasks. Swivels 45° for angular clamping Compact table 132×185 mm FC25 cast iron body for stability Max load 6 kg for small workpieces Stable base for repeatable precision The VP-180 is built from FC25 cast iron, a material chosen for its excellent damping and dimensional stability. This construction reduces vibration during machining, which in turn preserves tool life and improves surface finish. The 132×185 mm top provides a defined clamping area that is easy to align on small milling machines or inspection benches; the low centre of gravity, ensured by a weight of 7.38 kg, keeps the unit secure under load. For users unfamiliar with material grades, FC25 refers to a grey cast iron grade commonly used in machine components where stiffness and vibration absorption are required. Faster setups with accurate angular clamping A 45° swivel capability allows angled operations to be completed without repeated repositioning of the workpiece, saving time and reducing cumulative alignment errors. The tilting mechanism is engineered for stable indexing so that once an angle is set it remains fixed under machining forces. With a max load of 6 kg, the device is suited to smaller components and precision fixtures where control and repeatability matter more than raw clamping capacity. The workholding concept reduces auxiliary operations and supports more efficient batch processing for small to medium series. Compact, easy to integrate into existing workflows At a height of 95 mm, the unit integrates smoothly into many machine set-ups and measuring stations without raising the centre of operation excessively. The compact footprint and predictable mounting interfaces simplify fixturing and allow the table to be combined with modular clamps or vices. Routine maintenance is straightforward: surfaces should be kept clean and light lubrication applied to the swivel joint to maintain smooth indexing. The design supports quick adoption in workshops seeking a reliable, cost-effective solution for angled clamping and inspection. For compact, accurate angular clamping from Vertex, contact Metav Werkzeuge in Emmerich for tailored advice and ordering support via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data SKU: VP-180 GTIN: 4061905084287 ECLASS: 21020702 Core figures Weight: 7.38 kg Height: 95 mm Table surface: 132×185 mm Max load: 6 kg Materials / Special features Material: FC25 cast iron Function: Swivels 45° Type: Tilting clamping table FAQ What is the maximum load capacity of the VP-180? The VP-180 tilting clamping table has a maximum load capacity of 6 kg, suitable for small components and precision fixtures. Which material is used for the body and why is it important? The body is made of FC25 cast iron; this material provides vibration damping and dimensional stability, which improves surface finish and tool life during machining. How large is the usable table surface? The usable table surface measures 132×185 mm, providing a compact yet well-defined area for clamping small workpieces and fixtures. Can the table be integrated into existing milling or inspection setups? Yes, with a height of 95 mm and a compact footprint, the unit is designed for straightforward integration into many machine tables and inspection benches. Is the swivel angle fixed or adjustable? The clamping table swivels 45°, enabling angled machining operations without repeated repositioning of the workpiece. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
133mm Precision Angle Clamping Mount Height-Adjustable Rotating, T-Slot M12 - Vertex
Take advantage of the combination of precision, robust stability and flexible fixturing to speed up setup times and improve repeatability on the shop floor. Order the Vertex VUA-408 directly via Metav Werkzeuge or contact our advisers for specification guidance. VUA-408 Precision Clamping Angle — height-adjustable and rotatable (Vertex) The VUA-408 Precision Clamping Angle is a height-adjustable, rotatable clamping solution intended for accurate fixturing on machine tables and inspection setups Height-adjustable, rotatable clamping geometry Robust base: 110 x 182 mm footprint Compatible with 100 x 200 mm machine tables T-slot M12 for secure fixture mounting Faster setups and measurable repeatability The VUA-408 delivers precision fixturing that reduces setup time and minimises rework. The height-adjustable and rotatable design allows components to be positioned quickly and locked in place without complex shims or auxiliary tooling. The presence of a T-slot M12 means standard clamping bolts can be used to secure the angle directly to fixtures or machine tables; for operations that require repeated referencing, this configuration improves positional repeatability and shortens overall cycle time. Stable support for machining and inspection A substantial mass and contact area contribute to consistent results during machining or metrology checks. With a footprint of 110 x 182 mm and a gross mass of 15 kg, the unit resists vibration and maintains orientation once clamped. This inherent stability benefits both cutting and measuring tasks by reducing chatter, lowering the risk of part deviation and enabling tighter tolerances to be maintained without elaborate damping measures. Flexible fixturing compatible with common tables Designed for integration with common machine and inspection tables, the angle is compatible with 100 x 200 mm table patterns and accepts M12 T-slot mounting. This makes the device suitable for a range of components and fixture setups found in production, toolroom and quality departments. The rotatable head permits angular adjustments without unclamping the base, offering a practical way to adapt to varying workpiece geometries while maintaining a single datum reference. Practical benefits on the workshop floor Beyond technical advantages, the clamping angle simplifies daily workflows: fewer setup steps, reliable clamping interfaces and less reliance on bespoke fixtures. For operations seeking productivity gains, the combination of robust construction and convenient adjustment supports faster throughput and steadier quality. Supplied as a compact, ready-to-install item, the unit integrates into existing fixturing strategies with minimal additional tooling. Contact Metav Werkzeuge in Emmerich for tailored fixturing advice and to arrange delivery of the Vertex VUA-408 — eMail info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: VUA-408 GTIN: 4061905085048 Manufacturer: Vertex Weight: 15 kg Height: 133 mm Footprint: 110 x 182 mm Machine table compatibility: 100 x 200 mm T-slot size: M12 Facts Weight: 15 kg Height: 133 mm Footprint: 110 x 182 mm Machine table: 100 x 200 mm T-slot: M12 Special features Height-adjustable and rotatable Designed for machine table fixturing T-slot M12 mounting SKU: VUA-408 FAQ What applications is this clamping angle intended for? The VUA-408 is intended for precision fixturing on machine tables and inspection setups where controlled angular positioning and stable support are required. How is the VUA-408 mounted to a machine table? Mounting is achieved via the integrated T-slot interface; the unit accepts M12 clamping hardware for secure attachment to compatible 100 x 200 mm table patterns. Does the device require additional fixtures to allow rotation? No additional fixtures are required for basic rotation; the height-adjustable and rotatable mechanism permits angular adjustment and locking without auxiliary shims. What are the physical dimensions relevant for bench or table planning? Key dimensions are a footprint of 110 x 182 mm and an overall height of 133 mm, with a mass of 15 kg—useful for planning base support and clamping arrangements. Is the VUA-408 suitable for repeated production referencing? Yes. The combination of stable mass, secure M12 T-slot mounting and adjustable geometry makes the VUA-408 well suited for repeated referencing in production and inspection processes. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
138mm 90° Head For R-Type Drill Shank, Max 2000 r.p.m., Fits 85.725–86mm Bore - Vertex
A compact 90° right-angle head that pairs a 138 mm body diameter with up to 2,000 rpm for dependable angled machining and reduced cycle times. Its sturdy 12.5 kg construction provides stable cutting conditions and consistent surface quality. Order the VRA-R8 directly via Metav Werkzeuge or ask our consultants if needed. VRA-R8 90° right-angle head — Max 2,000 rpm, 138 mm body VRA-R8 is a right-angle milling head designed for precision angled machining on milling centres and machining stations, offering a compact footprint and reliable performance for workshop and industrial applications 90° right-angle head for angled machining Max 2,000 rpm operational speed 138 mm body diameter for robust support Sturdy 12.5 kg construction for stability Consistent performance for angled operations The 90-degree configuration delivers reliable, repeatable results when the tool axis must be reoriented. With a rated maximum speed of 2,000 rpm, the head maintains stable rotational behaviour under typical finishing and roughing feeds. The relatively large 138 mm body diameter increases bearing spacing, reducing deflection and helping to preserve tool geometry during side loads. That translates into fewer reworks and better dimensional adherence on angled faces. Heavy-duty build that minimises vibration A mass of 12.5 kg and a compact, rigid housing combine to dampen vibration and improve surface finish during aggressive cuts. The robust construction supports consistent concentricity and reduces chattering, which in turn extends cutting-edge life and lowers tooling costs over time. The design concentrates mass close to the mount, keeping inertia where it benefits machining stability without compromising accessibility at the workpiece. Integration and compatibility with Type R drill heads The head is compatible with a Type R drill head diameter range of 85.725–86 mm, enabling straightforward integration with existing spindle interfaces of the same family. The connection geometry and maximum speed rating should be checked against the host machine’s spindle specification; where matched, the attachment functions as an efficient means to add angled machining capability without major machine modifications. Clear geometric compatibility shortens retrofit time and reduces setup complexity. Logistics, supply certainty and workshop benefits Availability is supported by fast dispatch from stock, reducing downtime compared with long-lead custom units. For shops seeking to add angled operations without complicating production flow, this right-angle head provides a pragmatic balance between performance and ease of supply. Combined with routine maintenance, the unit supports predictable throughput and helps maintain delivery reliability in production schedules. Contact Metav Werkzeuge in Emmerich for technical compatibility checks and to reserve a Vertex VRA-R8 90° right-angle head; email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: VRA-R8 GTIN: 4061905084720 EClass: 21019290 Facts Body diameter: 138 mm Maximum speed: 2,000 rpm Weight: 12.5 kg Drill head (Type R) diameter: 85.725–86 mm Special features 90° orientation for angled machining Compatible with Type R drill head Ø 85.725–86 mm Fast dispatch from stock Brand: Vertex FAQ What spindle speed is recommended for this right-angle head? The VRA-R8 is rated to a maximum of 2,000 rpm; adherence to this limit ensures bearing life and consistent performance under normal cutting conditions. Is the VRA-R8 suitable for heavy side-loading operations? The 12.5 kg mass and 138 mm body diameter give the unit improved damping and reduced deflection, making it suitable for moderate side loads typical of angled milling and finishing. Which drill head sizes are compatible with the attachment? Compatibility is provided for Type R drill heads with a diameter of 85.725–86 mm, permitting direct integration where the host machine accepts that interface. How does the head contribute to tool life and surface quality? Stable bearing spacing and rigid housing minimise vibration and runout, which helps to extend cutting tool life and produce a more consistent surface finish on angled faces. Can this head be used across different machining centres? Where the spindle or mounting interface matches the Type R dimension range and the machine can operate within the head’s maximum speed, the VRA-R8 is suitable for retrofit on compatible milling centres. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

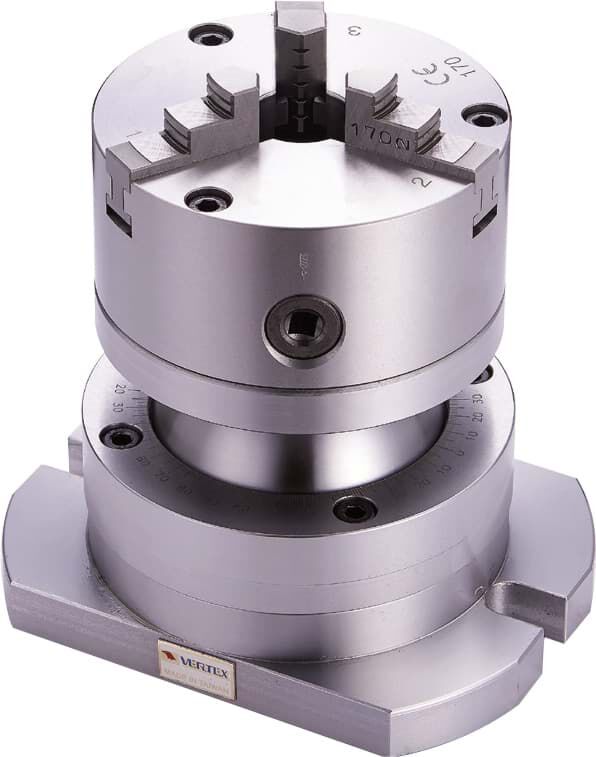

140mm Angle Clamp With Free-Angle Rotary Plate, 15 Kg Load Capacity - Vertex
Benefit from a combination of precision, reliable load capacity and flexible orientation to keep setups fast and repeatable; the clamping solution delivers consistent positioning and robust support for machining and inspection. Order directly via Metav Werkzeuge or consult our advisors for tailored recommendations. VAV-4J clamping angle with free-angle rotary plate — 0.01 mm accuracy, 15 kg load The VAV-4J is a clamping angle with a free-angle rotary plate designed for precise workholding and flexible orientation in machining, measurement and inspection applications. 0.01 mm positioning accuracy 15 kg maximum load capacity 140 mm rotary plate diameter Robust 16 kg construction for stability High-precision positioning for repeatable setups The device provides 0.01 mm of repeatable positioning, which secures consistent alignment across multiple setups and reduces rework. The finely machined indexing surfaces and tight tolerances mean that the angle can be used as a reference element in both production and quality-control environments. For operations where small deviations cause downstream issues, this level of precision shortens inspection cycles and supports reliable component interchangeability. Flexible orientation reduces setup time A continuous free-angle rotary plate with a 140 mm diameter allows rapid adjustment of the clamped workpiece without the need to reposition ancillary fixtures. The smooth swivel action simplifies angular alignment, so machining programmes or measuring sequences can proceed with minimal interruption. This flexibility translates into fewer changeovers, lower setup overhead and a more efficient workflow when varied angles are required within a single production batch. Robust build for vibration-free clamping A solid construction of 16 kg mass combined with a 15 kg rated load capacity provides the rigidity needed to minimise vibration during machining and measurement. The elevated stability reduces chatter and improves surface finish, while the compact 203 mm profile offers a secure footprint on the machine bed or inspection table. Reduced movement under cutting forces helps protect both the workpiece and cutting tools, extending tool life and improving overall process economy. Suited for workshop and inspection environments Engineered for general-purpose clamping and metrology tasks, this angle plate supports a range of production and lab applications. The combination of accurate indexing and a robust platform makes it suitable for repeatable setups, demanding inspection fixtures or small-series machining. Where traceable positioning is important, the VAV-4J offers a pragmatic balance between precise orientation and everyday usability, making it a dependable component in both maintenance shops and quality departments. Contact Metav Werkzeuge in Emmerich for tailored advice on integrating the Vertex clamping angle into existing workflows — eMail info@metav-werkzeuge.com or call +49 2822 7131930 to discuss specifications and delivery. Technical Data Article number: VAV-4J GTIN: 4061905084843 Manufacturer: Vertex Facts Rotary plate diameter: 140 mm Height: 203 mm Weight: 16 kg Maximum load: 15 kg Accuracy: 0.01 mm ECLASS: 21020601 Special features Clamping angle with free-angle rotary plate Designed for precision workholding and inspection Brand: Vertex FAQ What positioning accuracy can be expected with this clamping angle? The clamping angle delivers an accuracy of 0.01 mm, enabling precise and repeatable setups for measurement and machining tasks. What load can the rotary plate support? The rotary plate supports a maximum load of 15 kg while the overall construction weight is 16 kg to ensure stable clamping. Which applications are appropriate for this device? Typical uses include workholding for small-series machining, fixture setups and inspection tasks where controlled orientation and repeatability are required. How does the free-angle rotary plate improve workflow? The continuous rotation of the plate simplifies angular alignment and reduces the need for repositioning, shortening setup times and lowering changeover effort. Which brand and SKU identify this product? This product is the Vertex clamping angle, SKU VAV-4J, supplied for precision workholding in workshop and inspection environments. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
140mm Clamping Ring For Soft Jaw Inserts, 1 kg - Vertex
Secure, precise clamping for soft jaw setups with a 140 mm nominal diameter and lightweight handling for faster changeovers. Benefit from compatibility with 5" chuck jaws and dependable repeatability — request the ring directly via Metav Werkzeuge or consult our advisers for accessory matching. Clamping ring VFR-05 — for soft chuck jaws, 140 mm (Vertex) A robust Clamping ring VFR-05 engineered to secure soft jaw liners on 5-inch chucks, ideal for workshop turning and light industrial applications. 140 mm nominal diameter Compatible with 5" soft chuck jaws Robust design for repeatable clamping SKU VFR-05 by Vertex Faster setup through secure, repeatable clamping The clamping ring provides a stable interface between the chuck and soft jaw liners, delivering consistent contact pressure across the clamped component. With a 140 mm nominal diameter and compatibility with standard 5" chucks, the accessory reduces the need for frequent readjustment. This results in shorter setup times and fewer interruptions to production, supporting a measurable increase in operational efficiency while maintaining workpiece integrity. Protects delicate surfaces and reduces rework Using soft jaw liners together with the ring minimises surface damage on sensitive parts. The combination of the ring and liners offers repeatable clamping that keeps components aligned within close tolerances, lowering the risk of rejects and subsequent rework. For jobs where finish quality matters, this approach preserves machining tolerances and contributes to a more consistent end result. Designed for practical workshop handling Weighing approximately 1 kg, the clamping accessory is light enough for quick handling yet sturdy enough to hold workpieces securely during rotation. Its straightforward form factor simplifies installation and removal, supporting fast tool changes and reduced downtime. Combined with fast shipping from the Metav webshop, the component is suited to busy shops that value downtime reduction and predictable tooling supply. Clear compatibility checks and straightforward use Compatibility is indicated for 5" soft chuck jaws; fitment can be confirmed by measuring the jaw seating and nominal diameter. A precision caliper is useful to verify the 140 mm dimension and ensure the ring matches the backing geometry of the soft jaws. Where minor adjustments are needed, simple alignment checks are sufficient — the design keeps fitting and removal intuitive for shopfloor staff with basic tooling knowledge. Request the Vertex VFR-05 clamping ring via Metav Werkzeuge for reliable workshop clamping — contact Metav Werkzeuge in Emmerich at info@metav-werkzeuge.com or call +49 2822 7131930 for precise compatibility advice Technical Data Article number: VFR-05 GTIN: 4061905084478 Manufacturer: Vertex Core data Diameter: 140 mm Weight: 1 kg Special features Suitable for 5" soft chuck jaws For soft jaw liners / soft jaw faces Fast shipping from Metav webshop FAQ Is this ring compatible with my 5" chuck? The VFR-05 clamping ring is designed specifically for use with 5" soft chuck jaws and a nominal diameter of 140 mm, ensuring correct fit where those dimensions match. Can the ring be used to protect delicate components? Yes, paired with soft jaw liners the clamping ring minimises surface damage and supports secure, gentle holding of delicate parts during machining. How heavy is the accessory and is it easy to handle? The clamping ring weighs about 1 kg, offering lightweight handling for quick installation while maintaining sufficient mass for stable clamping. What tool is recommended to check fitment? A precision caliper is recommended to measure the jaw seating and confirm the 140 mm diameter for a reliable fit. How quickly is delivery arranged? Fast shipping is available through the Metav webshop, facilitating prompt replenishment of workshop supplies. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
14mm Automatic Centre Punch, 120mm Length - Vertex
The combination of an automatic impact mechanism, a 14 mm tip and a compact 120 mm form delivers consistent, defined centre marks while keeping handling light and precise. Order directly via Metav Werkzeuge or contact their consultants for specification advice and supply from the Emmerich quality hub. Automatic centre punch VACP-1 — 14 mm tip, 120 mm length (Vertex) The Automatic centre punch is a hand-held centre marker designed for precise, repeatable centre punching in metalworking and general workshop tasks. Automatic impact mechanism for repeatable marks 14 mm tip diameter for precise centre points 120 mm overall length for secure handling Lightweight at 0.07 kg for comfortable use Consistent centre marking for reliable drill starts A robust mechanical impact delivers precision without an external hammer, ensuring repeatability across successive marks. The spring-driven action produces a defined indentation that simplifies drill alignment and reduces wander at the start of a hole. For workshop environments where process reliability matters, this compact marker helps maintain consistent part quality and faster set-up times. The simple mechanical principle also makes the result easy to predict, which benefits repeat production runs and occasional one-off jobs alike. Designed for fast, ergonomic workshop operation With an overall length of 120 mm and a mass of only 0.07 kg, the tool balances positive control with low operator fatigue. The body length provides a comfortable grip while the automatic striking action removes the need for separate striking tools, speeding up marking tasks and reducing handling steps. This combination of compact design and automated impact delivers measurable time savings in marking workflows and contributes directly to improved throughput and operator comfort. Low-maintenance tool that integrates into workshop routines The straightforward mechanical construction minimises maintenance requirements and supports long service life under normal workshop use. Periodic cleaning and occasional lubrication of the mechanism are normally sufficient to keep performance stable. The 14 mm tip dimension provides a clearly defined contact area for consistent centre points. For confirmation on compatibility with specific materials or applications, Metav Werkzeuge can supply additional technical details and guidance by email or phone. Choose Vertex quality: contact Metav Werkzeuge for tailored advice and reliable supply from our Emmerich quality hub. Technical Data Article number: VACP-1 GTIN: 4061905083358 Manufacturer: Vertex Machinery Works Co., Ltd. Core specifications Diameter: 14 mm Length: 120 mm Weight: 0.07 kg eClass: 21022304 Special features Automatic centre punch mechanism Compact hand-held design SKU: VACP-1 Product type: Centre punch FAQ How does the automatic mechanism operate? The automatic mechanism in the Automatic centre punch uses a spring‑driven striker that creates an impact when pressed, producing a repeatable indentation without a hammer. What size of mark does the tip make? The tool is specified with a 14 mm tip diameter, which gives a clearly defined centre point suitable for drill starting and alignment tasks. Is the tool suitable for regular workshop use? Yes; the VACP-1 from Vertex is designed for routine workshop marking and benefits from a simple mechanical design that supports regular use with minimal maintenance. How should the centre punch be maintained? Keep the tool clean and free of swarf; occasional light lubrication of the mechanism is recommended to maintain smooth operation and consistent striking force. Can the centre marks be used as drill start points? The indentations produced by the VACP-1 provide reliable drill start points and help to prevent drill wandering when beginning a hole. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
38-Piece 12mm T-Slot Bolt, Flange and Coupling Kit, Black Oxide Heat-Treated Steel - Vertex
The combination of a 38-piece configuration, M10 thread security and a heat-treated steel with black oxide finish makes this clamping set a reliable choice for fixture work and machine-table setups. Benefit from fast parts availability and the precision expected from Vertex — order the Bolt and T‑slot Kit via Metav Werkzeuge or contact our consultants for tailored advice. Bolt and T‑slot Kit – 38-piece clamping set with M10 thread (Vertex) Bolt and T‑slot Kit is a compact clamping set designed for versatile fixturing on machine tables and workbenches, compatible with standard T-slots. 38-piece set for versatile clamping Robust M10 thread for secure fixing Compatible with 12 mm T-slots Heat-treated steel with black oxide finish Secure, repeatable clamping for production workflows The 38-piece clamping set delivers a consistent, repeatable hold for fixtures and jigs, reducing setup variability. The M10 threaded components provide a strong mechanical interface, well suited to routine tightening and reassembly. Compatibility with T-slot 12 mm tables means straightforward integration on standard machine tables and assembly benches. For workshop planners this translates into fewer interruptions, faster changeovers and a measurable increase in uptime. Comprehensive kit composition to simplify setup The set contains six T-nuts, four flanges, four couplings and twenty-four clamping screws, supplied as a coordinated kit to cover most small- to medium-scale fixturing needs. The organised assortment removes the need to source individual parts and speeds clamping operations during batch changes. Where fixture design is iterative, having matched parts on hand shortens the iteration cycle and supports modular jig construction with consistent torque behaviour. Material choice that balances toughness and corrosion resistance Manufactured from heat-treated steel and finished with a black oxide finish, the components combine mechanical strength with surface protection that reduces visible wear and resists light corrosion. Heat treatment increases fatigue resistance in the bolts and clamping elements, while the dark oxide layer helps to minimise glare at the machine table and improves adhesion for anti-slip applications. The result is a durable clamping solution requiring minimal ongoing maintenance. Typical applications and compatibility considerations This clamping set is aimed at metalworking and general workshop environments where standard T-slots are used for fixturing — from small milling and drilling setups to assembly benches. The kit suits applications needing robust thread engagement and rapid repositioning of clamps. For non-standard slot widths or specialised materials, selection of matching T-nuts and clamping hardware should be verified; Metav's advisors can confirm compatibility with existing tables and fixtures. Contact Metav Werkzeuge in Emmerich for delivery details on the Vertex Bolt and T‑slot Kit (VCK-1012) and for application-specific guidance from our precision team Technical data Article number: VCK-1012 GTIN: 4061905083778 Manufacturer: Vertex Weight: 3 kg Facts Thread: M10 T-slot width: 12 mm Set pieces: 38 Special features Contents: 6 T-nuts, 4 flanges, 4 couplings, 24 clamping screws Material: heat-treated steel with black oxide finish SKU: VCK-1012 FAQ What components are included in the clamping kit? The Bolt and T‑slot Kit includes six T-nuts, four flanges, four couplings and twenty-four clamping screws to form a complete 38-piece set. Is the kit compatible with my machine table? Compatibility depends on slot dimensions; the set is designed for T-slot 12 mm tables. For confirmation, Metav Werkzeuge can advise on fitment with existing machine tables. What advantages does the black oxide finish provide? The black oxide finish offers surface protection against light corrosion, reduces glare at the work surface and enhances wear resistance for the clamping components. Can the clamping screws handle repeated tightening in production use? Yes, the M10 thread specification and heat-treated steel construction provide the mechanical durability required for repeated tightening and routine production use. Who manufactures the kit and what is the product code? The kit is produced by Vertex and sold under SKU VCK-1012, designed for reliable workshop fixturing applications. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
50mm Toggle Clamp Vertical Base Zinc Plated With Hook, 1500N Thrust/1800N Hold - Kukamet
Take advantage of the combination of robust holding performance, corrosion-resistant zinc-plated construction and easy adjustability for reliable, repeatable clamping in production and workshop fixtures; order directly via Metav Werkzeuge or consult our technical team for application support. Kukamet 412 Latch Clamp — Vertical-foot, zinc-plated with hook engagement, 1.8 kN holding force Kukamet 412 is a compact latch clamp designed for secure fastening in fixtures and jigs, combining a vertical-foot mounting with a hooked engagement for rapid, repeatable closures. Vertical-foot mounting for stable installation Zinc-plated finish for basic corrosion protection 1,800 N holding force for secure locking 50 mm adjustable threaded spindle Proven performance for secure fixtures The latch unit delivers measurable reliability: a 1,500 N clamping force paired with a 1,800 N holding force provides a clear safety margin for repeatable closures in production environments. The 50 mm threaded spindle allows straightforward fine adjustment of the clamping gap, enabling consistent contact pressure across workpieces. Such quantifiable performance reduces rework and supports a predictable setup time on assembly stations. Simple installation and fast, repeatable operation Engineered for efficient mounting, the vertical-foot configuration provides a compact footprint and stable attachment to fixture plates. The clamp is supplied with hook, ensuring positive engagement and preventing unintended release under vibration. At 0.21 kg, the unit is lightweight yet robust, simplifying handling during installation and facilitating modular fixture designs where rapid reconfiguration is required. Durable, low-maintenance design for daily workshop use A zinc-plated finish gives the clamp basic resistance to surface corrosion, extending service life in standard workshop conditions while keeping maintenance demands low. The straightforward mechanical design supports longevity and uncomplicated repair when required, making this latch an effective choice for production lines and small-batch manufacturing where reliability and rapid repeatability matter. Metav Werkzeuge’s supply from Emmerich ensures consistent product quality and dependable stock availability. Contact Metav Werkzeuge for tailored technical advice and dependable supply of the Kukamet 412 latch clamp — email info@metav-werkzeuge.com or call +49 2822 7131930 for specification support and fast delivery from Emmerich Technical data Article number: 412-2 GTIN: 8680731502558 Designation: Latch clamp 412 by Kukamet Mounting: vertical foot Facts Weight: 0.21 kg Max clamping force: 1,500 N Max holding force: 1,800 N Thread length: 50 mm Special features Material: zinc-plated steel With hook eClass: 21041718 ETIM: EC011973 Category: Clamping tools FAQ What clamping and holding forces are specified for this clamp? The Kukamet 412 latch clamp (SKU 412-2) specifies a clamping force of up to 1,500 N and a holding force of up to 1,800 N. How is the clamp mounted and adjusted? Mounting is via a vertical foot; adjustment is made using the 50 mm threaded spindle supplied for fine tuning of the clamping position. Is the clamp suitable for use in humid workshop conditions? The clamp is zinc-plated, which provides basic corrosion protection for typical workshop environments; for aggressive or outdoor exposures additional protection is recommended. Does the clamp include a hook for positive engagement? Yes, the unit is supplied with a hook engagement to ensure secure latching and resistance to unintentional release. How heavy is the clamp and what does that mean for fixture design? At 0.21 kg the clamp is lightweight, which supports modular fixture layouts and simplifies handling during installation or reconfiguration. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1500 N Druckkraft, 12 mm Kolbendurchmesser, waagerechter Fuß, verzinkt mit Gusskörper, Haltekraft 3700 N - Kukamet
Der Pneumatische Schubstangenspanner kombiniert verzinkten Gusskörper, kompakte Bauform und 1500 N Schubkraft für zuverlässige Spannlösungen in der Werkstatt; die hohe Haltekraft von 3700 N sorgt für sichere Fixierung, der waagerechte Fuß erleichtert den Einbau. Bestellen Sie das Gerät direkt über Metav oder kontaktieren Sie unsere Beratung bei technischen Fragen. Pneumatischer Schubstangenspanner von Kukamet Der Pneumatische Schubstangenspanner ist ein pneumatisch betätigter Spannkörper für wiederholte Spannvorgänge in Fertigung und Montage und eignet sich insbesondere für robuste Werkstattanwendungen. Verzinkter Gusskörper für lange Lebensdauer Waagerechter Fuß für einfache Montage Druckkraft 1500 N für schnellen Vorschub Haltekraft 3700 N für sichere Fixierung Kompaktes Gewicht 1,37 kg für flexible Einbaustandorte Robuste Bauweise reduziert Wartungsaufwand und Ausfallzeiten Der verzinkte Gusskörper bietet effektiven Korrosionsschutz und mechanische Stabilität bei häufiger Beanspruchung. Durch die Oberflächenveredelung wird die Lebensdauer erhöht, somit sinken Wartungsaufwand und Stillstandszeiten. Anwender profitieren von geringeren Instandsetzungskosten und verlässlicher Wiederholgenauigkeit bei Serienprozessen. Präzise Kraftverteilung für sichere Spannvorgänge Mit einer Druckkraft von 1500 N und einer Haltekraft von 3700 N gewährleistet das Gerät kraftvolle Bewegung und zuverlässige Verriegelung der Spannposition. Der Kolbendurchmesser von 12 mm sorgt für direkte Kraftübertragung, wodurch wiederholte Spannzyklen kontrolliert und reproduzierbar ablaufen. Pneumatische Betätigung bedeutet zudem schnelle Reaktionszeiten und einfache Anbindung an vorhandene Druckluftinstallationen. Einbaufreundliche Konstruktion und vielseitige Einsetzbarkeit Die Befestigungsart mit waagerechtem Fuß vereinfacht die Montage auf Vorrichtungen und Spannvorrichtungen; das geringe Gewicht von 1,37 kg ermöglicht den Einsatz auch in beengten Einbausituationen. Das Gerät ist als Hebelspanner konzipiert und eignet sich für Werkstattautomation, Prüffelder und Fertigungsstraßen, wo kompakte, zuverlässige Spanntechnik gefragt ist. Bestellen Sie den Kukamet Pneumatischen Schubstangenspanner über Metav und sichern Sie sich robuste Spannkraft, schnelle Verfügbarkeit sowie kompetente Beratung per eMail (info@metav-werkzeuge.com) oder Telefon (+49 2822 7131930) Produktmerkmale Artikelnummer: 641-3-Q12 Marke: Kukamet Bezeichnung: Pneumatischer Schubstangenspanner, 641 Fakten Druckkraft (max): 1500 N Haltekraft (max): 3700 N Durchmesser Kolben: 12 mm Gewicht: 1,37 kg Besonderheiten Material: Verzinkt mit Gusskörper Befestigungsart: waagerechter Fuß Hebelspanner FAQ Für welche Anwendungen eignet sich der Spannkörper am besten? Der Pneumatische Schubstangenspanner von Kukamet eignet sich für wiederholte Spannvorgänge in Montage, Prüftechnik und Fertigung, SKU 641-3-Q12, und bietet durch seine robusten Eigenschaften hohe Prozesssicherheit. Welche Unterschiede bestehen zwischen Druckkraft und Haltekraft? Die Druckkraft beschreibt die Schubbewegung des Kolbens (bei diesem Modell 1500 N), die Haltekraft (3700 N) gibt an, wie stark die Fixierung im verriegelten Zustand wirkt; diese Werte gewährleisten beim Kukamet Pneumatischen Schubstangenspanner sichere Spannvorgänge. Wie wird der Spanner montiert und ausgerichtet? Die Montage erfolgt über den waagerechten Fuß; beim Kukamet Schubstangenspanner 641 empfiehlt sich eine feste Befestigung auf der Vorrichtung, um präzise Wiederholpositionen zu gewährleisten. Ist das Gerät für den Einsatz in feuchten Umgebungen geeignet? Der verzinkte Gusskörper bietet einen grundsätzlichen Korrosionsschutz, wodurch der Pneumatische Schubstangenspanner von Kukamet für normale Werkstattbedingungen gut geeignet ist; bei aggressiven Medien sind zusätzliche Schutzmaßnahmen zu prüfen.
1500 N Toggle Clamp Horizontal Base, 50 mm Thread Length, Zinc Plated, With Hook - Kukamet
Robust galvanised construction combined with a compact 0.21 kg body provides dependable clamping and holding performance — 1,500 N clamping force and 1,800 N holding force ensure secure fixtures on production lines and jigs. Order the Kukamet 411 latch clamp directly via Metav Werkzeuge or ask our consultants for technical clarification. Kukamet 411 horizontal toggle latch clamp — galvanised, with hook Kukamet 411 is a horizontal-base toggle latch clamp designed for secure, repeatable fastening in industrial and workshop fixtures Galvanised steel for corrosion resistance Stable horizontal base for easy mounting Clamping force up to 1,500 N Holding force up to 1,800 N Consistent, measurable performance that keeps production moving Engineered for reliable engagement, this horizontal toggle clamp delivers a defined clamping force of 1,500 N and a holding force of 1,800 N, values that translate into repeatable fixture pressure and reduced rework. The difference between clamping and holding forces is important: clamping force denotes the active closing pressure applied during locking, while holding force indicates the continued resistance against vibration and external loads. For assembly and welding jigs where repeatability and predictable load capacity matter, the clamp’s rated forces provide a clear basis for fixture design and risk assessment. The galvanised finish supports long-term dimension stability in common shop environments. Space-saving installation and adjustable reach for versatile fixtures The compact construction at 0.21 kg and the horizontal base make this latch clamp suitable where space is limited or multiple clamps are clustered. The thread length 50 mm allows for adjustable latch engagement so the closure can be fine-tuned for different panel thicknesses or mating plates. A small mass reduces dynamic loads on moving assemblies and simplifies handling during fixture setup. The integrated hook secures the mating part with minimal play, making the device appropriate for repetitive indexing operations and small-batch production where quick manual actuation is required. Galvanised surface and straightforward materials choice for durability A galvanised finish provides corrosion resistance in typical workshop atmospheres and helps maintain surface appearance and function without specialised coatings. Constructed for simple robustness rather than complex maintenance, the clamp is suitable for use on steel, aluminium and similar substrates when combined with appropriate fasteners. The horizontal-foot mounting enables direct attachment to flat plates or rails, reducing the need for additional brackets. Supplied through Metav Werkzeuge’s distribution in Emmerich, the component benefits from a reliable European supply chain and clear logistical traceability. Request a technical quote or delivery schedule from Metav Werkzeuge in Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930 for tailored advice on the Kukamet 411 latch clamp and assured European stock supply. Technical data Article number: 411-2 GTIN: 8680731502527 ECLASS: 21041718 ETIM: EC011973 Facts Weight: 0.21 kg Clamping force: 1,500 N Holding force: 1,800 N Thread length: 50 mm Special features Material: galvanised steel Fastening type: horizontal base With hook Category: spanner / clamp Brand: Kukamet FAQ What maximum forces can the clamp handle? The Kukamet 411 latch clamp is rated for a clamping force of 1,500 N and a holding force of 1,800 N, suitable for many light- to medium-duty fixture tasks. How is the clamp mounted? Mounting is via the horizontal base; the design allows direct attachment to flat plates or rails and was created to simplify positioning in jigs and fixtures. Is the finish suitable for mildly corrosive environments? Yes, the galvanised surface provides basic corrosion resistance appropriate for standard workshop conditions and indoor production areas. Can the hook be adjusted for different panel thicknesses? The device includes a 50 mm thread length for adjustment, enabling fine-tuning of engagement to match panel or plate variations. Which materials pair well with this toggle clamp? The clamp’s construction and fastening options make it compatible with steel and aluminium assemblies when used with appropriate fasteners; selection depends on the specific fixture design and load assumptions. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
