1500 N Pneumatic Pushrod Clamp Horizontal Base, Zinc-Plated Cast Body, 12 mm Piston - Kukamet
Take advantage of the robust galvanised cast body combined with 3,700 N holding force and a compact 1.09 kg mass for dependable clamping in repetitive production tasks. Order the Pneumatic push‑rod clamp directly via Metav Werkzeuge or consult the Metav team for application advice. Pneumatic Push‑rod Clamp 671 by Kukamet — 1,500 N thrust, 3,700 N holding force A versatile pneumatic push‑rod clamp, 671, designed for secure workholding in assembly lines, fixtures and automated jigs. Galvanised cast body Max holding force 3,700 N Piston diameter 12 mm Thrust force up to 1,500 N Compact design, weight 1.09 kg Consistent clamping that keeps production moving The Pneumatic push‑rod clamp 671 delivers reproducible clamping with a holding force of 3,700 N and a thrust force of 1,500 N, making it suitable for short-cycle production and fixture applications where repeatability matters. The piston diameter 12 mm balances force and stroke control, enabling precise engagement without excessive air consumption. For production planners, this combination translates into fewer rejects and steadier throughput, as the pneumatic actuation provides fast, reliable motion that integrates into pick-and-place sequences or repeated part positioning. Built to endure daily use with low maintenance Constructed with a galvanised cast body, the unit resists corrosion and mechanical wear in workshop and industrial environments, reducing maintenance intervals. The compact weight of 1.09 kg supports lightweight fixture designs while contributing to durable performance under continuous cycling. The horizontal foot mounting ensures a secure mechanical connection to frames and plates, and the robust housing protects internal components from impact and contamination, thereby extending service life and lowering running costs over multiple production campaigns. Simple integration for automated systems and fixtures Engineered for pneumatic installations, this clamp features a standard actuation style and mounting that eases mechanical and pneumatic integration into conveyors, jigs or assembly fixtures. The straightforward mechanical interface and stable clamping behaviour help to shorten setup time for tooling changes and accelerate commissioning in automated lines. The reliable actuation characteristics minimise process variability, supporting consistent part quality and a measurable improvement in operational efficiency for engineering and production teams. For specification advice and assured delivery, rely on Kukamet quality through Metav Werkzeuge — contact Metav Werkzeuge for detailed compatibility checks and supply at info@metav-werkzeuge.com or +49 2822 7131930 Technical data SKU: 671-3-Q12 GTIN: 8680731503166 Manufacturer: Kukamet Facts Weight: 1.09 kg Thrust force (max): 1,500 N Holding force (max): 3,700 N Piston diameter: 12 mm Special features Galvanised with cast body Horizontal foot mounting Category: Spanner eClass: 21041716 ETIM: EC011973 FAQ What clamping forces does the clamp provide? The Pneumatic push‑rod clamp 671 from Kukamet provides a holding force of 3,700 N and a thrust force up to 1,500 N (SKU 671-3-Q12). How is the clamp mounted to fixtures? The unit is supplied for horizontal foot mounting, allowing secure fixation to plates or jig frames for stable workholding. What is the unit weight and how does that affect fixture design? The clamp weighs 1.09 kg, which supports compact fixture design while maintaining mechanical stability during repeated cycles. Can this clamp be used in automated pneumatic systems? Yes, the pneumatic actuation with a 12 mm piston diameter is suitable for automated sequences and can be integrated into assembly lines and jigs where rapid, repeatable movement is required. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
1500 N Pneumatic Push‑Rod Clamp Horizontal Base, Zinc Plated, 12 mm Piston - Kukamet
Take advantage of a compact, zinc‑plated clamp that delivers reliable, repeatable clamping: 2,960 N holding force and 1,500 N push force ensure secure fixation in automated fixtures. Order the pneumatic push‑rod clamp directly via Metav Werkzeuge or consult its specialists for integration advice. Pneumatic Push‑Rod Clamp 621 — Kukamet clamp with 1,500 N push force and Ø12 mm piston A Pneumatic Push‑Rod Clamp 621 engineered for secure, repeatable clamping in industrial jigs, assembly stations and automated fixtures Zinc-plated corrosion protection Max holding force 2,960 N Push force 1,500 N piston Ø12 mm Horizontal foot for secure mounting Consistent, measurable clamping performance for production lines The pneumatic push‑rod clamp provides a clearly defined mechanical output that supports process stability: max push force 1,500 N (pushing) and holding force 2,960 N (retention). The difference between push and holding forces is explained by the clamp’s mechanical advantage and internal geometry; the actuator produces the specified push force while the clamping geometry and contact area determine the holding capability. Delivered with a 12 mm piston diameter, the actuator is suited to medium‑force fixture tasks where repeatability and cycle speed matter. Specified values allow straightforward calculation of fixture loads and cycle requirements for machine designers and fixture engineers. Robust construction and straightforward mounting for long service life Built from zinc‑plated components, the clamp resists surface corrosion in typical workshop and production environments, reducing the need for frequent replacement. The horizontal foot mounting ensures stable attachment to subplates and tooling plates, simplifying alignment in modular fixture systems. At 1.14 kg the unit is compact enough for dense fixture layouts while remaining substantial enough for rugged use. Corrosion protection and solid mounting reduce downtime and maintenance effort, supporting continuous operation in series production or demanding jobbing environments. Integration, procurement and traceable specifications for engineering teams Technical classification and identifiers are provided for procurement and system integration: eClass 21041716, ETIM EC011973 and GTIN 8682843521601 allow clear matching in BOMs and ERP systems. The clamp is supplied under SKU 621-3-Q12, facilitating ordering and inventory management. Where control or sequencing is required, the actuator can be incorporated into pneumatic valve circuits; piston dimension and force data support valve sizing and cycle timing calculations. The product’s compact profile and measurable output make it suitable for retrofitting existing fixtures as well as new automation designs. Contact Metav Werkzeuge to discuss integrating the Kukamet pneumatic push‑rod clamp 621 into production equipment and to arrange fast delivery and technical documentation from Emmerich Technical data SKU: 621-3-Q12 GTIN: 8682843521601 Manufacturer: Kukamet Facts Max holding force: 2,960 N Max push force: 1,500 N Piston diameter: 12 mm Weight: 1.14 kg eClass: 21041716 ETIM: EC011973 Special features Material: zinc‑plated Mounting: horizontal foot Category: clamp Rapid dispatch noted in product listing FAQ What clamping forces are specified for this clamp? The Kukamet pneumatic push‑rod clamp 621 specifies a push force of 1,500 N and a holding force of 2,960 N, values suitable for medium‑force fixture applications. Is the clamp suitable for integration into automated jigs? Yes, the clamp’s compact build, 12 mm piston, and horizontal foot mounting make it suitable for automated jigs and modular fixture systems. Which identifiers help with procurement and parts management? Use SKU 621-3-Q12, GTIN 8682843521601, eClass 21041716 and ETIM EC011973 for BOM and ERP matching. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
150ft-lb Pneumatic Pull Rod 90psi, 3000rpm, AC 110V/220V DC 24V - Vertex
Take advantage of the combination of 150 ft-lb torque, high rotational speed and robust 9.8 kg construction for consistent throughput in assembly operations; order directly via Metav Werkzeuge or consult the Metav team for application advice. Pneumatic Pull Rod PD-150-R8 — 150 ft-lb torque · 3,000 rpm · Vertex The Pneumatic Pull Rod PD-150-R8 is a compact pneumatic tensioning and fastening tool designed for industrial assembly tasks that demand controlled torque and rapid cycle rates. 150 ft-lb maximum torque Up to 3,000 rpm operational speed Operates at 90 psi (6.3 kg/cm²) Robust 9.8 kg construction Optimised throughput with measurable performance The PD-150-R8 delivers a rated 150 ft-lb of torque combined with a peak rotation of 3,000 rpm, which translates into faster cycle times on repetitive fastening or tensioning operations. Torque is the rotational force applied at the drive output; higher torque reduces the number of passes needed on stubborn fastenings and shortens overall process time. The combination of controlled torque and elevated speed makes the unit suitable for workshop lines where consistency and repeatability are required, helping to reduce downtime related to under- or over-tightening. Designed for reliable pneumatic operation and safety Built for pneumatic supply at 90 psi / 6.3 kg/cm², this tensioning tool uses compressed air to produce its drive output, avoiding reliance on mains-only power. The model accepts AC 110V or 220V for ancillary electronics and DC 24V where low-voltage control is required, enabling flexible integration with existing control systems. At 9.8 kg, the structure balances heft for stability with manageable handling during fixture changes; mass contributes to smooth torque delivery and reduces vibration transfer to adjacent components. Practical integration in assembly and maintenance workflows The PD-150-R8 is suitable for a range of industrial assembly tasks, from production-line fastening to maintenance where a controlled pneumatic drive is preferred. The supply variants and compact footprint facilitate integration into existing rigs and jigs. For users less familiar with pneumatic specifications, psi denotes pounds per square inch of air pressure, and matching compressor capability to the stated 90 psi ensures the tool reaches its rated performance without pressure drop. The solid build and clear performance metrics simplify process planning and spare parts forecasting. Contact Metav Werkzeuge in Emmerich for tailored procurement and technical guidance on Vertex pneumatic tools; email info@metav-werkzeuge.com or call +49 2822 7131930 for application-oriented advice and delivery options Technical data SKU: PD-150-R8 GTIN: 4061905084430 Brand: Vertex ECLASS: 23309104 Performance data Torque: 150 ft-lb Speed: 3,000 rpm Air pressure: 90 psi / 6.3 kg/cm² Weight: 9.8 kg Supply voltage: AC 110V or 220V; DC 24V Special features Pneumatic operation High rotational speed for fast cycles Robust construction for industrial use Product images available in gallery FAQ What torque and speed does the tool provide? The Pneumatic Pull Rod PD-150-R8 delivers 150 ft-lb of torque and operates up to 3,000 rpm, suitable for high-throughput fastening and tensioning tasks. Which air pressure is required for optimal performance? Optimal operation of the PD-150-R8 is specified at 90 psi (6.3 kg/cm²); maintaining this supply prevents performance loss due to pressure drop. Can the unit be integrated with existing voltage systems? Yes; the PD-150-R8 accepts AC 110V or 220V for auxiliary functions and DC 24V for low-voltage control interfaces. Is the tool suitable for continuous assembly-line use? The robust design and rated torque make the PD-150-R8 suitable for continuous industrial assembly cycles where pneumatic drive is preferred. What is the model identifier for ordering spare parts? Order and spare parts references use SKU PD-150-R8 and the GTIN 4061905084430 for accurate identification. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
Horizontalspanner 112 mit senkrechtem Fuß
Technical Overview:Manufacturer: KukametModel: Horizontal toggle clampOrder now Horizontal toggle clamp Online.
150mm Magnetic Chuck Round High-Held Clamping Surface, 78mm Height - Vertex
Take advantage of compact, repeatable magnetic workholding combined with a low-profile design for faster set-ups and consistent machining results; the round format with a 150 mm diameter and 78 mm height ensures stable clamping for small to medium parts. Order the unit directly via Metav Werkzeuge or ask our consultants for tailored advice. Magnetic clamping plate VGD-06 — round magnetic chuck, Ø150 mm, Vertex A magnetic clamping plate VGD-06 designed for compact workholding on small turning and light milling applications, offering straightforward integration into existing shop-floor processes Round design, Ø150 mm Compact height 78 mm Stable magnetic hold for small parts Balanced 9.8 kg mass for rotation Secure, compact workholding that speeds setup times The magnetic clamping concept delivers fast fixturing without complex mechanical jaws, helping to reduce non-productive time between operations. With a nominal diameter of Ø150 mm and a compact height of 78 mm, the unit is suited to small fixtures and components where space above the spindle is limited. The round format simplifies part positioning and rotation, while the dense construction contributes to consistent repeatability across batches. For production runs that prioritise throughput and consistent locating, this low-profile solution supports efficient process flows without the need for extensive retooling. Shop-floor robustness and balanced performance At a weight of 9.8 kg, the device offers a stable mass that assists in maintaining balance during rotation and contributes to vibration damping in light turning or face operations. The combination of a round footprint and moderate mass allows the plate to be used in indexed setups or quick-change pallets where a compact, reliable clamping surface is required. The Vertex build quality focuses on dependable workholding so that cycle times remain predictable and downtime for readjustment is minimised. The product’s straightforward geometry makes it easy to incorporate into jigs and fixtures, supporting improved throughput on repetitive tasks. Practical handling, maintenance and workflow benefits Maintenance requirements are minimal: the simple construction reduces areas where chips or coolant can accumulate, easing daily cleaning routines and contributing to a longer service life. The low-profile design keeps the workpiece close to the spindle axis, which benefits stiffness and accuracy for precision operations. Where rapid tool changeovers and short setup windows are part of the workflow, the plate’s format facilitates quick repositioning and measurement checks. For procurement and logistics, Metav’s European distribution provides transparent supply and fast dispatch, helping workshops maintain stock levels and plan production reliably. For advice on integrating the Vertex VGD-06 into an existing cell or to arrange supply from Metav Werkzeuge in Emmerich, contact our consultants for a tailored recommendation and prompt delivery. Technical data SKU: VGD-06 GTIN: 4061905083488 ECLASS: 21020809 Facts Diameter: 150 mm Height: 78 mm Weight: 9.8 kg Special features Round magnetic clamping plate Suitable for compact workholding Rapid shipping available via Metav FAQ What applications is this magnetic clamping plate suitable for? The magnetic clamping plate VGD-06 from Vertex is suitable for compact workholding tasks such as small turning and light milling where a low-profile, repeatable clamping surface is required. How large is the clamping surface and what is the overall height? The plate has a diameter of 150 mm and a height of 78 mm, providing a compact footprint for installations with limited axial clearance. Is the plate balanced for rotational use? Yes, the plate’s mass of 9.8 kg supports a balanced installation for indexed or rotational tasks, offering improved stability during light machining. Can the VGD-06 be integrated into existing fixtures and pallets? The round geometry and compact height make the unit straightforward to incorporate into jigs, pallets and quick-change systems; Vertex design enables easy mechanical integration. Does the product come from a recognised manufacturer? The magnetic clamping plate is manufactured by Vertex and supplied under SKU VGD-06, ensuring traceability and consistent quality. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
50mm Magnetic Chuck With Fine Pole Distribution, 28N Magnet Force - Vertex
Take advantage of fine pole distribution and a compact 50 mm profile for reliable, repeatable clamping in small-part machining; the combination of precise workholding and easy positioning supports efficient setups. Order the unit directly via Metav Werkzeuge or consult the team for tailored advice. Magnetic chuck VGF-1018B by Vertex – fine pole distribution, compact 50 mm height A magnetic chuck VGF-1018B engineered for secure, high-precision workholding of small to medium metal components on milling and grinding equipment, offering steady clamping and rapid set-up for production and toolroom applications. Fine pole distribution for precise clamping Compact 50 mm height for low-profile set-ups Robust holding force 28 for stable metal workholding Lightweight 7 kg for easy positioning Precision clamping for small-part machining The fine-pole layout delivers uniformly distributed holding across the active surface, allowing precise orientation and minimal distortion of delicate workpieces. With a focus on precision, the design reduces the need for elaborate fixturing and supports high-accuracy operations on flat metallic parts. The evenly spaced poles improve contact across irregular edges, which in turn enhances process reliability and reduces rework. For workshops requiring consistent results, this magnetic workholding plate streamlines handling of lightweight components while maintaining secure fixation during milling and surface grinding. Compact design that speeds up set-up and changeover A low overall height of 50 mm and a modest mass of 7 kg reduce interference with toolpaths and make handling straightforward during fixture changes. The compact profile shortens set-up times and supports low-clearance operations where standard chucks might obstruct tooling. The unit’s rated holding force 28 provides stable clamping without excessive bulk, enabling efficient cycles on production benches and toolroom machines alike. As a result, throughput benefits from quicker positioning and reduced auxiliary tooling, contributing to improved operational efficiency and lower handling effort. Robust construction with straightforward maintenance Built for industrial use, the chuck features a durable surface and a pole arrangement that simplifies cleaning and inspection. Regular upkeep consists of basic debris removal and lubrication of associated machine interfaces, keeping downtime to a minimum. The reliable hold and uncomplicated upkeep deliver long-term performance suitable for continuous workshop use. The overall concept balances stability and serviceability, offering a pragmatic solution where repeatable clamping quality is essential for machining accuracy. Contact Metav Werkzeuge in Emmerich for personalised technical advice and fast supply of Vertex magnetic chucks; reach the team at info@metav-werkzeuge.com or call +49 2822 7131930 to discuss suitability for specific applications Technical Data Article number: VGF-1018B GTIN: 4061905083471 Eclass: 21020809 Manufacturer: Vertex Facts Weight: 7 kg Height: 50 mm Magnetic force: 28 Special features Fine pole distribution Type: B Low-profile design FAQ What types of parts suit this magnetic chuck? The VGF-1018B magnetic chuck is intended for flat and thin metallic components where uniform clamping and minimal distortion are required; it performs well with small to medium parts in milling and grinding operations. How does the fine pole distribution affect accuracy? Fine pole distribution increases contact points across the workpiece, improving localisation and reducing lift or deformation; this results in more consistent machining outcomes with the VGF-1018B. Is this chuck easy to position on the machine table? With a compact 50 mm height and a weight of 7 kg, the chuck is straightforward to handle and position, enabling faster changeovers and simpler fixturing. What maintenance is recommended? Maintenance for the Vertex VGF-1018B mainly involves keeping pole faces clean and free of swarf; routine inspection of the mounting interface and occasional lubrication of machine-contact surfaces ensures reliable operation. Can the chuck be used on both milling and grinding machines? Yes, the workholding concept and stable hold make the VGF-1018B suitable for both milling and surface grinding applications where a low-profile, precise clamp is needed. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
150mm Parallel Gauge Set 20 Pieces Includes 2 of Each 3×13–3×41×150mm - Vertex
Take advantage of precise parallel shims, a wide size range and compact storage for efficient setup and repeatable setups on the shop floor. Order the set directly via Metav Werkzeuge or consult the team for application advice. VP-018 Parallel shim set with metric sizes and compact tray The VP-018 parallel shim set is a workshop-grade spacer system for aligning and levelling components during fixturing, setup and inspection tasks. 20-piece precision shim set Sizes from 3 to 41 mm in steps Compact storage tray 290×230×73 mm Total weight 2.5 kg Maintain machine alignment and repeatability with precision shims The VP-018 delivers controlled spacing and parallelism where surgical accuracy is required. Each shim is designed for consistent thickness and edge geometry so that alignment and repeatability are improved during assembly, set-up and tool changes. Using a systematic shim strategy reduces time spent on iterative adjustments and supports faster changeovers in production environments. The clear size progression from narrow to wider shims enables fine incremental corrections without adding complex tooling or adjustments. Broad size range for flexible fixturing and set-up Containing two pieces of each width between 3 mm and 41 mm, all with a 150 mm length, the set covers common workshop needs for shimming, spacing and parallel support. This variety allows rapid selection of the required cross-section to correct small misalignments or to build accurate stacked thicknesses for bespoke setups. The ability to combine shims to achieve precise incremental heights reduces reliance on custom-made spacers and supports versatile use across jigs, fixtures and inspection fixtures. Practical storage for tidy workstation workflow The compact tray, measuring 290×230×73 mm, keeps all components organised and protected, making the set easy to transport between machines or to a bench for inspection tasks. A defined location for each shim size speeds up retrieval and return, which contributes to a neater workplace and fewer lost parts. Storing components systematically lowers downtime caused by searching for the right spacer and supports consistent process control in routine operations. Engineered for dependable workshop performance Manufactured under the Vertex range, the set is intended for regular use in workshop environments and bench-level precision tasks. The overall mass of 2.5 kg balances portability and robustness for everyday handling. By integrating this shim set into standard operating procedures, calibration and maintenance cycles become more predictable, lowering the risk of misalignment-related rework and keeping production quality consistent. Contact Metav Werkzeuge for tailored advice on integrating the Vertex VP-018 parallel shim set into existing workflows or to request additional technical details from our specialists at Metav Werkzeuge in Emmerich Technical data Article number: VP-018 GTIN: 4061905084225 eClass: 21170610 Customs tariff number: 73182200 Data Dimensions: 290×230×73 mm Weight: 2.5 kg Pieces per set: 20 Special features Contents: two shims each of widths 3 mm to 41 mm, length 150 mm Product type: parallel shims for height and spacing adjustments Packaging dimensions: 290×230×73 mm FAQ What is included in the VP-018 set? The VP-018 set contains two shims of each width from 3 mm to 41 mm, all 150 mm long, supplied in a compact storage tray for organised workshop use. Can the shims be used for fixture levelling and alignment? Yes, the VP-018 parallel shim set is intended for levelling, spacing and alignment tasks in jigs, fixtures and during machine set-up. Is the VP-018 suitable for mobile usage between machines? The compact tray and a total weight of 2.5 kg make the VP-018 convenient to carry between benches and machines while keeping components organised. How does the size range support fine adjustments? The set’s graded widths enable incremental stacking to achieve precise heights without bespoke spacers, allowing accurate corrections and repeatable setups. Which brand manufactures this shim set? The VP-018 is manufactured by Vertex and designed for reliable workshop performance within industrial and trade applications. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
150mm Precision Parallel Block Set 36 Pieces 8x150mm, Accuracy 0.01mm - Vertex
Take advantage of precise set-up and reliable repeatability thanks to the combination of 0.01 mm accuracy and standard 150 mm length: consistent workholding and quick inspection become routine. Order the set directly via Metav Werkzeuge or consult our specialists for specification support. VP-136 Precision Parallel Set by Vertex — 0.01 mm accuracy, 150 mm length The VP-136 Precision Parallel Set is a workshop and inspection accessory designed for secure, repeatable workholding and setup tasks in metalworking and quality control environments. Tolerance 0.01 mm for high precision Range of sizes suited for versatile setups Stable geometry ensures consistent clamping Maintain micrometre-level consistency across operations The set delivers 0.01 mm tolerance, a level of precision that reduces setup variation and shortens inspection cycles. Precisely ground faces and consistent height control allow reliable support under clamps or between jaws. For production runs and prototype work alike, the measurable reproducibility of the parallels improves part conformity and reduces rework. Technical terms: tolerance refers to the maximum deviation from nominal size; in this case the parallels are made to within 0.01 mm, which supports close-tolerance machining and measurement tasks. Flexible range supports varied clamping and inspection tasks With parallels machined to a standard 150 mm length and a broad span of widths, the set adapts to different clamping arrangements and component geometries. The selection of sizes is intended to simplify jigging, enable parallel stacking and provide firm, flat reference surfaces for measurement and machining. By matching parallel width to the workpiece, vertical runout and angular errors are minimised, which contributes to faster set-up and improved process reliability. This versatility makes the set suitable for milling, drilling and metrology benches. Durable geometry for stable, repeatable setups The parallels feature a form-stable profile and accurate edges that preserve alignment under clamping forces. Stable geometry reduces the need for repeated realignment and supports efficient throughput in busy workshops. Although raw material details are not specified, the construction emphasises dimensional stability and surface flatness; as a result, the parallels act as a dependable reference during both short runs and long production cycles. Careful handling and routine inspection keep the reference surfaces within specification. Practical benefits for workshop workflow and traceability Using a dedicated parallel set standardises fixture procedures and simplifies documentation of setup conditions. Traceable SKU and GTIN labelling allow clear stock control and repeat ordering; precise parallels reduce measurement uncertainty and support quality control processes. The compact footprint and recognisable dimensions also allow simple storage and rapid retrieval during shift changes, contributing to an orderly and efficient shopfloor. Contact Metav Werkzeuge for tailored advice on the Vertex VP-136 Precision Parallel Set — email info@metav-werkzeuge.com or call +49 2822 7131930 for specification guidance and availability Technical Data Article number: VP-136 GTIN: 4061905083310 Manufacturer: Vertex Core measurements Overall dimensions: 390 x 292 x 82 mm Weight: 12.3 kg Accuracy/tolerance: 0.01 mm Parallels length: 150 mm Contents and features Contents cover a broad range of parallel widths from 16 mm to 50 mm, length 150 mm Total pieces per set: 36 Set: yes SKU: VP-136 FAQ How precise are the parallels in this set? The parallels in the VP-136 set are manufactured to a tolerance of 0.01 mm, providing micrometre-level reproducibility for setup and inspection. What length are the parallels and why does that matter? Each parallel in the set has a length of 150 mm, which offers stable support for a wide variety of clamping arrangements and helps to maintain consistent reference planes. Is the set suitable for both workshop and inspection use? Yes, the VP-136 Precision Parallel Set by Vertex is designed for use in machining and metrology contexts where accurate, repeatable workholding and measurement support are required. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
150mm Rotary Indexing Table Horizontal/Vertical Tilting Three-Point Readout 1′/20″ Table, MT2 Collet Slot 11mm - Vertex
Combine precise angular indexing with sturdy workholding: the VUT-6 offers a 150 mm diameter table and a tilting design for horizontal and vertical setups, delivering repeatable positioning and easy integration into small fixtures. Order the rotary table directly via Metav Werkzeuge or consult their specialists for application guidance. VUT-6 Rotary Tilt Table (Vertex) — 150 mm diameter, tilting horizontal/vertical The VUT-6 rotary tilt table is a compact tilting rotary table intended for machining and fixture applications where both horizontal and vertical orientations are required. 150 mm precision rotary table Tilting design for horizontal and vertical use MT-2 spindle taper for standard tooling 11 mm T-slot for secure fixturing Accurate angular control for consistent machining results The tilting indexer provides precision indexing with clearly specified angular steps, enabling reproducible setups for drilling, milling and fixture alignment. The integral scale details of 6° per spindle rotation for tilt and 4° per spindle rotation for the table offer coarse positioning, while the fine reading of 1′ on tilt and 20″ on the table allows close adjustment when accuracy matters. These indexing features reduce setup time and support consistent batch production. Secure clamping and tooling compatibility for reliable fixtures A standard MT-2 spindle taper ensures broad compatibility with common tooling and collet systems, while the 11 mm T-slot supports versatile clamping arrangements and modular fixturing. The combination of robust workholding and industry-standard taper makes it straightforward to attach fixtures, centres or chucks without bespoke adapters, improving uptime and simplifying changeovers in workshop environments. Compact footprint that integrates into workshop workflows With a compact footprint of 180 x 380 x 115 mm and an overall height of 165 mm, the unit fits easily onto machine tables and in dedicated fixtures. The moderate mass of 23.5 kg balances stability with manoeuvrability, giving the rotary table the rigidity required for machining while remaining manageable for installation. This balance supports flexible use across small to medium machine setups and assembly stations. Contact Metav Werkzeuge for application advice and reliable supply of Vertex workholding solutions from our Emmerich warehouse — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data SKU: VUT-6 GTIN: 4061905084669 Manufacturer: Vertex ECLASS: 36600610 Dimensions: 180 x 380 x 115 mm Height: 165 mm Weight: 23.5 kg Facts Table diameter: 150 mm T-slot width: 11 mm Spindle taper: MT-2 Index per spindle rotation: 6° tilt / 4° table Reading resolution: 1′ (tilt) / 20″ (table) Special features Product type: Rotary table / tilting horizontal and vertical Function: Tilting and indexing for versatile fixturing Mounting: Compact footprint for easy integration Suitable for workshop and fixture-building applications FAQ What is the working diameter of the table? The table has a working diameter of 150 mm, providing a stable platform for small to mid-sized fixtures. How precise is the angular indexing? Angular indexing offers coarse steps of 6° per spindle rotation for tilt and 4° for the table, with fine readings of 1′ on the tilt axis and 20″ on the table to aid precise alignment. Which spindle taper does the unit accept? The unit uses an MT-2 spindle taper, compatible with common tooling and collet systems used in machining. Is the table suitable for both horizontal and vertical setups? Yes — the tilting design supports horizontal and vertical orientation, enabling flexible use across different machining and assembly tasks. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

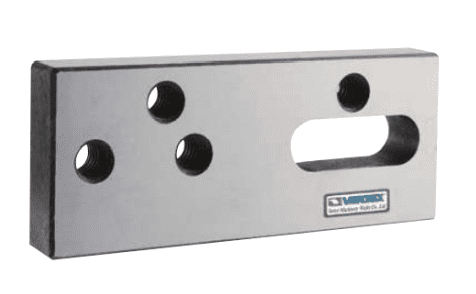

Tischnutenplatte
Technische Daten: Bezeichnung: Tischnutenplatte Vollhartmetall Material: SS41C Abmessung: 18x60x150mm bis 24x60x90mm Gewicht: 0,76 kg - 1,8 kg Gewinde: M12x1,75P Die technischen Daten beziehen sich auf alle Varianten und können je nach Ausführung variieren. Vertex, der Hersteller in einigen Worten: Seit der Gründung im Jahr 1978 hat sich VERTEX als eine der führenden Marken in der Branche etabliert. Mit einer beeindruckenden Produktionsfläche von über 15000 m² verfügt VERTEX über die Kapazität, große Mengen hochwertiger Maschinenteile herzustellen, um den steigenden Anforderungen der Kunden gerecht zu werden. Durch modernste Produktionsanlagen und fortschrittliche Fertigungstechnologien gewährleistet VERTEX die Herstellung präziser und langlebiger Produkte. Die Forschung und Entwicklung nimmt bei VERTEX einen hohen Stellenwert ein. Durch kontinuierliche Investitionen in innovative Technologien und Designverbesserungen bleibt VERTEX an der Spitze der Branche. Das engagierte Team von Experten bei VERTEX entwickelt ständig neue und verbesserte Designs, um die Leistung und Effizienz von Maschinen zu steigern. Ein weiterer herausragender Aspekt bei VERTEX ist die hohe Lagerverfügbarkeit. Mit einem beeindruckenden Bestand an Artikeln sind 98% aller Produkte sofort verfügbar. Dies ermöglicht es den Kunden, ihre Produktionsausfallzeiten zu minimieren und den reibungslosen Betrieb ihrer Maschinen sicherzustellen. Als stolzer Hersteller aus Taiwan steht VERTEX für höchste Qualität, Zuverlässigkeit und Kundenzufriedenheit. Die Kunden vertrauen darauf, dass VERTEX ihre Anforderungen versteht und ihnen Maschinenteile von höchster Qualität liefert, die den anspruchsvollen Standards gerecht werden. Interessenten sind herzlich eingeladen, VERTEX zu kontaktieren und mehr über die innovativen Produkte und den erstklassigen Service des Unternehmens zu erfahren. Das Team von VERTEX freut sich darauf, die individuellen Anforderungen der Kunden zu erfüllen und sie bei der Erreichung ihrer geschäftlichen Ziele zu unterstützen.
60° Centre Punch With Interchangeable Tips MT2 Shank Stainless Steel 127mm - Vertex
Take advantage of precise centre marking, robust stainless steel construction, and a MT2 taper that ensures straightforward fitting in standard tailstocks; order the tool directly via Metav Werkzeuge or consult our specialists for application advice. Centre punch VLC-312 — Vertex centre punch with interchangeable tips and MT2 taper The Centre punch VLC-312 is a precision marking tool designed for creating consistent, defined centres prior to drilling and machining, suitable for workshop and light industrial applications. Solid stainless steel construction MT2 taper for standard headstocks 60° hardened centre tip Interchangeable tips for versatility Precise marking that reduces drilling errors and rework A defined centre mark shortens setup time and improves first-pass drilling accuracy: the tool delivers high repeatability thanks to its measured tolerance of 0.008, which ensures that marks stay consistent between operations. The 60° tip geometry concentrates force to produce sharp, visible centres on metal and other machinable surfaces, reducing the tendency for drill bits to wander. For production environments where reliability and predictable results matter, this precision marking device contributes directly to process efficiency and lower scrap rates. Durable design built for everyday workshop use Constructed from stainless steel and balanced at a length of 127 mm with a mass of 0.9 kg, the tool provides a solid feel and long service life under normal workshop conditions. The integrated MT2 taper allows secure seating in standard tailstocks or dedicated holders, while the rated rotational capacity of 4,000 r.p.m. supports use in revolving centres where appropriate. Robust materials and a compact form factor reduce maintenance intervals and deliver stable performance in repetitive marking tasks. Interchangeable tips for flexible applications and fast maintenance Equipped with interchangeable tips, the system adapts to different materials and marking requirements without replacing the entire tool. Tips can be swapped quickly to match workpiece hardness or to restore a crisp mark after wear, limiting downtime and keeping production moving. This modularity also reduces inventory needs: one handle accommodates multiple tip geometries, which is especially useful in mixed-production shops. The SKU VLC-312 identifies the exact configuration for spare parts and replacement tips. For reliable, workshop-ready marking select the Vertex VLC-312 and contact Metav Werkzeuge for tailored advice or to secure your supply directly — email info@metav-werkzeuge.com or call +49 2822 7131930 for consultancy and stock information Technical data SKU: VLC-312 GTIN: 4061905084461 Manufacturer: Vertex Facts Material: stainless steel Length: 127 mm Weight: 0.9 kg Accuracy: 0.008 Maximum speed: 4,000 r.p.m. Tip angle: 60° Taper: MT2 eClass: 21022304 Special features Interchangeable tips included Hardened centre tip Suitable for tailstock mounting Compact, workshop-oriented design FAQ What tip angle does the tool use? The tool features a 60° centre tip, providing a precise and concentrated mark suitable for most drilling preparations with the Vertex VLC-312 centre punch. Is the taper compatible with standard tailstocks? Yes — the device uses an MT2 taper for secure mounting in standard tailstocks and compatible holders. Are the tips replaceable and does the set include spare tips? The design includes interchangeable tips, allowing fast replacement to suit different materials and to restore marking quality; spare tips are available for the VLC-312. What is the maximum recommended rotational speed? The tool is specified for use up to 4,000 r.p.m., where revolving centre applications require controlled rotational speeds. What is the main body material and typical dimensions? The body is made of stainless steel, with a length of 127 mm and weight of 0.9 kg, offering a durable, workshop-ready tool. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

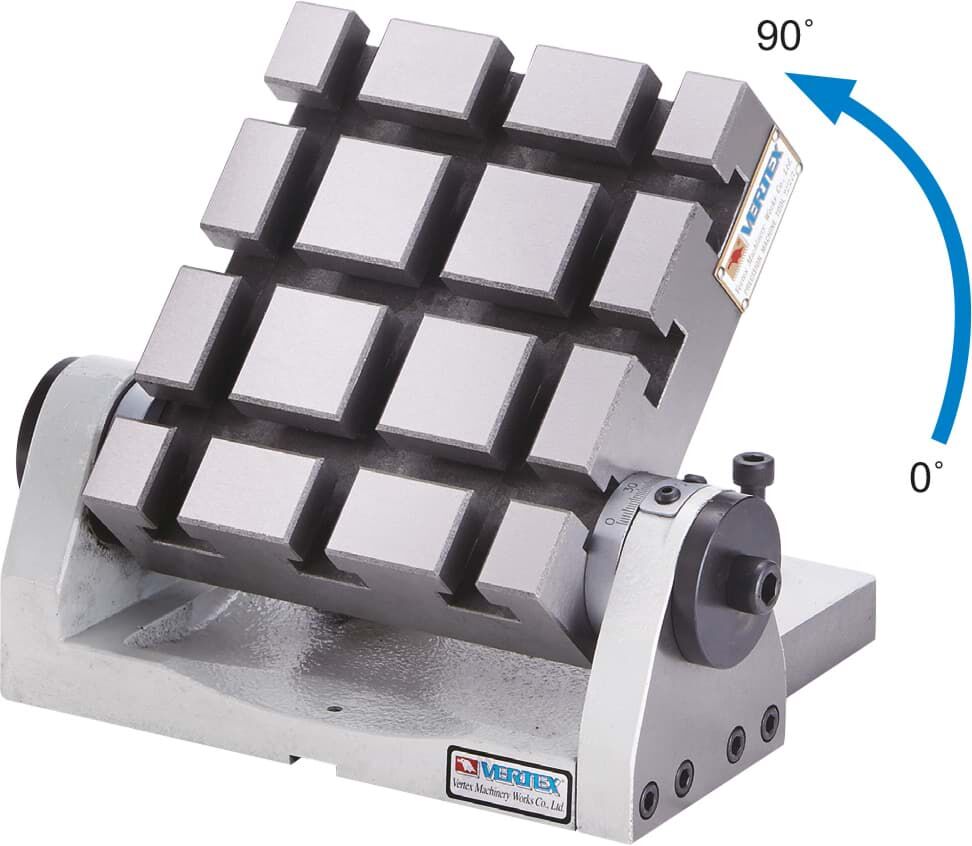

154x176mm Swivel Light-Duty Clamping Table, 105mm Height - Vertex
Compact measuring surface, swivel function and a robust 14 kg construction combine to provide stable, precise workholding for light-duty tasks; order the clamping table directly via Metav Werkzeuge or ask our consultants if needed. Vertex VU-1517 clamping table – Swivel design for light loads The Vertex VU-1517 clamping table is a swivel table designed for light-duty workholding and inspection tasks, offering a compact measuring surface and stable positioning for benches and inspection rigs. Swivel table for light-duty clamping Measuring surface 154 x 176 mm Base footprint 180 x 228 mm Robust 14 kg construction Faster precision for small parts and inspection workflows The swivel design places a measuring surface and workpiece in the desired orientation without repeated reclamping, reducing set-up time in inspection and light machining tasks. With a measuring table of 154 x 176 mm, the unit is aimed at small components and gauges where accurate alignment matters; the clear dimensions simplify fixture planning and help integrate the table into existing test jigs. The compact platform enables fine positional adjustments while the stable build reduces vibration and micro-movement during tactile measurement or light finishing operations. Compact footprint that fits the workshop bench A base dimension of 180 x 228 mm provides a small footprint while retaining stable support for repeatable measurements. The overall height of 105 mm and a mass of 14 kg give the table sufficient inertia for steady clamping without dominating the bench workspace. This combination makes the unit suitable for benches, measuring stands and small assembly stations where space is limited but precision must be maintained. Clear numerical values allow planners to assess compatibility with fixtures and gauges before installation. Swivel function that speeds up set-up and inspection The swivel mechanism allows the clamping surface to be rotated to the ideal angle quickly, which improves workflow efficiency by minimising reclamping and repositioning. For tasks such as visual inspection, marking or light deburring, the ability to orient the component accurately shortens cycle times and reduces handling errors. The straightforward mechanical concept supports reliable repeatability in light-duty applications, making it an effective addition to quality-control stations and precision workshop layouts. For reliable light-duty clamping and quick orientation, choose the Vertex VU-1517 from Metav Werkzeuge; contact our specialists at info@metav-werkzeuge.com or call +49 2822 7131930 to confirm suitability and arrange delivery from Emmerich. Technical data Article number: VU-1517 GTIN: 4061905084812 ECLASS: 21020702 Manufacturer: Vertex Dimensions & weight Weight: 14 kg Height: 105 mm Measuring surface: 154 x 176 mm Base footprint: 180 x 228 mm Special features Swivel design for light loads Intended for workshop measuring and light clamping Stable construction for repeatable positioning Technical drawing and detail images available FAQ What is the intended application for this swivel table? The Vertex VU-1517 clamping table is intended for light-duty workholding, inspection and precision measuring tasks where quick orientation and stable positioning are required. What are the dimensions of the measuring surface? The measuring surface measures 154 x 176 mm, providing a compact platform for small components and gauges. How large is the base and how much does the table weigh? The base footprint is 180 x 228 mm and the unit weighs 14 kg, offering a balance of compactness and stability for bench-mounted work. Does the table allow rotation or indexing of the workpiece? Yes, the swivel design enables rotation of the clamping surface to position the workpiece quickly for inspection or light processing. Is the clamping table suitable for heavy machining? The VU-1517 is designed for light loads and precise positioning; it is not intended for heavy machining or high cutting forces. Are technical drawings available for integration into fixtures? Technical drawings and detailed images are provided to assist with fixture planning and bench integration for the Vertex VU-1517 clamping table. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

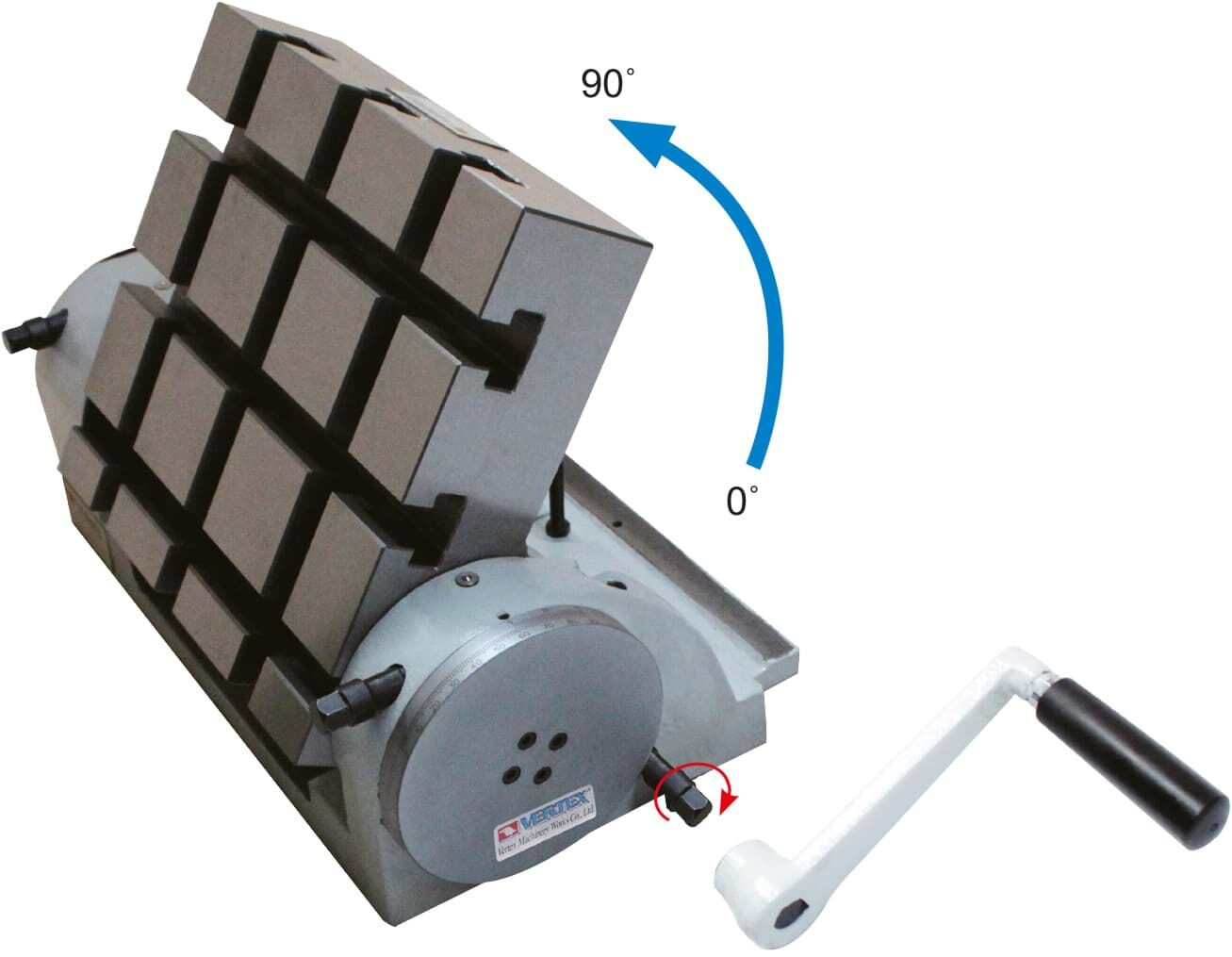

156x150mm Swivel Heavy-Duty Tilting Rotary Table, 30kg Horizontal/12kg Vertical Capacity, 115mm Height - Vertex
Take advantage of the combination of robust load capacity, a compact precision table, and a swivelling design that improves set-up flexibility for small-series production and inspection tasks; order the clamping table directly via Metav Werkzeuge or consult our specialists for application advice. VUT-1515 Clamping table by Vertex — heavy‑duty, swivelling precision fixture A VUT-1515 clamping table engineered for heavy loads and swivelling positioning, ideal for workshop fixtures, inspection benches and precision assembly tasks Robust base 180×285 mm for stable mounting Swivelling design for versatile positioning Precision table 156×150 mm for small workpieces Rated 30 kg horizontal, 12 kg vertical load Stability that keeps measurements and machining consistent The VUT-1515 delivers a stable platform for demanding workshop tasks thanks to its substantial base footprint of 180×285 mm and a mass of 17.6 kg, which together reduce vibration and movement during clamping or inspection. This stability translates into fewer re‑setups and more reliable results when working with small components on the 156×150 mm measuring surface. The design minimises micro‑motion, aiding repeatable positioning and supporting quality‑control procedures where consistent alignment is required. Flexible positioning for complex setups A swivelling top enables faster orientation of the workpiece without the need for repeated reclamping, making the unit suitable for fixtures that require multiple access angles. The swivel function supports efficient workflow in assembly and measuring stations by allowing quick alignment changes while maintaining the clamped part’s datum. The compact height of 115 mm keeps the centre of gravity low, improving handling when rotating loads and preserving secure contact between the workpiece and the measuring table. Built for heavy‑duty metrology and small production runs Rated to carry 30 kg horizontally and 12 kg vertically, this clamping table is specified for substantial single‑component loads and fixturing of heavier assemblies on inspection benches. The load ratings permit use with robust measuring instruments and small machine tools where a rigid support is essential. The combination of a precision work surface and high load tolerance reduces the need for auxiliary supports, simplifying setup and shortening cycle times in light production and repair workshops. Designed for integration and dependable service life With a compact footprint and standardised mounting dimensions, the clamping fixture fits easily into existing benches or metrology tables, allowing straightforward integration into workshop layouts. The unit’s construction emphasises longevity and consistent performance in repetitive tasks, supporting a predictable maintenance schedule and reducing downtime. Sourcing through Metav Werkzeuge brings additional assurance: supply is coordinated from a European quality filter in Emmerich, ensuring reliable availability and traceable provenance. Contact Metav Werkzeuge for specification support and to arrange fast delivery of the Vertex VUT-1515 clamping table for the workshop or inspection bench Technical Data Article number: VUT-1515 GTIN: 4061905084034 eClass: 21020702 ETIM: EC001959 Facts Weight: 17.6 kg Height: 115 mm Measuring table: 156×150 mm Base footprint: 180×285 mm Load capacity horizontal: 30 kg Load capacity vertical: 12 kg Special features Swivelling design for versatile positioning Suitable for heavy loads Compact precision work surface Brand: Vertex FAQ What maximum load can the clamping table carry horizontally? The clamping table from Vertex is rated for a 30 kg horizontal load capacity, suitable for substantial single components on inspection or assembly benches. Is the work surface suitable for small, precision parts? Yes, the 156×150 mm measuring table provides a compact, accurate platform for small‑part fixturing and measurement tasks. Can the table be mounted on a standard metrology bench? The VUT-1515’s base footprint of 180×285 mm and its compact height of 115 mm allow integration onto typical benches and inspection tables with standard mounting arrangements. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
15° 842 Horizontal Foot Quick-Acting Clamp Screw-Type, Zinc-Plated, 3.5 kN Thrust / 4 kN Hold - Kukamet
Product data contains contradictory information: the item is described as both a screw-clamp type and a lever clamp. This inconsistency makes it difficult to determine the correct clamp type and provide a clear, comprehensive product description. Accurate product details are essential to ensure customers understand the item's functionality and suitability for their needs. Please clarify whether the clamp type is screw-clamp, lever clamp, or another variation. Resolving this ambiguity will allow for the creation of a complete and accurate product description that aligns with the item's actual specifications and intended use.

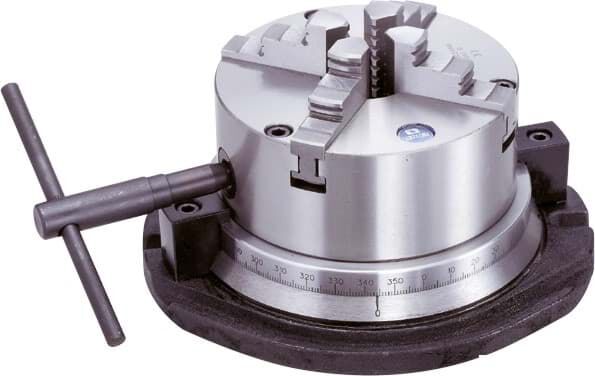

160mm Indexing Head With Three- Or Four-Jaw Chuck 1° Division, 139mm Height - Vertex
Take advantage of the combination of compact design, reliable 1° indexing and flexible chuck options for predictable machining results. Order the unit directly via Metav Werkzeuge or consult the team for specification support. VSR-6 Simple Dividing Head (Vertex) — 1° indexing, 160 mm diameter A practical simple dividing head, VSR-6, designed for angular indexing and rotational positioning in milling and preparatory fixture work. 1° indexing resolution for accurate division 160 mm diameter for stable workpiece support Three- or four-jaw chuck option for versatile clamping Compact 139 mm height for space-efficient mounting Precision indexing for consistent series production The Vertex VSR-6 delivers reliable 1° indexing, enabling straightforward division steps and consistent angular set-ups for repetitive tasks. The precise indexing mechanism reduces time spent on re-centring and adjustment, supporting predictable cycle times and less scrap. Built to assist common workshop operations, the indexing capability is particularly beneficial in small-batch milling, peripheral engraving and other tasks that demand repeatable angular positioning. The robust mechanism prioritises repeatability and stable performance under routine use. Compact footprint that aids machine-table organisation With a working diameter of 160 mm and an overall height of 139 mm, the device fits neatly on standard machine tables and rotary fixtures while keeping the centre of gravity low. The mass of 17.8 kg contributes to inherent vibration damping, which helps to produce cleaner cuts and steadier rotation without adding complex support structures. The compact dimensions make the unit straightforward to integrate into existing setups, reducing the need for extensive fixture redesign and preserving usable table space for auxiliary tooling. Versatile chucking for adaptable clamping tasks Supplied with a three- or four-jaw chuck option, the indexing device accommodates both round and irregular workpieces, enhancing workshop flexibility without the immediate need for bespoke adaptors. The chuck options support a range of common clamping scenarios, from concentric turning to eccentric workholding, and simplify transitions between different part families. As a simple dividing head, the design focuses on essential functionality — sturdy clamping, accurate division and straightforward mounting — to keep set-up times low and throughput high. Backing and service from an experienced precision partner Metav Werkzeuge acts as a committed distribution and quality filter for the European market, offering practical purchasing and logistics from Emmerich. With a long-standing product range and a wide customer base, Metav provides access to technical advice and a controlled supply chain that supports installation and selection decisions. The combination of an established dealer network and a broad product portfolio helps maintain continuity in supply and simplifies material planning for workshops and small production facilities. For tailored advice on chuck options and mounting configurations, contact Metav Werkzeuge in Emmerich to discuss the Vertex VSR-6 and confirm the specification that best suits the application. Technical data SKU: VSR-6 GTIN: 4061905083648 ECLASS: 21020590 Facts Diameter: 160 mm Height: 139 mm Weight: 17.8 kg Indexing resolution: 1° Special features Three- or four-jaw chuck option Simple dividing head for angular indexing Manufacturer: Vertex Images: vsr-6-main.jpg, vsr-6-detail.jpg FAQ What indexing accuracy does the device offer? The unit provides a 1° indexing resolution, allowing straightforward and repeatable angular divisions for common workshop tasks. Which chuck options are available for clamping? The device is supplied with a three- or four-jaw chuck option to support a variety of round and irregular workpieces without immediate need for special adapters. Is the dividing head suitable for standard milling machines? Yes, the simple dividing head is intended for integration on typical milling tables and rotary fixtures where accurate angular indexing is required. What are the key dimensions and mass of the unit? Key dimensions are a diameter of 160 mm, height 139 mm and a mass of 17.8 kg, which supports stability and vibration damping during operation. Who manufactures the product and what is the SKU? The product is manufactured by Vertex; the SKU is VSR-6 and the GTIN is 4061905083648. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
160mm Reversible Self-Centring 3-Jaw Chuck, 95mm Height, 3xM8 Mounting - Vertex
Combining a 160 mm jaw diameter with a self‑centring 3‑jaw layout and reversible operation yields a versatile and robust clamping solution for routine and demanding lathe work. Order the chuck directly via Metav Werkzeuge or consult our specialists for mounting advice and compatibility checks. VSK-6A — 160 mm 3‑Jaw Self‑centring Reversible Chuck by Vertex A VSK-6A 3‑jaw self‑centring reversible chuck designed for reliable, repeatable clamping in general metalworking and lathe operations 160 mm jaw diameter Self‑centring 3‑jaw design Reversible jaw direction for flexibility Threaded mounting with 3xM8 Consistent clamping for steady production The 160 mm jaw diameter and self‑centring mechanism provide fast, repeatable workpiece alignment that reduces setup time and scrap. The three‑jaw configuration ensures concentric clamping of cylindrical parts, which is essential for turning and basic milling tasks. Built to deliver steady holding force, the chuck supports reliable cycle times in serial production while limiting rework and downtime. Flexible operation for varied workshop needs Thanks to the reversible jaw direction and compact 95 mm height, the chuck adapts to different clamping scenarios without frequent changeovers. The reversible feature permits alternative jaw mounting orientations, increasing the range of part diameters that can be gripped securely. This flexibility supports mixed‑batch workshops and reduces the number of specialised fixtures required on the workbench. Clear mounting and handling information for safe use The chuck is supplied with a 3xM8 thread pattern for secure attachment to the spindle or adapter plate and weighs 8.3 kg, balancing robustness with manageable handling in the workshop. The robust design assists in maintaining concentricity under cutting loads while the moderate mass helps dampen vibration. For customers less familiar with chuck mounting, the Metav Werkzeuge team can advise on suitable adapters and tightening procedures to ensure safe, accurate installation. For advice on integration or to order the Vertex VSK-6A via Metav Werkzeuge in Emmerich, contact our specialists at info@metav-werkzeuge.com or call +49 2822 7131930 for tailored assistance and prompt delivery Technical Data Article number: VSK-6A GTIN: 4061905083976 Manufacturer: Vertex Facts Diameter: 160 mm Height: 95 mm Weight: 8.3 kg Mounting thread: 3xM8 Special features 3‑jaw self‑centring chuck Reversible jaw direction Robust design for consistent clamping Suitable for general lathe clamping tasks FAQ What mounting interface does the chuck use? The Vertex VSK-6A uses a 3xM8 threaded mounting interface as specified in the technical data for secure attachment. Can the chuck handle different part diameters without jaw changes? The reversible jaw direction and self‑centring 3‑jaw configuration allow the chuck to accommodate a range of diameters with fewer jaw changes than single‑purpose fixtures. Is the chuck suitable for serial production use? Yes, the VSK-6A is designed for repeatable clamping and steady holding force, making it appropriate for routine production and workshop tasks. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
160mm Rotary Indexing Table Simple Three-Point Division 20" Readout 4° Per Turn 44mm Mount - Vertex
A compact solution for precise angular indexing: the combination of 160 mm diameter, 4° indexing per spindle revolution, and the supplied 3‑jaw chuck with cover plates ensures quick set-up and reliable repeatability for production and prototyping. Order the CC‑6 rotary dividing table directly via Metav Werkzeuge or ask our consultants for application guidance. Vertex CC-6 rotary dividing table – 160 mm diameter, 4° indexing A compact CC‑6 rotary dividing table designed to deliver accurate indexing and versatile clamping for workshop milling, drilling and rotary‑fixture tasks. Compact 160 mm diameter rotary dividing table 4° indexing per spindle revolution Supplied with 3‑jaw chuck and cover plates Stable 29.5 kg construction for repeatability Accurate indexing that speeds production setups The CC‑6 offers repeatable angular positioning thanks to its 4° indexing per spindle revolution and a fine readout division of 20", which together enable precise angular steps without complex adjustments. For production runs where consistent hole patterns or dividing operations are required, this dividing unit reduces set‑up time and the need for trial cuts. The combination of compact footprint and a clearly graduated readout makes the device suitable for bench milling machines and small lathes, allowing accurate work on small to medium components without sacrificing throughput. Versatile clamping for diverse workpieces Supplied with a 3‑jaw chuck and a set of cover plates (2, 3, 4, 6, 8, 12), the CC‑6 facilitates quick transitions between round and irregular parts and supports common dividing tasks such as gear cutting, slotting and drilling circular patterns. The included accessories reduce the need to source separate fixturing items and shorten machine downtime. The 44 mm centre bore provides compatibility with common spindle arrangements and adaptation accessories, so the dividing table integrates smoothly into existing workshop tooling workflows. Stable dimensions and compact integration for workshop use Measuring 253 x 179 x 225 mm and weighing 29.5 kg, the dividing table combines compact dimensions with mass that helps dampen vibration for improved surface finish and repeatability. The 160 mm diameter table allows secure clamping while fitting typical bench machines, and the unit’s simple design supports routine maintenance and straightforward mounting. Clear mechanical indexing and a robust build promote long service life and predictable performance in daily production environments. Contact Metav Werkzeuge for tailored advice on integrating the Vertex CC‑6 rotary dividing table into specific applications or for assistance selecting compatible chucks and mounting adapters from our Emmerich facility. Technical data SKU: CC-6 GTIN: 4061905083280 ECLASS: 36600610 Designation: Rotary dividing table (simple) Manufacturer: Vertex Facts Diameter: 160 mm Dimensions: 253 x 179 x 225 mm Weight: 29.5 kg Centre bore / spindle mount: 44 mm Indexing per spindle rotation: 4° Readout division: 20" Special features Supplied content: 1x 3‑jaw chuck, cover plates 2, 3, 4, 6, 8, 12 Simple design for ease of use Suitable for workshop milling and drilling applications FAQ What is the primary use of this dividing table? The Vertex CC‑6 rotary dividing table is intended for precise angular indexing and repetitive machining tasks such as circular drilling patterns, slotting and small gear work. Which accessories are included with the CC‑6? The delivery includes a 3‑jaw chuck and cover plates in sizes 2, 3, 4, 6, 8 and 12, enabling a range of clamping options without additional purchases. Can the dividing table be fitted to standard bench milling machines? Yes, the CC‑6’s compact footprint and a 44 mm centre bore make it compatible with common bench milling machines and typical spindle adapters used in small workshops. How does the 4° indexing affect accuracy and setup time? A 4° indexing increment per spindle revolution simplifies the creation of regular angular divisions and shortens setup time for repetitive patterns while maintaining consistent positioning. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
60° Carbide Centre Punch Fixed Tip, DIN 806, 100mm - Vertex
Combining a carbide tip, a 60° geometry and a 100 mm fixed shaft delivers precise, repeatable centre marks with minimal maintenance; order the tool directly via Metav Werkzeuge or consult the Metav team for specification advice. Centre punch VLC-112 — fixed marking tool with carbide tip (Vertex) Centre punch VLC-112 is a fixed marking tool for producing accurate pilot indents and reliable centre marks in professional workshop environments Carbide tip for long-lasting centre marks 60° tip angle for precise positioning Conforms to DIN 806 for standardised quality 100 mm fixed shaft for stable handling Precise, repeatable marking for reliable downstream processing The carbide tip is engineered to retain its profile under frequent use, which supports consistent indentation geometry and aids repeatable drill starts. The 60° tip angle focuses impact energy into a defined point, reducing lateral slip during marking. Compliance with DIN 806 provides an industry-recognised benchmark for dimensions and geometry, simplifying tool selection in standardised production environments. These attributes reduce alignment errors and support higher first-pass accuracy in subsequent machining steps. Robust construction that minimises intervention and downtime A solid, fixed shaft design with a 100 mm overall length provides mechanical stability during hand or machine-supported application. The integral carbide point eliminates a wear-prone interface, lowering the need for frequent part replacements and maintenance interventions. The lightweight 0.2 kg construction ensures manageable handling while maintaining sufficient mass for clear, repeatable impressions. The combination of durable materials and straightforward design contributes to steady availability at the workbench and predictable service intervals. Seamless fit into workshop inventory and procurement workflows Standardised dimensions and the industry code facilitate catalogue management and reordering under the SKU VLC-112. The compact specification and proven materials make the marking tool suitable for integration alongside other precision hand tools and layout equipment. Documentation of technical data supports transparent procurement decisions and enables workshop managers to align the tool with quality-control routines. Supplied by a specialist distributor, the item benefits from centralised stocking that acts as a quality filter for the European market. Choose the Vertex fixed centre punch VLC-112 with a carbide tip for durable, accurate centre marking — contact Metav Werkzeuge for procurement advice and reliable supply from Emmerich (info@metav-werkzeuge.com / +49 2822 7131930) Technical data Article number: VLC-112 GTIN: 4061905084379 ECLASS: 21022304 Manufacturer: Vertex Dimensions & weight Length: 100 mm Tip angle: 60° Weight: 0.2 kg Materials & standards Tip material: carbide Standard: DIN 806 Design: fixed centre punch FAQ What does "fixed" mean for this marking tool? The Vertex centre punch VLC-112 is offered in a fixed design, which means the tip is integral to the shaft and not intended for replacement, favouring stability and consistent impressions. Is the tip material suitable for heavy use? Yes, the tip of the Vertex VLC-112 is made from carbide, a hard material selected for wear resistance and long service life under repeated marking cycles. Which standard does the tool adhere to? The tool conforms to DIN 806, ensuring standardised geometry and compatibility with workshop specifications for centre punches. What are the key dimensions of the tool? The Vertex VLC-112 has a 100 mm overall length and a 60° tip angle; the listed weight is 0.2 kg. What is the intended application for this punch? The Vertex centre punch VLC-112 is designed for precise centre marking and producing pilot indents prior to drilling in professional workshop settings. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
3700N Holding Force 2500N Thrust Rod Clamp Horizontal Base Zinc Plated Cast Body - Kukamet
Take advantage of the combination of compact design, 2,500 N pressing force and a zinc-plated cast body for reliable fixture performance; order the clamp directly via Metav Werkzeuge or contact our consultants for specification advice. Push‑rod clamp 532 — horizontal foot, 2.5 kN pressing force (Kukamet) The Push‑rod clamp 532 is a compact push‑rod clamping element for fixture and workholding applications, engineered for horizontal‑foot mounting and reliable repetitive operation. Kukamet push‑rod clamp 532 Horizontal‑foot mounting for stable fixing 2,500 N pressing force for secure clamping Zinc‑plated cast body for corrosion resistance Secure hold for production and jigging The clamp delivers a pressing force of 2,500 N and a holding force of 3,700 N, values that are decisive for dependable positioning and stability during machining or assembly cycles. The 12 mm piston diameter concentrates force with a compact footprint, making the unit suitable where space is limited but consistent clamping is required. Built to provide reproducible contact pressure, the device reduces cycle variability and supports efficient downstream processing through stable workpiece retention. Fast integration and reduced setup time Fitted with a horizontal foot and a pressure spindle sized M8x50, the component is designed for straightforward attachment to standard fixture plates and compatible bases. The clamp’s low mass (0.59 kg) simplifies handling during jig assembly and limits additional load on moving fixtures. As a result, set‑up time is shortened and fixtures can be modified or reconfigured with minimal effort, improving machine availability and contributing to leaner production flows. Durable construction for long service life A zinc‑plated cast body combines mechanical strength with corrosion protection, ensuring the clamping element withstands workshop conditions and routine handling. Surfaces are treated to resist wear and environmental influence, so maintenance intervals are extended and replacement cycles are reduced. The straightforward mechanical design supports uncomplicated inspection and servicing; common adjustments can be made without specialist tools, supporting a dependable, low‑effort maintenance routine. Contact Metav Werkzeuge today for detailed technical guidance, compatibility checks or a tailored quotation for the Kukamet push‑rod clamp 532 — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: 532-3-Q12 GTIN: 8680731504446 Manufacturer: Kukamet Facts Pressing force max: 2,500 N Holding force max: 3,700 N Piston diameter: 12 mm Weight: 0.59 kg Pressure spindle: M8x50 eClass: 21041716 ETIM: EC011973 Materials and features Material: zinc‑plated with cast body Mounting: horizontal foot Category: Spanner Story trigger: lever clamp FAQ What maximum clamping and holding forces does the clamp provide? The clamp provides a maximum pressing force of 2,500 N and a holding force of 3,700 N, as specified for the Kukamet push‑rod clamp 532 (SKU 532-3-Q12). How is the clamp mounted in a fixture? Mounting is via a horizontal foot; the unit is delivered for horizontal‑foot installation and is compatible with standard fixture plates using the M8x50 pressure spindle. What is the weight and how does it affect fixture design? The unit weighs 0.59 kg, which minimises added mass to moving assemblies and simplifies manual handling during fixture assembly. Is the clamp suitable for harsh workshop conditions? The clamp’s zinc‑plated cast body provides corrosion resistance and mechanical robustness, supporting reliable operation in typical workshop environments. How large is the piston and why does this matter? The piston diameter is 12 mm, which concentrates clamping force in a compact form and contributes to consistent contact pressure across repeated cycles. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
2500 N Push Rod Clamp 12 mm Piston Diameter Horizontal Foot Zinc-Plated Cast Body, 3700 N Hold Force - Kukamet
Taking advantage of 2,500 N clamping force and a zinc‑plated cast body, the unit offers dependable fixture performance and long service life; secure the Pushrod clamp directly via Metav Werkzeuge or contact their consultants for tailored advice. Pushrod clamp 536 by Kukamet — 2,500 N clamping force, zinc‑plated cast body The Pushrod clamp 536 is a compact rod clamping unit designed for horizontal mounting in workshop fixtures and jigs, combining compact mass with robust holding characteristics for repetitive production use. 2,500 N maximum clamping force 3,700 N holding capacity Zinc‑plated cast body for durability Horizontal foot for secure mounting Robust clamping for consistent production results The clamping unit delivers a clear technical advantage through its 2,500 N maximum clamping force paired with a 3,700 N holding capacity, ensuring stable fixation during machining and assembly operations. These values describe the active push force and the passive retention the device can provide; the higher holding capacity reduces the risk of workpiece shift under shock loads. The combination of force ratings supports short cycle times and predictable fixture behaviour, which can translate into fewer rejects and more consistent downstream processing. Compact construction that simplifies integration Engineered for easy installation, the clamp features a horizontal foot mounting style and a lightweight construction of 0.59 kg, helping to keep fixture mass low and maintain machine dynamics. The zinc‑plated cast body offers corrosion resistance and mechanical stiffness, reducing deformation under load and extending service intervals. A 12 mm piston diameter and an M8x50 pressure spindle enable fine adjustment of clamp travel and contact pressure, making the component suitable for precise positioning tasks without bulky ancillary parts. Designed for workshop and fixture applications As a dedicated clamping element for jigs and assembly fixtures, the rod clamp provides reliable repeatability and straightforward mechanical operation. The compact profile facilitates use in stacked or multi-point clamping arrangements where space is limited; only minimal additional hardware is required for secure attachment. The robust finish and cast construction support longevity in production environments, while the clear technical specs allow planning for lifecycle and maintenance routines based on measurable performance criteria. Contact Metav Werkzeuge today for expert guidance and to reserve the Pushrod clamp 536 (SKU 536-3-Q12) from stock in Emmerich for immediate fixture upgrades Technical data SKU: 536-3-Q12 GTIN: 8682843521250 eClass: 21041716 ETIM: EC011973 Measured values Maximum clamping force: 2,500 N Holding capacity: 3,700 N Piston diameter: 12 mm Weight: 0.59 kg Materials & features Zinc‑plated with cast body Horizontal foot mounting Pressure spindle: M8x50 Category: Clamps / Spanner FAQ What clamping and holding forces does the unit provide? The Pushrod clamp 536 offers a maximum clamping force of 2,500 N and a holding capacity of 3,700 N, values that support secure fixation in jigs and fixtures. How is the clamp mounted in a fixture? Mounting is via a horizontal foot, allowing the rod clamp to be fastened to plate or fixture bases for stable lateral fixation. What material and finish does the product have? The unit features a zinc‑plated, cast body, giving corrosion resistance and structural rigidity suitable for workshop environments. Which adjustment elements are supplied? The clamp is equipped with a M8x50 pressure spindle and a 12 mm piston diameter, enabling controlled contact pressure and precise clamping travel. What is the item weight and how does that affect fixture design? The clamp weighs 0.59 kg, supporting low overall fixture mass and easier handling during assembly planning. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
16mm Rubber Flex Collet for VTA7 Threading Attachment, Suitable Ø2.5–Ø4.5mm - Vertex
Robust performance and reduced vibration result from the combination of the rubber-flex design, a 16 mm diameter and a compact 11 mm length, delivering secure gripping for threading operations. Order the matching FC-10 collets directly via Metav Werkzeuge or consult our advisors for specification support. Rubber-Flex collets FC for threading unit VTA7 — 16 mm diameter, Vertex A Rubber-Flex collet engineered for the VTA7 threading unit, providing secure, low-vibration clamping for small threaded parts in precision workshops. Compatible with VTA7 threading unit 16 mm diameter for stable grip 11 mm compact length for rapid setup Rubber-flex design reduces vibration Consistent clamping for reliable threading results The rubber-flex collet design combines elasticity with firm contact to maintain secure clamping even under intermittent loads. With a 16 mm diameter, the unit is dimensioned to stabilise small workpieces and reduce slippage during rotation, which improves thread quality and reduces rework. The elastic surface also offers vibration damping, lowering the risk of chatter and supporting steadier machining parameters, an advantage for shops aiming to maintain throughput without sacrificing finish. Rapid integration with existing threading equipment Engineered for straightforward installation in the VTA7 threading unit, the collet’s 11 mm length minimises overhang and helps preserve tool-to-work alignment during set-up. Compatibility with precision gauges (Ø2.5–Ø4.5 mm) assists in fast centring and verification of clamping performance. The compact form factor therefore contributes to reduced set-up time and predictable process behaviour, enabling technicians to keep cycle times tight while retaining control over concentricity and runout. Gentle handling for delicate and finished parts The elastomer contact surface protects component surfaces where metal-to-metal clamping would leave marks. This workpiece protection is particularly useful when handling soft or plated parts and when post-process inspection criteria are stringent. The collet’s flexible grip also accommodates minor diameter variations without the need for frequent retooling, adding practical versatility for small-batch and mixed-run production. Reliable sourcing and workshop support Produced under the Vertex name, these collets follow established precision standards and are supplied with clear identifiers for inventory and procurement. Metav Werkzeuge acts as a European quality filter and distribution partner, offering access to a broad range of precision products that reduce the need for multiple suppliers. The combination of manufacturer provenance and centralised supply supports consistent workshop availability and traceable procurement for maintenance planning. For availability of Vertex FC-10 rubber-flex collets for the VTA7 threading unit and expert advice on integration, contact Metav Werkzeuge in Emmerich for tailored supply and specification guidance Technical data Article number: FC-10 GTIN: 4061905084355 ECLASS: 21041712 Core measurements Diameter: 16 mm Length: 11 mm Suitable for precision gauges: Ø2.5–Ø4.5 mm Applications / Features Compatible with VTA7 threading unit Rubber-flex design for secure gripping Compact form for threading operations FAQ Which machines are these collets compatible with? The collets are specified for the VTA7 threading unit and suit installations where compact, low-vibration clamping is required. What clamping diameter and range apply? The main body is 16 mm in diameter; suitability for precision gauges is stated as Ø2.5–Ø4.5 mm. Are these collets suitable for delicate threads and finished surfaces? Yes. The rubber-flex contact surface provides workpiece protection and reduces marking on softer or plated components. How long is the collet and how does that affect setup? The collet length is 11 mm, a compact dimension that reduces overhang and helps preserve alignment during set-up. What identifiers should be used for ordering and inventory? Use SKU FC-10 and GTIN 4061905084355 for procurement and stock management. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
17-42mm Closure Clamp Horizontal Foot With Spring, 220N Thrust, Stainless Steel - Kukamet
Combining stainless steel construction with a spring-loaded mechanism and a secure holding force, this clamp ensures reliable, low-maintenance fastening for industrial fixtures. Its adjustable arm and horizontal-foot mounting give versatile fit and simple integration. Order the 311 latch clamp directly via Metav Werkzeuge or ask our consultants if needed. 311 Latch Clamp — Stainless steel, spring-loaded horizontal-foot latch by Kukamet The 311 latch clamp is a spring-loaded stainless steel closure clamp with a horizontal foot, designed for secure fastening of panels, covers and fixtures in industrial and workshop applications. Spring-loaded over-centre action Stainless steel construction Adjustable arm 17–42 mm Holding force up to 325 N Secure, consistent fastening for repeatable processes The spring-loaded over-centre design provides consistent clamping and minimise the risk of loosening under vibration. With a rated holding force of up to 325 N and a maximum clamping force of 220 N, the closure offers dependable retention in repetitive assembly or transport situations. The mechanical action guarantees repeatable results without manual re-tensioning, supporting higher process reliability and reduced downtime. Flexible mounting and quick adjustment for different assemblies An adjustable arm that covers 17–42 mm enables rapid adaptation to varying panel thicknesses or flange gaps, reducing the need for multiple part variants. The horizontal foot mounting allows a compact installation profile where space is limited, while the integrated hook provides a secure engagement point. The specified thread length of 75 mm supports conventional fastenings and fine adjustment during setup, making the clamp suitable for jigs, enclosures and access doors. Corrosion resistance and minimal upkeep in demanding environments Constructed from stainless steel, the latch is suited to environments where corrosion resistance is required, resulting in low maintenance and prolonged service life. The spring element ensures constant preload while absorbing minor misalignments, and the robust hook design withstands repeated cycles. Together, these attributes reduce replacement frequency and support a stable long-term fixture solution. Contact Metav Werkzeuge for expert advice on the Kukamet 311 latch clamp and to request detailed technical information or configuration support at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data SKU: S311-3-Y GTIN: 8680731505702 Manufacturer: Kukamet Weight: 0.341 kg Core technical data Maximum clamping force: 220 N Maximum holding force: 325 N Arm range: 17–42 mm Thread length: 75 mm Weight: 0.341 kg Materials & features Material: stainless steel Attachment: horizontal foot With hook With spring Category: clamps FAQ What is the primary function of this latch clamp? The Kukamet 311 latch clamp is designed to provide secure, repeatable closure for panels and fixtures, offering a spring-loaded over-centre action and a reliable holding force for industrial applications. Can the clamp accommodate different panel thicknesses? Yes. The adjustable arm range of 17–42 mm allows the 311 latch clamp to be adapted to various gaps and panel thicknesses during installation. Is this clamp suitable for corrosive environments? The 311 latch clamp is made from stainless steel, which offers enhanced corrosion resistance and reduced maintenance in humid or corrosive settings. How is the clamp mounted? The unit is designed for horizontal-foot mounting and includes a hook engagement; a thread length of 75 mm permits standard fastening and fine positional adjustment. What load values should be considered for safety? Reference the maximum clamping force of 220 N and the holding force of 325 N when designing fixtures; these values indicate the clamp’s reliable retention and clamping capability. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
800 N Pushrod Clamp, Zinc Plated, M5x35 Actuating Spindle, 970 N Holding Force, Without Base - Kukamet
Combine compact design, reliable corrosion protection and assured clamping performance — with a maximum holding force of 970 N and a pressing force of 800 N for secure fixturing. Order the push‑rod clamp directly via Metav Werkzeuge or consult our specialists for application guidance. Push‑rod clamp 513 — compact zinc‑plated clamp with M5×35 spindle (Kukamet) The Push‑rod clamp 513 is a compact, zinc‑plated clamping element designed for fixture assembly and light to medium‑duty workholding in workshops and production environments Compact push‑rod clamp 513 by Kukamet Zinc‑plated steel for corrosion resistance Max holding force 970 N M5×35 screw spindle, no base required Secure holding with defined forces for reliable fixtures The push‑rod design delivers a clearly defined holding force and pressing force, ensuring components remain stable during assembly and light machining. The difference between the two values is functional: the pressing force of 800 N describes the maximum actuation load applied by the spindle, while the 970 N holding force indicates the clamp’s resistance against displacement once engaged. This separation of values helps planners specify the clamp within fixture load budgets and select suitable drive or actuation components. The compact actuation mechanism allows precise clamping without large levers or housings, supporting repeatable positioning in serial production. Durable finish and compact footprint for long service life A zinc‑plated surface finish provides corrosion resistance and a consistent appearance across multiple units, which is beneficial where parts are exposed to workshop humidity or coolant mist. The lightweight construction (approx. 0.095 kg) and compact geometry reduce added mass in jigs and do not impose excessive load on movable tooling. The combination of a corrosion‑resistant coating and a straightforward mechanical design results in a maintenance‑friendly clamp that minimises downtime and supports long‑term fixture reliability. Easy integration and adjustment in assembly setups Integration is simplified by the M5×35 spindle, which offers fine mechanical adjustment and compatibility with common fastening hardware. The clamp is supplied without a base, permitting direct mounting to fixtures, plates or custom adaptors and allowing flexible orientation in a clamping station. Its compact form factor makes it suitable for confined spaces where larger clamping elements would interfere with part access. For modular jigs and bespoke assembly equipment, this clamp provides defined bite and repeatability while occupying minimal space. Choose the Kukamet push‑rod clamp 513 for compact, corrosion‑resistant workholding and contact Metav Werkzeuge in Emmerich for specification advice and reliable supply. Technical data SKU: 513-1 GTIN: 8680731502701 Material: Zinc‑plated Weight: 0.095 kg Core specifications Max pressing force: 800 N Max holding force: 970 N Spindle: M5×35 eCl@ss: 21041716 ETIM: EC011973 Design & features Clamping type: push‑rod clamp Finish: zinc‑plated Installation: without base/foot Intended use: fixture assembly and workholding FAQ What is the difference between pressing force and holding force? Pressing force is the maximum actuation load (800 N) applied by the clamp’s spindle, while holding force (970 N) denotes the clamp’s resistance to displacement once engaged; both values are provided for the Push‑rod clamp 513 to aid correct fixture design. Can the clamp be mounted directly to a jig plate? Yes. The Push‑rod clamp 513 is supplied without a base, allowing direct mounting to plates or adaptors; the M5×35 spindle supports common fastening options for integration. What material and surface finish does the clamp feature? The clamp is made with a zinc‑plated finish for improved corrosion resistance and consistent service life in workshop environments. Is the spindle standardised and user‑replaceable? The unit uses an M5×35 spindle, a standard screw size that permits service and replacement with common fasteners as required. Which SKU should be referenced when ordering or specifying? Reference SKU 513-1 (Push‑rod clamp 513 by Kukamet) for ordering and documentation. Manufacturer: Kukamet Fevzi Çakmak Mah.10644 Sk. No:61-63 42050 Karatay / KONYA TÜRKİYE / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com

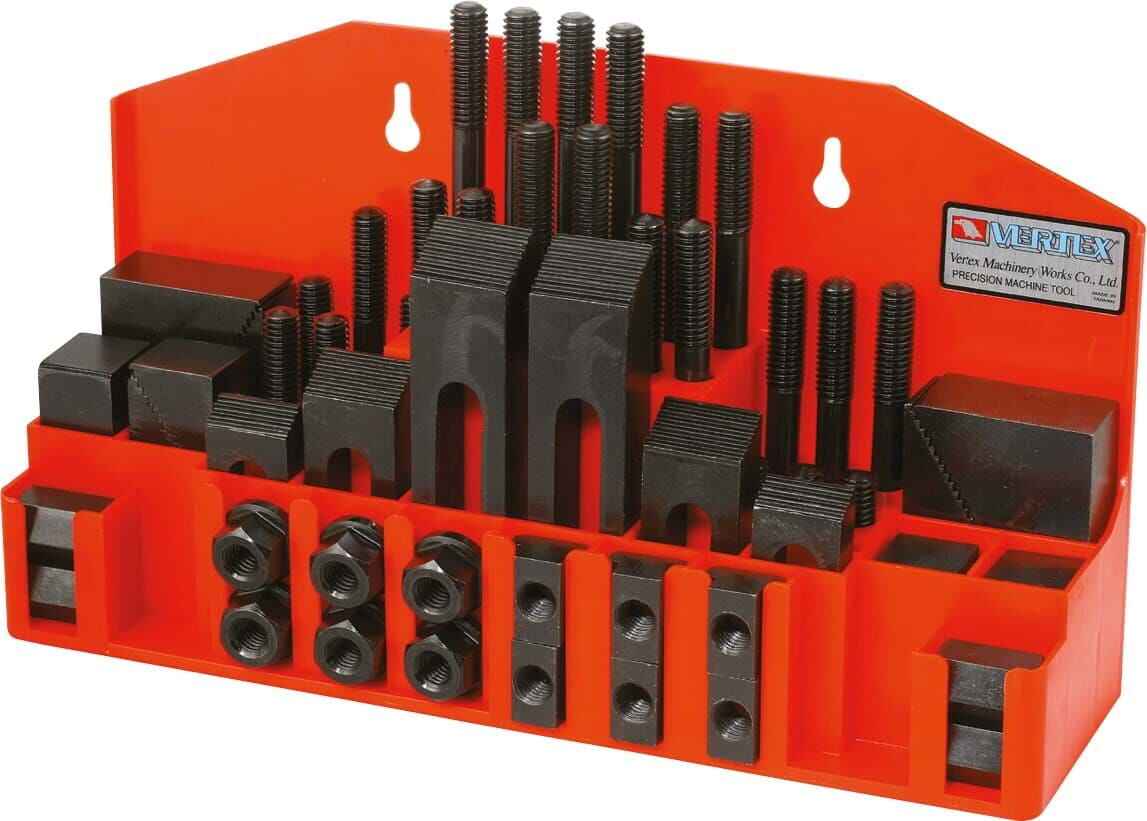

52-Piece Clamping Kit With 3/8"-16 Bolts, T-Slot Accessories, 75–200mm Bolts Included - Vertex
The combination of modular fixturing, standard 3/8"-16w clamping bolts and a 7/16" T-slot fit delivers quicker set-ups and reliable repeatability for small to medium machine tables; order the set directly via Metav Werkzeuge or contact our consultants for tailored configuration advice. CK-103A 52-piece clamping tool set by Vertex — 3/8"-16w bolts, 7/16" T-slot compatibility The CK-103A clamping tool set is a compact workholding solution designed for flexible fixturing on milling machines and machine tables where standard T-slots are used. Comprehensive 52-piece clamping kit Fits 7/16" T-slots Contains 3/8"-16w clamping bolts Total weight 6.5 kg for easy handling Faster set-up through modular fixturing and standard components The set is designed to reduce machine downtime by providing a complete assortment of clamping elements that work together without extensive adaption. The combination of standard-threaded bolts and complementary clamping parts enables repeatable positioning and secure fixation, which shortens preparation time and supports consistent production flow. The practical arrangement of components helps maintain process reliability and reduces the need for improvised fixtures, improving overall shop-floor efficiency. Practical contents that support versatile workholding Contained items include a range of bolt lengths and fixturing components selected to cover common clamping scenarios. The kit includes multiple 3/8"-16w bolts in stepped lengths, T-slot adaptors and a mix of clamping and support elements that make it suitable for workpieces of different heights and shapes. This variety means fewer tool changes and less manual modification during setup. For operators less familiar with fixturing, the assortment provides straightforward options that translate technical requirements into functional clamps and supports. Durable design for everyday workshop use and dependable handling Weighing 6.5 kg, the set is portable enough for mobile bench use while remaining substantial for stable handling. The individual parts are organised to maintain accessibility during shift work, helping to avoid lost time searching for components. As a Vertex product, the set follows established manufacturing standards for fit and function, which contributes to long service life under normal workshop conditions and sustained precision in clamping tasks. Contact Metav Werkzeuge to discuss how the Vertex CK-103A set suits specific fixturing requirements or to request a tailored configuration—email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data SKU: CK-103A GTIN: 4061905083303 ECLASS: 21041790 Facts Pieces per set: 52 Total weight: 6.5 kg Bolt thread: 3/8"-16w T-slot compatibility: 7/16" Special features Contents: 24 bolts (4 per size: 3", 4", 5", 6", 7", 8" or 75, 100, 125, 150, 175, 200 mm) Contents: 6 T-nut adaptors Contents: 4 couplings Contents: 6 flanges Contents: 6 clamps Contents: 6 blocks FAQ What machine tables does the set fit? The Vertex CK-103A set is suitable for machine tables with a 7/16" T-slot, enabling direct use of the supplied T-nut adaptors and bolts. Which bolt thread is used in the kit? The kit uses 3/8"-16w clamping bolts as standard, supplied in a range of lengths for varied clamping heights. How many individual parts are included? The set contains 52 pieces, including bolts, T-nuts, couplings, flanges, clamps and blocks to cover typical fixturing needs. Is the kit portable for bench use? With a total weight of 6.5 kg, the Vertex CK-103A is compact enough for benchside handling while retaining the robustness required for secure clamping. Can the kit secure different workpiece thicknesses? Yes, the range of bolt lengths and the mix of clamps and blocks in the CK-103A allow secure fixation of workpieces with varying thicknesses without additional bespoke components. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
Secure components with reliable workpiece clamps
Workpiece clamps, also known as workholding clamps or workholding devices, form the essential mechanical interface between machine and part in industrial fabrication. They keep components absolutely play-free, positionally accurate and vibration-resistant during milling, turning, drilling or grinding.
How workpiece clamps ensure process stability
A correctly specified clamping concept transfers the high cutting and feed forces of modern CNC machines into the machine table or spindle without deforming the part. The right combination of mechanical, hydraulic, pneumatic or magnetic solutions enables fast, repeatable setups and supports automated part change where required. Typical applications range from single-part turning to high-volume series milling and complex five-axis machining.
Concrete production benefits at a glance
- repeatable positioning: reduces scrap and rework
- high clamping forces: withstands aggressive cutting without part movement
- reduced set-up time: modular systems and quick-change features speed throughput
- improved surface finish: vibration damping for finer results and tighter tolerances
- flexible compatibility: vices, chucks, clamping plates and zero-point systems for diverse geometries
Why Metav's range is the practical choice
Metav combines decades of specialist know-how with a broad, handpicked range that democratises precision for workshops and industry alike. Based in Emmerich, Metav acts as a quality filter for the European market and supplies more than 250,000 products from precision metrology to complete workshop equipment. With the trust of over 48,000 customers, Metav offers a single-source approach that reduces supplier complexity and secures dependable delivery to your workbench.
Technical data
- function: mechanical interface between machine and workpiece
- primary requirements: absolute positional accuracy; vibration reduction; high clamping forces
- technologies: mechanical, hydraulic, pneumatic, magnetic
- typical components: machine vices; chucks; clamping plates; zero-point systems; pratzen; clamping jaws
- application areas: milling; turning; drilling; grinding; automated part change systems
- production benefits: reduced set-up time; enhanced process security; optimised series and single-part production
The practical summary
Workpiece clamps bring the stability and repeatability required to meet tight tolerances and excellent surface quality, making them indispensable across machining operations. Choosing the right workholding clamps and modular workholding devices is a decisive step towards higher productivity and consistent part quality.
FAQ
What types of workpiece clamps are suitable for automated machining?
Workholding clamps with quick-change modules, hydraulic actuation or magnetic systems are commonly used for automated machining. These workholding devices enable fast, repeatable part changes and integrate with zero-point systems.
How do workpiece clamps affect surface finish and tolerances?
A stable clamping concept minimises vibration and part movement; this improves surface finish and supports achieving narrow tolerances when using high-precision workpiece clamps or workholding devices.
Can the same workpiece clamps handle different part geometries?
Modular workholding clamps and adaptable clamping jaws allow flexible fixturing for varied geometries; combining vices, clamping plates and pratzen increases versatility on the shopfloor.
