40mm Universal Bore Gauge Micrometer With Interchangeable Anvils, Microcomputer Wireless+USB - Microtech Metrology
€1,149.00
Product information "40mm Universal Bore Gauge Micrometer With Interchangeable Anvils, Microcomputer Wireless+USB - Microtech Metrology"
Benefit from high‑precision measurement combined with modern data transfer and modular tooling: the instrument’s 0.003 mm accuracy and Wireless and USB data output speed up inspection cycles and reduce transcription errors, while the interchangeable anvils enable flexible measurement set‑ups. Order directly via Metav Werkzeuge or consult the on‑site specialists for configuration and supply.
Universal micrometer – digital bench micrometer, 0–40 mm range, Wireless + USB (Microtech Metrology)
The Universal micrometer offers a compact, digital measuring solution for precise external and step measurements in workshop and production environments.
Digital micrometer, 0.003 mm accuracy
0–40 mm measuring range
Wireless and USB data output
Interchangeable anvils (anvils not included)
Precision that shortens inspection time
The instrument delivers 0.003 mm accuracy, providing repeatable results for tight tolerances typical in precision engineering and quality control. With a 0–40 mm measuring range and 0.0001 mm resolution on the display, the device is suitable for small components where micrometre‑level deviations are critical. A 18 mm measuring depth supports measurements on stepped parts and constrained geometries, reducing the need for secondary fixtures and saving inspection time.
Integrating measurement into the production flow
Equipped with Wireless and USB data output, the device removes manual transcription and enables direct capture into inspection software or SPC systems. The digital interface supports faster batch documentation and traceability, which improves process transparency and lowers administrative overhead. Where consistent data logging is required, wireless transfer speeds up throughput and reduces human error without altering established workflows.
Modular anvils for diverse measuring tasks

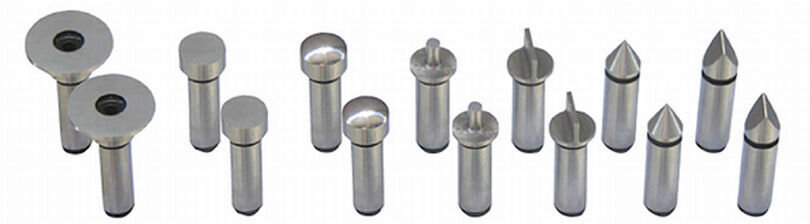

The micrometer accepts interchangeable anvils, allowing adaptation to different workpiece shapes and contact radii; this modularity increases versatility across jobs without requiring multiple instruments. Note that anvils are not included with delivery, which makes it straightforward to select the appropriate anvil geometry for each application. The modular approach supports rapid changeovers and reduces inventory of distinct gauges.
Robust design for shopfloor use
Built as a workshop instrument, the device balances precision with practicality: a compact form factor and durable construction stand up to daily handling in machine shops and inspection benches. The combination of precise measurement capability and straightforward data export makes the tool well suited for toolmakers, service providers and in‑line quality checks. Microtech Metrology’s engineering ensures the unit integrates into existing measuring routines while delivering measurable gains in efficiency and reliability.
Contact Metav Werkzeuge to discuss the best Universal micrometer configuration for specific applications or to confirm current stock in Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930
Technical data
- SKU: 115050477
- GTIN: 4061905457722
- Manufacturer: Microtech Metrology
- Measuring range: 0–40 mm
- Data output: Wireless + USB
- Digital: yes
Numbers / Core technical data
- Accuracy: 0.003 mm
- Display resolution: 0.0001 mm
- Measuring depth: 18 mm
- Measuring range min/max: 0 / 40 mm
- ECLASS: 21170328
Special features / Versions
- Interchangeable anvils — anvils not included
- Suitable for external and step measurements
- Digital data transfer for SPC integration
- Compact bench body for workshop use
FAQ
Is the micrometer suitable for routine incoming inspection?
The Universal micrometer from Microtech Metrology (SKU 115050477) is designed for routine inspection work with 0.003 mm accuracy, making it suitable for incoming quality checks on small components.
How is measurement data transferred to a PC?
Data transfer is handled via the unit’s Wireless and USB interfaces; the Universal micrometer supports direct export to inspection software or data loggers for downstream analysis.
Are the measuring anvils included with the delivery?
The delivery does not include anvils; the Universal micrometer accepts interchangeable anvils, which can be selected separately to match the required contact geometry.
What kinds of measurements can be performed with this instrument?
The device is optimised for external and step measurements on small parts; its 18 mm measuring depth and compact frame suit stepped components and confined geometries.
Can the micrometer be used on the shopfloor in continuous production?
Yes. The digital output and robust construction make the micrometer appropriate for repeated use in production environments where rapid documentation and reliability are needed.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
