300–350mm Universal Bore Micrometer Wireless/USB, Exchangeable Anvils Not Included, 110mm Depth - Microtech Metrology
€1,850.00
Product information "300–350mm Universal Bore Micrometer Wireless/USB, Exchangeable Anvils Not Included, 110mm Depth - Microtech Metrology"
Benefit from a combination of high measurement precision, flexible data transfer and a medium‑range frame suited to larger workshop components; order the micrometer directly via Metav Werkzeuge or consult our specialists for integration advice.

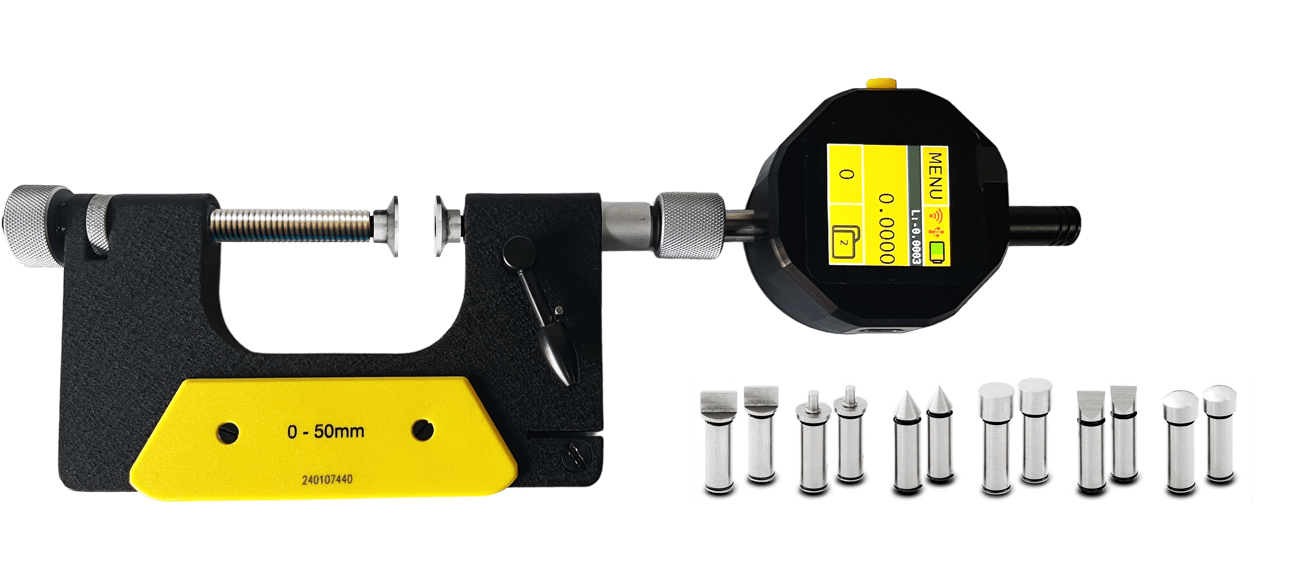

Universal frame micrometer — Microtech Metrology digital micrometer with Wireless and USB output
Universal frame micrometer is a digital outside micrometer designed for medium‑range measurements in workshop and quality‑control environments, offering extended reach and modern data capture for traceable measurement workflows.
- Digital micrometer with microcomputer
- Wireless and USB data output
- Measuring range 300–350 mm, 110 mm depth
Precision for medium‑sized workpieces that improves throughput
The measuring range 300–350 mm places this instrument in the medium range, making it suitable for larger assemblies while remaining manageable for single‑operator use. With a display resolution 0.0001 mm and an operational accuracy ±0.008 mm, the instrument separates fine readout from overall measurement uncertainty: the display resolution indicates how finely results are shown, while the stated accuracy defines the expected deviation under normal working conditions. This combination supports reliable in‑process control and reduces rework by providing reproducible readings across components such as housings, fixtures and medium‑sized moulded parts.
Modern data handling to integrate measurement into production control
Equipped with an integrated microcomputer and both Wireless and USB data outputs, the device facilitates direct transfer of measured values into statistical process control or inspection software. Automated capture of readings eliminates manual transcription, decreases logging time and improves traceability in documentation. For production environments where data integrity and auditability matter, the micrometer’s connectivity supports faster decision making and smoother handover from workshop measurement to quality records.
Practical design and accessory considerations for flexible use
The frame offers an extended measuring depth 110 mm, enabling access to recessed features while maintaining stiffness across the span. The instrument accepts interchangeable measuring faces to adapt to specific workpiece geometries; note that anvils are not included, so selection of suitable contact faces is required for specialised tasks. The construction emphasises stable contact and repeatable clamping action, which together with the electronic readout reduces operator influence on results and supports consistent measurement across shifts.
Where this instrument delivers measurable value
In machine shops, toolrooms and production inspection, the micrometer is suited to dimensioning medium‑sized components such as shafts, housings and assembled fixtures. The mix of robust mechanical guidance, high readout resolution and digital output yields a practical balance between throughput and metrological control, helping to reduce scrap and speed acceptance testing. Integration into measurement routines also aids compliance with internal QA protocols and facilitates efficient data collection for continuous improvement.
For expert advice on fitting this Microtech Metrology outside micrometer to existing inspection processes and to order via Metav Werkzeuge, contact Metav Werkzeuge in Emmerich for tailored support and seamless delivery.
Technical data
- Article number: 115053577
- Manufacturer: Microtech Metrology
- GTIN: 4061905457913
Facts
- Measuring range: 300–350 mm
- Measuring range (max): 350 mm
- Measuring range (min): 300 mm
- Measuring depth: 110 mm
- Accuracy: 0.008 mm
- Display resolution: 0.0001 mm
Special features
- Digital display with integrated microcontroller
- Data output: Wireless and USB
- Interchangeable measuring faces possible; anvils not included
- Category: Micrometers / Outside micrometer
- ECLASS: 21170328
FAQ
How accurate is the Universal frame micrometer?
The Universal frame micrometer from Microtech Metrology (SKU 115053577) specifies an accuracy of ±0.008 mm, with a high‑precision display capable of 0.0001 mm readout for clear resolution of results.
What measuring range does this instrument cover?
This micrometer covers a measuring range of 300–350 mm and a measuring depth of 110 mm, classified as a medium‑range instrument suitable for larger workshop components.
Can measurement data be exported directly to inspection software?
Yes — the instrument provides both Wireless and USB data output and an integrated microcontroller to enable direct transfer of readings into SPC or inspection systems.

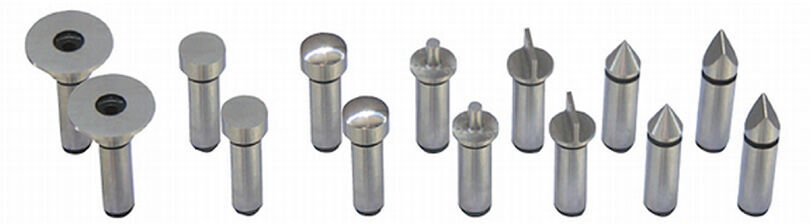

Are the measuring anvils supplied with the micrometer?
No, the device is supplied without anvils; it accepts interchangeable measuring faces so suitable contact tools can be selected for the intended application.
What applications is this micrometer best suited for?
Typical uses include dimensional checks on housings, fixtures, shafts and moulded parts in machine shops and quality control stations where medium‑range, traceable measurements and data integration are required.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
