100-150mm Three-Point Inside Micrometer Colour Touchscreen Wireless/USB, ISO 17025 Calibrated - Microtech Metrology
€1,710.00
Product information "100-150mm Three-Point Inside Micrometer Colour Touchscreen Wireless/USB, ISO 17025 Calibrated - Microtech Metrology"
Take advantage of the combination of precise three-point measurement, wireless data output with USB, and full ISO 17025 calibration for dependable bore inspection and traceable results; order via Metav Werkzeuge or consult the specialists for application advice.

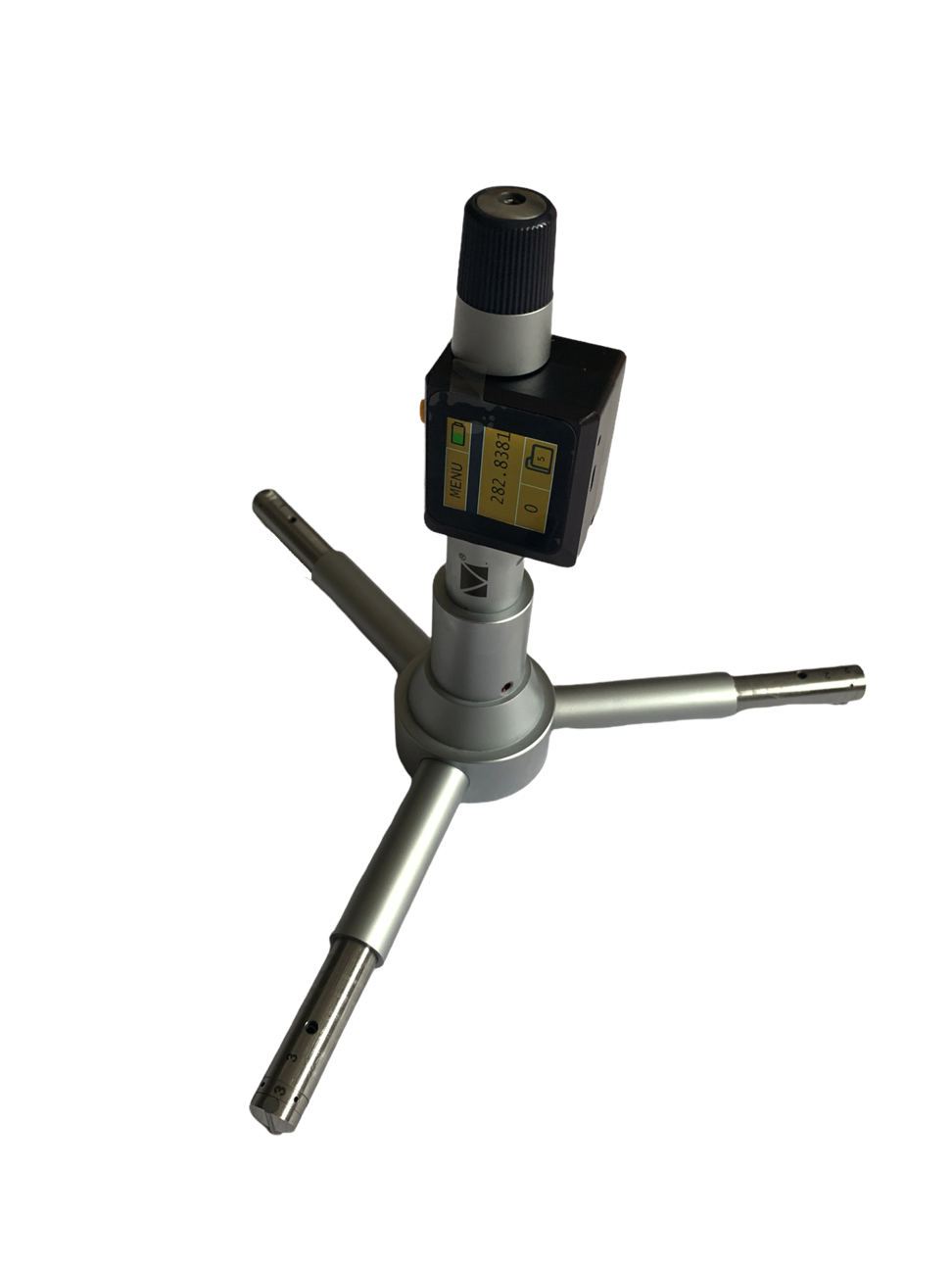

Three-point internal micrometer — digital, 100–150 mm measuring range, Wireless + USB, Microtech Metrology
The Three-point internal micrometer is a digital, workshop-ready instrument for repeatable bore and internal diameter checks from 100 to 150 mm, designed for production quality control and laboratory verification.
- ISO 17025 calibration certificate included
- Wireless and USB data output
- Colour 1.5" touchscreen display
- High repeatability: 0.004 mm accuracy
Reliable measurement where it matters
The instrument delivers consistent three-point measurement across bores, reducing orientation error and improving repeatability compared with single-point probes. With a specified accuracy of ±0.004 mm, the device supports quality control procedures that demand tight tolerances. The standard-sized measuring range classifies the tool for typical workshop and machine‑shop applications, offering a practical balance between reach and rigidity for medium-sized components.
Fast data capture and traceability for production

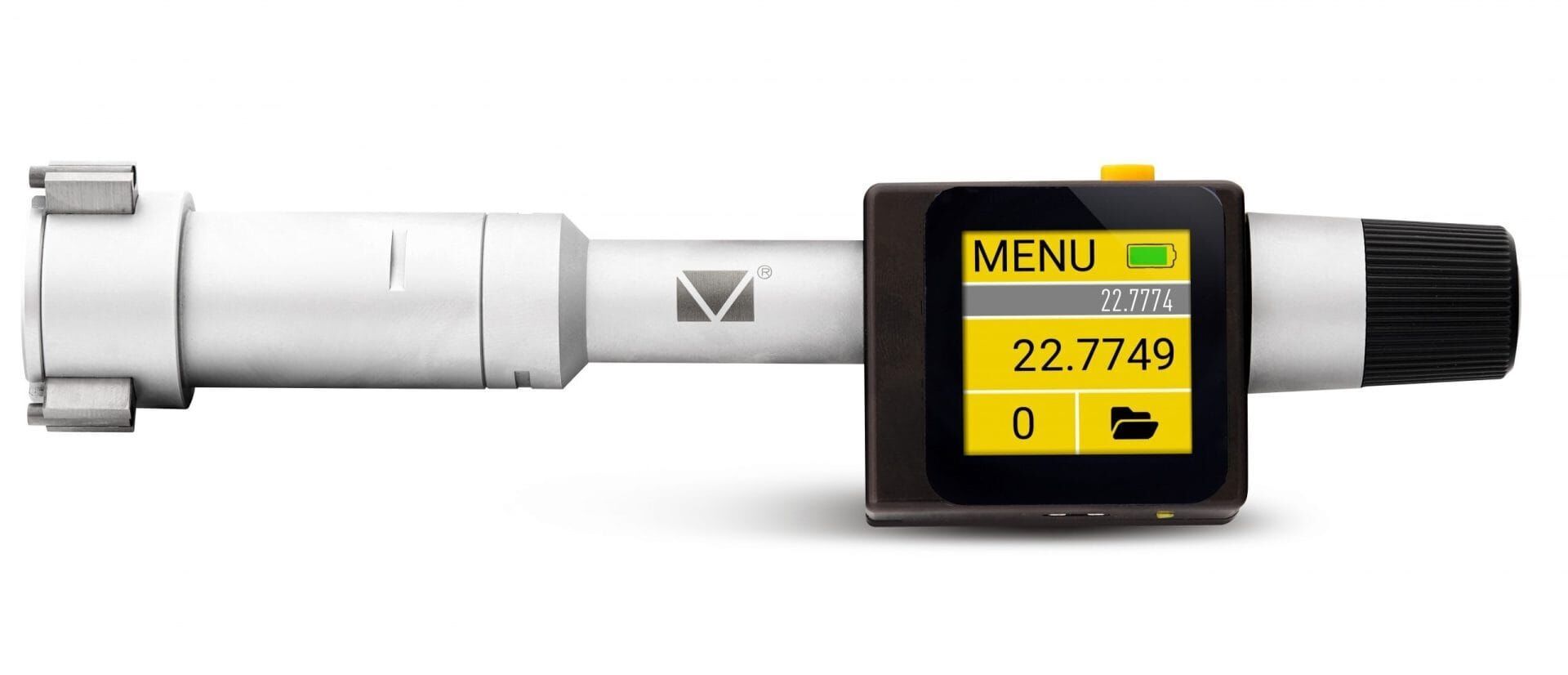

Equipped with Wireless and USB data outputs and a Colour 1.5" touchscreen, the device streamlines data acquisition and logging without manual transcription. The high-resolution reading (0.0001 mm) ensures fine increments are visible on the display, while digital output supports integration into measurement software or SPC workflows. This lowers administrative effort and helps maintain a clear audit trail for batch releases.
Practical handling that reduces operator influence

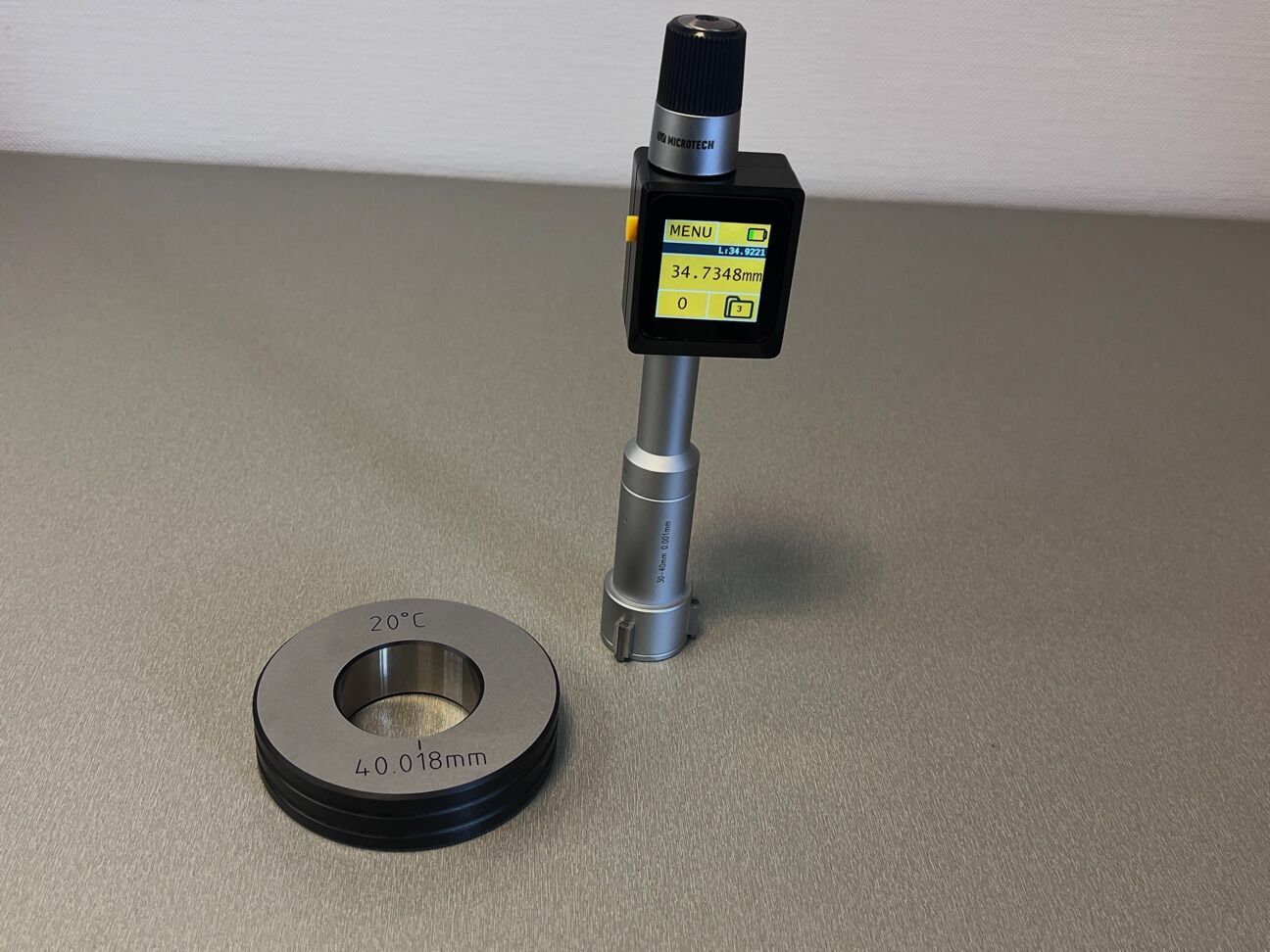

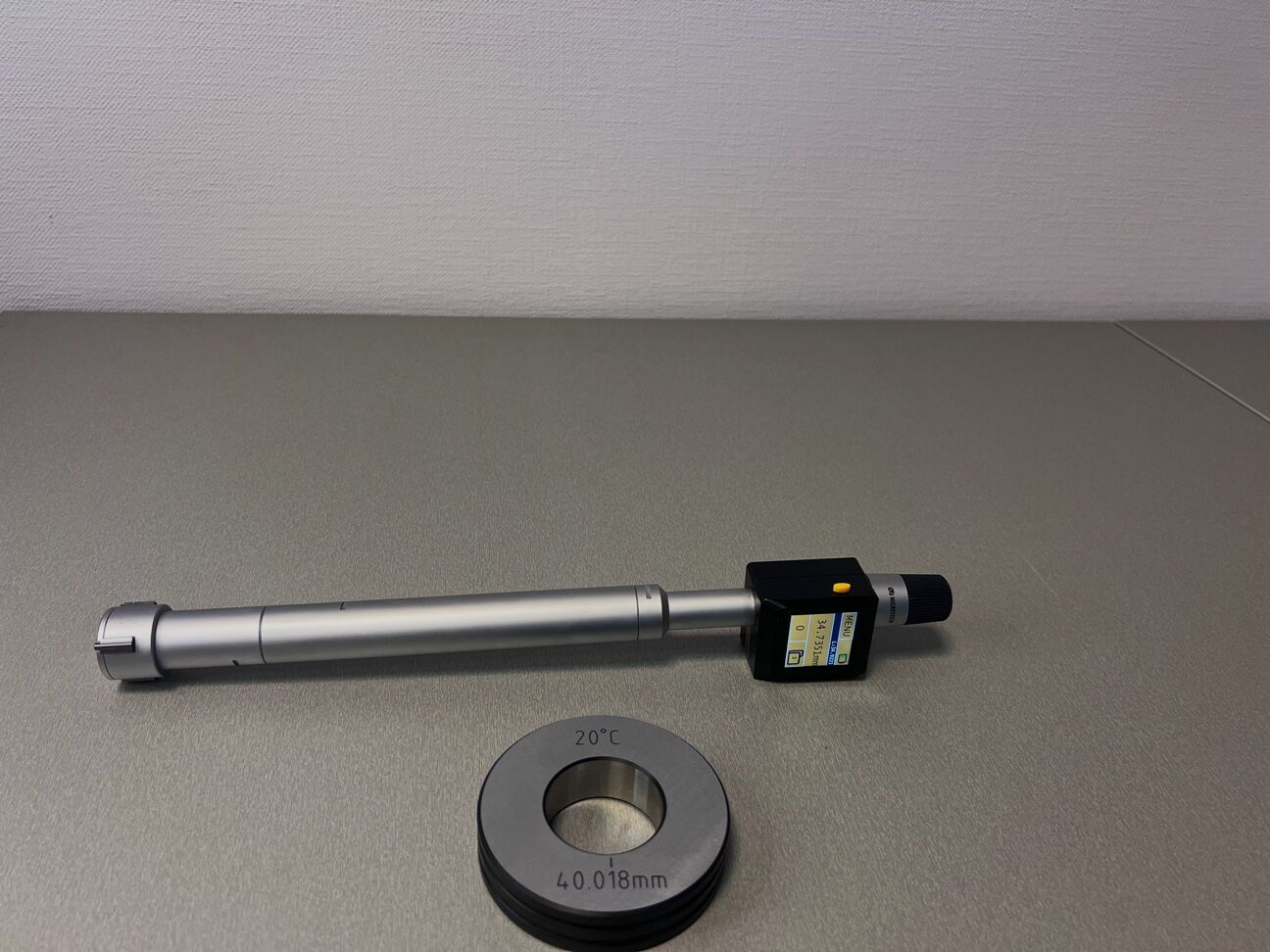

The included adjustment ring simplifies zeroing and routine checks, and the three-contact measuring head minimises tilting errors during insertion into bores. A measuring depth of 250 mm allows access to deeper cavities while preserving stability. These ergonomic and mechanical details reduce the effect of operator technique on the measurement result, improving reproducibility across shifts.
Certified delivery and industrial readiness
This micrometer is supplied fully calibrated to ISO 17025 standards and includes a calibration certificate, making it immediately suitable for accredited quality environments. The combination of high accuracy, digital interfacing and certified calibration positions the instrument as a reliable tool for incoming inspection, in‑process checks and final acceptance testing.
Contact Metav Werkzeuge for tailored advice and secure a certified Microtech Metrology three-point internal micrometer (SKU 133715010) with ISO 17025 calibration for your measurement process
Technical data
- Article number: 133715010
- GTIN: 4061905074295
- Manufacturer: Microtech Metrology
- ECLASS: 21170335
- ETIM: EC003590
Facts
- Measuring range: 100–150 mm
- Resolution (reading): 0.0001 mm
- Accuracy: ±0.004 mm
- Measuring depth: 250 mm
- Digital display: Colour 1.5" touchscreen
- Data output: Wireless + USB
- Calibration: ISO 17025 certificate included
Special features
- Three-point internal measurement
- Adjustment ring included
- Digital operation for SPC integration
- Suitable for workshop and lab use
- Delivered calibrated for traceability
FAQ
Is this instrument supplied calibrated?
Yes. The Microtech Metrology three-point internal micrometer (SKU 133715010) is delivered fully calibrated to ISO 17025 and includes the corresponding calibration certificate.
Which measurement range does the instrument cover?
The device covers a measuring range of 100–150 mm, which places it in the standard class for workshop and machine‑shop bore inspection tasks.
How are measurement results exported?
Measurement data can be exported either wirelessly or via USB, enabling direct transfer into inspection software or SPC systems from the Microtech Metrology instrument.
What resolution and accuracy can be expected?
The display resolution is 0.0001 mm and the specified accuracy is ±0.004 mm, suitable for stringent dimensional checks in production control.
Is the touchscreen suitable for use with gloves?
The 1.5" colour touchscreen provides clear readout and simple menus; for glove operation, common shop gloves may limit sensitivity—repeatable results are maintained via the device’s stable mechanical design.
