1000mm Three-Point Bore Micrometer Colour Touchscreen Wireless+USB, ISO 17025 Calibrated - Microtech Metrology
€7,990.00
Product information "1000mm Three-Point Bore Micrometer Colour Touchscreen Wireless+USB, ISO 17025 Calibrated - Microtech Metrology"
Take advantage of the combination of high-resolution readout, Wireless + USB data transfer and certified ISO 17025 calibration for repeatable, traceable inside measurements across a 200–1,000 mm range — ideal for metrology labs and toolrooms. Order the three-point inside micrometer directly via Metav Werkzeuge or consult our specialists for application advice.

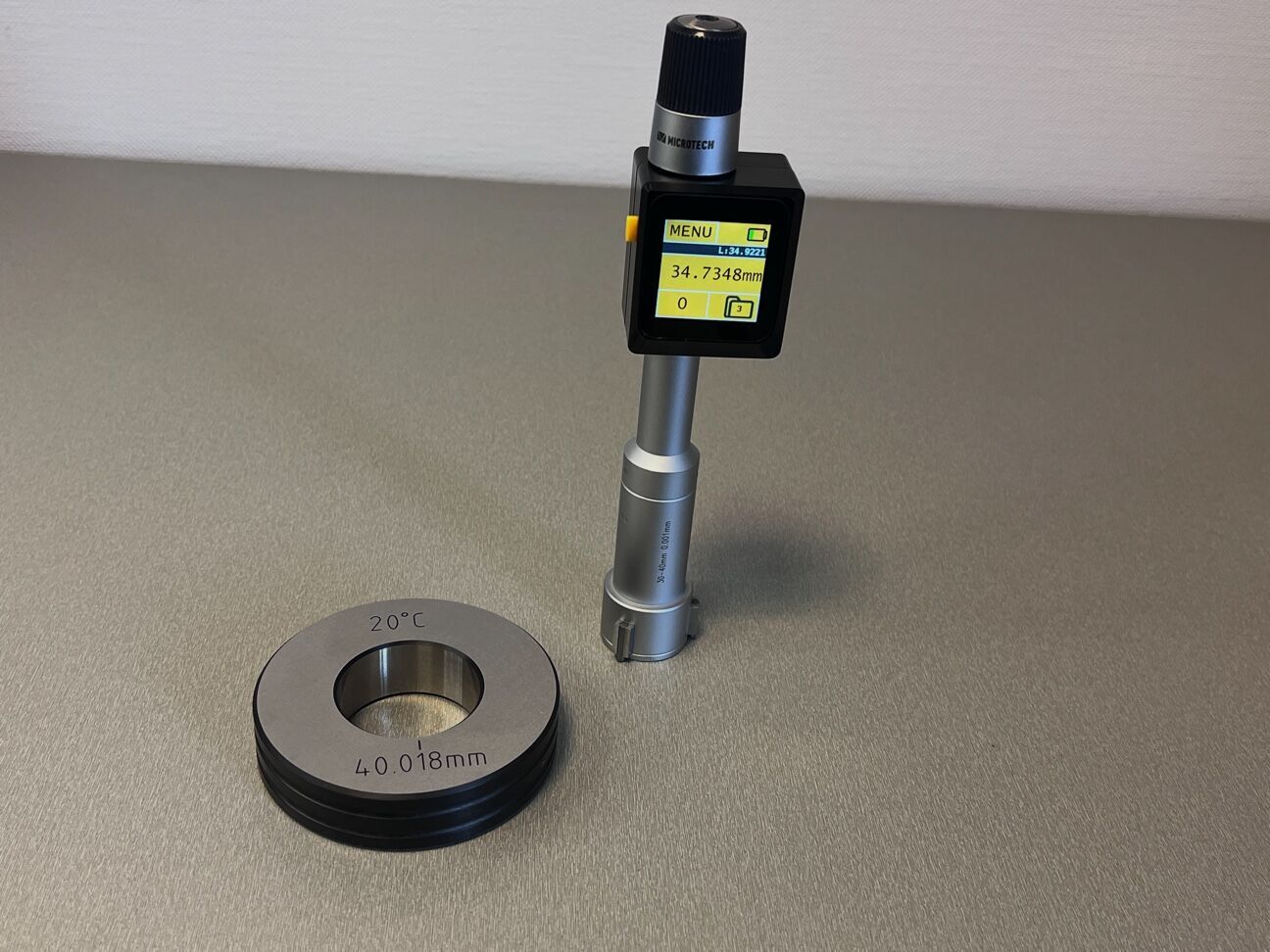

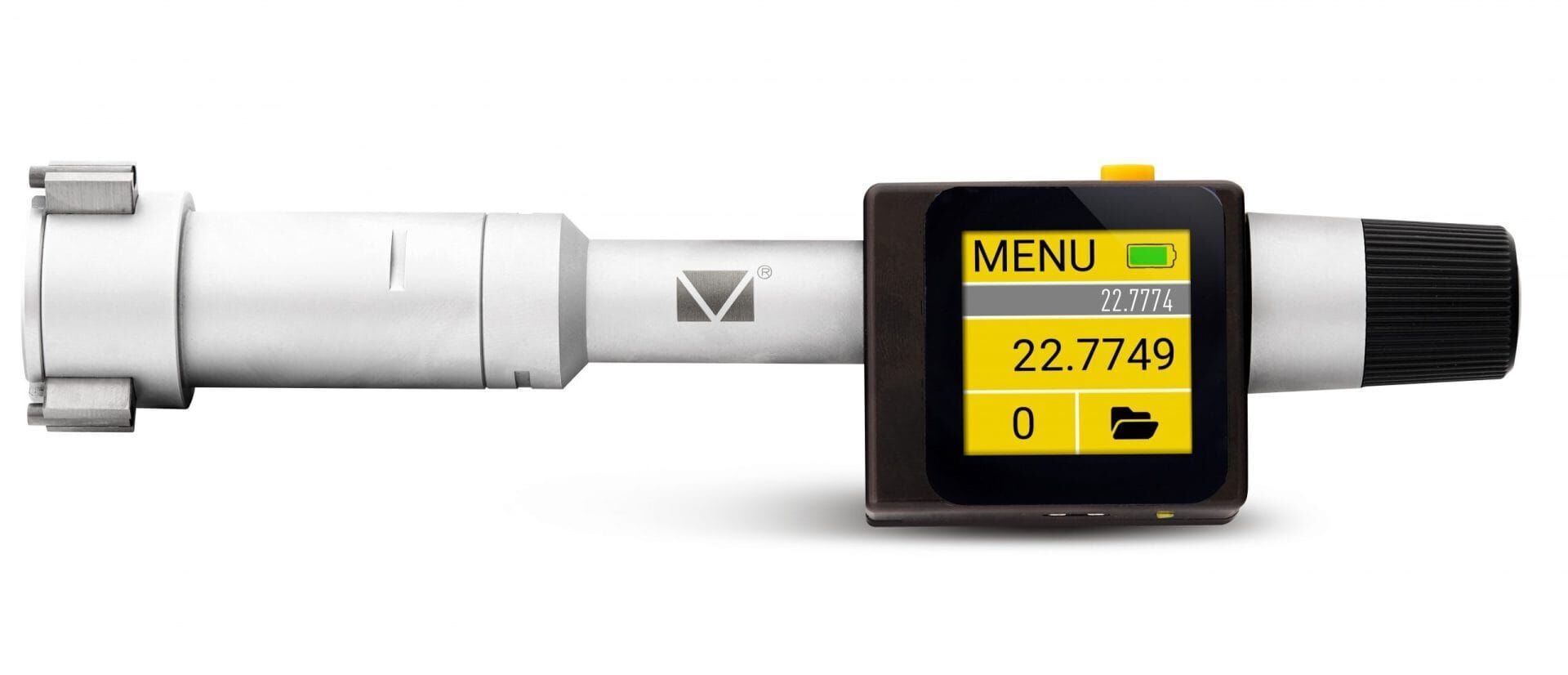

Three-Point Inside Micrometer by Microtech Metrology — 200–1,000 mm, Colour 1.5" Touchscreen
Three-Point Inside Micrometer for precise bore and internal diameter measurement in production control and inspection environments
- ISO 17025 calibrated with certificate
- Wireless and USB data output
- Colour 1.5" touchscreen readout
- Measuring range 200–1000 mm
Traceable accuracy for critical bores
The three‑point measuring system ensures stable contact with the bore, reducing eccentricity and improving repeatability for internal diameters. With a measuring range of 200–1,000 mm and an indicated accuracy of ±0.011 mm, the instrument is suited to routine quality checks and first‑article inspection where clear, verifiable results are required. The device’s resolution of 0.0001 mm is shown on a Colour 1.5" touchscreen, making fine adjustments and readings straightforward and reducing interpretation errors.
Fast data capture and seamless workflow
Equipped with Wireless and USB data output, the micrometer integrates into digital inspection chains and statistical process control systems without manual transcription. The touchscreen display speeds up set‑up and verification, while electronic export removes transcription risk and accelerates reporting. These features support efficient inspection cycles and shorter process feedback loops, helping to maintain production throughput without compromising measurement integrity.
Built for large internal measurements
The instrument’s capacity and construction are geared towards larger bores: a measuring depth of 1,150 mm provides access to deep features and recesses commonly found in valves, housings and large assemblies. Classified in the large‑range class (500–1,000 mm), this solution balances reach and rigidity to preserve reproducibility across the full span. The included setting ring facilitates quick verification and zeroing at the bench, keeping downtime to a minimum.
Certified calibration and field application
Supplied fully calibrated to ISO 17025, the micrometer comes with a traceable calibration certificate, allowing direct use in accredited workflows and ensuring measurement results are defensible in quality documentation. Typical applications include inspection of bores in hydraulic components, mould housings and rotors where internal geometry is critical. The electronic readout and data outputs also make the instrument suitable for laboratories implementing Industry 4.0 data capture.
For measurement tasks requiring traceable, large‑range internal accuracy, contact Metav Werkzeuge to discuss this Microtech Metrology three‑point inside micrometer and its integration into existing inspection procedures; email info@metav-werkzeuge.com or phone +49 2822 7131930 for purchase and technical consultation.
Technical data
- Article number: 133790011
- GTIN: 4061905074332
- Manufacturer: Microtech Metrology
Facts
- Measuring range: 200–1,000 mm
- Measuring depth: 1,150 mm
- Resolution: 0.0001 mm
- Accuracy: ±0.011 mm
- Display: Colour 1.5" touchscreen
- Data output: Wireless, USB
- ECLASS: 21170335
- ETIM: EC003590
- Supplied calibrated to ISO 17025 with certificate
Special features
- Three‑point measuring system
- Digital readout with touchscreen

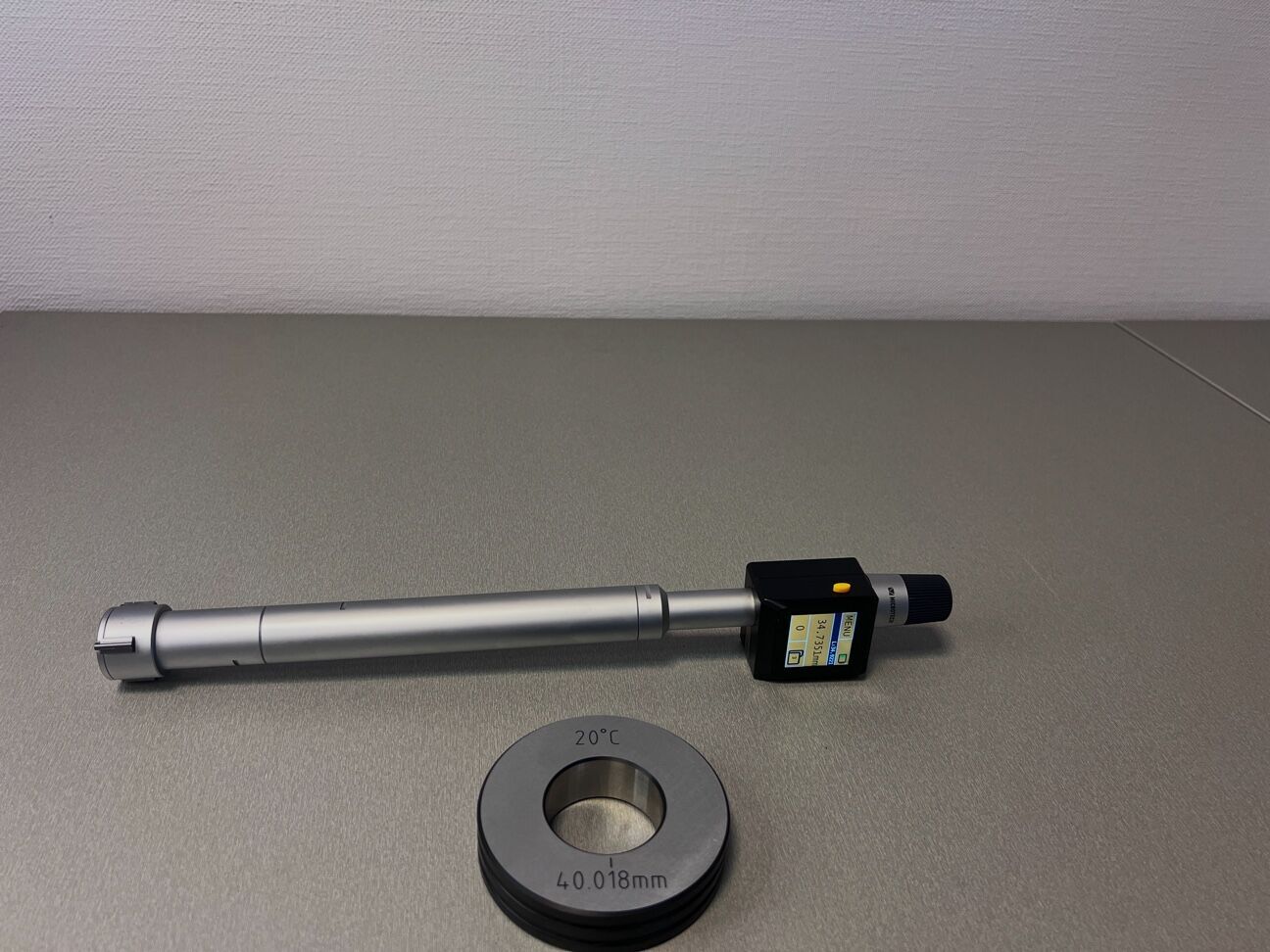

- Setting ring included
- Wireless + USB data output
- Digital instrument for metrology applications
FAQ
What measuring range does the instrument cover?
The three‑point inside micrometer covers a measuring range from 200 to 1,000 mm, suitable for large internal diameters and deep features.
Is the micrometer delivered calibrated?
Yes — the instrument is supplied fully calibrated to ISO 17025 and includes a traceable calibration certificate for immediate use in accredited processes.
How are readings exported from the instrument?
Readings can be exported via Wireless connection or USB, enabling integration with inspection software and SPC systems.
What accuracy and resolution can be expected?
The instrument provides an indicated accuracy of ±0.011 mm and a display resolution of 0.0001 mm, suitable for demanding inspection tasks.
Which applications is this micrometer intended for?
Typical uses include bore inspection in hydraulic components, mould and tool fittings, and larger assemblies where reproducible internal measurements are required.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
