125-1500mm Internal Micrometer Digital, IP65, ISO 17025 Calibrated - Microtech Metrology
€1,590.00
Product information "125-1500mm Internal Micrometer Digital, IP65, ISO 17025 Calibrated - Microtech Metrology"
Combine 0.0001 mm display resolution with a robust IP65 enclosure and an ISO 17025 calibration certificate to ensure repeatable measurements on long internal diameters; the extended rod set facilitates measuring up to 1,500 mm. Order the internal micrometer directly via Metav Werkzeuge or ask our consultants for further technical clarification.
Internal Micrometer – Digital internal measuring instrument, IP65, Microtech Metrology
The Internal Micrometer is a digital instrument for precise internal diameter measurement across a 125–1,500 mm range, optimised for production metrology and workshop quality control.
- Digital display with 0.0001 mm resolution
- IP65 protection for dust and splash resistance
- ISO 17025 calibration certificate included
- Range 125–1,500 mm with extension rods
High-resolution measurement for large bores
The design delivers a fine display resolution of 0.0001 mm together with a stated accuracy of ±0.015 mm, providing reliable numeric feedback when inspecting larger internal diameters. This combination reduces statistical uncertainty in serial inspection and speeds up go/no-go decisions on the shop floor. The digital readout minimises reading errors compared with mechanical scales, which improves throughput in batch inspections while preserving the traceability required for quality control.
Robust construction for workshop and production use
Equipped with an IP65 rating, the unit withstands dust and light spray, allowing use close to machining centres without compromising electronics. The compact measuring head (Ø 22 mm) and modular extension rods make the instrument practical for confined bores and long shafts alike. The construction balances stiffness and reach: the long measuring range is handled by a rod system that keeps deflection low while remaining manageable for single operators or paired use when needed.
Traceable calibration and easy integration into inspection routines

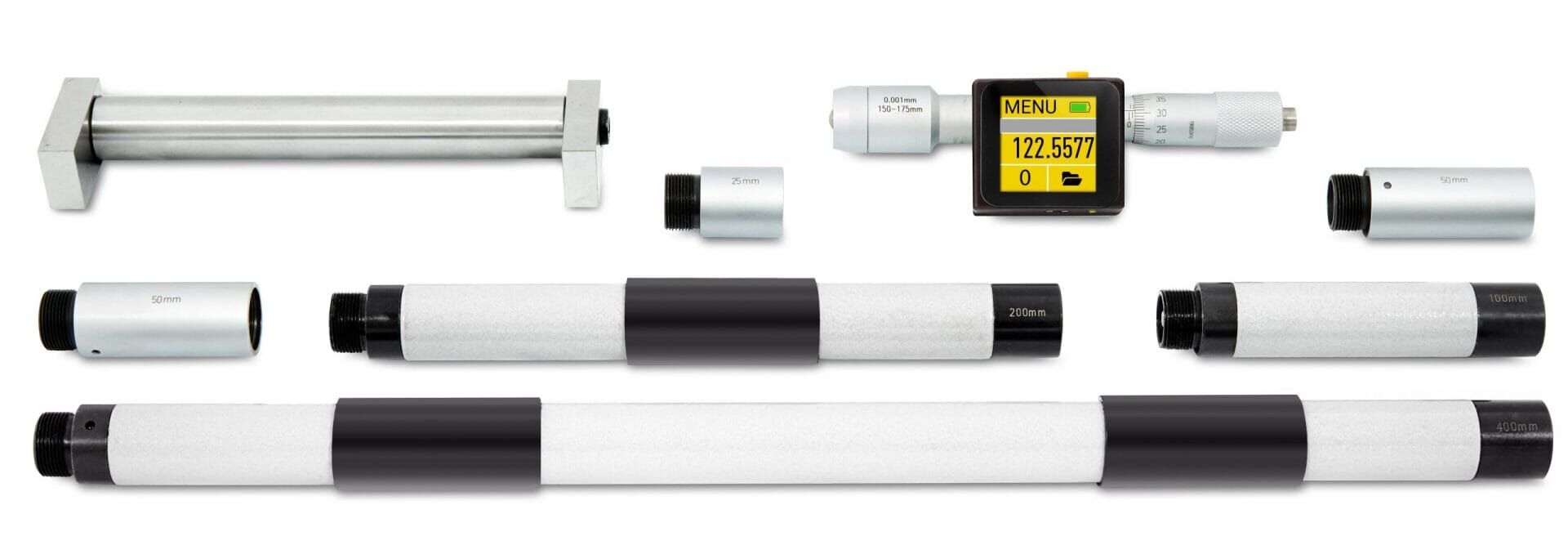

Delivered with an ISO 17025 calibration certificate, the instrument is ready for integration into formal inspection procedures and audit trails. The included calibration certificate documents measurement uncertainty and supports compliance with internal QA systems. The extended rod set (25 mm; 50 mm ×2; 100 mm ×2; 200 mm; 400 mm ×2) allows flexible setup without additional purchases, shortening setup time and reducing tool changeover in the measuring bay.
Contact Metav Werkzeuge in Emmerich for specification advice or to request a quotation for the Microtech Metrology internal micrometer (SKU 133800150); technical consultants are available by phone or email at info@metav-werkzeuge.com / +49 2822 7131930.
Technical data
- Article number: 133800150
- GTIN: 4061905100222
- Manufacturer: Microtech Metrology
- Calibration: ISO 17025 certificate included
- IP protection: IP65
- Digital: yes
Facts
- Measuring range: 125–1,500 mm
- Resolution (display): 0.0001 mm
- Accuracy: ±0.015 mm
- Measuring head diameter: 22 mm
Special features
- Digital readout for reduced reading error
- Extension rods: 25 mm; 50 mm (2); 100 mm (2); 200 mm; 400 mm (2)
- Delivered calibrated to ISO 17025
- Rated for dusty and splash-prone environments (IP65)
- Suited to long-range internal diameter inspection (long category)
FAQ
What measuring range does the instrument cover?
The Microtech Metrology internal micrometer (SKU 133800150) covers a measuring range from 125 mm to 1,500 mm with the supplied extension rods.
What resolution and accuracy can be expected?
Resolution is 0.0001 mm on the digital display and the device specification lists an accuracy of ±0.015 mm.
Is the instrument supplied calibrated?
Yes, the instrument is delivered with an ISO 17025 calibration certificate, documenting traceable calibration and measurement uncertainty.
Can the micrometer be used near machining centres?
The IP65 rating protects the electronics against dust and spray, making the device suitable for use close to machining operations, provided standard local precautions are observed.
Which extensions are included and how do they affect measurements?
The supplied extension set includes 25 mm; 50 mm (2); 100 mm (2); 200 mm; 400 mm (2). Extensions increase reach while the specification accounts for accuracy across the stated measuring range.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
