300mm DataMet E-Force Precision Caliper 0.0005mm Resolution, ISO17025 Calibration, Wireless+USB - Microtech Metrology
€499.00
Product information "300mm DataMet E-Force Precision Caliper 0.0005mm Resolution, ISO17025 Calibration, Wireless+USB - Microtech Metrology"
Take advantage of the combination of high-resolution measurement, programmable E‑Force control and traceable ISO 17025 calibration to streamline inspection workflows; order the DataMet eFORCE caliper directly via Metav Werkzeuge or ask our consultants if needed.
DataMet eFORCE 1–20N Digital Precision Caliper – 0–300 mm, 0.0005 mm resolution (Microtech Metrology)
The DataMet eFORCE 1-20N is a digital precision caliper engineered for Industry 4.0 integration and production-grade inspection across machine shops and quality departments.
- Industry 4.0-ready with wireless data transfer
- Swiss reading system, 0.0005 mm resolution
- E-Force control 1–20 N with AUTO‑Force mode
- ISO 17025 calibration certificate included
High-resolution measurement for standard workshop use
The caliper provides a selectable resolution down to 0.0005 mm (0.5 μm) via a Swiss reading system, delivering repeatable readings for demanding measurement tasks. With a measuring range of 0–300 mm, it falls into the Standard category for calipers, offering the best balance between reach and rigidity for everyday machine‑shop tasks. External‑jaw accuracy is documented and internal‑jaw and depth accuracy comply with recognised specifications; hand‑finished jaws with a surface finish of Ra < 0.32 μm reduce contact variation and ensure stable reference contact. These technical characteristics translate into fewer re‑measures and a more reliable inspection routine for production control.
Seamless data handling and Industry 4.0 connectivity

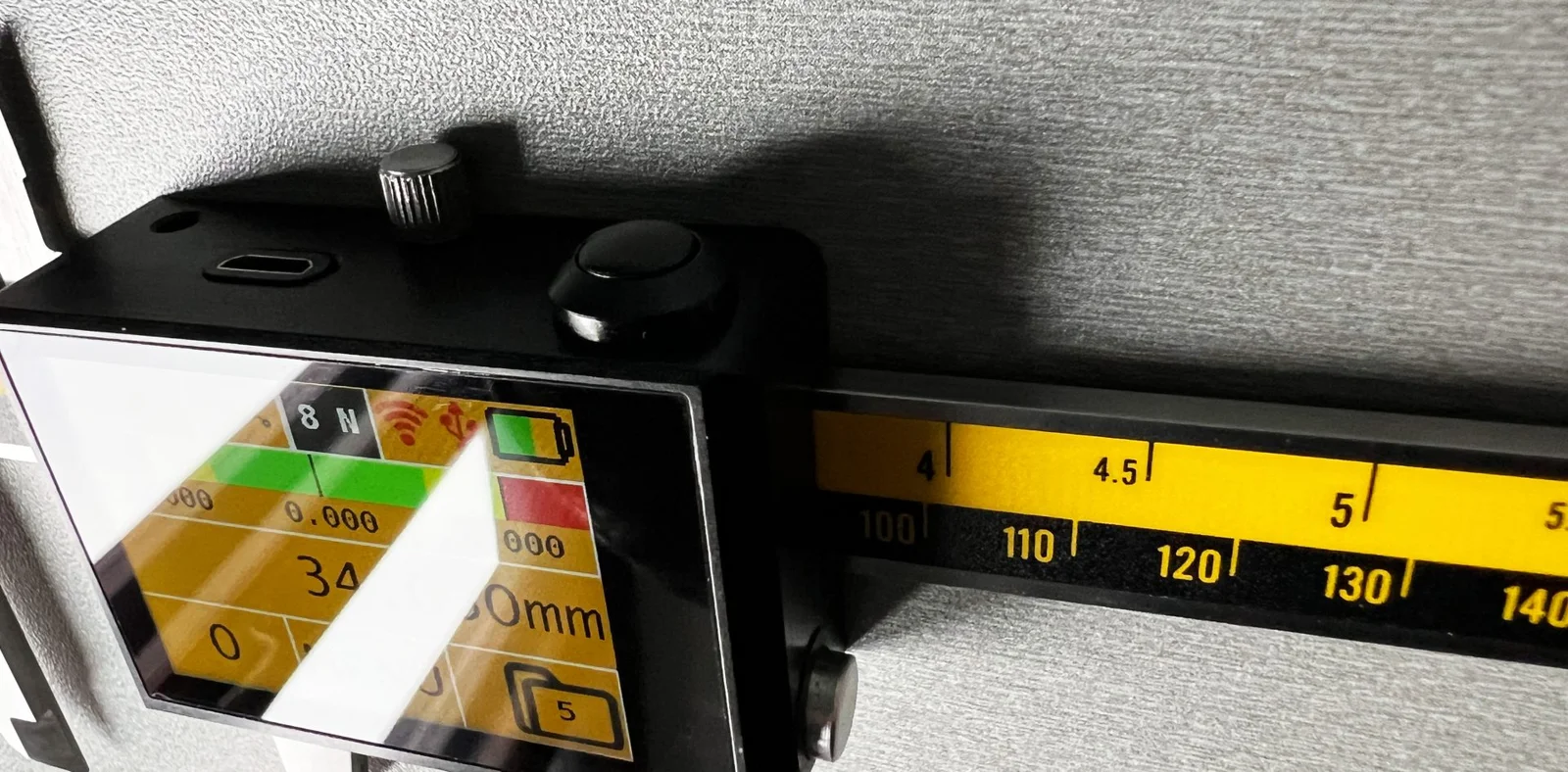

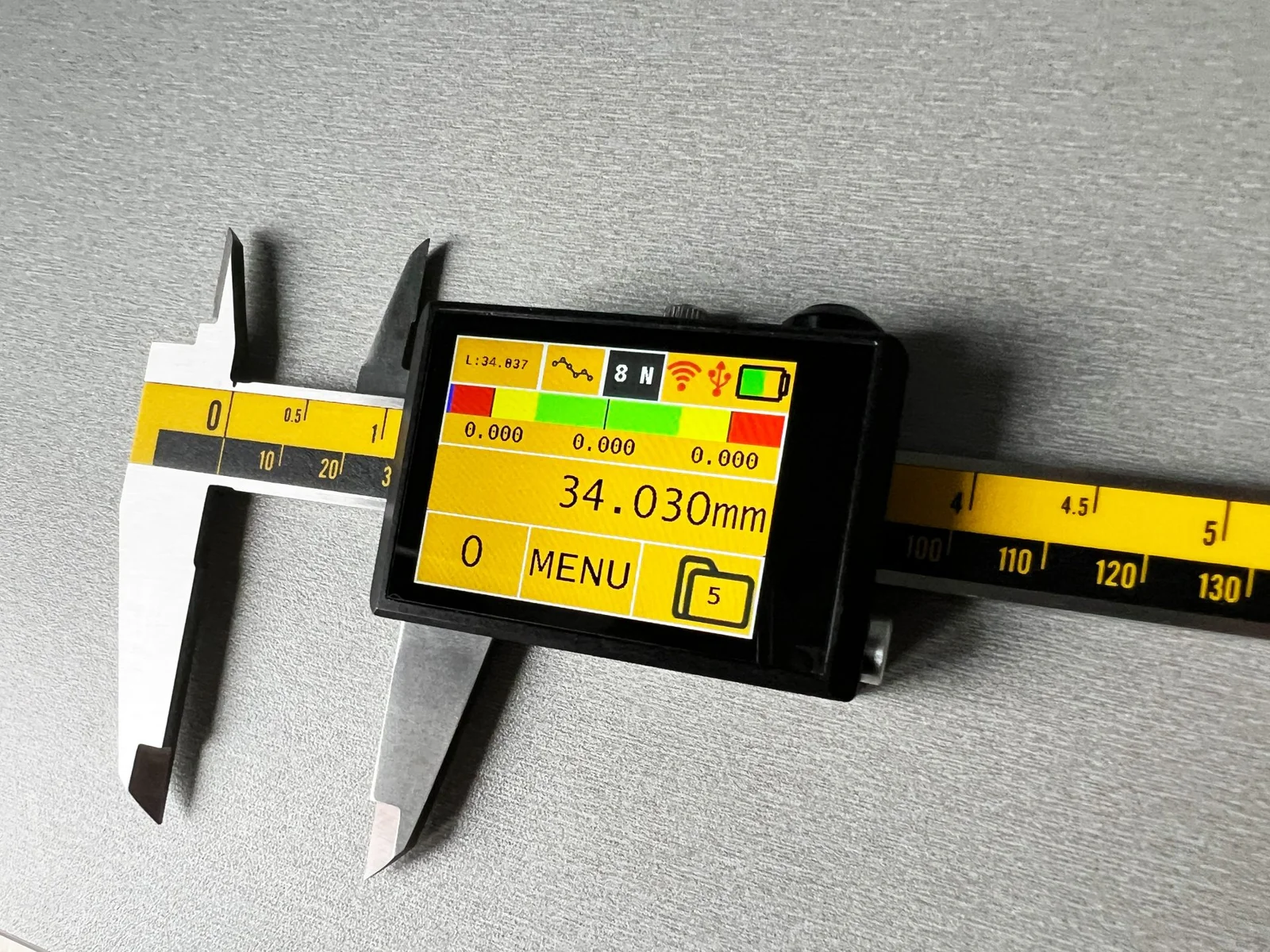

Equipped with a high‑resolution 2.0" colour touchscreen and a computerised MICS system, the instrument supports wireless transfer to the MDS app (Windows, Android, iOS, MacOS) plus USB HID options for direct keyboard‑style entry into measurement systems. The on‑board memory manager stores up to 2,000 values with folder organisation and basic statistics, while selectable functions such as Go/NoGo, preset, max/min and linear/temperature correction speed up routine checks. Rechargeable Li‑Pol battery technology with a USB‑C socket keeps downtime low; integrated data interfaces reduce manual transcription errors and simplify SPC workflows, benefiting traceability and cycle‑time optimisation.
Force control, traceability and durable workshop design

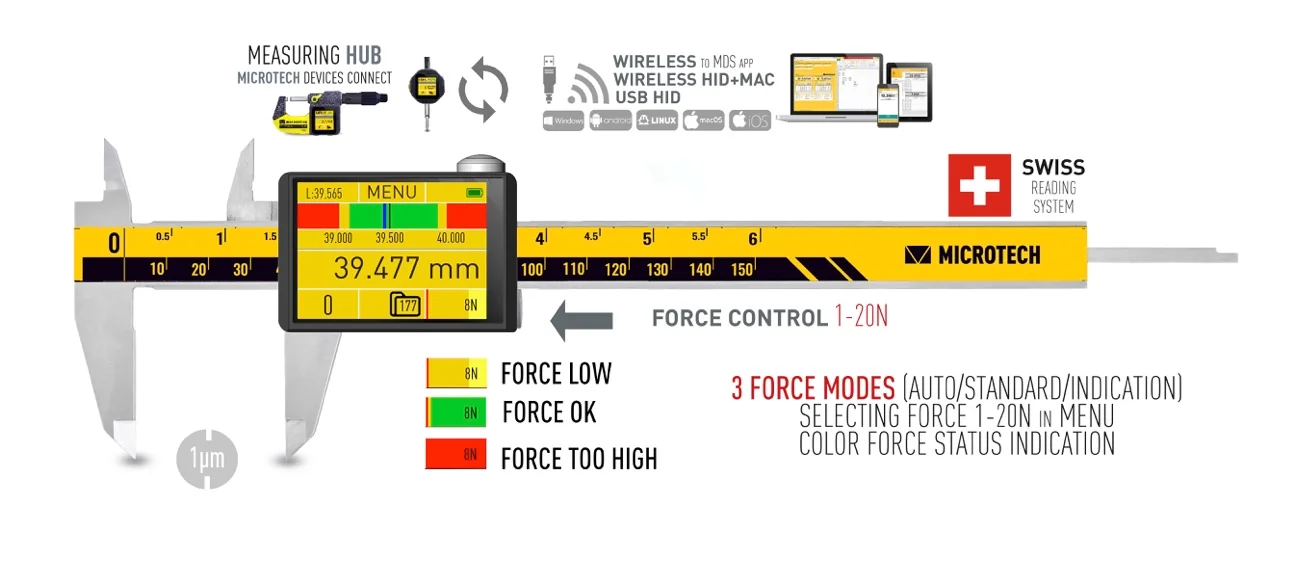

The integrated E‑Force module with force selection from 1–20 N and AUTO‑Force mode stabilises contact pressure and lowers operator‑dependent variation, so comparative measurements become more reliable across different users. Delivery includes a calibration protocol issued under ISO 17025 (ILAC MRA), confirming laboratory traceability and making the tool suitable for regulated inspection tasks. The instrument’s body is stainless steel with carefully finished measuring faces; included accessories and the free version of the MDS app ensure immediate connectivity and documented results. This combination of mechanical robustness, programmable force control and accredited calibration supports consistent quality decisions on the shop floor.
Contact Metav Werkzeuge for a detailed integration discussion or technical consultation on Microtech Metrology instruments; reach Metav Werkzeuge at info@metav-werkzeuge.com or by phone on +49 2822 7131930
Technical Data
- Article number: 141088030A
- Manufacturer: Microtech Metrology
- Description: DataMet eFORCE 1-20N caliper 0–300 mm, 0.0005 mm resolution
- Delivery contents: Messwerkzeug; Free versions of MDS App; USB data/charging cable; Calibration protocol
Facts
- Measuring range: 0–300 mm
- Resolution options: 0.0005 / 0.001 / 0.01 / 0.1 mm
- Measured accuracy: 0.005 mm
- Measuring force: 1–20 N
- Memory capacity: 2,000 values
- Battery: Rechargeable Li‑Pol, 500 mAh
- Interface: Wireless (HID, MDS app), USB HID, USB‑C data/charge
Special features
- Industry 4.0 adopted DataMet E‑Force caliper with MICS system
- SWISS made reading system with 0.5 μm resolution selectable
- E‑Force control module with AUTO‑Force and force indication

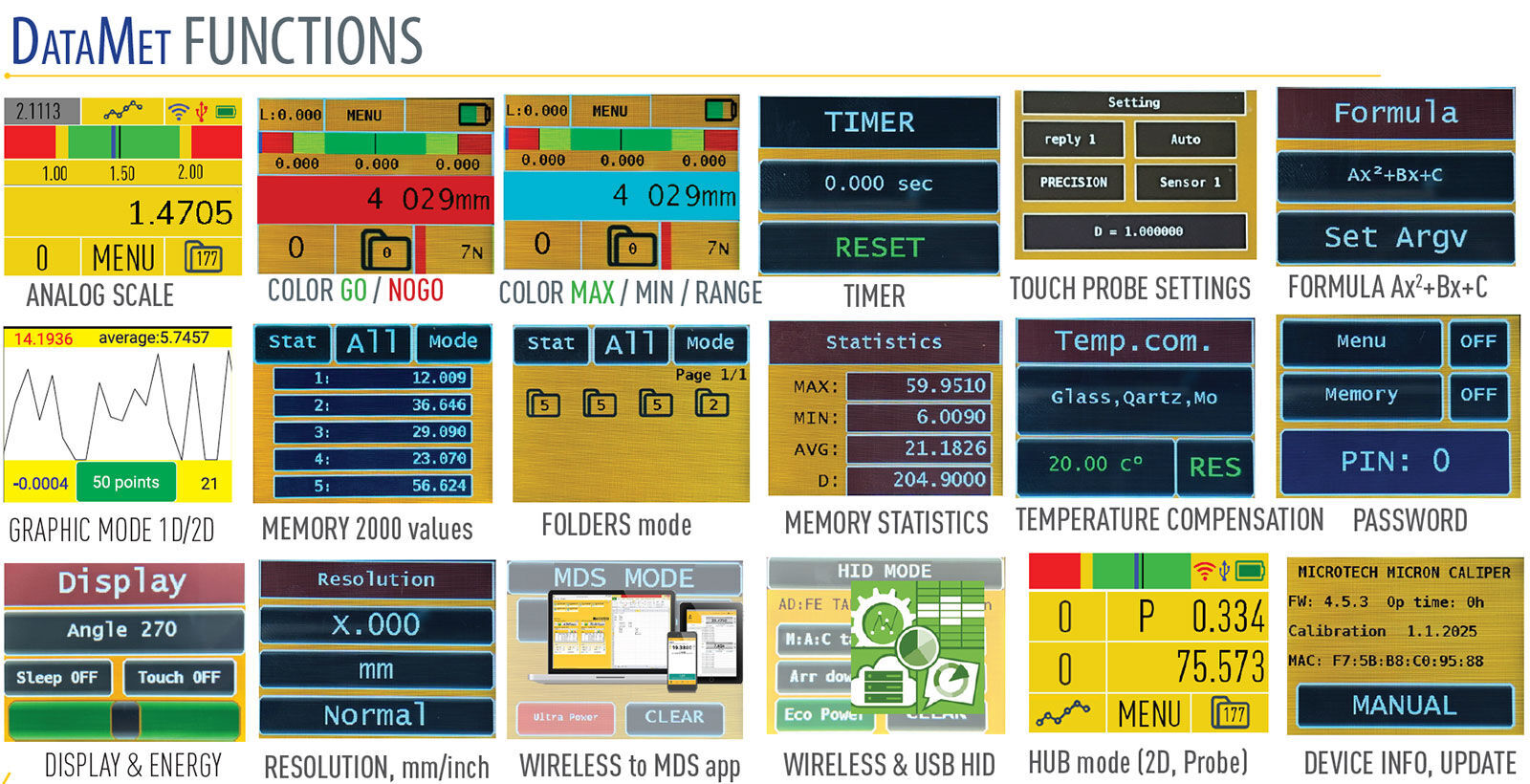

- Functions: Analog scale, Preset, Graphic, Go/NoGo, Max/Min, Formula, Timer, Linear and Temperature correction
- Stainless steel construction with hand‑finished measuring faces (Ra < 0.32 μm)
- USB‑C data/charging socket and free MDS software versions
- Calibration certificate included (ISO 17025 / ILAC MRA)
- Compliance: External jaw accuracy; internal and depth per ISO 13385‑1
FAQ
How does the E‑Force control improve measurement consistency?
The E‑Force module regulates contact pressure between 1–20 N, with AUTO‑Force and visual force indication, which reduces variability from operator pressure and improves repeatability for the DataMet eFORCE caliper.
Can measurement data be integrated into existing SPC systems?
Yes; the caliper supports wireless HID and USB HID modes (including Mac variants), plus direct transfer to the MDS app for export, enabling straightforward integration with SPC and database systems.
Is the caliper supplied with a traceable calibration certificate?
A calibration protocol accredited to ISO 17025 (ILAC MRA) is included with delivery, providing laboratory traceability suitable for regulated quality environments.
What resolving power is available for fine measurements?
The instrument offers selectable resolution down to 0.0005 mm (0.5 μm) via its Swiss reading system, covering both coarse and micro‑measurements with high precision.
Which materials and surfaces is the caliper suited to measure?
Constructed from stainless steel with hand‑finished measuring faces (Ra < 0.32 μm), the caliper is designed for robust use across typical shop materials encountered in machine and metalworking.
