Precision dial indicators for accurate length and runout checks
Dial indicators and related gauges provide precise measurement of small lengths and deviations, serving applications such as concentricity, flatness and comparison checks on lathes and milling machines, and offering both digital and analog options to suit different measuring ranges. These instruments are used with appropriate accessories for tasks like depth measurement or runout testing and feature hardened contact faces or balls for reliable contact; typical variants include dial indicators, test indicators and depth gauges. Analog types transmit spindle movement via rack and pinion to the pointer and may include a drag pointer to prevent gear damage, while digital versions give straightforward numeric readouts for quick interpretation. Using these gauges improves setup accuracy, process control and the repeatability of measurements in metalworking and workshop environments.
M10×1 To M14×1.25 Thread Adapter External M14×1.25, Plastic Case - Metav IndustryLine
Take advantage of precise thread conversion, compact design and a secure engagement for reliable connections in measuring setups. Combine the M10 x 1 to M14 x 1.25 adapter with existing instrumentation for fast adaptation; order the adapter directly via Metav Werkzeuge or ask our consultants if needed. Adapter M10 x 1 to M14 x 1.25 — Thread conversion accessory (Metav IndustryLine) The Adapter M10 x 1 to M14 x 1.25 is a compact thread conversion accessory designed to join different metric thread standards on measuring instruments and test fixtures. Precision-machined thread interface Converts M10 x 1 to M14 x 1.25 Robust fit with reliable engagement Compact design, weight approx. 0.05 kg Precise thread conversion saves setup time and reduces adapter stock The thread adapter provides a straightforward solution where two metric thread standards must be joined quickly and repeatably. Engineered for a tight mechanical fit, the adapter uses a precision-machined interface to maintain concentricity and avoid play between components. Converting from M10 x 1 to M14 x 1.25 eliminates the need for bespoke fittings and reduces the variety of spare parts carried in the workshop, supporting more efficient inventory management and shorter equipment changeovers. Increased uptime through compact, dependable hardware A compact conversion fitting reduces handling complexity during service and inspection tasks. At approximately 0.05 kg, the adapter imposes negligible additional mass on test assemblies and does not significantly alter balance or alignment in delicate setups. The straightforward screw-in connection offers repeatable mechanical engagement, which in practice means fewer rechecks are required after assembly and less risk of measurement deviations caused by loose or mismatched threads. Suitable for workshop metrology and testing rigs This accessory is intended for use in measuring and test environments where reliable thread adaptation is necessary. Its simple form factor complements common measuring instruments and accessories in quality-control processes. The adapter is supplied as a single-piece thread conversion element that can be integrated into existing fixtures to extend compatibility with metric-threaded probes and connectors, helping to ensure a more flexible instrumentation toolbox. Contact Metav Werkzeuge for expert advice on integrating Metav IndustryLine adapters into your measurement setup or to request compatibility guidance for your instrumentation Technical Data Article number: M208.153 GTIN: 4054469105055 ECLASS: 28019190 Customs tariff number: 90178090 Weight: 0.05 kg Adapter thread: M10 x 1 mm → M14 x 1.25 mm Facts Weight: 0.05 kg Thread sizes: M10 x 1 mm, M14 x 1.25 mm Article number: M208.153 GTIN: 4054469105055 Special features Accessory for measuring instruments and test fixtures Precision-machined thread interface Compact, single-piece conversion element FAQ What thread sizes does the adapter accept and deliver? The adapter converts an internal/external M10 x 1 thread to an external M14 x 1.25 connection; the product is listed as Adapter M10 x 1 to M14 x 1.25 (Metav IndustryLine, M208.153). Is this adapter suitable for use with precision measuring instruments? Yes. The Adapter M10 x 1 to M14 x 1.25 is designed to provide a repeatable mechanical fit for measuring instruments and related fixtures where metric thread conversion is required. How much does the adapter weigh and does the mass affect instrument balance? The adapter weighs approximately 0.05 kg; this low mass normally has negligible impact on balance in most measuring and test assemblies. How should the adapter be installed to ensure reliable performance? Clean the mating threads, engage the adapter by hand to avoid cross-threading, and tighten until secure. Regular checks for thread wear or damage will help maintain reliable engagement. Can the adapter be used across different brands of instrumentation? The thread-based conversion is brand-agnostic where matching metric threads are present; compatibility depends on the corresponding M10 x 1 and M14 x 1.25 thread interfaces. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
M10×1 to M18×1.5 Thread Adapter External M18×1.5, in Case - Metav IndustryLine
Benefit from precise thread conversion between M10 × 1 and M18 × 1.5, a compact form factor of approximately 50 g and straightforward integration into existing measuring rigs; order the adapter directly via Metav Werkzeuge or consult our technical team for compatibility guidance. Adapter M 10 x 1 mm to M 18 x 1.5 mm — Thread adapter for measuring equipment (Metav IndustryLine) Adapter M 10 x 1 mm to M 18 x 1.5 mm is a purpose-built thread converter for workshop and metrology accessories, designed to bridge metric fine threads commonly encountered on sensors and setting tools Thread conversion M10 × 1 → M18 × 1.5 Lightweight design, approx. 50 g Suitable for measuring instruments and accessories Faster changeovers through exact thread matching The thread adapter converts an M10 × 1 connection to M18 × 1.5, enabling immediate use of different sensors, probes or timing tools without bespoke fittings. By avoiding improvised joins, the adapter reduces setup time and eliminates uncertainty in mechanical interfaces; this results in fewer interruptions during diagnostic or calibration tasks and supports consistent measurement results. The clean mechanical interface also minimises the risk of thread damage compared with repeated use of makeshift adaptors. Compact design that protects sensitive instruments With an approximate mass of 50 g, the converter keeps added inertia to a minimum, which is particularly important for delicate measuring heads and portable devices. The compact footprint preserves access in confined setups and facilitates single‑handed assembly in tight engine bays or test benches. The secure mechanical engagement ensures repeatable alignment and a firm seating that maintains signal path integrity where sensors rely on a stable mechanical reference. Traceability and workshop compatibility for smooth procurement The adapter is registered with GTIN: 4054469105062 and listed as SKU M208.154, aiding inventory control and ensuring unambiguous procurement. Its classification under measuring‑instrument accessories streamlines spare‑part management and reduces ordering errors. Metav’s presence in Emmerich provides a local quality filter and dependable supply for European workshops, supporting rapid delivery and consistent product standards for daily operations. For compatibility checks or to request procurement advice from Metav Werkzeuge in Emmerich, please contact info@metav-werkzeuge.com or call +49 2822 7131930 to confirm fitment with existing measuring equipment Technical data Article number: M208.154 GTIN: 4054469105062 Tariff number: 90178090 Numbers / Core technical data Weight: 0.05 kg ECLASS: 28019190 Compatibility / Special features Thread conversion: M10 × 1 to M18 × 1.5 Category: Measuring instruments, Accessories Category path: Measuring instruments > Accessories FAQ Which thread sizes does the adapter support? The adapter supports conversion from M10 × 1 to M18 × 1.5 and is supplied as the Adapter M 10 x 1 mm to M 18 x 1.5 mm (SKU M208.154). Is the adapter suitable for use with sensor probes and timing tools? Yes, the adapter is intended for use with measuring‑instrument accessories and sensor fittings; its mechanical interface preserves alignment for diagnostic and timing devices. How much does the adapter weigh and does that affect instrument handling? The adapter weighs approximately 50 g, a mass chosen to minimise additional inertia and to keep handling and dynamic behaviour of delicate measuring heads largely unaffected. Can the adapter be tracked in stock systems? Yes, the adapter is listed with GTIN 4054469105062 and SKU M208.154 to support unambiguous procurement and inventory management. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
M12x1.25 Timing Adjustment Tool For Dial Indicator With 8mm Shank, For Installation - Metav IndustryLine
Take advantage of the simple combination of a standard M12x1.25 thread and universal 8 mm shank compatibility for repeatable ignition timing set-ups; its compact, lightweight design keeps workshop routines efficient. Order the Ignition Timing Setting Tool directly via Metav Werkzeuge or ask our consultants if needed. Ignition Timing Setting Tool M12x1.25 for dial gauge (8 mm shank) — Metav IndustryLine The Ignition Timing Setting Tool M12x1.25 for dial gauge with 8 mm shank is a compact accessory for mounting dial gauges when checking and adjusting engine ignition timing, intended for workshop and service applications M12x1.25 thread for engine fittings Compatible with 8 mm dial gauge shanks Compact and lightweight design Suitable for precise dial gauge installation Secure, vibration‑resistant mounting for accurate timing readings A firm mechanical connection is essential when taking ignition timing measurements. The adapter provides a standard M12x1.25 thread that mates with common engine timing plugs and retaining holes, creating a stable mounting point for a dial gauge with an 8 mm shank. This stability reduces incidental movement and improves repeatability, so each reading reflects the true position rather than artefacts from loose fittings. For technicians who rely on consistent results, the adapter translates small gauge movements into reliable data, shortening diagnosis time and lowering rework rates. Workshop convenience that speeds up routine checks Designed for quick installation and removal, the attachment keeps workshop downtime to a minimum. Weighing only 0.05 kg, the unit is easy to handle during repetitive procedures and negates the need for improvised fixtures that can compromise accuracy. The simple mechanical design requires no special tools to fit a compatible dial gauge, which means measurement setup is faster and less error‑prone. The result is an efficient workflow for service bays and engine builders, where time and precision directly affect throughput. Broad compatibility and robust service performance Made as an accessory for measurement equipment, the adapter is compatible with all dial gauges with 8 mm mounting, enabling use with existing gauge inventories. Intended specifically for the installation of dial gauges, the component supports common metrology tasks encountered in engine maintenance and calibration. Its straightforward functionality integrates into established measurement procedures and complements precision instruments by providing a dependable mounting interface. For facilities seeking to maintain consistent measurement standards, this accessory is a practical addition to the toolkit. For dependable ignition timing measurements and workshop integration, request the Metav IndustryLine Ignition Timing Setting Tool from Metav Werkzeuge and benefit from expert guidance tailored to your application. Technical data Article number: M208.152 GTIN: 4061905043161 Manufacturer: Metav IndustryLine Facts Weight: 0.05 kg Thread: M12x1.25 Shank compatibility: 8 mm Special features For installing dial gauges Compatible with all dial gauges with 8 mm mounting Accessory for engine timing measurements FAQ What is the purpose of this adapter? The adapter is used to mount a dial gauge for ignition timing checks; the Metav IndustryLine Ignition Timing Setting Tool M12x1.25 provides a secure interface for precise measurements. Which dial gauges fit the adapter? Any dial gauge with an 8 mm shank will fit the adapter, making the tool compatible with standard workshop gauges. Does the thread match common engine fittings? Yes, the M12x1.25 thread is a standard size for many engine timing plugs and mounting points, enabling straightforward attachment. Is the adapter suitable for frequent workshop use? The lightweight, compact design is intended for routine service and diagnostic work, supporting repeated installation without unnecessary weight or bulk. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
M12x1.25 Timing Pointer Set With Dial Gauge, Extensions 30–60mm, Aluminium Case - Metav IndustryLine
Take advantage of precise piston-position feedback, universal M12x1.25 thread compatibility and a set of 30–60 mm extensions to streamline ignition timing work; order the ignition timing setting kit directly via Metav Werkzeuge or ask our consultants if needed. Ignition timing setting kit M12x1.25 — dial gauge set with extensions and aluminium case by Metav IndustryLine The Ignition timing setting kit M12x1.25 is a compact workshop solution for determining the engine top dead centre (TDC) in vehicles, designed for use in common spark-plug bores of cars and motorcycles. Precise dial-gauge alignment for engine TDC Compatible with common spark-plug bores Thread M12x1.25 for direct cylinder fit Extensions 30–60 mm for varied depths Faster, more accurate engine timing The kit converts a simple dial reading into a reliable reference for piston position, so adjustments are based on measurable values rather than estimation. Fitting via the M12x1.25 thread allows direct installation into most spark-plug bores, while the compact dial gauge (dial face Ø10 mm) and compatibility with dial gauges that have an Ø8 mm stem mean a precise pointer movement is available in confined combustion chambers. The measurable feedback reduces repeat work and shortens engine setup time. Versatility for workshop and mobile repairs Extensions supplied in 30, 40, 50 and 60 mm lengths allow the tool to reach different combustion-chamber depths without improvised adapters, delivering consistent contact between gauge and piston crown. The light overall mass (approx. 0.3 kg) and the integrated aluminium case keep the set transportable and ready for both garage benches and field repairs. This versatility suits both car and motorcycle maintenance where quick, reproducible timing checks are required. Organised kit for reliable workflows The set includes a dial gauge and a holder interface tailored to the thread and stem dimensions, together with the set of extensions that permit incremental depth selection. The compact layout of the aluminium case keeps components protected and accessible, supporting an efficient workflow during multi-cylinder inspections. Traceable SKU and item data ensure easy stock handling and repeat ordering for service departments. Contact Metav Werkzeuge for tailored advice and secure supply of the M208.157 timing kit at info@metav-werkzeuge.com or +49 2822 7131930 Technical data SKU: M208.157 GTIN: 4054469105093 ECLASS: 28019190 TARIC: 90173000 Manufacturer: Metav IndustryLine Facts Dial diameter: 10 mm Compatible stem: Ø8 mm Extensions: 30, 40, 50, 60 mm Thread: M12x1.25 Weight: 0.3 kg Special features Suitable for common spark-plug bores of cars and motorcycles Includes dial gauge and holder Aluminium case for organised transport and storage Extensions for varied cylinder depths FAQ How does the kit determine top dead centre (TDC)? The kit uses a dial gauge mounted through the M12x1.25 interface to register piston movement; by noting the dial deflection at the piston crown the exact TDC position can be found and recorded. Which engines and bores are compatible with this set? The set is designed for common spark-plug bores found in cars and motorcycles and fits directly via the M12x1.25 thread specified for the kit. What is included in the M208.157 kit? The M208.157 ignition timing setting kit includes a dial gauge, a holder compatible with Ø8 mm stems, extensions of 30, 40, 50 and 60 mm, and an aluminium case. Can other dial gauges be used with the kit? Yes; the kit is compatible with dial gauges that have an Ø8 mm stem, enabling workshop gauges to be used where required. Is the kit suitable for mobile service work? At approximately 0.3 kg and supplied in an aluminium case, the kit is compact and well suited for mobile or bench-based timing tasks. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
M14x1.25 Timing Setting Kit With Dial Gauge, Extensions 30–60mm, Aluminium Case - Metav IndustryLine
Take advantage of precise ignition timing with the combination of an M14x1.25 spark‑plug thread adapter and adjustable 30–60 mm extensions, compatible with common Ø8 mm stem dial gauges; order the kit directly via Metav Werkzeuge or ask our consultants for application advice. Ignition timing setting kit M14x1.25 mm with dial gauge and extensions — Metav IndustryLine The Ignition timing setting kit M14x1.25 mm with dial gauge and extensions is a compact workshop solution designed for locating the piston top dead centre and accurate ignition timing on cars and motorcycles Fits M14x1.25 spark plug threads Includes 30, 40, 50 and 60 mm extensions Compatible with Ø8 mm dial gauge stem Aluminium case for secure transport Precise timing where it matters The kit places precision at the centre of ignition adjustment: the supplied adapters and the compatibility with Ø8 mm stem dial gauges allow direct transmission of piston movement to the indicator. With a 10 mm dial diameter and secure adaptor seating, small piston displacements are shown clearly on the gauge, enabling repeatable detection of the piston top dead centre (TDC). This accuracy helps to reduce ignition timing errors that can cause poor running, increased emissions or premature wear, so workshop processes become more efficient and traceable. Adaptability across engines and bores Versatility is achieved through the combination of thread adapters and a set of four extensions (30, 40, 50 and 60 mm). The dual‑thread compatibility (M10x1 and M14x1.25) extends the tool’s reach into a wide range of cylinder heads and spark‑plug recess depths, making the kit suitable for both passenger cars and motorcycles. The measured design and light overall weight (approx. 0.3 kg) simplify handling during single‑person operation while the aluminium case keeps components organised for rapid deployment between jobs. Workshop benefits and reliable workflow In practical terms, the accessory set shortens set‑up time and reduces error sources: adapters ensure a positive mechanical fit, extensions offer the required reach without modifying the engine, and the dial‑gauge interface provides a direct, visual measurement of piston travel. For maintenance routines and engine rebuilds where consistent ignition advance is critical, the kit supports a faster, more confident workflow. Sourcing from Metav IndustryLine also means access to a broad product range and a dependable supplier network that supports ongoing workshop requirements. For tailored advice on whether the Metav IndustryLine ignition timing kit M208.158 suits a specific engine application, contact Metav Werkzeuge by phone at +49 2822 7131930 or by email at info@metav-werkzeuge.com to discuss technical fitment and availability Technical Data Article number: M208.158 GTIN: 4054469105109 eCl@ss: 28019190 Weight: 0.3 kg Dial diameter: 10 mm Core technical data Extensions: 30 mm, 40 mm, 50 mm, 60 mm Thread adapters: M10x1 / M14x1.25 Tariff number: 90173000 Dial stem requirement: Ø8 mm Special features Compatible with common spark plug threads in cars and motorcycles Aluminium case Suitable for ignition timing and finding TDC Category: dial gauges FAQ Which spark plug thread sizes are supported by the kit? The kit supports M14x1.25 and includes an M10x1 adapter for broader compatibility; these options are integrated into the Metav IndustryLine ignition timing set. Which dial gauges are compatible with the tool? Compatible dial gauges require an Ø8 mm stem; the kit is designed to interface with such indicators and a dial diameter of 10 mm. What extension lengths are supplied? Extensions supplied are 30 mm, 40 mm, 50 mm and 60 mm, allowing adaptable reach for different cylinder depths. Is a transport case included? Yes, the set is supplied with an aluminium case to keep adapters and extensions organised and protected. What are the SKU and GTIN for ordering and inventory? SKU: M208.158; GTIN: 4054469105109 — both reference the Metav IndustryLine ignition timing setting kit Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
M2.5 Threaded Wedge Tip Gauge Insert For Dial Indicator - Metav IndustryLine
Taking advantage of a defined wedge tip and secure thread M2.5 connection ensures repeatable contact and reliable readings in routine inspection tasks; the compact design and light weight facilitate quick attachment to compatible dial indicators for an uninterrupted workflow. Order the product directly via Metav Werkzeuge or ask the consultants for further specification guidance. M208.170 measuring contact for dial gauge — wedge tip, thread M2.5 (Metav IndustryLine) M208.170 is a measuring contact for dial gauges, designed to provide a defined contact point for precise comparative and workshop measurements with a standard M2.5 threaded connection Threaded M2.5 connection for quick fitting Wedge tip for defined, repeatable contact Compatible with dial gauges having M2.5 thread Compact, lightweight design for easy handling Consistent contact geometry for accurate repeatability The wedge-point design delivers a single, well-defined contact geometry that minimises variation at the interface between gauge and workpiece. By providing a positive contact point, the accessory reduces ambiguity in contact positioning and improves repeatability across successive measurements. This stability supports faster decision-making in quality checks and reduces rework caused by inconsistent probe orientation, making it a practical addition to production and inspection benches. Reliable integration with common dial indicators Engineered for use with dial gauges that accept an M2.5 connecting thread, the component offers straightforward mechanical compatibility and fast installation. The thread M2.5 is a widely used standard in metrology accessories, so the contact tip fits readily into existing gauge setups without the need for adapters. Compatibility with standard fittings simplifies tool inventories and shortens changeover times, contributing to more efficient measurement routines in both workshop and lab environments. Compact design that supports ergonomic handling With a compact form and low mass, the contact tip keeps the gauge assembly balanced and easy to manoeuvre when measuring small features or intricate profiles. The reduced weight lowers inertial effects during fine adjustments and helps maintain a steady measurement posture, which is particularly valuable in repetitive inspection tasks. As a small but decisive accessory, it enhances the practical usability of a dial indicator without adding unnecessary bulk. For stable, repeatable gauge set-ups, request the Metav IndustryLine M208.170 measuring contact from Metav Werkzeuge — contact the Emmerich team at info@metav-werkzeuge.com or call +49 2822 7131930 for precise product matching and procurement advice Technical data SKU: M208.170 GTIN: 4054469105215 Manufacturer: Metav IndustryLine Weight: 0.1 kg Tariff number: 90319000 Core data Thread: M2.5 ECLASS: 21170324 Category: Accessory for measuring instruments Label: Measuring contact, wedge tip, thread 2.5 mm Special features Wedge tip for defined contact Suitable for dial gauges with M2.5 connecting thread Compact and lightweight construction Accessory type: measuring contact for dial indicators FAQ What gauges are compatible with this contact tip? The M208.170 measuring contact is compatible with dial gauges that have a connecting thread of M2.5 and is intended as a direct accessory for such indicators. What benefit does a wedge tip provide compared with a spherical contact? A wedge tip yields a clearly defined contact line or point that improves positional consistency during comparative measurements, supporting better repeatability than more rounded contacts in certain inspection tasks. Is any special tool required to fit the contact? Fitting is achieved by engaging the standard M2.5 thread of the dial gauge; no specialised tool is required beyond the usual gauge-handling implements. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
±0.5 mm Digital Test Probe With 2 mm Carbide Ball Tip, 0.001 mm Resolution, Rotatable Display, Supplied In Case - Metav IndustryLine
Take advantage of the combination of ultra-fine resolution, a compact carbide probe tip and a rotatable digital display for reliable, repeatable small-range measurements; the device arrives ready for workshop use in a transport case. Order the Digital Fine Probe directly via Metav Werkzeuge or ask our consultants if needed. Digital Fine Probe M208.003.1 — compact digital probe with 0.001 mm resolution (Metav IndustryLine) The Digital Fine Probe M208.003.1 is a compact digital displacement probe intended for high-resolution comparative measurements and setup tasks in inspection and workshop environments 0.001 mm resolution readout ±0.5 mm measuring range Carbide ball probe Ø2 mm Rotatable digital display with run bar Exceptional metrological performance for small-range inspections The finely tuned measurement chain delivers a resolution of 0.001 mm combined with a specified accuracy of 0.02 mm, making the instrument suitable for precision checking of small features and positional adjustments. The limited measuring range of ±0.5 mm is deliberately matched to tasks where short-travel, low‑compliance sensing gives the best reproducibility; this translates directly into faster setup checks and fewer reworks on production or inspection benches. The data‑centred design emphasises measurable benefits: consistent repeatability and clear numerical evidence for quality control decisions. Fast, intuitive operation to reduce cycle time Operation is simplified by a rotatable digital display with MODE, SET and DATA keys and a visual run bar, allowing readings to be oriented to the operator and logged when required. Multiple measurement modes (standard, maximum, minimum and difference) provide immediate analytical value without additional calculation steps, and the automatic reversal of measuring direction prevents misreads when the probe motion changes. The probe head is equipped with a carbide ball of Ø2 mm for reliable contact with small radii and delicate surfaces, enabling precise point contact with minimal marking and excellent wear resistance. Robust packaging and workshop applicability With a compact probe length of 15 mm and a construction optimised for repeated tactile use, the instrument integrates well into bench fixtures and test rigs while remaining easy to handle during manual checks. Delivery includes a secure transport case for safe handling between job sites and storage, which preserves instrument alignment during transit. Supplied by Metav Werkzeuge, the unit is aimed at workshops and inspection labs seeking high-resolution diagnostic capability without complex integration—an accessible precision tool that supports efficient quality workflows. For workshop-ready high-resolution checks, request the Digital Fine Probe M208.003.1 from Metav Werkzeuge and discuss system suitability with our consultants via info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical Data Article number: M208.003.1 GTIN: 4061905053573 Eclass: 21170333 Label: Digital fine probe, ±0.5 mm, 0.001 mm reading Facts Measuring range: ±0.5 mm Resolution: 0.001 mm Accuracy: 0.02 mm Length: 15 mm Digital: yes Special features Digital display with MODE, SET and DATA keys and run bar, freely rotatable Probe tip fitted with carbide ball Ø2 mm Measurement modes: standard, maximum, minimum, difference Automatic reversal of measuring direction Supplied in a transport case FAQ What is the smallest increment the probe will show? The display on the Digital Fine Probe M208.003.1 indicates increments of 0.001 mm, suitable for fine comparative measurements. Which measurement modes are available on the instrument? The unit supports standard, maximum, minimum and difference modes, enabling immediate on‑screen comparison without external calculation for the M208.003.1. Is the probe tip suitable for small radii and delicate surfaces? Yes — the probe is supplied with a carbide ball probe of Ø2 mm, providing reliable point contact with good wear resistance for small features. Can the readout be oriented for different working positions? The rotatable digital display with MODE/SET/DATA keys and a run bar allows the readout to be turned for ergonomic viewing and convenient logging. Does the delivery include protective packaging for transport? The instrument is supplied in a secure transport case to protect alignment during handling and transit. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
±0.9 mm Comparator Ø56 mm Dial Rotatable Outer Ring 0.01 mm Resolution Factory Standard, Metal Case - Metav IndustryLine
Take advantage of precise comparative measurement with a compact, workshop‑ready instrument: the combination of a ±0.9 mm measuring range, a 0.01 mm graduation, and a rotatable bezel supports fast setup and repeatable checks on jigs, fixtures and production parts. Order the gauge directly via Metav Werkzeuge or consult the specialists for application advice. M208.042 Dial Comparator (Ø56 mm) by Metav IndustryLine — ±0.9 mm, 0.01 mm graduation The M208.042 is a compact dial comparator designed for comparative inspection and run‑out checks in machining and quality control environments, offering a Ø56 mm rotatable dial and workshop‑grade performance. ±0.9 mm measuring range, 0.01 mm graduation 56 mm rotatable dial bezel for quick alignment Robust metal housing, lightweight 0.192 kg Reliable small‑range measurement for rapid quality checks The instrument delivers a ±0.9 mm measuring range with a clear 0.01 mm graduation, making it well suited to short‑stroke comparative tasks such as roundness checks, run‑out inspection and fine adjustment of fixtures. The fine graduation allows standard workshop verification with immediate visual feedback, reducing setup time and enabling quicker decision‑making on the shop floor. Using a dial comparator in this range shortens inspection loops and supports consistent process control. Durable design tailored to workshop handling A metal housing shields the movement from shocks and contamination while keeping the overall weight to just 0.192 kg, so the gauge remains easy to handle during repetitive checks. The 56 mm rotatable bezel permits rapid dial alignment without changing the measuring position, simplifying readings in confined setups. The instrument is built to a workshop standard, combining practical robustness with the clarity required for everyday inspection tasks. Practical mounting and integration with inspection rigs The comparator accepts a standard Ø8 mm stem mount, making it compatible with most magnetic bases and test stands used in production and maintenance. Its compact dial and proven mechanics support straightforward integration into measurement fixtures, where the instrument serves as a reliable visual amplifier of small displacements. The product is identified as a dial comparator suitable for comparative and control measurements in machine shops and inspection benches. For application support or to request a specification confirmation for the M208.042, contact Metav Werkzeuge — our Emmerich specialists provide tailored advice and order processing for workshop and industrial customers. Technical data Article number: M208.042 GTIN: 4054469104041 Customs tariff number: 90178090 Facts Measuring range: ±0.9 mm Graduation / resolution: 0.01 mm Display reading: 0.01 mm Weight: 0.192 kg Stem mount: Ø8 mm Dial diameter: 56 mm Applicable standard: workshop standard Special features Metal housing Rotatable dial via outer bezel Ø56 mm Compact design for bench and fixture use Category: dial gauges FAQ What measurement tasks is this comparator best suited for? The M208.042 dial comparator is intended for short‑stroke comparative measurements such as run‑out checks, fixture setting and small component inspection in machine‑shop and quality‑control applications. What level of reading resolution and repeatability does it provide? The instrument offers a 0.01 mm graduation, giving clear, repeatable visual readings suitable for standard workshop quality control and quick inspection tasks. How is the comparator mounted for shop use? The comparator accepts a Ø8 mm stem mount, compatible with common magnetic bases and test stands, allowing easy installation on benches and fixtures. Does the M208.042 include a protective housing and easy dial alignment? Yes. A metal housing protects the mechanism and the 56 mm rotatable bezel enables quick dial orientation without moving the measuring point. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

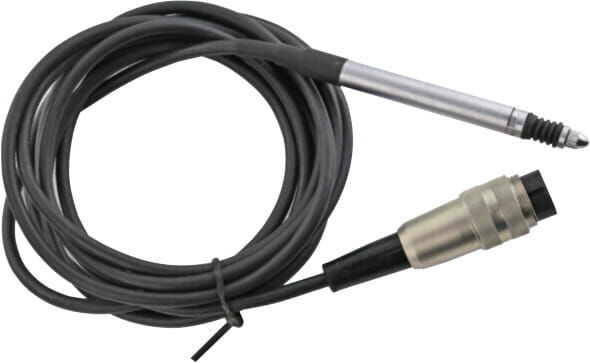

±2 mm Inductive Contact Probe With Linear Ball Bearing Guide, 0.7V 13kHz, Includes 2m Cable - Metav IndustryLine
The combination of inductive differential sensing and a linear ball‑bearing guide delivers repeatable, low‑force displacement measurement for inspection and setup tasks; benefit from the compact ±2 mm range and included 2 m connection cable for straightforward integration. Order the probe directly via Metav Werkzeuge or consult our specialists for system compatibility. Messtaster M301.041 — Inductive measuring probe with linear ball‑bearing guide (Metav IndustryLine) A Messtaster M301.041 is an inductive measuring probe designed for fine displacement sensing in workshop inspection, gauging fixtures and machine setup tasks, offering a compact ±2 mm sensing range and low measuring force for minimal part loading. Inductive differential sensing for stable output Linear ball‑bearing guide for high repeatability ±2 mm measurement range for fine displacement control Includes 2 m cable with 5‑pin DIN connector Precise, reliable sensing for repeatable inspection results The probe uses an inductive differential principle to convert minute axial movements into a stable electrical signal, making it well suited to applications where consistent repeatability is required. The design reduces susceptibility to mechanical backlash and contact wear, while the specified accuracy (0.2+3L³ µm) provides a predictable basis for traceable measurements. As a rational choice for quality assurance loops, this sensing method supports automated comparison, tool setting and component inspection where numerical stability is vital. Smooth mechanics and low part disturbance for delicate tasks Mounted with a linear ball‑bearing guide, the mechanism ensures friction‑free stroke motion and reproducible deflection paths, which is particularly important when working with small or delicate components. The measuring force <0.633 N minimises deflection of thin or lightweight parts during contact checks, preserving dimensional integrity while enabling reliable readings. The compact ±2 mm range keeps the active sensing region tight, so transitions between measured positions remain consistent and easy to interpret during routine checks. Integration-ready electrical interface and practical accessories Electrical requirements are modest, with a supply characteristic of 0.7 V, 13 kHz, and the probe is supplied with a 2 m connection cable and 5‑pin DIN plug, allowing quick wiring into common indicator amplifiers and data acquisition systems. The included cable reduces installation time and ensures a clean connection for signal transmission, supporting both manual readout and automated measurement chains. Where fixture mounting is needed, the probe’s design and mounting provisions facilitate stable attachment and repeatable positioning in inspection jigs. Contact Metav Werkzeuge for tailored integration advice on the M301.041 measuring probe and to discuss compatibility with existing test stands or measurement amplifiers Technical data Article number: M301.041 GTIN: 4054469113630 EClass: 27144044 ETIM: EC000029 TARIC/HS code: 90173000 Brand: Metav IndustryLine Core specifications Measurement range: ±2 mm Measuring force: <0.633 N Supply: 0.7 V, 13 kHz Accuracy: 0.2+3L³ µm (L in mm) Mounting / Aufnahme: 8 Special features Inductive differential sensing principle Linear ball‑bearing guide 2 m connection cable with 5‑pin DIN plug Compact design for fixture and machine integration FAQ What measurement range does the probe cover? The M301.041 measuring probe provides a sensing range of ±2 mm, suitable for fine displacement and comparative checks. Is the probe suitable for automated gauging systems? Yes. The inductive differential output and the supplied 2 m cable with 5‑pin DIN make the probe compatible with common indicator amplifiers and data acquisition interfaces for automated gauging. How does the low measuring force affect parts under test? With a measuring force below 0.633 N, the probe minimises loading on thin or delicate components, reducing the risk of elastic deformation during measurement. Can the probe be mounted in custom fixtures? The device is designed for stable fixture mounting; the mechanical guide and compact body allow repeatable placement in inspection jigs and machine set‑ups. What accuracy can be expected in practice? The specified accuracy is given as 0.2+3L³ µm (L in mm); this provides a predictable tolerance framework for integrating the probe into quality workflows and for estimating measurement uncertainty. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com

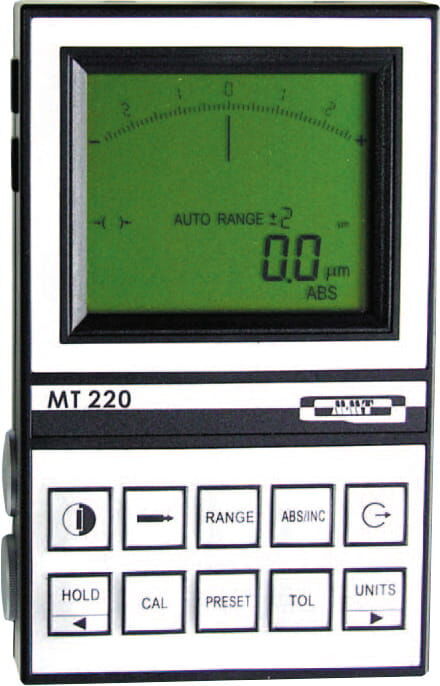

±2mm Indicating Dial Unit With Analog And Digital Display, Auto Range Swap 0.0001mm Resolution - Metav IndustryLine
Take advantage of the combination of a hybrid analogue-and-digital readout, automatic measurement-range reversal, and flexible power options for reliable indicator readings in workshop and laboratory setups; order the device via Metav Werkzeuge or consult our advisers for application guidance. M301.060 Indicator unit — Analogue & digital readout with automatic range reversal (Metav IndustryLine) The M301.060 is an indicator unit for inductive probes that combines analogue trend display with precise digital measurement for comparative and position-control tasks in industrial metrology. Analogue and digital readout Automatic measurement-range reversal Resolution 0.0001 mm Battery or external power supply Fast decisions through hybrid readout The hybrid analogue and digital display delivers the best of both worlds: the dial-like analogue trace allows immediate recognition of trends and deviations, while the digital readout provides exact values for documentation. With a display resolution of 0.0001 mm, repeatable readings are straightforward and inspection protocols are easier to fulfil. This combination reduces interpretation time during set-up and series checks, making routine comparator and probe‑based measurements more efficient and less error‑prone. Continuous measurement and robust signal handling Automatic measurement‑range reversal maintains continuous indication when the probe passes zero or crosses measurement limits, eliminating manual range changes and minimising interruption during runs. The device supports a measurement range of ±2 mm and features a sensitivity of 0.7 V/V/mm, ensuring a stable output from standard inductive sensors. Power is provided by 3× LR06 batteries or via an external supply; the unit operates with an excitation frequency in the range of 13 kHz, supporting consistent signal energy for reliable probe excitation. Workshop-ready compatibility and practical benefits Designed for integration with inductive messtaster systems, this display unit is also specified as suitable for third‑party calipers of similar construction (for example, TESA types), which simplifies retrofits and replacements in existing test rigs. The compact design and clear indication make it appropriate for both bench inspection and fixture‑mounted measurement tasks. For users seeking dependable comparative measurement and straightforward installation, the device supports faster set-ups and reduces cycle times in quality control workflows. Contact Metav Werkzeuge in Emmerich for application advice, calibration options and to arrange supply via info@metav-werkzeuge.com or +49 2822 7131930 Technical data SKU: M301.060 GTIN: 4054469113647 ECLASS: 21170401 Category: Messuhren Manufacturer: Metav IndustryLine Facts Measurement range: ±2 mm Resolution (display): 0.0001 mm Sensitivity: 0.7 V/V/mm Excitation: 13 kHz Power: 3× LR06 or external supply Tariff code: 90173000 Special features Analogue and digital indication Automatic measurement-range reversal Compatible with inductive probes Suitable for third‑party calipers of the same design FAQ What is the measurement range and resolution of this indicator unit? The indicator unit offers a measurement range of ±2 mm with a display resolution of 0.0001 mm, suitable for fine comparative and position measurements. Can this device power from mains or only batteries? The device runs on 3× LR06 batteries or via an external power supply, allowing flexible use in bench or fixed applications. Is the display compatible with probes from other manufacturers? Yes, the unit is specified as suitable for inductive probes and can be used with third‑party calipers of a similar construction (for example, TESA types). What advantage does the analogue indication provide alongside the digital readout? The analogue trace gives immediate visual feedback on trends and deviations, while the digital readout supplies precise numerical values for documentation and decision‑making. Does the unit support continuous measurement across zero or range limits? Yes, automatic measurement‑range reversal ensures continuous indication when the probe crosses the zero point or measurement limits. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Ø 4.5 mm Extension For Dial Indicators M2.5 Thread 15 mm, Stainless Steel - Metav IndustryLine
The compact stainless‑steel extension combines a short 15 mm reach with an M2.5 threaded connection and a Ø 4.5 mm shank to access recessed measuring points with minimal impact on measurement repeatability — order the extension directly via Metav Werkzeuge or consult our specialists for application advice. Extension for dial indicators M208.063.A – 15 mm, M2.5 thread (stainless steel) Extension for dial indicators M208.063.A is a compact accessory designed to extend the reach of dial and test indicators for confined or recessed measurement positions, maintaining workshop robustness and simple interchangeability Compact 15 mm stainless‑steel extension M2.5 threaded connection for dial indicators Ø 4.5 mm shank for secure fit Suitable for recessed measuring points Reliable reach into confined measuring points The 15 mm extension offers a short, controlled increase in reach that is effective when standard probe lengths cannot access a feature. With the M2.5 threaded connection and Ø 4.5 mm shank, the accessory is designed to mate with common dial and test indicators while keeping additional lever‑arm effects low; this helps preserve precision for routine checks and spot measurements. The compact geometry reduces the risk of bending or lateral play compared with longer adaptors, so measurement repeatability is supported in tight assemblies. Robust stainless‑steel construction for everyday workshop use Manufactured from stainless steel, the extension resists corrosion and tolerates the handling demands of a busy metrology bench. The material choice delivers long service life and straightforward cleaning after use, which supports consistent measurement conditions and reduces downtime. Built for reliability rather than complexity, this simple metal extender gives a dependable mechanical interface between indicator and workpiece, promoting confidence in repetitive inspection tasks. Compatibility and practical handling for daily metrology Threaded to the M2.5 metric standard, the extension fits a wide range of dial indicators and test probes used in mechanical workshops and small series inspection. The Ø 4.5 mm shank provides a positive seating to prevent slippage when mounted, while the short length minimises added mass and inertia — a practical advantage for fast inspection cycles. For specialised setups or unusual indicator models, Metav’s specification data can be consulted to verify fit; the straightforward design makes replacement or stocking easy for quality departments. Contact Metav Werkzeuge for ordering, application advice or to source compatible indicator models — info@metav-werkzeuge.com | +49 2822 7131930 Technical data Article number: M208.063.A GTIN: 4054469104256 ETIM: EC002219 ECLASS: 21170613 Customs tariff no.: 90179000 Dimensions & core data Length: 15 mm Thread: M2.5 Shank diameter: Ø 4.5 mm Materials & features Material: stainless steel Category: Measuring instruments > Accessories Application: accessory for dial indicators FAQ Is this extension compatible with standard dial indicators? The extension is designed with an M2.5 thread and a Ø 4.5 mm shank to match common dial and test indicators; check the indicator thread specification to confirm compatibility with M208.063.A. Will the extension affect measurement accuracy? Because of the short 15 mm length and robust stainless‑steel construction, the influence on measurement repeatability is minimal compared with longer adaptors, making it suitable for spot checks and confined features. What environments is the extension suitable for? Made from stainless steel, the accessory is suitable for workshop and general industrial environments where corrosion resistance and routine handling are required. How is the extension mounted to an indicator? The part screws directly into an indicator or probe with an M2.5 internal thread; ensure the connection is snug and free of debris before use. Does the technical data specify a calibration or certificate? The product data does not list a calibration certificate for this accessory; calibration is typically not applicable to passive extensions, but verification can be arranged if required for a specific inspection workflow. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Ø55x53 Z-Axis Setting Device With Digital Display 0.001mm Resolution, Permanent Magnet - Metav IndustryLine
Take advantage of precise axial reference setting with a digital readout and an integrated permanent magnet for reproducible zeroing; the compact 50 mm reference height and 24.7 mm contact tip ensure stable contact and quick setup. Order the device directly via Metav Werkzeuge or request advice from our consultants for application-specific guidance. M208.083 Z-axis setting device with digital display, 0.001 mm resolution – Metav IndustryLine A M208.083 Z-axis setting device with a digital readout designed for fast, repeatable determination of the axial reference point on machine-mounted workpieces. Digital readout, 0.001 mm resolution Axial permanent magnet for zeroing 24.7 mm probe for stable contact Compact 50 mm reference height, 0.65 kg Faster, repeatable axial referencing for setup efficiency The instrument delivers a digital display with a 0.001 mm resolution that shortens machine setup times and reduces the risk of human error during axial referencing. By converting precise analogue contact into an immediate digital value, the device enables clear decisions at the machine spindle and supports consistent results across successive setups. The combination of a fine 0.001 mm increment and a robust indication method translates into measurable savings in rework and downtime while improving process reliability on the shop floor. Secure contact and unambiguous readout for reliable references A 24.7 mm contact tip and a permanent magnet for axial fixation provide a stable mechanical interface that resists displacement during measurement. The digital display offers a 0/ON function and a clear mm/inch toggle for immediate unit selection, which simplifies cross‑discipline workflows. The compact 50 mm reference height and a total mass of 0.65 kg make the instrument easy to position while maintaining the stiffness required for repeatable axial referencing; this reliability is particularly valuable when aligning spindles, fixtures or workholding in serial setups. Built for workshop use: compact, robust and process-oriented Designed as a practical metrology tool for machine shops and quality departments, the device focuses on one thing: reproducible axial reference setting. The compact dimensions (Ø55 x 53 mm) and the ergonomic probe geometry allow quick installation and removal, supporting high throughput without compromising measurement fidelity. As a measuring instrument category intended for precise reference determination, it helps to standardise setup routines and improve traceability in production, thereby contributing to better yield and fewer stoppages. Contact Metav Werkzeuge in Emmerich for application advice or to arrange delivery of the Metav IndustryLine M208.083 Z‑axis setting device from stock Technical data Article number: M208.083 SKU: M208.083 GTIN: 4054469164298 ECLASS: 21020590 Facts Resolution: 0.001 mm Reference height: 50 mm Probe diameter: Ø24.7 mm Dimensions: Ø55 x 53 mm Weight: 0.65 kg Harmonised System code: 90318020 Special features Digital readout with 0/ON and mm/inch function Permanent magnet for axial zero determination Digital instrument, category: Messuhren Label: Z‑axis setting device with digital display, 2 x 0,001 mm, magnet for axial zeroing FAQ What resolution does the instrument offer? The device provides a 0.001 mm resolution on the digital display and is specified as a high‑precision setting instrument for axial references in the Metav IndustryLine range. How is the axial zero point established? Axial zero is determined by the integrated permanent magnet, which secures the instrument in the axial position for repeatable reference setting with the M208.083. Can readings be displayed in inches? Yes, the display includes a mm/inch toggle and a 0/ON control for quick unit switching on the Metav IndustryLine Z‑axis setting device. What are the probe and reference dimensions? Probe diameter: Ø24.7 mm; reference height: 50 mm; the compact geometry supports stable contact for axial measurement tasks. For which applications is this instrument intended? The instrument is intended for determining axial reference points (Z‑axis) on workpieces and fixtures, supporting machine setup and repeatable alignment in workshop and production environments with the Metav IndustryLine M208.083. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Ø58x50 Z-Axis Setting Device With External Dial Gauge 3 × 0.01 mm For Axial Zero Point - Metav IndustryLine
Take advantage of precise axial referencing and a compact mechanical design to speed up spindle setup and reduce rework; order the unit directly via Metav Werkzeuge or consult our specialists for application advice. Z-axis setting device M208.081 — external analogue dial gauge kit, 3 × 0.01 mm (Metav IndustryLine) Z-axis setting device M208.081 is a compact metrology instrument designed to determine the axial zero point of spindles and workpieces using an external set of three 0.01 mm dial gauges for reliable reference setting. High resolution 0.01 mm analogue readout Triple-gauge arrangement for axial referencing Robust Ø33.5 mm contact probe Fast, measurable improvement in setup accuracy The M208.081 is engineered to deliver repeatable alignment results through its 0.01 mm resolution and three-gauge arrangement. By distributing the measurement over multiple contact points, the unit reduces the influence of local surface irregularities and operator variability; this improves first-off accuracy and shortens the time required for spindle or axis levelling. The analogue readout with a clear 40 mm dial allows rapid visual interpretation on the shop floor, enabling faster decisions during machine set-up without reliance on battery power or electronic interfaces. Repeatability that protects production yield A stable contact geometry, defined by the Ø33.5 mm probe and a fixed reference height 50 mm, ensures consistent engagement with the workpiece or spindle nose. The device’s compact mass and balanced construction (approx. 1.25 kg) deliver a stable measuring posture that minimises rocking or tilt during axial probing, which in turn reduces measurement scatter and scrap. Because the instrument is purpose-built for axial zero-point determination, it integrates into standard workshop workflows and supports reproducible datum transfer between machines and fixtures. Designed for workshop use and straightforward integration The analogue, mechanically driven design is robust and easily maintained in industrial environments; it is suitable for frequent use in toolrooms, machine shops and setup bays where resilience and clarity matter. The external dial-gauge configuration is practical when direct spindle access is required and when electronic outputs are unnecessary. The compact footprint and clear mechanical indicators make the unit a pragmatic choice for technicians who require a reliable mechanical reference for axial alignment, repeat checks and quality control routines. Metav IndustryLine quality control and logistics ensure the product arrives ready for immediate use. For axial zero-point tasks, contact Metav Werkzeuge to discuss integration of the Metav IndustryLine setting device or to request detailed application guidance by phone or e‑mail. Technical Data Article number: M208.081 GTIN: 4054469104393 Category: Messuhren Customs tariff number: 90318020 Facts Reading resolution: 0.01 mm Dial diameter: 40 mm Probe diameter: Ø33.5 mm Reference height: 50 mm Weight: 1.25 kg Analogue: yes Special features External dial gauge, 3 × 0.01 mm Designed for axial zero-point determination (Z-axis) Suitable for determining the reference point of a workpiece in axial direction FAQ How precise is the axial reference achievable with this device? The M208.081 provides a reading resolution of 0.01 mm; using the three-gauge arrangement improves repeatability for axial zero-point determination. Can the instrument be used directly on a machine spindle? Yes, the unit is specifically designed for setting the axial reference of spindles and workpiece noses and includes a robust Ø33.5 mm contact probe suited to that application. Is the readout analogue or digital? The device uses an analogue dial readout with a 40 mm dial for immediate visual assessment without electronic dependencies. What weight and size considerations affect handling? With an approximate weight of 1.25 kg and a compact footprint, the setting device is portable enough for bench or machine-side use while remaining stable during probing. Which applications benefit most from this Z-axis setting device? The device is ideal for machine shops, fixture set-up and any application requiring reproducible axial datum transfer and spindle zeroing Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Ø58x50 Z-Axis Setting Device With External Dial Indicator And Magnetic Base, Ø33.5mm Probe - Metav IndustryLine
Benefit from highly repeatable axial zeroing using a 40 mm dial gauge and a secure magnetic base, paired with a compact 50 mm reference height for stable set‑ups; order the Z‑axis setting device directly via Metav Werkzeuge or consult our specialists if required. Z-axis setting device M208.082 — External dial gauge, magnetic base (Metav IndustryLine) Z-axis setting device M208.082 delivers axial reference determination for machine set-ups, using an external analogue dial gauge and a magnetic base for secure positioning. Precision 0.01 mm resolution Magnetic base for stable mounting 40 mm diameter external dial gauge 50 mm reference height for axial set-up Fast, repeatable Z‑axis referencing for set-ups The Z‑axis setting device M208.082 is designed to convert fine mechanical movement into a clear analogue indication, enabling rapid detection of the axial zero point. With a 0.01 mm reading it supplies sufficiently fine resolution for workshop and machine‑tool alignment tasks, so check procedures and tool offsets can be set with confidence. The compact design reduces interference during approach and supports quicker cycle‑time adjustments in standard production environments. Stable mounting that improves repeatability A magnetic base provides a rigid, vibration‑resistant hold on ferrous surfaces, which translates directly into more reproducible measurements during set‑up operations. The 50 mm reference height offers a predictable datum for repeated procedures, while the modest mass of 1.25 kg keeps the assembly easy to position without compromising stability. This combination reduces rework and minimises downtime when changing fixtures or tools. Immediate analogue feedback for precise fine adjustments The large 40 mm dial gauge gives high visual contrast and quick interpretation of small displacements, supporting hands‑on manual adjustment. The analogue display, with a clear 0.01 mm graduation, allows the operator to respond instantly to tiny deviations; this is particularly useful when aligning spindle heights or setting tool offsets, where small corrections have a large effect on final tolerances. The familiar dial format also eases integration into established working routines. Compact probe geometry for confined spaces A 33.5 mm probe diameter and overall compact footprint make the setting assembly suitable for axial referencing in constrained machine beds and on various workholding devices. The unit is intended specifically for determining the reference point of a workpiece in the axial (Z) direction, so it pairs well with manual and CNC machine tool set‑ups where repeatable zeroing is essential. Robust mechanical construction supports routine workshop handling. Contact Metav Werkzeuge for tailored advice and to arrange supply from Emmerich – call +49 2822 7131930 or email info@metav-werkzeuge.com Technical Data Article number: M208.082 GTIN: 4054469104409 EClass: 21020590 Tariff number: 90318020 Core technical data Resolution: 0.01 mm Dial diameter: 40 mm Probe diameter: 33.5 mm Reference height: 50 mm Weight: 1.25 kg Special features Magnetic base for mounting Analogue dial gauge format Suitable for axial (Z‑axis) reference determination Category: Dial indicators External dial gauge connection FAQ What reading resolution does this device provide? The Z‑axis setting device M208.082 provides an analogue reading with 0.01 mm resolution for fine axial adjustments. How is the unit mounted during machine set‑up? Mounting is achieved via the integrated magnetic base, which secures the assembly to ferrous machine surfaces for repeatable positioning. Which applications is the device intended for? The tool is intended for determining the reference point of a workpiece in the axial (Z‑axis) direction, making it suitable for spindle height setting and tool offset calibration. What are the probe and dial sizes? The probe has a diameter of 33.5 mm and the external dial gauge is 40 mm in diameter for clear visual feedback. Is the display analogue or digital? The device uses an analogue dial gauge to deliver immediate, easy‑to‑read feedback during manual adjustments. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Precise measurements with dial indicators for workshop and production use
Dial indicators are high-quality measuring devices designed for a variety of measuring ranges and fine-tuning tasks. These instruments, available in digital and analogue versions, enable precise assessment of concentricity, flatness and comparative measurements in confined or critical areas.
How dial indicators work and where they are essential
Analogue dial indicators transmit the linear movement of the probe via a rack-and-pinion mechanism to the pointer, with an additional revolution counter showing extended travel. Many types operate in both compression and tension, so a wide effective measuring range is covered. Lever-type indicators use a lever system instead of a rack, offering a smaller range but finer resolution. Typical workshop applications include runout checks at the lathe, setting up depth on milling tables or circular saws, and comparative checks during series production.
Tangible benefits for everyday production
- Fast, repeatable readings for comparison work, reducing setup and inspection time.
- Stable measuring force and hardened contact tips for reliable, wear-resistant contact and consistent results.
- Broad selection: digital dial indicators, mechanical dial indicators, depth gauges, lever-type test indicators, fine‑point test indicators and thickness gauges cover most shop tasks.
- Reduced risk of measurement error through appropriate instrument choice and accessories, improving first-pass yield.
- Flexible deployment on machines and inspection benches thanks to standardised mounts and probes.
Why choose Metav as your precision partner
Metav stands for the democratisation of precision, combining decades of expertise with a comprehensive inventory for industry, crafts and trade. From Emmerich, Metav operates as a practical quality filter for the European market, supplying over 48,000 satisfied customers and more than 250,000 products. For buyers who prioritise dependability and a single-source approach, Metav’s range of dial indicators and related measuring equipment provides a technically sound and convenient solution.
Core takeaway
Dial indicators deliver precise, repeatable measurements across a variety of specialised tasks; selecting the correct type—whether digital, analogue or lever-type—ensures reliable results and smoother production processes.
FAQ
What is the main difference between analogue and digital dial indicators?
Analogue dial indicators transmit movement via a rack-and-pinion and show mechanical pointer travel, which can be advantageous for visual trend detection; digital dial indicators provide direct numerical readout and often allow data output for logging and analysis, both of which are available from Metav.
When should I use a lever-type test indicator instead of a standard dial indicator?
Use a lever-type indicator when you need finer resolution over a small measuring range or when the probe must access tight spaces; lever-type instruments are particularly useful for checking runout and small surface variations.
How do I avoid damaging an analogue dial indicator’s gearing?
Avoid forcing the probe beyond its travel range; where significant overtravel is possible, choose a model with an appropriate range or a built-in stop. A drag pointer or anti-backlash feature can also reduce the risk of gear damage by preventing delayed pointer return.
Are special contact tips necessary for different materials?
Yes. For consistent results and reduced wear, choose hardened contact tips or balls appropriate to the material and surface finish being measured; Metav’s product range includes a variety of probe tips and accessories for this purpose.
