Benefit from a compact and practical mounting solution: the 60 x 75 mm bracket provides a small footprint and lightweight (0.28 kg) handling for straightforward LED lamp installation. Its simple form factor supports consistent alignment and reduces installation time. Order the V-51 directly via Metav Werkzeuge or consult our specialists for tailored application advice. V-51 Mounting bracket 60 x 75 mm for LED lamps by Vertex The V-51 is a compact mounting bracket intended as an accessory for LED lamps, designed to secure fixtures in workshop and industrial lighting applications. Compact 60 x 75 mm footprint Designed for LED lamps Lightweight: 0.28 kg Secure mounting for consistent lighting A reliable bracket reduces the need for rework and keeps luminaires aligned for an even light distribution. The mounting angle functions as a stable interface between the luminaire and its support, enabling secure installation of LED lamps and helping to maintain illumination quality across a workspace. For production environments and service workshops, this stability translates into fewer maintenance interventions and steadier lighting performance, which supports operational efficiency. Space-saving design that simplifies fitting The 60 x 75 mm footprint and compact profile make the fixture suitable for tight mounting locations where larger brackets would be impractical. Its lightweight (0.28 kg) construction eases manual handling during assembly and minimises additional loading on ceilings and supports. Where space is at a premium, the reduced bulk lowers collision risk and simplifies routing of cables and conduits, speeding up installation and saving labour time. Practical application and ordering details for planners This mounting component is classified as an LED accessory and is intended for use wherever a small, dependable bracket is required. For system planners and maintenance teams, confirm hole patterns and fastener sizes to match the luminaire body and mounting substrate; the bracket provides the mounting interface and requires appropriate screws or bolts for a complete fit. Identification for procurement: SKU: V-51, GTIN: 4061905088636. For product provenance and component specification see the Vertex designation included with the item. Contact Metav Werkzeuge to discuss how the Vertex V-51 mounting bracket fits your installation and to arrange supply from our Emmerich warehouse with application guidance from our specialists Technical data SKU: V-51 GTIN: 4061905088636 Category: Accessory for LED lamps Manufacturer: Vertex Core technical data Dimensions: 60 x 75 mm Weight: 0.28 kg ECLASS: 27110390 Special features Application: accessory for LED lamps Type: mounting bracket / mounting angle Classification: workshop and industrial lighting accessory FAQ Is the V-51 suitable for industrial LED fittings? The V-51 mounting bracket is intended as an accessory for LED lamps and is suitable for workshop and industrial lighting fixtures provided the bracket matches the fixture’s mounting points. What are the exact dimensions and weight? The bracket measures 60 x 75 mm and weighs 0.28 kg; refer to SKU V-51 or GTIN 4061905088636 when ordering. How should the bracket be fixed to a surface? Fasten the bracket with appropriate screws or bolts for the substrate and luminaire; ensure correct alignment and secure torque values for a safe installation. How to confirm compatibility with a particular luminaire? Check the luminaire’s mounting hole pattern and clearances against the bracket footprint; compatibility depends on matching those mechanical interfaces. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Reliable mounting solution that combines a compact footprint and low weight for fast, efficient LED installation; order the bracket directly via Metav Werkzeuge or consult our specialists for application advice. Vertex V-20 mounting bracket 60 x 75 mm for LED lamps The V-20 mounting bracket provides a compact mounting option for attaching LED luminaires where space is limited, suitable for workshop and commercial installations. Compact 60 x 75 mm mounting bracket Designed for LED lamps and luminaires Lightweight at 0.28 kg Vertex product, SKU V-20 Faster, neater installations in confined spaces The 60 x 75 mm footprint of this mounting bracket reduces the space required behind or beside a fitting, enabling installations where larger brackets would be impractical. The small profile helps keep cable runs and fixation points tidy, which translates into a shorter assembly time on site and fewer follow-up adjustments. At 0.28 kg, the component is lightweight, easing manual handling during fitting and reducing strain during repeated installations, so teams can work more efficiently and focus on completing jobs on schedule. Seamless integration with LED luminaires for reliable results Designed specifically as an accessory for LED lamps, the bracket offers a standardised point of attachment that simplifies alignment and support of modern luminaires. Standard workshop fixings can be used to secure the bracket to existing structures, thereby cutting preparation work and minimising downtime. By standardising the mounting approach, the bracket contributes to consistent visual results and predictable load distribution, supporting professional installations in retail, office or industrial settings. Supply reliability and quality assurance for procurement Sourced from Vertex, the bracket benefits from a clear production lineage and straightforward logistics through Metav's European supply chain. Stocking at the Emmerich warehouse acts as a quality filter and ensures dependable availability for workshop procurement. Choosing this component supports streamlined purchasing: a compact, purpose-built accessory that reduces the need for custom brackets and helps maintain a consistent installation standard across multiple sites. Contact Metav Werkzeuge today to secure Vertex V-20 mounting brackets and benefit from reliable supply and prompt delivery from Emmerich; enquiries can be directed to Metav Werkzeuge for further application guidance. Technical Data Article number: V-20 GTIN: 4061905084317 Product type: Mounting bracket 60 x 75 mm Weight: 0.28 kg Data Dimensions: 60 x 75 mm Weight: 0.28 kg ECLASS: 27110390 SKU: V-20 Special features Suitable for LED lamps Accessory for luminaires Brand: Vertex Category: Accessories for LED lamps FAQ Is the bracket suitable for LED lamps? Yes. The Vertex V-20 mounting bracket is specified as an accessory for LED lamps and is intended to support luminaires in compact installations. What are the exact dimensions and weight? The V-20 measures 60 x 75 mm and weighs 0.28 kg, providing a small footprint and lightweight handling for installers. Can the bracket be used with all types of luminaires? The bracket is designed for LED luminaires; compatibility with specific fittings depends on the luminaire’s mounting points and should be checked against the Vertex V-20 product details. Is outdoor suitability stated for this bracket? Outdoor suitability is not specified in the available product data; for exterior applications, verify environmental protection requirements against the Vertex V-20 specifications. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of the compact 60×75 mm footprint and lightweight construction to achieve tidy, reliable LED lamp installations; order the mounting bracket directly via Metav Werkzeuge or consult the Metav team for procurement advice and specification support. V-52 Mounting Bracket 60×75 mm — Vertex The V-52 is a compact mounting bracket designed for secure attachment of LED lamps in industrial and commercial installations. Mounting bracket 60×75 mm Designed for LED lamp mounting Lightweight at 0.28 kg SKU V-52, GTIN 4061905088438 Space-saving support for clean LED installations A precise mounting solution reduces clutter and simplifies lighting layouts in workshops, production lines and retail displays. The 60×75 mm footprint ensures minimal intrusion into the installation area while providing a stable platform for various lamp housings. By favouring compact supports, project planners gain flexibility in tight spaces and can maintain clear routing for cables and conduits. The design focus on compactness delivers an organised final appearance and helps preserve sightlines in commercial settings where a professional finish matters. Practical benefits for procurement and assembly The bracket’s lightweight nature (approx. 0.28 kg) minimises handling effort during assembly and reduces load on supporting structures. As a plain mechanical accessory, the component is intended to be integrated into existing mounting systems for LED lamps, enabling straightforward stock management and interchangeability. Where exact material specifications are required for load calculations or compliance records, the product data sheet should be consulted; the accessory is supplied under the distinctive Vertex SKU for clear traceability in supply chains and inventory systems. Where this accessory adds value on the shop floor In production and installation environments, dependable small parts accelerate project completion and reduce on-site adjustments. The bracket serves as a consistent option when a simple, space-efficient mounting point is required for lighting modules. Specifying a standardised bracket across multiple installations simplifies maintenance planning and spare-parts provisioning, supporting predictable uptime and orderly asset management. The item’s identification via SKU and GTIN supports digital procurement workflows and ensures accurate ordering across industrial buyers and distributors. For a reliable choice in compact LED mounting, specify the Vertex V-52 and contact Metav Werkzeuge in Emmerich for ordering and procurement guidance. Technical Data Article number: V-52 GTIN: 4061905088438 Intended application: LED lamps Category: Vertex Weight: 0.28 kg Facts Dimensions: 60×75 mm eClass: 27110390 Special features Product type: Mounting bracket Asset filename: V-52.png SKU: V-52 FAQ What is the V-52 intended for? The V-52 is a mounting bracket by Vertex intended for the secure attachment of LED lamps in industrial and commercial installations. What are the bracket’s dimensions and weight? Dimensions are 60×75 mm and the weight is approximately 0.28 kg for the V-52 mounting bracket. Is the material specified for the bracket? Material information is not specified in the product data for the V-52 mounting bracket. How is the product identified for ordering? The accessory is identified as SKU V-52 and GTIN 4061905088438 for procurement and inventory purposes. Can the bracket be used with fittings other than LED lamps? The bracket is described for LED lamp applications; compatibility with other fittings depends on the specific lamp housing and mounting requirements and is not explicitly detailed in the product data. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of the combination of high cutting speed, measured precision and a compact footprint for consistent productivity in mould and tool workshops. Order the unit directly via Metav Werkzeuge or consult our specialists for setup and integration. VEC-100 Ejector Pin Cutting Machine — 3,600 rpm, 0.1 mm accuracy (Vertex) The VEC-100 is a precision ejector pin cutting machine designed for mouldmaking and toolroom applications, delivering fast, repeatable cuts for small, high-precision components. High-speed 3,600 rpm for efficient throughput Repeatable accuracy to 0.1 mm per cut Solid, vibration-damping construction at 94.5 kg Compact footprint: 620x420x450mm Consistent, measurable precision for small parts The VEC-100 offers reliable precision that supports repeatable production of ejector pins and similar small parts. With a specified accuracy of 0.1 mm, the cutter reduces the need for manual rework and length matching, which shortens downstream processing time. The stated tolerance refers to the reproducibility of the cut length under normal operating conditions; this allows workshop planners to calculate yield and set-up intervals with confidence. Precision in this context means fewer rejects and a more predictable production rhythm. Faster cycle times through controlled high speed A nominal spindle speed of 3600 rpm enables shorter cycle times while maintaining cut quality when paired with appropriate tooling and feed. High rotational speed improves throughput for small-diameter pins where multiple cuts are required, and the machine’s design prioritises stable cut conditions to avoid burr formation. By combining rotational speed with steady workholding and a stiff frame, the unit achieves a balance between productivity and surface integrity, supporting lean manufacturing workflows in toolmaking environments. Robust, compact build that fits the workshop Engineered for stability, the machine’s robust construction and mass of 94.5 kg reduce vibration and contribute to consistent cutting results. Its compact footprint (620x420x450mm) makes it suitable for benches or dedicated cells without sacrificing rigidity. The compact design also simplifies integration into existing production lines and allows planners to make efficient use of floor space. Maintenance is straightforward thanks to accessible service points, helping to keep downtime predictable and limited. Contact Metav Werkzeuge to discuss integration of the Vertex VEC-100 into the workshop and to arrange a tailored delivery and setup plan close to your facility Technical Data Article number: VEC-100 GTIN: 4061905084096 Manufacturer: Vertex Facts Accuracy: 0.1 mm Speed: 3600 rpm Weight: 94.5 kg Dimensions: 620x420x450mm Special features eClass: 23120390 ETIM: EC001959 SKU: VEC-100 FAQ What materials can be processed with this cutter? The VEC-100 is intended for cutting standard ejector-pin materials used in mouldmaking; compatibility depends on the chosen cutting tool and process parameters. How does the specified accuracy affect production planning? An accuracy of 0.1 mm for the VEC-100 allows planners to minimise post-cut matching and to set realistic yield and inspection intervals for small-part production. Is the machine suitable for bench mounting in a small workshop? Yes; the compact footprint (620x420x450mm) and solid 94.5 kg construction are designed for placement on benches or in compact cells typical of toolrooms. Which brand manufactures this machine? The VEC-100 is manufactured by Vertex and is supplied through Metav Werkzeuge for European customers. What information is needed to order spare parts or tooling? Provide the machine SKU (VEC-100) and the part description; Metav Werkzeuge can assist with correct tooling and spare-part selection. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of a compact, high-capacity design that combines robust load handling with simple integration and low handling weight for uninterrupted machine operation. Order the unit directly via Metav Werkzeuge or contact the consultants for application-specific advice. VSA-35K-PS-BL Shock Absorber — 6,300 kg capacity, M16x81L thread (Vertex) The VSA-35K-PS-BL is a compact industrial shock absorber designed for high-load deceleration and machinery protection in workshop and production environments. Robust 6,300 kg load capacity M16x81L thread for secure mounting Compact 145x95x144 mm footprint Lightweight 1.4 kg construction Heavy-duty deceleration that protects production The unit provides reliable energy absorption for equipment requiring strong, repeatable deceleration. With a 6,300 kg maximum load rating and a secure M16x81L threaded stud, the component is intended for demanding axial loads where controlled stopping reduces wear on machines and fixtures. This predictable performance helps to lower maintenance intervals and prevents unexpected downtime by limiting peak forces transmitted to structural elements and tooling. The technical specification translates directly into operational certainty for production planners and maintenance engineers. Compact form factor for straightforward retrofits A reduced footprint of 145 x 95 x 144 mm and a mass of just 1.4 kg enable integration into confined assemblies and facilitate handling during installation. The compact dimensions allow the absorber to be mounted close to impact points, shortening reaction paths and improving deceleration efficiency. The external thread ensures stable mechanical engagement into existing fixtures or mounting blocks, simplifying replacement without significant redesign of surrounding components. This combination of size and thread compatibility supports fast upgrades on existing machinery. Consistent operation and minimal upkeep Designed for robust, repeatable performance, the shock absorber delivers consistent deceleration cycles that support process stability. The construction focuses on simple integration and durable operation, reducing the need for frequent adjustments. Where system longevity and consistent stopping behaviour matter, the component contributes to predictable cycle times and less reactive maintenance. Sourcing through a proven distributor adds an additional layer of quality assurance for procurement and engineering teams. Contact Metav Werkzeuge for tailored application support on the Vertex VSA-35K-PS-BL — technical advice and supply coordination are available from Metav Werkzeuge in Emmerich (email info@metav-werkzeuge.com, phone +49 2822 7131930, WhatsApp +49 170 2837271) Technical Data SKU: VSA-35K-PS-BL GTIN: 4061905092824 Manufacturer: Vertex ECLASS: 27291201 Facts Dimensions: 145 x 95 x 144 mm Weight: 1.4 kg Max load: 6,300 kg Thread: M16x81L Special features Compact industrial shock absorber Designed for high axial loads Lightweight for easier handling SKU VSA-35K-PS-BL FAQ What maximum load can this shock absorber handle? The VSA-35K-PS-BL is rated for a maximum load of 6,300 kg, making it suitable for heavy-duty deceleration tasks in production settings. Which thread is used for mounting the absorber? Mounting is via an M16x81L threaded stud, providing a secure mechanical connection for direct installation into compatible fixtures. Is the unit suitable for retrofit into existing machinery? Yes, the compact dimensions (145 x 95 x 144 mm) and lightweight design of the Vertex shock absorber allow straightforward retrofitting into confined assemblies. How does this absorber improve machine uptime? By delivering consistent deceleration and limiting peak impact forces, the VSA-35K-PS-BL reduces wear on machine components and tooling, contributing to fewer breakdowns and lower maintenance frequency. Can the absorber be used in high-cycle applications? The design supports repeatable cycles and stable stopping behaviour, which is appropriate for many high-cycle industrial processes when specified within its load rating. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of the combination of high load capacity and a compact footprint for reliable impact absorption in confined machine spaces. Benefit from a standard M16 threaded connection and proven Vertex manufacturing for straightforward specification and supply via Metav Werkzeuge — contact our consultants for application advice. VSA-35K Shock Absorber by Vertex — M16 thread, 6,300 kg capacity A VSA-35K shock absorber designed for industrial machinery, providing robust impact damping and easy integration where space is restricted High load capacity 6,300 kg M16x91L threaded connection Compact 145×95×136 mm footprint Lightweight 1.61 kg for dynamic response Heavy-duty absorption that protects cycle accuracy and machinery The industrial shock absorber is built to absorb and dissipate kinetic energy at high loads, reducing peak forces transmitted to frames and moving parts. With a rated static capacity of 6,300 kg and a reinforced M16x91L threaded connection, the unit limits mechanical shock and supports consistent cycle timing in production equipment. Specifying a dedicated damper improves component life and reduces unplanned downtime by lowering fatigue on adjacent assemblies. The role of a shock absorber is explained here in practical terms: it converts impact energy into controlled motion and heat, preventing abrupt rebounds that cause wear. Compact footprint that eases retrofitting and layout design A small physical profile enables installation where bulkier devices would not fit. The damper’s 145×95×136 mm envelope and 1.61 kg mass allow placement close to actuators, conveyors or presses without major redesigns. This compact footprint minimises intrusion into limited installation zones and simplifies retrofitting, while the modest mass helps maintain the dynamic behaviour of light moving parts. For planners and maintenance teams, reduced system displacement and straightforward mounting translate into faster assembly and fewer alignment issues during commissioning. Engineered quality and traceable specification for procurement Manufactured by Vertex, the unit reflects industry-standard production controls and traceability, supporting transparent procurement and inventory management. The component carries a GTIN and SKU for unambiguous ordering and stock tracking, enabling efficient supply-chain processes. Choosing a recognised manufacturer and documented part reduces specification risk and aligns with quality assurance practices — an advantage for quality managers who must ensure repeatable performance across batches of equipment. Practical installation and selection notes for application planners The threaded M16x91L interface provides a common mechanical interface for mounting; pairing the damper with the correct grade of nut and washer ensures secure seating and predictable behaviour under load. When selecting a damper, match the rated capacity to expected peak loads rather than nominal operating weight to maintain a safety margin. Where machine dynamics are critical, the low mass and compact design support rapid response without excessive added inertia, making this shock absorber suitable for both intermittent impacts and frequent cycling applications. Request a detailed application check or rapid supply via Metav Werkzeuge in Emmerich — contact info@metav-werkzeuge.com or call +49 2822 7131930 for tailored specification and delivery guidance Technical data Article number: VSA-35K GTIN: 4061905090288 Manufacturer: Vertex Facts Max load: 6,300 kg Dimensions: 145 x 95 x 136 mm Weight: 1.61 kg Thread: M16x91L Special features Shock absorber for industrial applications Compact design for tight integration Threaded connection for standard mounting Vertex manufacturing quality FAQ What maximum load can the shock absorber handle? The shock absorber is rated for a maximum load of 6,300 kg, ensuring suitability for heavy-duty impact applications. Which threaded connection is used for mounting? Mounting is via an M16x91L threaded connection, compatible with standard M16 nuts and washers for secure installation. Is the damper suitable for retrofitting into existing equipment? Yes, the compact 145×95×136 mm footprint and modest mass allow straightforward retrofitting into constrained machine spaces. How does the VSA-35K differ from lighter vibration isolators? The VSA-35K is engineered for impact absorption at high loads rather than general vibration isolation, offering a higher static capacity and robust construction for repeated shocks. Can the product be specified using a catalogue reference? The unit is available under the SKU VSA-35K and GTIN 4061905090288 for unambiguous ordering and stock management. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

The combination of a very high load capacity and a compact footprint makes this shock absorber a dependable choice for heavy-duty machinery and tight installations; order directly via Metav Werkzeuge or request expert advice from our consultants. VSA-35K-6RU shock absorber — 6,300 kg capacity, M16x91L thread | Vertex The VSA-35K-6RU is a heavy-duty shock absorber engineered for industrial machinery and fixtures where a compact unit must absorb large static and dynamic loads. High load capacity 6,300 kg Compact dimensions 145 x 95 x 140 mm M16x91L robust threaded connection Lightweight at 1.61 kg High load performance for heavy-duty operations The VSA-35K-6RU shock absorber delivers a rated capacity of 6,300 kg, providing a clear benefit in applications where peak forces must be managed without increasing component size. A high nominal load rating translates into a reduced risk of deformation under static conditions and a measurable lowering of transmitted shock in service, which supports longer equipment life and improved operational reliability. For production environments, this means fewer unexpected stops and a more consistent process output. Space-saving design that eases integration With compact dimensions of 145 x 95 x 140 mm, the unit is suited to installations where space is at a premium. The small footprint enables integration into tight assemblies and simplifies retrofitting older equipment without major redesign. This compactness also facilitates modular layouts in jigs and fixtures, reducing the need for additional structural supports while maintaining effective energy absorption and preserving machine geometry. Secure threaded connection for dependable mounting The M16x91L threaded connection provides a familiar and robust interface for bolted assemblies; the specification denotes a metric M16 thread with a 91 mm length suitable for firm anchorage. A unit weight of 1.61 kg aids handling during installation and replacement, yet the design maintains a secure fastening under high load. Clear thread sizing reduces ambiguity during procurement and supports standard mounting hardware practices in industrial environments. Reduced downtime through consistent damping and durability Choosing a compact absorber with a high static rating contributes directly to increased uptime and lower scheduled maintenance. By moderating impact forces, the device helps protect adjacent components and bearings, which in turn reduces the frequency of wear-related service actions. For operations aiming to balance performance with simplicity, this configuration offers cost-efficient protection that supports predictable maintenance cycles and steady production. Request a specification sheet or technical consultation from Metav Werkzeuge in Emmerich to assess the Vertex VSA-35K-6RU for a specific assembly or machine application Technical data SKU: VSA-35K-6RU GTIN: 4061905090103 ECLASS: 27291201 Brand: Vertex Facts Maximum load: 6,300 kg Dimensions: 145 x 95 x 140 mm Weight: 1.61 kg Thread: M16x91L Special features Product type: Shock absorber Suitable for heavy-duty load damping Compact form factor for tight assemblies FAQ What maximum load can this shock absorber handle? The Vertex VSA-35K-6RU has a rated maximum load of 6,300 kg, making it suitable for demanding, heavy-duty applications where high static support is required. How is the unit mounted? Mounting is via a metric M16 thread with a 91 mm length (M16x91L), which allows for standard bolted installation in industrial fixtures and machines. Is the absorber suitable for retrofitting older machinery? Yes, the compact dimensions and standard threaded connection make the VSA-35K-6RU a practical option for retrofits where space is limited and firm attachment is needed. What handling or lifting considerations apply? At a weight of 1.61 kg the unit is straightforward to handle manually during installation, though appropriate lifting practice should be followed for elevated or awkward positions. How does this component affect maintenance intervals? By absorbing impact loads and reducing transmitted shock, the absorber helps protect surrounding components and can contribute to extended maintenance intervals and improved equipment reliability. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of the combination of high load capacity, compact design and reliable threaded connection for consistent machine damping. Benefit from robust engineering and straightforward specification data when planning installations — order the shock absorber directly via Metav Werkzeuge or consult our specialists for tailored advice. VSA-35K-PS Shock absorber — 6,300 kg capacity, M16x91L threaded connection The VSA-35K-PS is a compact industrial shock absorber designed for heavy-duty machinery, providing controlled energy dissipation in tight installation spaces. High 6,300 kg load capacity M16x91L threaded connection Compact 145×95×134 mm footprint Robust 1.4 kg construction Consistent damping for heavy loads The unit delivers controlled energy absorption suited to demanding industrial environments. Its 6,300 kg load capacity ensures repeatable deceleration where inertia is high, reducing stress on frames and fixtures. The working principle is based on progressive resistance: as kinetic energy rises, the damping element converts motion into heat in a predictable curve, protecting downstream components and extending service intervals through subdued shock transmission. Space-saving installation and secure mounting Compact dimensions and a standard M16x91L thread allow machine designers to integrate effective damping without major design changes. The small 145×95×134 mm footprint and modest 1.4 kg mass simplify retrofit work and keep additional mass low on moving axes. A threaded connection provides a positive mechanical interface that resists loosening under cyclical loads; when combined with conventional locking methods, it yields a durable attachment suitable for repetitive impact applications. Reliable operation and specification clarity Constructed for industrial use, the absorber is specified for repeatable duty cycles and stable performance over time. Clear technical values — including thread form, load rating and compact envelope — assist planners in selecting an appropriate component and predicting system behaviour. Sourcing through an experienced partner reduces procurement risk: Metav Werkzeuge acts as a quality filter for the European market, supporting consistent supply and conformity to intended application requirements. Contact Metav Werkzeuge in Emmerich to arrange supply of the Vertex VSA-35K-PS shock absorber and to discuss compatibility with existing machinery. Technical data SKU: VSA-35K-PS GTIN: 4061905090615 Eclass: 27291201 Manufacturer: Vertex Key specifications Load capacity: 6,300 Kg Thread: M16x91L Dimensions: 145×95×134 mm Weight: 1.4 kg Product details Product type: Shock absorber Brand: Vertex Image available: VSA-35K-PS-main.png FAQ What maximum load can this shock absorber handle? The VSA-35K-PS is specified for a maximum load of 6,300 kg, which makes the Vertex shock absorber suitable for heavy-duty damping tasks in industrial equipment. Which thread does the unit use for mounting? Mounting is via an M16x91L threaded connection, providing a standard mechanical interface for secure attachment and easy integration into existing assemblies. Are the dimensions suitable for retrofit into compact machines? Yes. With external dimensions of 145×95×134 mm and a weight of 1.4 kg, the VSA-35K-PS offers a compact footprint that supports retrofit applications in constrained spaces. How does this absorber improve machine longevity? By converting impact energy into controlled resistance, the shock absorber reduces transmitted forces to frames and bearings, lowering fatigue and maintenance frequency for connected components. Is technical documentation available for planning and verification? Technical specifics such as load rating, thread form and dimensional data are provided for the VSA-35K-PS to assist in design validation and component selection. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of the combination of precise retention, sturdy threading and extended reach to maintain consistent machining quality. Order the drawbar directly via Metav Werkzeuge or ask our consultants if needed. VDR-NT40I-A drawbar (630 mm, 5/8-11UNF) by Vertex The VDR-NT40I-A drawbar secures NT40 tool holders in machine spindles, providing extended reach for deep-mounted fixtures and reliable clamping during machining. 630 mm length for extended reach 5/8-11UNF threaded connection Robust design by Vertex, weighs 1.3 kg Improved tool retention for predictable machining results A consistent clamping interface reduces tool run-out and the need for frequent adjustments. The drawbar principle converts spindle actuation into axial clamping, producing the repeatability required for tight tolerances. With a 630 mm overall length the component is suited to setups where tools sit deeper in the spindle or where fixtures require extra reach. The 5/8-11UNF thread delivers a standardised mechanical connection that supports stable transmission of clamping forces, limiting vibration and improving surface finish. These measurable properties help to cut rework and increase uptime in production environments. Reliable design that simplifies maintenance and handling Weight and geometry influence handling and replacement intervals. At 1.3 kg the shaft balances robustness with manageable handling for operators during maintenance or換out. The standardised threaded interface reduces tooling complexity and supports compatibility with established NT40 tool-holder systems. Where technical terms are unfamiliar: a drawbar is the axial rod inside the spindle that pulls and holds the tool holder by engaging the threaded section; the thread specification (5/8-11UNF) defines the mating connection and is critical for correct clamping action. The straightforward mechanical design means no electronics to fail and minimal upkeep beyond regular inspection. Practical workflow benefits for workshops and production shops Integrating a dependable clamping component supports faster tool changes and steadier processes, translating into lower scrap rates and predictable cycle times. The product’s Vertex provenance signals attention to manufacturing standards and component fit, which is particularly valuable for small and medium-sized workshops seeking industrial-grade reliability without complex procurement. Metav’s role as a quality filter in Emmerich ensures consistent supply and product conformity across the European market, backed by a broad range of precision tools and decades of distribution experience. Choosing a proven clamping rod contributes to a safer, more efficient shopfloor. For supply and application advice on the VDR-NT40I-A drawbar, contact Metav Werkzeuge in Emmerich – email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: VDR-NT40I-A GTIN: 4061905094804 ECLASS: 23309104 Facts Length: 630 mm Weight: 1.3 kg Thread: 5/8-11UNF Special features Brand: Vertex SKU: VDR-NT40I-A Image: VDR-R8-S-main.png FAQ Is this drawbar compatible with NT40 tool holders? The VDR-NT40I-A drawbar is intended for NT40 interfaces and is supplied with the specification matching common NT40 tool-holder systems. What thread does the drawbar use and why is that important? The component uses a 5/8-11UNF thread; this standardised thread ensures a secure mechanical connection and consistent transmission of clamping force for repeatable concentricity. How long is the drawbar and what advantage does that provide? With a length of 630 mm, the rod offers extended reach for deep-mounted tools or fixtures, reducing the need for additional extensions. What is the weight and does it affect handling? Weighing 1.3 kg, the shaft combines sturdy construction with manageable handling for routine installation and maintenance. Are there any special maintenance requirements? Routine inspection for thread wear and cleanliness is recommended; the simple mechanical design means maintenance is limited to visual checks and standard cleaning. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of a robust M16x2 thread and a length of 630 mm for reliable tool retention and straightforward handling; combine this with Vertex quality for consistent spindle connection and order the drawbar directly via Metav Werkzeuge or request advice from our consultants. Vertex drawbar VDR-NT40M-A – M16x2 thread, 630 mm length The Vertex drawbar VDR-NT40M-A is a dedicated NT40 taper retention rod designed to secure toolholders in milling spindles for machining applications. Compatible with NT40 toolholders M16x2 thread for secure engagement Length 630 mm for extended reach Weight 1.3 kg for easy handling Reliable clamping for stable machining The retention rod delivers a secure retention solution through its standard M16x2 thread, ensuring the clamping mechanism engages positively with NT40 toolholders. This connection reduces axial movement during cutting, which in turn supports repeatable machining results. The engineering focus is on repeatability and dependable mechanical contact rather than decorative details, so operators can expect consistent performance where stability matters most. Practical dimensions that aid workshop efficiency With an overall length of 630 mm and a mass of 1.3 kg, the bar offers reach without becoming cumbersome. The extended length is useful when working with longer toolholders or deeper spindle assemblies, while the moderate weight makes manual handling and installation straightforward during tooling changes. These physical parameters support faster setup times and minimise the need for additional handling tools in routine operations. Precision fit to reduce downtime Manufactured by Vertex, the rod features a precision fit that helps lower the risk of tool slippage and vibration-induced errors. A consistent thread form and accurate overall length contribute to reliable axial positioning of the toolholder, which can help reduce scrap rates and rework. For workshops aiming to maintain throughput, the drawbar acts as a simple, durable component that contributes to overall process stability. Contact Metav Werkzeuge in Emmerich for personalised technical advice on the Vertex drawbar VDR-NT40M-A and assistance selecting the correct NT40 retention solution — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: VDR-NT40M-A GTIN: 4061905095184 Manufacturer: Vertex Facts Length: 630 mm Weight: 1.3 kg Thread: M16x2P Special features ECLASS: 23309104 Category: Vertex UID: VDR-NT40M-A FAQ What spindle taper is this rod intended for? The Vertex drawbar VDR-NT40M-A is intended for NT40 taper spindles and secures compatible NT40 toolholders. Which thread does the retention rod use? The retention rod uses an M16x2 thread for engagement with the spindle clamping mechanism. Is the length suitable for deep spindle assemblies? The 630 mm length of the VDR-NT40M-A provides extended reach suitable for deeper spindle or toolholder arrangements. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

The robust combination of a secure M12x1.75 thread, a 635 mm reach and a lightweight 0.9 kg construction ensures stable clamping and easy handling in workshop operations; order the VDR-NT30M-A directly via Metav Werkzeuge or consult our specialists for application advice. VDR-NT30M-A Drawbar (NT30) — M12x1.75 thread, 635 mm reach, Vertex VDR-NT30M-A Drawbar for secure retention of NT30 tool holders in CNC and milling equipment, designed to maintain consistent clamping force and support accurate machining operations. Precision drawbar for NT30 tool holders M12x1.75 thread for secure clamping 635 mm length for extended reach Lightweight 0.9 kg construction for easy handling Stable clamping for repeatable accuracy The drawbar transmits clamping force to the tool holder taper, reducing axial movement and helping to maintain spindle concentricity during cutting. With the M12x1.75 thread specification, the component provides a defined engagement interface that contributes directly to repeatable retention force and reduced runout. For workshops seeking measurable improvements in part accuracy, the secure connection between spindle and tool holder supports consistent cycle times and predictable outcomes. Extended reach with straightforward handling A 635 mm overall length offers extended reach where longer drawbars are required for deeper holders or specific tool-change configurations. Despite this length, the unit remains lightweight at 0.9 kg, which aids manual handling during tool changes and routine maintenance. The combination of reach and manageable mass reduces setup time and minimises the effort required during changeover, supporting smoother production flows and improved operational ergonomics. Clear specifications and workshop suitability Key mechanical data are presented clearly so purchasing and engineering teams can assess fitment with existing NT30 systems. The component is classified for industrial use and supplied under the Vertex brand, reflecting established manufacturing standards. Where material details are not listed in the available data, the focus stays on measurable interface attributes—thread, length and mass—that determine compatibility and operational behaviour in standard clamping systems. Request a specification check from Metav Werkzeuge for Vertex clamping solutions — email info@metav-werkzeuge.com or call +49 2822 7131930 for delivery from Emmerich and advice on integration. Technical Data Article number: VDR-NT30M-A GTIN: 4061905094156 Manufacturer: Vertex Facts Length: 635 mm Thread: M12x1.75 Weight: 0.9 kg ECLASS: 23309104 Special features Category: Vertex Asset image: VDR-R8-S-main.png UID: VDR-NT30M-A FAQ What is the thread specification of the drawbar? The VDR-NT30M-A features an M12x1.75 thread, providing a standard pitch for secure mechanical engagement in clamping applications. Which shank or tool holder standard does this component suit? This unit is designed for use with NT30 tool holder interfaces and is identified by the VDR-NT30M-A designation from Vertex. What are the physical dimensions and weight? The drawbar measures 635 mm in length and weighs 0.9 kg, dimensions that support extended reach requirements while remaining easy to handle. Is the material specified for the drawbar? Material information is not specified in the provided data set for the VDR-NT30M-A; key selection is therefore based on thread, length and weight specifications. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Benefit from standardised compatibility and extended reach via the 1/2-12UNF thread and 635 mm length; combine reliable handling with manageable mass for straightforward installation — order the VDR-NT302-A tie rod directly via Metav Werkzeuge or ask our consultants if needed. VDR-NT302-A tie rod — 1/2-12UNF thread, 635 mm The VDR-NT302-A tie rod is a machine accessory designed for axial securing and fixturing in clamping and tooling assemblies, offering standard thread compatibility and extended reach for workshop applications. 1/2-12UNF standardised thread 635 mm overall length Approximately 0.9 kg mass Suitable for clamping and fixturing Enhanced compatibility with standard tooling The 1/2-12UNF thread provides direct compatibility with a wide range of imperial toolholders and clamping components, reducing the need for special adaptors and shortening setup times. With a clear specification for thread and length, the component integrates predictably into existing assemblies, which helps to maintain cycle time and minimise adjustment. The indicated mass of 0.9 kg makes handling and positioning straightforward during mounting, while the standardised interface supports interchangeability across machines and fixtures. Practical benefits in assembly and fixturing Designed for axial securing, this tie rod supports reliable clamping and alignment in production and maintenance tasks. The 635 mm overall reach allows secure connection across deeper arrangements where shorter rods would require additional joins or adaptors, simplifying the toolchain and improving load transmission. The straightforward specification and industrial-grade format mean the part can be listed as a spare component for preventive maintenance inventories, helping to reduce downtime and ensure consistent machine performance. Speak to Metav Werkzeuge in Emmerich for compatibility checks and supply of the Vertex VDR-NT302-A tie rod with 1/2-12UNF thread — call +49 2822 7131930 or email info@metav-werkzeuge.com for tailored advice and delivery options Technical Data SKU: VDR-NT302-A GTIN: 4061905092039 Brand: Vertex ECLASS: 23309104 Core specifications Length: 635 mm Thread: 1/2-12UNF Weight: 0.9 kg Features / Applications Standardised imperial thread for broad compatibility Extended reach for deep fixturing arrangements Intended for axial securing and clamping in tooling setups FAQ What thread does the tie rod use and why is it important? The rod uses a 1/2-12UNF thread; this standardised thread ensures compatibility with many imperial toolholders and reduces the need for adaptors when integrating the component into clamping systems. Is the length suitable for deep-fixture applications? Yes, the 635 mm overall length provides extended reach for deeper assemblies and fixtures, making the component appropriate where a longer axial connection is required. How heavy is the component and what does that mean for handling? The part weighs approximately 0.9 kg, which keeps handling manageable during installation and maintenance while offering sufficient mass for secure engagement under typical clamping loads. Can this rod be used across different machines and fixtures? The standard thread and clear dimensions support cross-machine interchangeability, so the VDR-NT302-A can serve as a consistent spare part within a mixed-equipment workshop. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of the combination of high repeatability, robust load capacity and a compact footprint for efficient clamping operations; order the unit directly via Metav Werkzeuge or consult our specialists for tailored integration advice. VUA-100J mounting angle with rotary chuck — 63 mm chuck, 0.01 mm accuracy (Vertex) VUA-100J is a mounting angle fitted with a rotary chuck for precise orientation and secure clamping in workshop and inspection setups. *Precision ±0.01 mm for repeatable setups *63 mm rotary chuck for secure clamping *Rated load up to 15 kg for heavy workpieces *Compact footprint 180×110×136 mm for space-saving Precise alignment that reduces setup time The unit delivers 0.01 mm repeatability, a level of precision that supports tight tolerances in inspection, calibration and light machining tasks. Accurate positioning is achieved through the integrated rotary chuck, which promotes consistent concentricity and simplifies indexing of the workpiece. For operations that demand reproducible reference points, the device acts as a stable fixturing element, helping to reduce rework and maintain production throughput. Reliable support for medium-weight components With a rated capacity of 15 kg, the mounting angle accommodates a broad range of parts commonly encountered in small-batch production and metrology fixtures. The solid construction and balanced mass (approx. 12 kg) keep the assembly stable during handling and when rotating the chuck, so the clamped item remains secure. This stability supports repeatable measurements and safer handling compared with lighter, less rigid fixtures. Small footprint, simple integration into existing rigs The compact dimensions of 180×110×136 mm make the device easy to position on machine tables, measuring stations or assembly benches without consuming valuable workspace. Its modest size and standard chuck diameter allow it to be incorporated into modular clamping arrangements or combined with other tooling elements. Where floor or table space is limited, the mounting angle provides a space-efficient solution without sacrificing functional capability. Clear technical advantages for everyday workshop use The 63 mm rotary chuck offers a familiar interface for clamping cylindrical or faced parts, enabling quick workpiece changes and precise angular adjustment. The design concentrates on predictable behaviour: precise indexing, secure holding and compatibility with common shop practices. For users seeking consistency in routine setups, the component reduces variability and supports faster, quality-driven workflows. For guidance on integrating the Vertex VUA-100J into existing fixtures or for bespoke clamping recommendations, contact Metav Werkzeuge — our Emmerich-based team provides practical advice and reliable supply from stock. Technical Data Article number: VUA-100J GTIN: 4061905084386 eClass: 21020601 Facts Accuracy: 0.01 mm Max load: 15 kg Weight: 12 kg Dimensions: 180×110×136 mm Chuck diameter: 63 mm Special features Mounting angle with rotary chuck Chuck diameter: 63 mm Compact design for bench or table mounting FAQ What level of positional precision can be expected? The VUA-100J offers a repeatability of 0.01 mm, which ensures consistent positioning for inspection and light machining tasks. Which workpiece weight is supported by this clamping angle? The device is rated for loads up to 15 kg, making it suitable for medium-weight components commonly handled in workshops. What does the 63 mm chuck diameter mean for clamping options? A 63 mm rotary chuck provides a versatile clamping interface for cylindrical and flanged parts and facilitates quick changeover during repetitive setups. Can the mounting angle be used on machine tables and measuring stands? Yes. The compact footprint of 180×110×136 mm allows straightforward placement on machine tables, measuring fixtures and workbenches. Is the VUA-100J suitable for repeatable indexing and alignment tasks? Designed with a rotary chuck and precise mechanics, the VUA-100J supports accurate indexing and alignment for routine metrology and fixture tasks. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

A compact hand pump that combines 650 cc capacity, a 15 kg/cm² working rating and lever operation to deliver controlled, repeatable lubrication; ideal for routine maintenance and service desks. Order the LT-18A directly via Metav Werkzeuge or ask our consultants if needed. LT-18A Hand Lubricant Pump — 650 cc capacity, 15 kg/cm² working pressure (Vertex) A robust, lever-operated LT-18A hand lubricant pump for workshop and service applications that delivers consistent dispensing for manual maintenance tasks *Lever-operated for controlled dispensing *650 cc capacity for extended operation *Rated to 15 kg/cm² working pressure *Compact 98 x 107 mm footprint Consistent dispensing for uninterrupted maintenance The LT-18A is engineered for reliable manual lubrication where repeatability matters. The combination of a 650 cc reservoir and a 15 kg/cm² working rating provides a balance between capacity and pressure, allowing longer intervals between refills while still delivering sufficient force for thicker greases. This results in fewer interruptions during routine servicing and a predictable dispensing volume per stroke. The construction supports precise application of lubricants, reducing waste and ensuring bearings and fittings receive consistent coverage. Easy handling and compact storage for everyday use Designed with practicality in mind, the hand pump’s lever-operated mechanism gives controlled metering with minimal operator effort. At just 1.6 kg and with 98 x 107 mm compact dimensions, the unit is straightforward to manoeuvre around machinery or stow on a maintenance trolley. The small footprint saves bench space and keeps the pumping assembly accessible without dominating the workspace. Clear, ergonomic actuation reduces strain during repeated use, supporting efficient work flow in busy service environments. Built for straightforward operation and dependable supply The pump’s simple design focuses on usability and serviceability rather than complex electronics, which suits workshops that require robust, low-maintenance tools. The lever drive and clear reservoir capacity make refills and inspections quick, while the rated working pressure ensures adequate performance with common workshop lubricants. Sourcing through an established distributor guarantees steady availability and part familiarity, helping to avoid downtime and maintain a steady supply chain for essential maintenance items. Choose the Vertex LT-18A for dependable manual lubrication and contact Metav Werkzeuge in Emmerich for technical guidance and reliable delivery: info@metav-werkzeuge.com • +49 2822 7131930 Technical Data Article number: LT-18A GTIN: 4061905089473 Brand: Vertex EClass: 23069090 Facts Capacity: 650 c.c. Working pressure: 15 kg/cm² Weight: 1.6 kg Dimensions: 98 x 107 mm Special features Lever-operated design Hand-operated lubricant pump Compact footprint for workshop use FAQ Is the pump suitable for thicker greases and pastes? The LT-18A hand lubricant pump from Vertex is rated at 15 kg/cm², which supports the application of higher-viscosity greases; selection of lubricant should follow manufacturer guidance for best results. How much lubricant does the reservoir hold? The unit provides a 650 cc reservoir, allowing extended operation between refills and reducing the frequency of interruptions during maintenance. How portable is the pump for mobile maintenance tasks? Weighing approximately 1.6 kg with compact 98 x 107 mm dimensions, the pump is easily moved around the workshop and stored on trolleys or racking. Does the pump use a lever or trigger mechanism? This model is lever-operated, offering controlled dispensing and straightforward actuation for consistent metering. What identifiers should be used when ordering spare parts? Order or reference the Vertex LT-18A using SKU LT-18A and GTIN 4061905089473 to ensure correct matching. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of the combination of accuracy 0.05 mm, fine-grain cast iron stability, and compact dimensions for dependable workpiece support; order the prism block directly via Metav Werkzeuge or consult our technical advisors for specifications and delivery options. V-6V V-block — Vertex prism block with 0.05 mm accuracy A robust V-6V prism block for secure workpiece support and inspection in metrology and workshop applications Fine-grain cast iron construction Accuracy 0.05 mm for reliable measurement Solid 6.4 kg mass for vibration damping Compact dimensions: 66 x 156 x 90.5 mm Stable base for precise inspection The prism block delivers a consistently stable support that reduces movement during measurement and inspection. With a rated accuracy of 0.05 mm, the component provides reproducible positioning for cylindrical parts and shafts, helping to minimise measurement scatter in quality-control routines. The V-groove geometry ensures concentric seating, while the substantial mass contributes to vibration damping, so test results remain reliable even when used in busy workshop environments. This combination supports efficient metrology workflows and reduces the need for repeated checks. Material selection that preserves long-term accuracy Manufactured from fine-grain cast iron, the prism block offers inherent thermal and mechanical stability that protects calibration over time. The material choice dampens small vibrations and resists rapid temperature fluctuations that can otherwise shift measurement baselines. Where surface contact and repeatability matter, the material’s structure supports persistent flatness and wear resistance, extending the interval between maintenance or recalibration and ensuring dependable component handling in production and inspection stations. Compact form for flexible fixturing The compact external dimensions of 66 x 156 x 90.5 mm allow easy integration into custom jigs, inspection benches and portable measuring setups without occupying excessive bench space. The moderate footprint, combined with the block’s mass, provides a sturdy clamping foundation that is simple to position and secures small to medium workpieces effectively. This balance of size and stability enables versatile use across measuring tasks, from bench caliper checks to machine-side verification, while maintaining easy handling when reconfiguring setups. Practical advantages for workshops and quality assurance Designed for everyday metrology tasks, the prism block supports consistent inspection procedures and faster cycle times through reliable seating and repeatable measurements. The robust construction and well-defined V-seat reduce setup variability, helping technicians achieve traceable results and increased throughput. The model is supplied under the Vertex brand and carries the SKU V-6V, making it straightforward to reference in documentation and purchase orders for procurement and inventory control. For specification support or procurement of the Vertex V-6V prism block, contact Metav Werkzeuge in Emmerich at info@metav-werkzeuge.com or call +49 2822 7131930 for personalised advice. Technical data SKU: V-6V GTIN: 4061905087936 Manufacturer: Vertex Facts Dimensions: 66 x 156 x 90.5 mm Weight: 6.4 kg Accuracy: 0.05 Special features Material: fine-grain cast iron Product type: prism block / V-block ECLASS: 21160304 FAQ What is the declared accuracy of the prism block? The declared accuracy is 0.05, listed as the tolerance for the Vertex V-6V prism block. Which material is used for the V-block and why does it matter? The V-block is made from fine-grain cast iron, chosen for its vibration damping and thermal stability that preserve measurement consistency. Can the prism block be used for precision inspection of shafts? Yes, the V-groove geometry of the V-6V provides secure seating for shafts and cylindrical parts during inspection and measurement tasks. How should the prism block be referenced in technical documentation? Reference the item as Vertex V-6V (SKU V-6V, GTIN 4061905087936) to ensure clear procurement and traceability. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Combining a 6 mm slot profile with a stable 0.56 kg mass and a 210 mm length delivers steady, repeatable slotting performance for production environments; order the accessory directly via Metav Werkzeuge or consult our specialists for application advice. VSH-6C slot bar accessory by Vertex — 6 mm precision fit, 210 mm length A VSH-6C accessory designed for precision slotting heads, providing a compact 6 mm slot profile for repeatable slotting and secure mechanical integration. Precision 6 mm slot bar Robust 0.56 kg construction Compatible with Vertex slotting heads Consistent slotting accuracy for dependable results The accessory supports precision slotting workflows by providing a defined 6 mm guided profile that stabilises the cutting interface. Fitted to a precision slotting head, the component reduces lateral play and helps maintain alignment across repetitive cycles. This results in fewer rework operations and improved first-pass yield, which is especially relevant in small-batch production and precision workshops. The design emphasises dimensional control, so tolerances are upheld even under frequent use, supporting higher throughput with consistent quality. Built for mechanical stability and straightforward integration Mechanical stability is achieved through a compact but substantial form factor; the 0.56 kg mass and 210 mm length balance rigidity with accessibility for typical machining set-ups. The bar is intended to be mounted to precision slotting heads where secure engagement and repeatability are essential. Installation is performed using standard fastening methods, so integration into existing toolheads is straightforward and setup times are reduced. The component’s form factor minimises vibration transfer and contributes to predictable tool behaviour, aiding in cycle-time optimisation and reducing maintenance intervals. Improved inventory control and production reliability As a standardised accessory with a clear SKU and GTIN, the unit simplifies spare-part management and procurement planning. The standardisation supports structured inventory policies and reduces machine downtime by enabling quick replacements. For workshops and production lines aiming to maintain uninterrupted operations, adopting uniform accessories enhances traceability and ensures compatibility across multiple machines. The measured, repeatable performance contributes to process reliability and supports a more efficient production flow. For secure procurement of Vertex precision accessories such as the VSH-6C, rely on Metav Werkzeuge in Emmerich for expert advice and reliable dispatch to keep production running smoothly. Technical data Article number: VSH-6C GTIN: 4061905084713 Manufacturer: Vertex Facts Weight: 0.56 kg Length: 210 mm Slot width: 6 mm Special features Accessory for precision slotting head Category: Accessory SKU: VSH-6C Brand: Vertex FAQ What is the intended application of this accessory? The VSH-6C is an accessory intended for use with precision slotting heads to provide a defined 6 mm slot profile for repeatable slotting operations. What are the key dimensions and weight? The component measures 210 mm in length, has a slot width of 6 mm and a weight of 0.56 kg as specified for the VSH-6C accessory by Vertex. Is the accessory compatible with Vertex precision slotting heads? Yes, the design of the VSH-6C matches Vertex precision slotting head interfaces and is intended to ensure secure compatibility and repeatable mounting. Which identifiers should be used for ordering and stock control? Use the SKU VSH-6C and GTIN 4061905084713 for clear identification and inventory tracking of this Vertex slot bar accessory. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of the combination of energy efficiency and a compact, lightweight design to maintain reliable workshop illumination with minimal installation effort. Combine steady, low-power lighting and simple replacement logistics for uninterrupted operations. Order directly via Metav Werkzeuge or consult the Metav team for application-specific advice. LED6W — Vertex 6 W LED bulb accessory, compact and energy-efficient A LED6W accessory lamp offering low-power illumination for workshop and industrial lighting tasks, designed as a compact replacement solution for compatible LED fittings. *6 W energy-efficient LED bulb for steady illumination *Compact form factor for confined fittings *Lightweight 140 g for easy installation and replacement Reduced energy use without sacrificing practicality The small 6 W rating reflects a design focused on low power draw, which helps reduce operating costs where many fittings run continuously. The lamp’s compact profile allows integration into crowded luminaires and task lights commonly found in workshops and production benches. For procurement and inventory planning, the combination of low wattage and compact dimensions supports efficient energy management and straightforward stocking. Designed for straightforward installation and handling Built as an accessory for LED fittings, the unit’s lightweight 140 g construction simplifies handling during maintenance cycles and reduces strain on sockets and fixtures. The modest mass and compact geometry enable easy replacement and minimise downtime during shift changes. Technical teams benefit from the ease of handling when retrofitting or standardising illumination across workstations. Practical fit for industrial and workshop environments Although specified as an accessory for LED lamps, the component is intended for applications where dependable, focused lighting is required rather than architectural illumination. The accessory characteristic supports modular lighting strategies, permitting targeted upgrades without overhauling entire luminaires. This approach assists maintenance planners and production managers in achieving consistent lighting levels across critical work areas. Compatibility and procurement clarity The article is listed under Vertex and carries the SKU LED6W, facilitating straightforward ordering and stock management. The classification data included supports compatibility checks and catalogue integration for procurement systems. Specifiers and warehouse staff can use the SKU and GTIN entries to match existing fixtures and to ensure rapid replenishment from central stock. For tailored supply and application guidance on Vertex LED accessories, contact Metav Werkzeuge in Emmerich for reliable delivery and expert advice via email (info@metav-werkzeuge.com) or phone (+49 2822 7131930) to confirm suitability for intended fittings and lighting layouts. Technical data SKU: LED6W GTIN: 4061905089480 Manufacturer: Vertex Core specifications Power: 6 W Weight: 0.14 kg Features and compatibility Accessory for LED lamps Category: Zubehör für LED-Lampen ECLASS: 27110390 FAQ What is the intended application for this LED accessory? The LED6W is intended as an accessory lamp for LED fittings, suitable for workshop and industrial task lighting where compact, low-power illumination is required. How heavy is the Vertex LED6W unit? The Vertex LED6W weighs 0.14 kg, which supports easy handling and replacement in standard fixtures. Which identifiers help with ordering and inventory? Ordering and inventory reference values include the SKU LED6W and the GTIN 4061905089480, used to match the correct accessory in procurement systems. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Taking advantage of high-strength cast-steel construction and a compact 6 x 4-1/2 x 5 in footprint, this workholding angle delivers stable clamping and consistent dimensional support for machining and inspection tasks; order directly via Metav Werkzeuge or consult the team for tailored advice. VR-60 Angle Clamp (Aufspannwinkel) — high-strength cast-steel workholding, 6 x 4-1/2 x 5 in | Vertex The VR-60 Angle Clamp provides rigid, low-vibration support for precision machining and measurement setups, designed for integration into benches, fixtures and inspection stations High-strength cast-steel construction Compact 6 x 4-1/2 x 5 in footprint Stable 3.2 kg mass for vibration damping Designed for precision machining setups Dependable stability for repeatable machining The primary benefit of a rigid workholding component is repeatability. Built from high-strength cast steel, this angle clamp offers a mass and stiffness that resist chatter and flex under cutting loads. The combination of material density and engineered geometry improves positional stability, reducing the risk of workpiece movement during milling, drilling or light grinding operations. As a result, set-up tolerances are easier to maintain and downstream rework is reduced, which supports higher throughput and consistent part quality. Compact footprint that fits modern workshop workflows With a nominal footprint of 6 x 4-1/2 x 5 in, the unit is compact enough to integrate into crowded benches and vice-mounted fixtures without sacrificing contact area. The small footprint simplifies fixturing and allows close access for tooling and inspection probes, while the 3.2 kg mass provides damping where a lightweight clamp would transmit vibration. This makes the component suitable for inspection benches as well as production machines where floor space and fixture real estate are at a premium. Low-maintenance robustness for reliable production A robust casting reduces the need for frequent replacement and keeps fixture inventories lean. The durable construction resists deformation from repeated clamping cycles, preserving reference faces and alignment points over time. For operations that require dependable workholding day after day, this approach minimises interruptions and supports predictable maintenance schedules. The result is a practical balance between longevity and straightforward handling that complements standard workshop procedures. Contact Metav Werkzeuge for tailored ordering advice and precise compatibility checks for the VR-60 Angle Clamp — reliable supply from Emmerich and expert consultation available. Technical Data SKU: VR-60 GTIN: 4061905091841 Eclass: 21020601 Facts Dimensions: 6 x 4-1/2 x 5 in Weight: 3.2 kg Special features Material: high-strength cast steel Manufacturer: Vertex FAQ What applications is this angle clamp suited for? The VR-60 Angle Clamp is intended for precision machining and inspection support where a rigid workholding solution is required, including milling, drilling and bench-based measurement setups. How does the material affect performance? The high-strength cast-steel construction of the VR-60 provides enhanced stiffness and damping, improving dimensional stability and reducing the likelihood of chatter during machining. Is the clamp compatible with standard vices and fixtures? Yes, the compact 6 x 4-1/2 x 5 in footprint of the VR-60 allows integration with common vices and fixture plates used in machine shops and inspection benches. How much does the angle clamp weigh and why does that matter? Weighing 3.2 kg, the unit provides sufficient mass to damp vibrations, which helps maintain positional accuracy during cutting and measuring operations. Who manufactures the VR-60 and where is it supplied from? Vertex manufactures the VR-60 Angle Clamp; Metav Werkzeuge supplies the product from its European distribution hub for reliable local delivery. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Combine the high-strength cast steel construction with 0.01 mm accuracy and a solid 7 kg mass to secure reliable right-angle fixturing and repeatable inspection set-ups; order the angle plate directly via Metav Werkzeuge or consult our specialists for application-specific advice. Angle plate VR-66 — Vertex precision angle plate with 0.01 mm accuracy and cast-steel construction The angle plate VR-66 is a right-angle fixture designed for secure workpiece support, repeatable alignment and inspection in machine shops and metrology benches. High-strength cast steel construction 0.01 mm accuracy for precise set-ups Solid 7 kg mass for vibration damping Stable reference for accurate set-ups A machined right-angle fixture provides a dependable datum for positioning and inspection. Built from high-strength cast steel, the plate’s mass and structure reduce vibration and deflection, delivering consistent stability during clamping and measurement tasks. For workshop applications this means fewer rechecks and shorter set-up times, since a stable reference surface keeps geometries true while workpieces are secured for milling, drilling or gauging operations. Precision explained: what 0.01 mm achieves in practice An accuracy of 0.01 mm denotes that the reference surfaces are finished to tight tolerances, suitable for demanding inspection and layout work. In practice this level of precision ensures right-angle relationships are maintained within small margins, which benefits tasks such as square checks, bore alignment and finish machining set-ups. The measurable tolerance reduces uncertainty in downstream operations and supports quality control routines that rely on repeatable fixturing. Made for workshop use: durability and simple integration The selection of high-strength cast steel offers wear resistance and thermal stability compared with softer materials; the robust 7 kg mass aids in damping machining vibrations. The design integrates readily with standard clamping systems and inspection benches, providing a practical solution for everyday jigs and fixtures. With minimal maintenance—periodic cleaning and corrosion protection of machined faces—the component remains a lasting part of a productive fixturing workflow and aligns with professional workshop standards. Arrange supply or application advice for the Vertex angle plate VR-66 through Metav Werkzeuge in Emmerich; our consultants can recommend matching clamping accessories or delivery options via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: VR-66 GTIN: 4061905090820 eClass: 21170130 Dimensions & mass Dimensions: 6 x 6 x 6 (as provided) Weight: 7 kg Accuracy: 0.01 mm Materials & features Material: high-strength cast steel Brand: Vertex Product type: angle plate FAQ What is the primary purpose of this angle plate? The angle plate VR-66 is intended as a precision right-angle fixture for clamping, inspection and set-up tasks where a stable reference surface is required. Can the VR-66 be used directly on a machining centre or only on inspection benches? The VR-66 from Vertex is suitable for both inspection benches and workshop fixturing; its mass and cast-steel construction provide stability during light machining and layout operations. How does the 0.01 mm accuracy affect everyday use? An accuracy of 0.01 mm means the machined faces maintain tight right-angle relationships, reducing the need for repeated alignment checks and improving repeatability in measurement and finishing tasks. What maintenance is required to keep the plate accurate? Regular cleaning of the machined faces and protection from corrosion are the primary maintenance steps to preserve the accuracy and longevity of the VR-66. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Secure clamping, the 7-3/8" opening and a 114.3 mm throat depth combine to make the VCL-8C a practical choice for steady, repeatable setups. Robust build and compact dimensions support reliable handling and less downtime. Order the collet directly via Metav Werkzeuge or ask our consultants for application advice. VCL-8C Vertex precision collet with 7-3/8" opening The VCL-8C is a precision collet designed for industrial clamping tasks where a secure hold and deeper reach are required, making it suitable for production benches and specialised fixtures. Collet for secure clamping with 7-3/8" opening Throat depth 114.3 mm for deeper reach Robust construction, weight 1.75 kg Compatible with Vertex clamping accessories Consistent hold for accurate machining results The collet design delivers a concentric grip that helps maintain part alignment during machining, reducing the need for repeated adjustments. With its defined 7-3/8" opening, this clamping element enables reliable engagement for parts that fit within that maximum envelope. The result is improved process stability and fewer rejects, which supports predictable cycle times and a stronger production flow. Reach further without sacrificing stability A throat depth of 114.3 mm allows access to deeper features and facilitates work on longer components without additional fixturing. Combined with compact dimensions of 345 x 161 mm and a mass of 1.75 kg, the unit balances reach and rigidity, limiting vibration and contributing to consistent surface finishes. This configuration reduces the number of repositioning steps, saving set-up time and increasing throughput. Integrates with workshop systems and reduces complexity Engineered for the clamping-technology environment, the device fits seamlessly into existing Vertex-based setups and accessory lines. Its straightforward geometry simplifies installation and maintenance, supporting efficient changeovers. Metav’s role as a quality filter for the European market ensures that the component arrives ready for immediate use in industrial and craft workshops, backed by decades of delivery experience and a broad product range. Proven fit for professional environments Manufactured by Vertex and identified by SKU VCL-8C, the unit meets the expectations of professional users who require dependable clamping solutions. The compact footprint and focused feature set make it a pragmatic choice where space, accessibility and repeatability matter. Selecting proven components like this helps stabilise processes and supports long-term operational reliability. Discuss specific applications with Metav Werkzeuge — our consultants in Emmerich will advise on integrating the Vertex VCL-8C into existing workflows and help specify the correct clamping arrangement for best results. Technical data Article number: VCL-8C GTIN: 4061905090493 Manufacturer: Vertex Facts Weight: 1.75 kg Dimensions: 345 x 161 mm Throat depth: 114.3 mm Special features Opening: 7-3/8" Category: Clamping technology SKU: VCL-8C FAQ What size opening does the collet support? The VCL-8C supports an opening of 7-3/8", which defines the maximum workpiece envelope for secure clamping. How deep can the VCL-8C reach into a workpiece? The throat depth of 114.3 mm for the VCL-8C provides extended access for longer components without extra fixturing. What are the physical dimensions and weight? The unit measures 345 x 161 mm and weighs 1.75 kg, giving a compact footprint with good rigidity for stable clamping. Who manufactures this collet and where is it from? The VCL-8C is produced by Vertex; the SKU VCL-8C and GTIN 4061905090493 identify the item for procurement and inventory. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

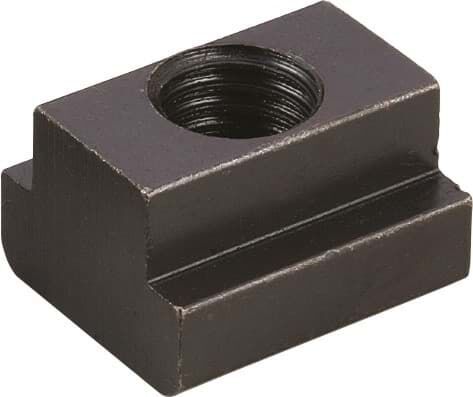

Take advantage of a compact fastener that combines precise dimensional compatibility with straightforward installation: the T-nut provides secure clamping in 7/16" T-slots, with a standard 3/8-16" thread for reliable fixture mounting—order directly via Metav Werkzeuge or consult our specialists for application advice. Vertex 3413I T-nut — compatible with 7/16" T-slots, 3/8-16" thread The Vertex 3413I T-nut is a single-piece fastening insert designed to secure clamps and fixtures in 7/16" T-slots on machine tables and workbenches. Compatible with 7/16" T-slots 3/8-16" internal thread Lightweight at 0.023 kg Single-piece design for easy placement Secure hold for clamping and fixturing A purpose-made fastening component, the 3413I T-nut delivers consistent clamping performance by matching common table grooves. Its main advantage is mechanical compatibility: the 7/16" T-slot fit ensures the insert sits flush and resists rotation under load, while the 3/8-16" thread accepts widely used clamping bolts. For workshop planners and maintenance teams, this means fewer non‑compatible parts in stock and shorter setup times, improving throughput in repetitive machining or assembly tasks. Predictable fit reduces setup time Supplied in a compact form with dimensions 11/16 x 7/8 x 1/2", the component offers predictable geometry for fixture designers and machinists. The recorded mass of 0.023 kg makes handling and inventory storage straightforward, and the standardised thread size simplifies parts sourcing. Explaining the term: a T-nut is a sliding insert that engages the T-shaped groove on a machine table, allowing bolts to be tightened from above—this standardisation reduces trial‑and‑error during jigs and fixture assembly and helps maintain consistent clamping forces. Simple installation and robust positioning The single-piece construction supports rapid placement into the slot and stable seating during bolt tensioning, which benefits repetitive operations and modular fixturing. With no complex assembly required, the insert is ideal where fast changeovers are needed. The design also minimises the risk of misalignment when tightening clamping hardware, contributing to stable workholding and fewer interruptions on the shop floor. Contact Metav Werkzeuge in Emmerich for tailored advice on integrating Vertex fastening components into existing fixturing systems and to request product availability or delivery options Technical data Article number: 3413I GTIN: 4061905093623 EClass: 21029107 Facts Dimensions: 11/16 x 7/8 x 1/2" Weight: 0.023 kg T-slot compatibility: 7/16" Thread: 3/8-16" Special features Single-piece (einzelnd) design Brand: Vertex Images and technical drawing available FAQ What slot size is this T-nut designed for? The insert is made for 7/16" T-slots, ensuring compatibility with standard table grooves used in many fixturing systems; the Vertex 3413I matches that slot size for reliable seating. Which bolt thread does the T-nut accept? The component features a 3/8-16" internal thread, suitable for common clamping bolts and compatible with typical workshop hardware. Are the exact dimensions available for integration into a fixture design? Yes; the dimensions are 11/16 x 7/8 x 1/2" and can be used directly in CAD layouts to check clearance and seating for fixtures using the Vertex 3413I. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of the combination of dual-thread compatibility, compact dimensions and lightweight handling for efficient workshop assembly and reduced inventory complexity. Order the coupling directly via Metav Werkzeuge or ask our consultants if additional data is required. Vertex 2614I coupling – compact 7/8 x 1-1/4" format with 1/2-12" & 1/2-13" thread options Vertex 2614I coupling for secure pipe and hose connections in workshop and machine tool environments Dual thread compatibility 1/2-12" & 1/2-13" Compact 7/8 x 1-1/4" format Lightweight construction 0.07 kg Suitable for workshop and machine tool use Streamlined connection for mixed-thread assemblies The dual-thread compatibility of this coupling covers both 1/2-12" and 1/2-13" fittings, reducing the need for multiple adapters and simplifying stock management. In practice, that means fewer line items in the stores and faster set-up times at the machine. The specified compact dimensions (7/8 x 1-1/4") make the component suitable where space is limited, while the clearly stated thread sizes support planning and procurement without guesswork. Easier handling and quicker installation on the workbench At approximately 0.07 kg, the coupling delivers a tangible benefit during repetitive assembly tasks: reduced operator fatigue and faster manual handling. The compact design allows for access in confined assemblies, and the simple thread engagement cuts installation time. For maintenance planners this translates into shorter downtimes and more predictable service intervals, supporting overall equipment effectiveness. Precision-made component that supports reliability Manufactured to Vertex standards, the 2614I coupling is intended as a reliable interface between hoses and fittings; precision manufacturing ensures consistent thread engagement and a secure connection under normal workshop conditions. The clear identification via SKU and GTIN supports traceability in procurement and inventory systems, helping quality managers maintain an auditable parts list and to match components to specification sheets. Contact Metav Werkzeuge for tailored advice on fitting compatibility or to secure supply of the Vertex 2614I coupling—Metav Werkzeuge is available by email or phone and can confirm technical suitability for specific applications Technical data Article number: 2614I Name: Coupling Brand: Vertex ECLASS: 21131711 GTIN: 4061905088049 Core technical data Size: 7/8x1-1/4" Thread: 1/2-12" and 1/2-13" Weight: 0.07 kg Special features Compatible with 1/2-12" and 1/2-13" fittings Compact format for confined assemblies Suited to workshop and machine tool applications FAQ What thread sizes does the coupling accept? The Vertex 2614I coupling is compatible with 1/2-12" and 1/2-13" threaded fittings, covering common imperial thread variants used in many workshops. How much does the coupling weigh? Weight for the coupling is specified as 0.07 kg, which supports easier handling during repetitive assembly tasks. What are the dimensional specifications? The component is supplied in a compact 7/8 x 1-1/4" format, suitable for installations with limited space. Is the coupling suitable for machine tool connections? Yes, the coupling is intended for workshop and machine tool environments where reliable thread engagement is required. How is the product identified for ordering and inventory? The item is listed under SKU 2614I and GTIN 4061905088049 for clear identification in procurement and stock systems. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Robust construction and a high clamping force provide a stable platform for heavy machining; precise 1°/5° indexing and a generous 700×700 mm work surface enable fast, repeatable setups. Order the VIT-700-5 directly via Metav Werkzeuge or consult our specialists for application-specific configuration. VIT-700-5 Precision Indexing Table — 700×700 mm work surface, 3,200 kg clamp force (Vertex) The VIT-700-5 is a precision indexing table designed for machining centres and rotary fixtures, offering repeatable stepwise rotation for heavy workpieces and robust fixturing. 700×700 mm worktable surface 3,200 kg clamp force for heavy workpieces Bi‑directional rotation for flexible indexing 1° or 5° indexing graduations Stable platform for heavy machining The VIT-700-5 combines a 700×700 mm table with a substantial mass of 600 kg, producing a low‑vibration base that supports consistent cutting results. The high 3,200 kg clamp force secures large or asymmetrical components during heavy cuts, reducing chatter and improving surface finish. For production environments where stability and tool life matter, the unit’s mass and clamping capacity directly translate into fewer rejects and longer uninterrupted cycles. Accurate, repeatable indexing for production work Engineered for repeatable angular positioning, the device offers selectable 1°/5° indexing and is specified to accuracy class 3, which supports precise stepwise operations and fixture repeatability. This level of control simplifies multi‑operation sequences and reduces setup times by eliminating manual reorientation. Clear graduations and defined indexing steps make the table suitable for batch machining and serial production where reproducibility is critical. Flexible integration and straightforward fixturing Integration into existing machining cells is facilitated by bi‑directional rotation, a T‑slot 20 mm table pattern and a compact 220 mm height that maintain compatibility with a wide range of fixtures and clamping systems. The T‑slots allow secure bolting of custom plates or modular fixtures, while clockwise and counterclockwise rotation supports both conventional and specialised machining routines. The result is a versatile rotary axis that adapts to different setups without extensive modification. Built for reliable throughput and long service life Manufactured by Vertex, the unit is intended for continuous workshop use and engineered to withstand demanding machining schedules. The combination of robust construction and precise indexing reduces the need for frequent readjustment and streamlines workflow planning. Supplied through Metav Werkzeuge, customers gain access to a European distribution hub that prioritises availability and delivery reliability, supporting smoother procurement and faster integration into the production line. Contact Metav Werkzeuge in Emmerich for tailored advice on integrating the VIT-700-5 into the production line and on delivery and fixturing options. Technical data Article number: VIT-700-5 GTIN: 4061905091681 Manufacturer: Vertex ECLASS: 36600310 Facts Table dimensions: 700×700 mm Height: 220 mm Weight: 600 kg Clamping force: 3,200 Kgs T‑slot width: 20 mm Indexing gradations: 1° or 5° Accuracy class: 3 Special features Rotates clockwise and counterclockwise Suitable for heavy workpiece machining Robust construction for industrial use Large table for versatile fixturing FAQ What table size does the VIT-700-5 offer? The VIT-700-5 features a 700×700 mm work surface suitable for medium to large fixtures and assemblies. How precise is the indexing on this table? Indexing is available in 1° or 5° steps and the unit is specified to accuracy class 3, providing repeatable angular positioning for production tasks. What clamping capacity does the table provide? The table delivers a clamping force of 3,200 kg, designed to secure heavy workpieces during aggressive machining. Can the table rotate in both directions? Yes, the worktable rotates both clockwise and counterclockwise, enabling flexible machining strategies and easier sequence planning. Which features aid fixture mounting? The table includes T‑slots of 20 mm and a compact 220 mm overall height, facilitating direct mounting of custom plates and modular fixtures. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

Take advantage of robust clamping, a spacious 700 x 700 mm table and reliable indexing accuracy to keep setups stable and repeatable in demanding machining and inspection tasks. Order the VIT-700-1 precision indexing table directly via Metav Werkzeuge or ask our consultants if needed. VIT-700-1 Precision Indexing Table by Vertex — 700 x 700 mm, 3,200 Kgs clamping force A VIT-700-1 Precision Indexing Table engineered for dependable rotational positioning and heavy clamping in machining, fixture building and inspection applications 700 x 700 mm rotary table top 3,200 Kgs clamping force Indexing steps 1° or 5° 20 mm T-slots for secure fixturing Consistent positioning that reduces scrap and setup time The VIT-700-1 delivers defined angular indexing in 1° or 5° increments, ensuring repeatable rotational positioning for serial machining and inspection routines. Indexing means the table can be locked at predetermined angular steps; this simplifies multi-face machining and reduces the need for manual re‑measuring. The combination of a large working surface and precise indexing supports faster cycle times and fewer reworks, which translates into measurable productivity gains on the shop floor. Heavy-duty clamping and stable machining conditions With a clamping force of 3,200 Kgs and a substantial mass of 600 kg, the unit provides exceptional rigidity under load. The mass and clamping capacity minimise vibration and workpiece movement during aggressive cuts, improving surface finish and tool life. The top includes 20 mm T-slots, enabling secure fixture mounting and flexible workholding; robust fixturing reduces downtime caused by repositioning and increases confidence when machining hard or irregular components. Size and compatibility for versatile workshop integration The generous 700 x 700 mm table area and a height of 220 mm make the indexing unit suitable for a wide range of milling machines and inspection benches where a stable platform is required. The table rotates clockwise and counterclockwise, offering bi-directional operation for complex fixture sequences and clearance-critical setups. Large-format capability allows multiple jigs or larger assemblies to be mounted simultaneously, consolidating work steps and improving throughput for batch production. Practical benefits for everyday workshop use Accuracy class 3 provides a balance between precision and industrial robustness for many production environments. The unit’s construction and indexing features reduce measurement uncertainty and support reproducible process parameters, which is especially valuable when producing repeat orders or when traceable positioning is required. Fewer manual adjustments and secure clamping lead to lower operator fatigue and a clearer quality record for manufactured parts. Contact Metav Werkzeuge in Emmerich for specialist advice on integrating the Vertex VIT-700-1 into production and to arrange delivery and technical coordination Technical Data SKU: VIT-700-1 GTIN: 4061905091636 Manufacturer: Vertex ECLASS: 36600310 Facts Table size: 700 x 700 mm Height: 220 mm Weight: 600 kg Clamping force: 3,200 Kgs Accuracy: class 3 T-slot width: 20 mm Indexing steps: 1° or 5° Special features Rotates clockwise and counterclockwise 20 mm T-slots for fixturing Large-format top suitable for complex jigs Heavy construction for vibration damping FAQ What indexing increments are available? The VIT-700-1 offers 1° or 5° indexing increments for defined rotational positioning. Is the table suitable for heavy machining operations? Yes. The table’s mass (600 kg) and 3,200 Kgs clamping force make the VIT-700-1 suitable for heavy-duty machining where rigidity is required. Can fixtures be mounted directly to the table top? The table includes 20 mm T-slots, enabling direct mounting of fixtures, clamps and modular fixturing systems. Does the table rotate in both directions? Yes. The rotary top operates clockwise and counterclockwise, supporting flexible sequencing and clearance management. What accuracy can be expected for repeat positioning? The unit is specified to accuracy class 3, providing repeatable positioning suitable for many production and inspection tasks. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
