200mm Carbide Centre Tip Fixed 60° DIN 806 - Vertex
The combination of a carbide tip, a 60° centre angle and DIN 806 conformity delivers reliable, repeatable centre support for demanding turning operations. Order the part directly via Metav Werkzeuge or consult our advisors for workshop-aligned supply and fast delivery. VLC-115 Fixed Centre Point, Carbide Tip, 60° (Vertex) The centre point is a fixed turning centre with a carbide tip engineered to provide stable workholding and precise axial support in lathe applications. Carbide tip for high wear resistance 60° standard centre angle DIN 806 conformity Fixed design for stable workholding Consistent axial support that keeps production moving The fixed centre offers stable workholding, reducing runout and enabling consistent concentricity across batches. With a 60° angle that follows the DIN 806 specification, centres are positioned reliably during turning and facing operations; this standardisation helps integrate the component into existing tooling setups without additional adjustments. The result is measurable time savings at the lathe through fewer rework cycles and predictable part geometry. Durable carbide tip for extended service intervals The tip is manufactured from carbide, a material chosen for its abrasion resistance and longevity under cyclical loading. Because the cutting and support point is carbide, wear progression is slowed, leading to longer intervals between replacements and lower lifecycle maintenance costs. In practical terms this means fewer interruptions on the shop floor and a higher proportion of productive machining hours. Simple compatibility and workshop integration The fixed design, combined with the product's conformity to DIN 806, simplifies selection and mounting on standard centres and tailstocks. The compact profile and measured length ensure that the centre point sits securely in tooling configurations, providing the stability needed for accurate support. Clear technical specifications streamline procurement and enable the part to be incorporated into jigs and fixtures with minimal modification. Choose the Vertex VLC-115 for robust, standards-based centre support and contact Metav Werkzeuge for tailored delivery from Emmerich—email info@metav-werkzeuge.com or call +49 2822 7131930 for precise order handling and expert advice. Technical data SKU: VLC-115 GTIN: 4061905086663 EClass: 21022304 Core specifications Length: 200 mm Angle: 60° Weight: 2.1 kg Materials & features Carbide tip Fixed design Standard: DIN 806 Brand: Vertex FAQ What is the primary application of this centre point? The VLC-115 fixed centre point is intended for axial support in turning operations, providing a stable reference point for workpieces in lathes and similar machines. Is the carbide tip replaceable? The centre point is supplied with an integrated carbide tip and is designed as a fixed component rather than a modular, tip-replaceable system. Which standard ensures compatibility with existing equipment? Compatibility is supported by conformity to DIN 806, which aligns the centre geometry and mounting expectations with common workshop standards. How should the part be maintained for longest life? Routine cleaning of chips and light lubrication of the seating surfaces will help preserve accuracy; inspect the carbide tip regularly for signs of wear or damage. Can this centre point be used in high-precision setups? Yes, the fixed design and carbide tip deliver the stability and wear resistance expected for precision-support applications in standard turning processes. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
200mm Chuck Jaw Set Stepped External Hardened, For 200 mm Chuck - RÖHM
Benefit from hardened, outward-stepped jaws designed for secure external gripping and the clear compatibility with a 200 mm chuck to keep clamping reliable and repeatable; order the replacement directly via Metav Werkzeuge or consult our specialists for tailored advice. RÖHM Jaw Set for 200 mm Chuck — Outward Stepped, Hardened RÖHM Jaw Set for 200 mm Chuck supplies hardened, outward-stepped jaws intended for precise external gripping applications on lathe chucks and similar clamping fixtures. Hardened stepped outer jaws Fits 200 mm chucks Repeatable clamping accuracy Secure external gripping with stepped, hardened jaws The design of the stepped outer jaws allows secure clamping across a broader diameter range while maintaining clamping accuracy. The stepped profile increases contact options for external workpieces, so fewer intermediate accessories are needed. Because the jaws are hardened, wear resistance is improved under repeated use, which preserves concentricity and reduces the need for frequent regrinding. For workshops and production lines that require dependable external clamping, the combination of stepped geometry and surface hardening supports longer service life and stable machining results. Reduce downtime with straightforward replacement and consistent runout A complete jaw set enables rapid restoration of chuck performance after wear or damage, helping to maintain throughput. The geometry and manufacturing tolerances of the jaws contribute to consistent radial runout, which in turn reduces scrap rates and minimises inspection cycles. Where runout matters for precision turning, the hardened surfaces sustain gripping force without premature deformation, supporting reproducible setups. Clear identification of the set and compatibility with a 200 mm chuck streamline inventory management and spare-part logistics in a busy workshop environment. Engineered quality from a recognised clamping specialist Produced to meet workshop demands, the set combines robust materials and heat treatment to deliver durability and dependable gripping behaviour. The brand’s focus on clamping technology ensures attention to concentricity and repeatability, which benefits both one-off jobs and series production. For procurement and technical planning, Metav Werkzeuge acts as a precision partner offering stock availability, transparent order handling and advice from specialists familiar with industrial clamping solutions. The result is a practical balance between operational reliability and maintenance predictability. Order genuine RÖHM replacement jaws through Metav Werkzeuge for assured clamping performance; for specification queries or delivery options contact info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 4121268200NW SKU / UID: 4121268200NW Product type: Jaw set (Bohrbackensatz) Manufacturer: RÖHM Suitable for chuck Ø: 200 mm Packaging unit: 1 Numbers / Core technical data Chuck diameter compatibility: 200 mm Packaging unit: 1 Article number: 4121268200NW Special features Hardened stepped outer jaws Designed for external gripping applications Full replacement jaw set for chuck Ø 200 mm Manufacturer: RÖHM FAQ What chuck size is this jaw set compatible with? The jaw set is specified for use with a 200 mm chuck and is designed to provide secure external clamping at that diameter. Are the jaws heat treated for wear resistance? Yes, the outward-stepped jaws are hardened to improve wear resistance and to help maintain clamping concentricity over prolonged use. Can this set be used for internal gripping tasks? The geometry is intended for external gripping; for internal applications, alternative jaw types are recommended. How does the jaw design affect runout and repeatability? The stepped profile and precision machining contribute to consistent clamping accuracy, reducing radial runout and improving repeatability between set-ups. Which article number should be ordered for this item? Order using article number 4121268200NW to ensure the correct RÖHM jaw set is supplied Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
200mm Chuck Key 11mm Square With Spring-Loaded Sleeve, Insert Square - RÖHM
Take advantage of the combination of reliable engagement, safety-enhancing design and straightforward procurement for uninterrupted workshop operation. The spring-mounted sleeve prevents accidental retention of the key in the chuck while the 11 mm four-sided square drive ensures positive torque transfer. Order the tool directly via Metav Werkzeuge or consult our advisers for specification checks. Chuck key for 200 mm chuck, 4-sided square 11 mm – RÖHM A Chuck key for 200 mm chuck engineered for secure tightening and release of lathe chucks, featuring a spring-mounted sleeve to avoid the key being left in the chuck Spring-mounted sleeve prevents key sticking 11 mm four-sided square drive Designed for 200 mm chucks Positive insertion square for secure fit Safer operation that reduces interruptions The integrated spring-mounted sleeve is designed to prevent the key from becoming lodged in the rotating chuck, a common cause of unscheduled stops. This safety feature reduces the risk of incidental damage to the workpiece and the machine spindle, contributing directly to reduced downtime and fewer workflow interruptions. For workshops that value continuous production and predictable cycle times, this mechanical safeguard delivers clear operational benefits without adding complexity to routine clamping tasks. Positive engagement for reliable torque transfer The 11 mm four-sided square drive provides a positive mechanical interface between key and chuck, improving torque transfer and minimising slippage compared with round pin designs. This characteristic supports faster, safer tightening and loosening cycles and helps maintain consistent clamping force across repeat operations. The result is a more dependable clamping process that supports quality assurance and efficient use of machine time. Designed to fit common workshop chucks and workflow Built to match the dimensions of a 200 mm chuck, the tool integrates into standard machining stations and can be stored alongside other hand tools without occupying excessive space. The insertion square ensures a secure engagement that gives operators confidence during repetitive tasks. Supplied as a single unit, the item is straightforward to add to procurement lists and to keep as a standby critical for lathe maintenance and set-up operations. For professional workshops prioritising safety and repeatability, request further technical details on the RÖHM chuck key from Metav Werkzeuge or speak directly with our Emmerich team at info@metav-werkzeuge.com / +49 2822 7131930 Technical data Article number: 4121409070NW Label: Spannschlüssel f.Futter-D.200mm 4-KT.11mm RÖHM Brand: RÖHM Product type: Chuck key Core specifications Square drive: 11 mm Suitable for chuck Ø: 200 mm Packaging unit: 1 Special features Spring-mounted sleeve prevents accidental retention of the key in the chuck Insertion square for secure engagement Four-sided (4-KT) drive for positive torque transfer FAQ Is this key compatible with any 200 mm chuck? The RÖHM chuck key is designed for use with chucks of 200 mm nominal diameter and a corresponding square drive; compatibility depends on the chuck drive interface matching the 11 mm square How does the spring-mounted sleeve work in practice? The spring-mounted sleeve holds the key in its engaged position and releases under light axial movement, preventing the key from being unintentionally left in the chuck during operation What maintenance does the key require? Periodic inspection for wear at the square drive and light lubrication of moving parts will keep the chuck key performing reliably; replace if the insertion square shows deformation Can the key be used on stationary chucks and removable chucks? The tool is intended for chucks that accept an 11 mm insertion square; both stationary and removable chucks with matching interfaces are suitable Does the product include any additional accessories? The delivery comprises the chuck key as supplied (packaging unit: 1); no additional accessories are listed Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
200mm Independent Four-Jaw Lathe Chuck, 1350 rpm, 4-M10 T-Slots - Vertex
Benefit from independent four‑jaw clamping, a 200 mm nominal diameter and a 1,350 r/min rating for reliable turning operations; order the VKC-8 directly via Metav Werkzeuge or consult our advisers if specification support is required. VKC-8 four‑jaw independent chuck (200 mm) by Vertex — 1,350 r/min, 15.9 kg A VKC-8 four‑jaw independent chuck designed for secure, adjustable clamping of irregular and concentric workpieces on lathes and turning centres. Independent four‑jaw clamping for irregular shapes 200 mm nominal diameter Rated up to 1,350 r/min T‑slots 4‑M10 for secure mounting Consistent precision through independent jaw control Independent jaw operation means each jaw can be set separately, allowing secure clamping of non‑cylindrical or off‑centre parts with minimal rework. The independent jaws reduce the need for specialised fixtures when turning irregular shapes, shortening setup times and improving throughput. For shop floors where adaptability matters, the jaw assembly provides repeatable positioning that supports tighter tolerances and fewer scrap parts. The VKC‑8 is engineered to maintain clamping accuracy throughout the machining cycle, contributing directly to consistent part quality. Capacity and dynamic suitability for typical lathe work With a 200 mm diameter capacity and a rated speed of 1,350 r/min, the chuck covers a broad range of medium‑sized turning tasks while matching common spindle speeds on universal and CNC lathes. The specified maximum speed indicates the dynamic operating envelope; within this range the device balances performance and safety. Selecting a chuck with matching diameter and speed rating helps avoid unnecessary spindle loading and supports stable cutting conditions, which in turn improves surface finish and tool life. Practical mounting and workshop integration for faster set‑up Mounting is simplified by T‑slots 4‑M10, which provide defined attachment points for adapter plates or bespoke fixtures, enabling rapid changeovers between jobs. The design reduces fixturing complexity and integrates easily into existing workholding systems. Clear numeric specifications for diameter, speed and fastening standardise procurement and spare‑part planning across the workshop, supporting efficient inventory control and predictable machine availability. For dependable, flexible clamping choose the Vertex VKC‑8—contact Metav Werkzeuge in Emmerich for specification advice and reliable supply Technical data SKU: VKC-8 GTIN: 4061905087295 ECLASS: 21020490 Manufacturer: Vertex Core specifications Diameter: 200 mm Max. speed: 1,350 r/min Weight: 15.9 kg T‑nuts: 4‑M10 Special features Independent four‑jaw design Image available (thumbnail asset) FAQ What is the maximum rotational speed for this chuck? The VKC‑8 four‑jaw independent chuck is rated to 1,350 r/min, which defines its recommended dynamic operating limit. Can the chuck clamp irregularly shaped parts without additional fixtures? Yes. The independent jaw concept allows each jaw to be adjusted individually, making the chuck suitable for irregular and off‑centre workpieces without specialised fixtures. What mounting interface does the chuck use? Mounting is provided via T‑slots 4‑M10, permitting secure attachment to compatible adapter plates or faceplates. What size of workpiece can be accommodated? The chuck has a nominal diameter of 200 mm, specifying the standard clamping envelope for concentric and irregular parts. Who manufactures the VKC‑8 and where is it supplied from? The VKC‑8 is produced by Vertex and is available via Metav Werkzeuge, which supplies and supports precision workholding equipment for European workshops. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
200mm Jaw Set For Chuck, 3-Piece Set - RÖHM
Take advantage of the combination of hardened construction, straightforward replacement and compatibility with standard 200 mm chucks for reliable clamping and reduced downtime — order this jaw set directly via Metav Werkzeuge or consult the technical team for fitment details. RÖHM base jaw set for 200 mm chuck — hardened, 3-piece The RÖHM base jaw set for 200 mm chuck is a hardened set of replacement jaws designed for secure workholding on standard 200 mm chucks in machining and turning applications. Hardened construction for extended service life Compatible with 200 mm chucks Set of three jaws for complete assembly Consistent, precision clamping for series production The hardened jaw geometry and contact faces are engineered to deliver consistent clamping force, helping to maintain concentricity during turning and machining cycles. This stability reduces rework and supports repeatable tolerances in batch production. As a result, cycle-to-cycle variation is minimised, which enhances process reliability and aids quality assurance in metalworking and general workshop environments. Fast replacement to keep machines productive Supplied as a set of three, the jaws are intended for direct replacement of worn components, enabling swift maintenance without time-consuming adjustments. The complete set format simplifies stocking and spares planning, which in turn limits machine downtime and streamlines ordering. Clear identification of the item and fitment for 200 mm chucks makes procurement and inventory control more efficient for production planners. Durable service life and broad workshop suitability The hardened treatment increases wear resistance and extends service intervals, making these jaws a cost-effective choice for everyday workshop use. The combination of robust material treatment and precise manufacturing supports secure gripping of workpieces during roughing and finishing operations, contributing to safer, more predictable machining. The brand reputation further underpins a dependable supply chain for precision partners. For secure procurement and to confirm compatibility with specific chuck models, contact Metav Werkzeuge — specialists in precision workshop supplies — for tailored advice and order placement via info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: 4121273200NW SKU / UID: 4121273200NW Manufacturer: RÖHM Product type: Base jaw set Core specifications Chuck diameter: 200 mm Set contents: 3 pieces Packaging unit: 1 Features & compatibility Hardened design Suitable for 200 mm chucks Replacement jaws for standard lathe chucks FAQ What chuck size is this jaw set made for? This base jaw set is specified for use with a 200 mm chuck and is marked as suitable for that chuck diameter. How many jaws are included in the set? The delivery comprises three jaws; the complete set of three ensures a full jaw assembly for the chuck. Are the jaws heat-treated or surface-hardened? The RÖHM base jaw set is supplied in a hardened condition to improve wear resistance and durability under machining loads. Is this set a direct replacement for standard RÖHM chucks? The jaw set is designed for compatibility with 200 mm chucks; confirmation of direct fitment to a specific chuck model can be obtained from Metav Werkzeuge. Can these jaws be used for heavy-duty turning and finishing operations? The hardened construction supports both roughing and finishing operations by providing sustained clamping performance and reduced wear Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
200mm Jaw Set for Chuck, Stepped Hardened Jaws, 3 Pieces - RÖHM
Take advantage of a hardened, stepped jaw design and precise compatibility with a 200 mm chuck to secure workpieces reliably; the three-piece set reduces changeover time and simplifies setup. Order the jaw set directly via Metav Werkzeuge or request advice from our consultants if additional information is required. RÖHM jaw set for 200 mm chuck — hardened stepped jaws, 3-piece set The RÖHM jaw set for 200 mm chuck delivers hardened, stepped jaws intended for secure clamping in turning and chucking applications on compatible 200 mm chucks. Hardened stepped jaws for repeatable clamping Designed for 200 mm chuck diameter Includes three interchangeable jaws per set Precision-ground seating for secure fit Optimised clamping for efficient turning operations The stepped jaw geometry offers a compact solution for multiple gripping diameters, reducing the need for frequent jaw changes. Constructed for secure clamping on a 200 mm chuck, the set forms a stable contact that improves cycle consistency and lowers the risk of slippage. By combining a hardened surface with precision seating, the assembly supports longer service intervals while maintaining positional accuracy in repetitive turning tasks. Consistent repeatability and straightforward handling A three-piece configuration provides modular replacement and simple indexing during setup, which helps to shorten machine downtime. The 3-piece set allows each jaw to be mounted and aligned individually, guaranteeing consistent clamping forces and precision across repeated workpieces. For users unfamiliar with stepped jaws: the design includes discrete gripping steps so a single set can handle several nominal diameters without additional accessories. Practical integration into workshop workflows Compatibility with a 200 mm chuck makes this jaw set suitable for a range of lathes and clamping fixtures that accept standard chuck inserts. The robust construction and stepped profile support both roughing and finishing operations where hold and repeat accuracy matter. As a compact, replaceable component, the set contributes to predictable set-up procedures and helps maintain throughput when used alongside regular maintenance practices. For precision clamping with the RÖHM hardened stepped jaws, contact Metav Werkzeuge for a tailored quotation or technical guidance via info@metav-werkzeuge.com or call +49 2822 7131930. Technical data Article number: 4121269200NW SKU: 4121269200NW Brand: RÖHM Facts Chuck diameter: 200 mm Set contents: 3 pieces Packaging unit: 1 Special features Hardened stepped jaws Suitable for 200 mm chuck Clamping application for turning Precision-ground seating FAQ Are these jaws compatible with any 200 mm chuck? Compatibility depends on the chuck's jaw seat and mounting standard; the jaw set is designed for chucks that accept standard 200 mm jaw inserts and mounting geometry, as indicated by the product data for the RÖHM jaw set (SKU 4121269200NW) What does "stepped jaws" mean in practice? Stepped jaws provide discrete gripping steps so that a single jaw can clamp several nominal diameters; the RÖHM stepped jaws enable versatile clamping without frequent jaw swaps How many pieces are supplied in one set? The delivery comprises a three-piece set; each set contains three interchangeable jaws for staged installation Are the jaws hardened for heavy-duty work? Yes, the jaws are specified as hardened, offering improved wear resistance and sustained clamping performance in typical turning operations Can the jaws be reworked or ground to fit? Modifying hardened jaws is possible but requires appropriate tooling and expertise; any rework should preserve the seating and clamping surfaces to maintain the set's precision Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
200x250x108mm Four-Jaw Square Self-Centring Machine Vice, 1620 kgf Clamping Force - Vertex
Take advantage of the combination of a self‑centring four‑jaw design, 1,620 kgf clamping force and robust build quality for dependable, repeatable workholding. Order the chuck directly via Metav Werkzeuge or consult the Metav team for specification support. VMJ-8 — 4‑jaw self‑centring square chuck by Vertex with high clamping force The VMJ-8 is a self‑centring, four‑jaw square chuck engineered for secure workholding in precision machining and heavy‑duty turning applications. Self‑centring four‑jaw design High clamping force: 1,620 kgf Accuracy 0.03 Robust construction, 21.5 kg mass Consistent precision for machining accuracy The self‑centring four‑jaw mechanism delivers uniform clamping across the jaw set, which supports consistent part concentricity and reduces rework. With a specified accuracy of 0.03, the chuck provides measurable repeatability that benefits setup reliability and process control. The design minimises radial run‑out during turning and milling operations; for operators less familiar with technical tolerances, this means fewer scrapped parts and more predictable finishing results. Emphasis on stable clamping translates directly into improved surface quality and tighter dimensional control. Heavy clamping capability for larger, demanding workpieces A clamping force of 1,620 kgf ensures secure retention of workpieces under significant cutting loads, enhancing stability during deep cuts or interrupted cuts. The unit's 21.5 kg mass contributes to damping and reduces vibration, supporting longer tool life and higher feed rates where appropriate. The square mounting and robust construction make the chuck suitable for demanding shopfloor environments where mechanical resilience and repeatability are priorities. Performance‑oriented shops benefit from this combination of force and mass when machining tougher materials or larger diameters. Efficient setup and practical integration for workshop use The chuck is designed for straightforward integration with lathes and machining centres that accept square‑mounted chucks, enabling rapid changeovers and reproducible setups. The self‑centring feature reduces alignment steps during workpiece change, saving machine time without sacrificing hold quality. Maintenance requirements are conventional: regular cleaning of the jaw tracks and periodic lubrication preserves long‑term performance. For teams transitioning from simple three‑jaw chucks, the four‑jaw self‑centring design offers a balance between versatility and precision for mixed production runs. For reliable high‑force clamping from Vertex, contact Metav Werkzeuge in Emmerich for availability and tailored advice — Metav's specialists can be reached at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data Article number: VMJ-8 GTIN: 4061905087486 Manufacturer: Vertex Core specifications Dimensions: 200x250x108 mm Weight: 21.5 kg Clamping force: 1,620 kgf Accuracy: 0.03 Features Self‑centring four‑jaw square chuck Square mounting ECLASS: 21020590 FAQ What level of concentricity can be expected from this chuck? The chuck achieves a specified accuracy of 0.03, which in practice supports tight concentricity for precision turning and milling when properly set up and maintained. Is the clamping force sufficient for interrupted cuts and heavy milling? With a clamping force of 1,620 kgf, the chuck provides secure retention for demanding operations; the mass and construction also help to damp vibration during heavy cuts. Which machines is this chuck compatible with? The design suits machines that accept square‑mounted, four‑jaw chucks; compatibility should be confirmed against spindle or adaptor specifications and mounting interfaces. How does the self‑centring four‑jaw design compare to three‑jaw chucks? The self‑centring four‑jaw offers a compromise between the speed of three‑jaw systems and the versatility of independent jaws, delivering improved repeatability with simpler setup than fully independent jaw arrangements. Are replacement jaws or spare parts available for this model? Spare parts and jaw sets are available through Vertex distributors; reference the VMJ-8 article number when enquiring to ensure correct components are supplied. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan

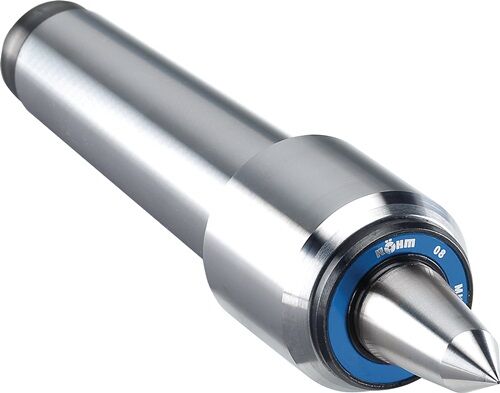

20mm Centre Point Slim MK4 60° With 25mm Tip Length, 0.005mm Runout, 6300 min⁻¹ - RÖHM
Take advantage of high concentricity and a slim tailstock profile to improve throughput and reduce rework; the combination of 0.005 mm runout and a MK4 taper delivers secure holding for heavy components. Order directly via Metav Werkzeuge or consult their experts for integration advice. RÖHM Slim live centre MK4 — Slim centre point with 60° tip for precise turning RÖHM Slim live centre MK4 is a revolving centre designed for turning applications that require exact centring and a narrow tailstock footprint Slim live centre, MK4 taper 60° hardened tip for precise centring Max. runout 0.005 mm for high concentricity Suitable for rot. speeds up to 6,300 rpm Consistent concentricity for reduced rework The slim revolving centre delivers repeatable alignment thanks to its 0.005 mm runout specification and a 60° tip, which together ensure reliable contact and load distribution during turning. Runout (the deviation of the rotating tip from true centre) is a decisive factor for concentricity; a low value minimises vibration, tool wear and the scrap rate. For workshops handling large components, the rated support of 800 kg provides confidence when machining heavy shafts and flanges, contributing directly to higher first-pass yields. Slim profile and MK4 taper for tight set-ups A narrow housing and short projection allow closer tool approaches and improved access to component faces. The centre’s MK4 Morse taper guarantees a secure fit in compatible tailstocks, while the projection of 75.5 mm and compact housing diameter make it particularly suitable for cramped lathe configurations. The slim design reduces interference, enabling simpler fixture arrangements and fewer secondary operations, which helps streamline the production flow without compromising stability. Smooth rotation and high-speed readiness As a revolving centre, the unit rotates with the workpiece to reduce friction and heat buildup at the contact point; this improves surface finish and extends bearing and tip life. The centre is specified up to 6,300 rpm, making it appropriate for medium-to-high speed turning tasks. A tip length of 25 mm combines with the slim geometry to sustain reliable engagement while maintaining clearance for cutting tools. Overall, the design balances accessibility with load-bearing capability for demanding workshop use. Contact Metav Werkzeuge for availability, technical matching and advice on integrating the RÖHM slim live centre into existing turning centres — Metav specialists can recommend compatible tailstock arrangements and delivery options. Technical data Article number: 4000832077NW Manufacturer: RÖHM Product type: Centre point Model: Zentrierspitze Slim MK4 mitlfd.RÖHM Packaging unit: 1 Weight: 1 kg Numbers Projection: 75.5 mm Tip diameter: 20 mm Tip angle: 60° Shaft diameter: 31.267 mm Max. workpiece weight: 800 kg Max. runout: 0.005 mm Max. speed: 6,300 rpm Housing diameter: 42 mm Tip length: 25 mm Special features MK4 Morse taper Slim profile for tight set-ups Live-running centre Housing diameter 42 mm Suitable for heavy workpieces up to 800 kg FAQ What maximum rotational speed is supported? The RÖHM slim live centre MK4 (SKU 4000832077NW) is rated for up to 6,300 rpm, permitting use in many medium-to-high speed turning operations. Which taper is required for mounting? This unit uses a MK4 Morse taper; the MK4 fitting secures the centre in compatible tailstocks and supports axial and radial loads during machining. How precise is the centring performance? Centring precision is specified as a maximum runout of 0.005 mm, which supports high concentricity and reduced vibration during turning. What workpiece weight can be supported? The centre is specified for workpieces up to 800 kg, making it suitable for stable support of heavy components in lathe operations. Why choose the slim variant for tight set-ups? The slim profile and 75.5 mm projection reduce interference in confined tailstock areas, allowing closer tool approaches and simpler fixture layouts while maintaining reliable support with a 60° tip. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
20mm Centre Tip MK2 With 60° Point, 24mm Length, 45mm Body Diameter, Runout ≤0.005mm, Max Load 200kg, 4900min⁻¹ - TECWERK
Take advantage of robust support and high concentricity: the TECWERK Live Centre MT2 combines a MT2 taper with a maximum runout deviation of 0.005 mm and a permitted workpiece mass of 200 kg, enabling steady, repeatable turning operations. Order directly via Metav Werkzeuge or consult the technical team for compatibility and delivery from Emmerich. TECWERK Live Centre MT2 – 60° point, up to 4,900 rpm A TECWERK Live Centre MT2 designed to support rotating workpieces on lathes and centres, combining precise radial accuracy with workshop-ready robustness. Precise runout ≤ 0.005 mm Supports workpieces up to 200 kg MT2 taper shank for standard tailstocks 60° hardened point for secure centring Consistent concentricity for accurate turning results High concentricity reduces scrap and rework. The runout ≤ 0.005 mm ensures that rotational errors are minimised, which directly improves surface finish and dimensional repeatability in turning and grinding operations. By translating the nominal tolerance into practical advantage, the component offers reliable centring for demanding jobs where even small deviations affect downstream assembly or measurement processes. The emphasis on measurable precision supports quality assurance and traceability in production documentation. Engineered for robust support and stable clamping A generous support capability yields longer, trouble-free operating cycles. With a rated workpiece mass of 200 kg and a housing diameter of 45 mm, the centre is engineered to absorb radial and axial loads without loss of stability. The 60° point angle provides an optimal contact geometry for general purpose turning and improves load distribution across the workpiece centre. The listed projection of 65 mm gives clear guidance on usable overhang for set-up planning and risk assessment in machining tasks. Smooth rotation at elevated spindle speeds Designed for live rotation, the centre is rated to a maximum speed of 4,900 rpm, permitting high-speed finishing and medium-speed roughing where reduced friction and balanced rotation are essential. The tip length 24 mm and balanced construction help to maintain running smoothness at speed, while the MT2 shank, with a nominal diameter of 17.78 mm, fits standard Morse taper tailstocks for straightforward replacement. The result is a component that supports consistent spindle dynamics and predictable tool-path behaviour. Practical workshop integration and maintenance benefits Compatibility and ease of use shorten set-up times and simplify inventory management. The MT2 taper is broadly standardised, allowing fast changeover between centres without additional adaptors, and the compact mass of 0.5 kg keeps handling and storage straightforward. Packaged as a single unit, the centre integrates into existing tooling suites and offers clear logistic traceability via the article number. Routine inspection and lubrication cycles are uncomplicated, so uptime is maximised while maintenance remains minimal. For specialist advice on fitment or to request a tailored delivery from Metav Werkzeuge, please contact info@metav-werkzeuge.com or call +49 2822 7131930; Metav’s experts in Emmerich will assist with technical matching and supply. Technical data Article number: 2000832040NW Product type: Live centre Brand: TECWERK Facts Projection: 65 mm Tip diameter: 20 mm Tip angle: 60° Tip length: 24 mm Housing diameter: 45 mm Maximum speed: 4,900 rpm Maximum workpiece weight: 200 kg Runout deviation (max): 0.005 mm Shank diameter: 17.78 mm Weight: 0.5 kg Special features Taper execution: MT2 Packaging unit: 1 SKU: 2000832040NW FAQ What maximum spindle speed is suitable for this live centre? The TECWERK Live Centre MT2 is rated to a maximum of 4,900 rpm to maintain smooth rotation and minimal heat build-up during operation. Which taper fits the lathe tailstock? The centre uses a MT2 (Morse taper 2) shank; the specified shank diameter is 17.78 mm for standard tailstock mounting. How precise is the radial runout of the centre point? The radial runout deviation is specified at a maximum of 0.005 mm, offering high concentricity for precision turning tasks. What workpiece mass can be supported safely? The live centre supports a maximum workpiece weight of 200 kg as indicated in the technical specification. What is the point geometry and why does it matter? With a 60° point angle, the centre provides secure contact and even load distribution, which is beneficial for general turning and enhances repeatability. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
20mm Centre Tip Slim MK4 Extended Nose 60° Runout 0.008 mm, Max 700 kg - RÖHM
Benefit from precise runout control, high load capacity and a slim profile that improves access to long workpieces; Order the Slim live centre MK4 with extended running point (RÖHM) directly via Metav Werkzeuge or ask our consultants if needed Slim live centre MK4 with extended running point by RÖHM Slim live centre MK4 with extended running point designed for accurate support of rotating workpieces in turning and heavy-duty lathe operations Max workpiece weight 700 kg Runout max 0.008 mm Max speed 6,300 rpm Morse taper MK4 mounting High-precision support for demanding turning operations The Slim live centre MK4 delivers high-precision bearing of rotating workpieces through an optimised bearing arrangement and a low runout specification. With a maximum permissible runout of 0.008 mm, the centre reduces vibration and improves surface finish on turned parts, which translates into fewer rework cycles and higher first-pass yields. The combination of a narrow profile and robust internal bearings means operators benefit from both accessibility and consistent precision across long production runs. Slim profile and extended point for deeper support A slim profile and an extended running point length of 37.5 mm provide secure support for workpieces that extend beyond standard centres, enabling deeper engagement without compromising stability. The reduced housing diameter of 42 mm allows closer approach to shoulders and tighter overhangs, while the 60° tip geometry ensures reliable centring. These attributes make the centre particularly suitable for shops handling long shafts or components requiring uninterrupted support along an extended length. Robust capacity and drivetrain compatibility Engineered to handle substantial loads, the centre is rated for a maximum workpiece weight of 700 kg and a top spindle speed of 6,300 rpm, offering a balance of strength and rotational performance. The mounting is a Morse taper MK4, with a shaft diameter of 31.267 mm, ensuring compatibility with common heavy-duty lathe spindles and straightforward integration into existing setups. The 60° tip angle aids concentric support and repeatability, helping to maintain tolerances during batch production. Practical durability and workshop benefits Constructed for industrial use, the rotating centre combines a compact external footprint with service-friendly assembly. The slim running point reduces interference when machining close to shoulders, while the robust internal mechanics support continuous operation under load. This results in improved process stability, reduced scrap rates and a more predictable machine lifecycle—outcomes that matter in production environments where uptime and repeatable quality are priorities. For reliable precision and integration guidance on the RÖHM slim live centre MK4, contact Metav Werkzeuge to discuss suitability, delivery options and technical compatibility with existing lathes Technical Data Article number: 4000832086NW Product type: Zentrierspitze Model / type: Slim - verlängerte Laufspitze Brand: RÖHM Shaft execution: MK4 Label: Zentrierspitze Slim MK4 mitlfd.m.verl.Laufspitze RÖHM Facts Weight: 1 kg Diameter: 20 mm Shaft diameter: 31.267 mm Projection (ausladung): 88.5 mm Tip angle: 60° Max. workpiece weight: 700 kg Runout (Rundlaufabweichung): 0.008 mm Max. speed: 6,300 rpm Housing diameter: 42 mm Tip length: 37.5 mm Special features Slim extended running point design Morse taper MK4 mounting 60° centring tip Packaging unit: 1 FAQ What maximum workpiece weight can the live centre support? The live centre supports a maximum workpiece weight of 700 kg according to the specified rating for the RÖHM slim live centre MK4 (SKU 4000832086NW). Is the centre suitable for high-speed turning? Yes, the centre is specified for spindle speeds up to 6,300 rpm, making it suitable for many high-speed turning tasks while maintaining stability. How precise is the centring performance? The centring runout is specified at a maximum of 0.008 mm, ensuring high precision and improved surface finish for turned components when used correctly. Which taper is required for mounting on the lathe spindle? The centre uses a Morse taper MK4, providing compatibility with spindles and sleeves designed for MK4 mounting. What are the advantages of the extended running point? The extended running point (37.5 mm tip length) offers deeper engagement for long workpieces and better support near shoulders, improving process stability and reducing vibration. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
218mm Clamping Ring For Soft Jaw Inserts - Vertex
Take advantage of precise clamping, compatibility with soft jaw inserts and a compact design that simplifies handling in daily workshop use. The combination of a 218 mm diameter and stable clamping behaviour supports repeatable setups and steady machining results. Order the VFR-08 clamping ring directly via Metav Werkzeuge or ask our consultants if needed. VFR-08 clamping ring — 218 mm diameter for soft jaw inserts (Vertex) The VFR-08 clamping ring is a dedicated clamping accessory designed for use with soft jaw inserts in chuck systems, providing a reliable interface for repeatable workholding across turning and fixture operations. 218 mm diameter for soft jaw setups Precise clamping for stable machining Compact weight at 2.4 kg Consistent accuracy for repetitive turning and fixturing A robust clamping solution delivers predictable results; the clamping ring acts as a uniform radial support when used with soft jaw inserts, ensuring concentric contact and minimised runout. The design focuses on even force distribution rather than aggressive bite, which benefits delicate or reworked components and reduces the need for repeated adjustment. This stability enables consistent cycle times and contributes to higher first-pass accuracy on series parts. Faster changeovers and straightforward integration with chuck systems Integration into established chuck setups is straightforward: the ring is specified for use with an 8-inch chuck jaw system and interfaces with soft jaw inserts to shorten fixture changeovers. Clear mechanical fitment reduces alignment work during setup, which translates into measurable time savings at the machine. Where quick toolchanger-style swaps are not an option, optimised accessory geometry supports efficient manual handling and repeatable repositioning between batches. Practical workshop performance and handling benefits Weighing 2.4 kg, the component is light enough for manual handling yet substantial enough to remain stable under clamping forces, aiding safe and efficient workshop routines. Constructed as a dedicated clamping component, the ring supports processes where controlled pressure and surface protection are required for softer jaws. Availability through a reliable supplier network helps maintain uninterrupted operations in production and repair environments. For compatibility checks, supply options and technical advice on Vertex clamping rings, contact Metav Werkzeuge in Emmerich for local support and precise product matching. Technical Data Article number: VFR-08 GTIN: 4061905086489 Brand: Vertex Data Diameter: 218 mm Weight: 2.4 kg eCl@ss: 20069202 Special features For soft jaw inserts Suitable for 8-inch chuck jaw Category: Vertex FAQ What applications is this clamping ring suitable for? The VFR-08 clamping ring by Vertex is suitable for turning and fixturing operations where soft jaw inserts are used to protect or shape the workpiece surface. Which chuck systems is the ring compatible with? Compatibility is stated as for 8-inch chuck jaw systems; the VFR-08 is intended to integrate with standard 8‑inch jaw configurations and the corresponding soft jaw inserts. How does the ring affect setup time? By providing a defined interface for soft jaws, the clamping ring reduces alignment effort and supports quicker changeovers compared with ad hoc fixturing methods. Is the VFR-08 heavy to handle during manual setup? At 2.4 kg, the VFR-08 offers a balance between manageable handling and sufficient mass for stable clamping, suitable for routine manual installation and removal. Can the clamping ring be used for delicate or reworked components? Yes, when combined with soft jaw inserts the ring provides controlled pressure distribution, making it appropriate for delicate surfaces and reworked parts. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
21mm Clamping Screw M7 8mm Square For Indexable Holder - TECWERK
Take advantage of a compact spare screw that combines a standard M7 thread, a precise 21 mm overall length and an 8 mm square drive to maintain secure clamping in quick-change turning holders. Order the part directly via Metav Werkzeuge or consult our technicians for compatibility checks and stock advice. Clamping screw Size A, M7, 21 mm, 4-square 8 mm – TECWERK clamping screw for interchangeable holder The Clamping screw Size A, M7, 21 mm is a spare clamping component for TECWERK interchangeable holders for turning tools, designed to secure the insert holder via an 8 mm square drive. Precision spare screw M7 21 mm overall length for compact fit 8 mm square drive for reliable torque Secure fastening that keeps production steady A dedicated M7 clamping screw provides a standardised thread interface that simplifies maintenance and replacement. The 21 mm overall length is suited to compact holders where space is limited, while the 8 mm square drive ensures a secure transfer of torque from the wrench to the clamping element. Engineers benefit from consistent clamping force and predictable assembly behaviour, which together reduce the risk of tool movement and unplanned stoppages. Designed for quick replacement and compatibility As a spare part for TECWERK interchangeable holders, this clamping screw supports quick swaps during tool changes and servicing. The part is intended for use with quick-change turning tool holders that incorporate a prism locating feature; this alignment aid ensures repeatable positioning when the screw is reinstalled. Maintaining a small stock of these screws minimises downtime and keeps change-over procedures lean. Practical workshop handling and inventory benefits Supplied individually, the component is straightforward to store and identify by its thread and drive dimensions. The 4-sided (square) 8 mm drive type is compatible with common workshop spanners and torque tools, making torque application reliable and maintenance predictable. Keeping matching spare screws avoids improvised repairs and supports a consistent toolholding standard across lathe stations, which is essential for quality and repeatability. Contact Metav Werkzeuge to confirm fitment and reserve compatible M7 clamping screws for TECWERK interchangeable holders; our Emmerich-based team will advise on availability and delivery options Technical Data Article number: 2000832427NW Product type: Clamping screw Manufacturer: TECWERK Label: Spannschraube Größe=A M7 L.21mm 4-KT.8mm z.Wechselhalter TECWERK Dimensions and core data Thread: M7 Overall length: 21 mm Square drive: 8 mm Type: A Packaging unit: 1 Applications and special features Spare part for TECWERK interchangeable holder for turning tools and prism Replacement screw for quick-change clamping systems Four-sided drive (4-kt) 8 mm for secure torque transfer Compact dimensions for confined assemblies FAQ What are the thread and length specifications of this clamping screw? The clamping screw is specified with an M7 thread and an overall length of 21 mm; it is listed under SKU 2000832427NW for easy identification. Is this screw compatible with TECWERK interchangeable holders? Yes, the spare clamping screw is intended as a replacement part for TECWERK interchangeable holders for turning tools and the prism locating variant. What drive type is required to tighten the screw? The component uses an 8 mm square drive (4-kt), compatible with common square-drive spanners and torque tools found in workshop tool sets. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
220mm Self-Centring Extra-Flat 3-Jaw Lathe Chuck 1800 kgf - Vertex
Take advantage of the combination of robust clamping performance and a low-profile, space-saving design for efficient, repeatable turning. The self-centring mechanism and high clamping force ensure fast set-up and secure workholding — order the 3-jaw chuck directly via Metav Werkzeuge or ask our consultants for installation advice. Vertex VNBK-6 3-jaw lathe chuck — self-centring, extra-flat, 220 mm The Vertex VNBK-6 3-jaw lathe chuck is a self-centring, extra-flat chuck engineered for reliable clamping on turning machines and lathes Self-centring, extra-flat design 220 mm outer diameter 1,800 kgf clamping force Robust construction, 12.4 kg weight Faster set-up through reliable centring The self-centring jaw system reduces set-up time by aligning workpieces automatically when clamped, so changeovers are quicker and repeatability is improved. For batch production and frequent part changes, this mechanism minimises manual adjustment and the associated downtime. The three-jaw arrangement distributes force evenly for consistent positioning, which is particularly advantageous when a precise concentric hold is required for turning operations. High clamping force for stable turning Designed to deliver 1,800 kgf of clamping force, this chuck provides a firm grip that reduces the risk of slippage during heavy cuts or interrupted machining. The 220 mm diameter suits medium-sized components and offers a balance between accessibility and holding capacity. The VNBK-6 is specified to maintain secure contact under operational loads, helping to protect tooling and workpieces while supporting higher material removal rates where process stability is essential. Low-profile design for improved access and safety The extra-flat profile shortens the distance between the workpiece and the spindle, improving tool clearance and accessibility for the cutting tool. As a lathe chuck with a compact form, it reduces overhang and the lever effect on the spindle, which can help to lower dynamic loads and vibration. The robust build, reflected in a 12.4 kg mass, contributes to stable rotation while keeping the footprint minimal for tighter setups on modern turning centres. Contact Metav Werkzeuge for tailored advice and to reserve the Vertex VNBK-6 self-centring 3-jaw chuck for prompt dispatch from Emmerich. Technical Data Article number: VNBK-6 GTIN: 4061905083181 eClass: 21020401 Category: Vertex Dimensions & Performance Diameter: 220 mm Weight: 12.4 kg Clamping force: 1,800 kgf Features & Materials Type: Three-jaw lathe chuck Design: Self-centring, extra-flat Weight indication included in specifications FAQ What is the main advantage of a self-centring chuck? A self-centring chuck like the Vertex VNBK-6 aligns workpieces automatically when the jaws are tightened, reducing set-up time and improving concentricity for repeat operations. Which machines is this chuck suitable for? The VNBK-6 is intended for installation on turning centres and lathes that accept a 220 mm chuck and can accommodate the chuck's mass and mounting requirements. How much clamping force does the chuck provide? The chuck delivers a clamping force of 1,800 kgf, which is designed to hold components securely during demanding turning operations. Does the low-profile design affect accessibility? Yes, the extra-flat design shortens the spindle-to-workpiece distance, improving tool access and reducing overhang compared with taller chuck designs. Is the chuck balanced for high-speed use? The VNBK-6 is built for stable rotation; balancing requirements depend on the specific machine and operating speeds, and final balancing is recommended according to the lathe manufacturer's guidance. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
24.1mm Centre Tip Type 665 MK3 Solid Point 60° Full Tip 125mm - RÖHM
Take advantage of a classic lathe centre that combines DIN 806‑specification heat treatment with a 60° full point for reliable concentric support; the MK3 shank ensures fast fitting to standard tailstocks, while the hardened and ground finish delivers long service life. Order or request advice via Metav Werkzeuge for procurement and application guidance. Centre Point Type 665 (MK3) – Fixed centre with solid 60° point | RÖHM A Centre Point Type 665 designed for precise axial support in conventional lathes and centre‑turning operations, supplied with a Morse taper MK3 shank for direct tailstock mounting DIN 806, fully hardened and ground Solid 60° centring point Morse taper MK3 shank for secure fit 125 mm overall length, compact projection Accuracy that keeps turned parts concentric The primary advantage of this centring tip is its consistent concentric support, achieved through a 60° full point geometry and a heat‑treated finish in accordance with DIN 806. This combination reduces run‑out during turning and drilling at the tailstock end, which translates into fewer rejected parts and less rework. The component’s geometry is ideal for standard centre bores and for jobs where axial alignment and repeatability are critical. Robust construction for continuous workshop use Manufactured from tool steel and delivered hardened and ground, the unit withstands everyday workshop loads and abrasive contact without premature wear. The fixed solid tip provides a stable contact area that resists deformation under clamping forces, while the hardened surface extends service intervals. The compact design with a 125 mm overall length and 44 mm projection gives a stable support point without excessive cantilever, improving vibration damping on medium‑duty turning tasks. Seamless integration with standard tailstocks and simple upkeep Fitted with a MK3 taper shank, the centre seats directly into compatible tailstocks and live‑centre cones for instant use. Installation requires no special adapters and the fixed construction simplifies inspection and replacement routines. Basic care—periodic cleaning and lubrication of the contact surfaces—keeps the centring tip in optimal condition, supporting uninterrupted production cycles and predictable machining results. For procurement or tailored advice on suitability for specific turning tasks, contact Metav Werkzeuge for prompt technical guidance and ordering assistance Technical Data Article number: 4121011130NW Type: Typ 665 Product: Centre point Brand: RÖHM Shank: MK3 Facts Diameter: 24.1 mm Overall length: 125 mm Projection: 44 mm Point angle: 60° Packaging unit: 1 Special features DIN 806 specification Fully hardened and ground Made from tool steel Solid (full) centre point FAQ What taper does the centre use and how is it mounted? The centre is supplied with a MK3 taper shank and mounts directly into standard MK3 tailstocks or compatible live‑centre adaptors; the Centre Point Type 665 (RÖHM, SKU 4121011130NW) requires no special fittings. Which materials is this centre suitable for supporting during turning? The RÖHM Type 665 centre provides stable axial support for a wide range of turning tasks on non‑hardened workpieces; its hardened and ground tip is intended to resist wear when used with typical lathe materials. How does the 60° point angle affect concentricity? A 60° point angle gives a defined contact geometry that centres workpieces reliably in standard centre bores, improving axial alignment and reducing run‑out compared with blunt or worn tips. What maintenance is recommended to preserve accuracy? Routine cleaning of the contact area, light lubrication where appropriate and inspection for point wear will maintain the centring accuracy of the Type 665; replace the unit once the tip shows visible deformation. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
248mm Universal Centre Punch Self-Centering, Accuracy 0.005mm, 1500r.p.m. - Vertex
Take advantage of a robust alloy steel construction combined with 0.005 mm repeat accuracy and a reliable revolving tip for consistent centring. Order the part directly via Metav Werkzeuge or consult the team for application advice. Universal revolving centre VPC‑MT5 — rotating live centre in alloy steel, 1500 r.p.m. The Universal revolving centre VPC‑MT5 is a rotating live centre designed for general lathe centring, offering precision repeatability and durable alloy‑steel construction for workshop and light industrial use. Alloy steel construction for longevity Repeat accuracy of 0.005 mm Safe operation up to 1500 r.p.m. Length 248 mm, sturdy 3.2 kg Consistent centring for repeatable results The VPC‑MT5 delivers repeatable accuracy of 0.005 mm, which reduces rework and shortens setup cycles on turning operations. This level of precision is achieved through a balanced rotating tip and a rigid body made from alloy steel, ensuring stable contact with the workpiece under normal lathe speeds. By specifying a measured repeatability rather than marketing estimates, the centre provides a verifiable basis for quality control and process planning, supporting predictable outcomes in series production and precision repairs. Built for workshop reliability and safe operation Designed for continuous rotation up to 1500 r.p.m., the revolving tip minimises friction and heat build‑up during turning, which helps protect both the workpiece and the lathe spindle. The solid construction and a length of 248 mm, combined with a mass of 3.2 kg, ensure mechanical stability during centring tasks. These characteristics translate into longer component life, fewer interruptions for maintenance and a lower risk of run‑out; the result is a more economical machining process and less downtime for the workshop. Straightforward integration and practical benefits As a universal live centre, the VPC‑MT5 is suitable for a wide range of standard lathe centring tasks where a revolving centre is required. The robust alloy‑steel body withstands regular handling in busy environments and supports reliable operation over many cycles. Clear technical data such as GTIN 4061905088018, length and measured accuracy enable easier procurement, traceability and inclusion in quality documentation. For teams planning tool inventories or upgrading centre tooling, the combination of precision, durability and known speed limits simplifies specification decisions and aligns with standard workshop requirements. Contact Metav Werkzeuge for purchase or technical guidance on the VPC‑MT5 and receive expert advice from the Emmerich team. Technical Data Article number: VPC-MT5 GTIN: 4061905088018 Material: legierter Stahl Length: 248 mm Weight: 3.2 kg Numbers / Facts Repeat accuracy: 0.005 mm Maximum speed: 1500 r.p.m. eClass: 21022304 SKU: VPC-MT5 Special features / Versions Universal revolving centre (mitlaufend) Alloy steel construction Designed for lathe centring applications FAQ What maximum rotational speed is recommended? The VPC‑MT5 is specified for operation up to 1500 r.p.m., which supports common turning speeds while maintaining designed repeatability. How precise is the centring performance? The universal revolving centre provides a repeat accuracy of 0.005 mm, making it suitable for precision centring tasks requiring consistent results. What are the main dimensions and weight of the unit? The VPC‑MT5 has a length of 248 mm and a mass of 3.2 kg, dimensions that favour stability on standard lathe setups. Which material is the tool made from? The centre body is manufactured from alloy steel, selected for durability and wear resistance in workshop conditions. How is the product identified for ordering and traceability? Order and identify the item by SKU VPC‑MT5 or GTIN 4061905088018 for procurement and inventory purposes. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
250mm Chip Guard Shield Arm 350mm, Plastic - LOC-LINE
Reliable protection for the machining zone is provided by a compact chip guard with a 190 x 250 mm shield and a 350 mm arm for extended reach; benefit from straightforward replacement and simple integration into existing LOC-LINE installations by ordering via Metav Werkzeuge or consulting the Metav team for fitment advice. LOC-LINE Chip Guard Shield 190 x 250 mm with 350 mm Arm A LOC-LINE chip guard shield designed for chip and coolant control on machine tools and CNC workstations. Chip guard 190 x 250 mm 350 mm arm length for extended reach Compatible with LOC-LINE modular fittings Supplied as single unit Robust protection for the machining zone without compromise The compact chip guard provides a targeted barrier that limits splash and swarf spread around the cutting area, reducing cleaning intervals and protecting surrounding fixtures. With a shield footprint of 190 x 250 mm, the device concentrates containment where it matters most while maintaining a low profile that avoids interference with tooling and workpiece access. The containment effect supports cleaner benches and reduces part rework associated with stray debris. Precise positioning enabled by the 350 mm arm A 350 mm arm delivers the necessary reach for many common machining setups and can be routed to avoid tool paths while keeping the shield in the optimal position. The mounting system is compatible with LOC-LINE modular fittings, which enables quick alignment and repeatable placement. This arrangement improves process reliability because the guard remains stable during machining, helping to preserve tool life and reduce unplanned downtime. Easy replacement and workshop integration for efficient workflows Supplied as a single unit, the component is intended for swift replacement during maintenance or reconfiguration, minimising machine idle time. Integration into standard LOC-LINE layouts is straightforward, allowing retrofit to existing coolant hoses and modular supports. The practical format supports lean workshop routines: fewer adjustments, faster serviceability and consistent protection across shifts. Practical advantages for procurement and operations The compact design and established LOC-LINE interface reduce the need for bespoke mounts, streamlining spare-part lists and procurement. The shield's geometry focuses containment without obstructing operator sight lines or access, improving operator confidence at the machine. Where a documented back-up strategy is required, the simple specification and clear dimensions assist in planning and inventory control. Contact Metav Werkzeuge to arrange supply of the LOC-LINE chip guard with 350 mm arm and confirm fitment for specific machines or to request technical clarification Technical data Article number: 4000833453NW Product: Chip guard shield (LOC-LINE) Packaging unit: 1 Facts Shield dimensions: 190 x 250 mm Arm length: 350 mm SKU: 4000833453NW Special features Brand: LOC-LINE Product type: Chip guard shield Supplied as single unit FAQ What machines is the chip guard suitable for? The LOC-LINE chip guard shield is suitable for machine tools and CNC workstations where a compact 190 x 250 mm shield and 350 mm arm provide effective coverage without obstructing tool access. How is the shield mounted and positioned? Mounting is via the LOC-LINE interface; the 350 mm arm allows flexible positioning and repeatable placement of the chip guard shield to direct chips and coolant away from critical areas. Is the material specified for the shield? Material details are not provided in the available data for the LOC-LINE chip guard shield (SKU 4000833453NW); please consult Metav Werkzeuge for material confirmation if required for specific applications. Can the shield be replaced quickly during maintenance? Yes, the chip guard shield is supplied as a single unit to enable rapid replacement and minimise machine downtime. Does the product include additional mounting hardware? The supplied data lists the chip guard shield and arm length; further mounting accessories should be checked with Metav Werkzeuge to ensure compatibility with the existing LOC-LINE layout. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
250mm Chuck Jaw Set, Stepped Hardened Jaws, 3 Pieces - RÖHM
Take advantage of the combination of a hardened, stepped jaw design, compatibility with 250 mm chucks and the convenience of a complete three-piece set to reduce setup time and improve clamping reliability on turning centres. Order the jaw set directly via Metav Werkzeuge or consult the team for selection and compatibility advice. RÖHM jaw set for 250 mm chuck — hardened, stepped jaws, 3-piece The RÖHM jaw set for 250 mm chuck offers hardened, stepped jaws designed for reliable clamping in turning and general workshop applications. Hardened, stepped jaw design For chuck Ø 250 mm compatibility Includes 3-piece set Optimised fit for 250 mm chucks reduces setup time This jaw set is engineered for direct use with chucks of Ø 250 mm, providing a clear and verifiable compatibility specification that simplifies procurement and planning. The three-piece set supplies a complete jaw complement for standard three-jaw chucks, which minimises downtime during changeover. By choosing a set that matches the chuck diameter, rework on adapters or time-consuming modifications is avoided, creating a more efficient production flow. Durable, precise clamping for consistent machining results The hardened surface and stepped jaws design deliver enhanced wear resistance and a secure contact profile across multiple diameters, which helps to maintain concentricity and repeatability during turning operations. Hardened jaws resist deformation under clamping loads, so runout remains stable and part tolerances are easier to hold. For shops seeking predictable results on medium-sized workpieces, this combination supports reliable part quality and reduced scrap rates. Practical handling and integration into workshop processes The set is supplied as a compact, ready-to-install package containing three dedicated jaws, so fitting and replacement are straightforward and quick. Clear identification of chuck compatibility (Ø 250 mm) aids stock management and prevents wrong-part usage on the shop floor. When paired with routine inspection and sensible maintenance, the component life is extended and service intervals become more predictable, supporting continuous production with minimal interruptions. Contact Metav Werkzeuge for tailored advice on the RÖHM jaw set for 250 mm chucks and to confirm fitment for specific machines — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 4121269250NW Manufacturer: RÖHM Product type: Jaw set Facts Chuck compatibility: Ø 250 mm Packaging unit: 1 Set contents: 3 pieces Special features Hardened, stepped jaws Designed for three-jaw chucks Original label retained for identification FAQ Are these jaws suitable for standard three-jaw chucks? The RÖHM jaw set is designed as a complete three-piece set for use with three-jaw chucks specified at Ø 250 mm, matching the common mounting and geometry for that chuck size. What does “stepped jaws” mean in practice? Stepped jaws provide a series of discrete contact levels so a range of diameters can be clamped securely without intermediate adapters; the RÖHM stepped profile allows progressive clamping positions while retaining stable contact. Are the jaws heat-treated or surface-hardened? Yes, the product description specifies hardened jaws, which improves wear resistance and reduces deformation under clamping loads, supporting consistent concentricity during machining. How many pieces are supplied and what is the article number? The set contains three pieces; the article number is 4121269250NW and the set is labelled for chuck Ø 250 mm compatibility. Can these jaws be used for both external and internal clamping? The stepped form is typically advantageous for external gripping across multiple diameters; final suitability for internal clamping should be verified against the chuck and jaw geometry in the specific application. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
250mm Chuck Key 12mm Square Shank With Spring-Loaded Sleeve, For 50mm Chuck Ø - RÖHM
Take advantage of a compact, workshop-ready tightening tool that combines a 12 mm square drive with a spring-mounted sleeve to reduce the risk of the key remaining in the chuck; reliable handling and simple storage support smoother work processes. Order the RÖHM chuck key directly via Metav Werkzeuge or ask the consultants for compatibility advice. RÖHM Spannschlüssel for chuck, 12 mm square drive with spring-mounted sleeve RÖHM Spannschlüssel f.Futter-D.250mm 4-KT.12mm RÖHM is a purpose-built chuck key designed for secure engagement with compatible four-sided square drives and everyday workshop use. 12 mm square drive for secure engagement Spring-mounted sleeve prevents key jamming Compact design for simple storage Suitable for standard four-sided chuck drives Precise engagement for repetitive tightening tasks The primary advantage of a high-quality chuck key lies in consistent force transmission and positive engagement. With a 12 mm square drive, this tool delivers a reliable interface to a four-sided chuck drive, reducing play and ensuring repeatable tightening sequences. In practice, this means less time checking jaw seating and more predictable clamping behaviour when preparing parts for machining. The robust drive geometry supports routine operations across general workshop and light industrial settings, providing a straightforward mechanical interface without the need for auxiliary adapters. Design that prevents accidental locking in the chuck A notable practical safeguard is the spring-mounted sleeve, which is engineered to prevent the key from becoming unintentionally lodged in the chuck. This feature reduces downtime caused by stuck keys and avoids minor incidents that interrupt the workflow. The insert square connection ensures the tool locates positively in the chuck drive and withdraws cleanly when the sleeve is actuated. For workshops where quick tool changes and operator safety are priorities, this design detail enhances both convenience and operational safety without adding complexity. Built for everyday workshop routines Handy and compact, the key is suitable for being carried in a toolbox or mounted on a workstation rail for immediate access. The straightforward construction focuses on dependable mechanical function rather than electronic or adjustable components, which makes it particularly well suited to maintenance teams, toolroom staff and metalworking technicians who require a no-frills tightening implement. The absence of electronic parts or consumable elements means predictable service life and low maintenance effort, helping to keep routine operating costs down while preserving consistent clamping performance. Clear compatibility cues and selection advice Compatibility is primarily determined by the 12 mm square drive and the four-sided chuck interface; when selecting a tightening key, verify that the chuck accepts a 12 mm square insert. The tool’s features — including the spring-mounted sleeve and insert square configuration — are intended to match standard four-sided drives used in many chucks. For bespoke or non-standard drive forms, consult technical documentation or request brief verification to confirm fit. Metav Werkzeuge can provide rapid clarification on matching this key to specific chuck models, ensuring the right tool arrives at the workbench first time. For purchasing information or to confirm compatibility of the RÖHM chuck key with existing chucks, contact Metav Werkzeuge for tailored advice and prompt supply from Emmerich. Technical data Article number: 4121409080NW SKU: 4121409080NW Brand: RÖHM Product type: Chuck key Packaging unit: 1 Facts Square drive: 12 mm Four-sided drive type: 4-KT (four-sided) UID: 4121409080NW Special features Spring-mounted sleeve prevents key from remaining in the chuck Insert square for positive engagement Compact format suitable for workshop storage FAQ What square drive size does this chuck key use? The RÖHM chuck key features a 12 mm square drive, providing positive engagement with standard four-sided chuck drives. Does the key prevent accidental jamming in the chuck? Yes, the tool includes a spring-mounted sleeve designed to reduce the risk of the key being left in the chuck after use. Is this key suitable for heavy industrial chucks? The tightening key is intended for standard four-sided chuck drives; confirm the chuck’s drive format and load requirements before use to ensure suitability. How is the RÖHM chuck key supplied? The item is supplied as a single piece per packaging unit, listed under SKU 4121409080NW. Can the insert square be removed or replaced? The tool uses an insert square connection for secure engagement; consult technical specifications or Metav Werkzeuge for guidance on service or replacement options. Manufacturer: RÖHM; Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
250mm Four-Jaw Independent Chuck, 4 T-Slots M12, 1,100 rpm - Vertex
Robust independent clamping with a 250 mm jaw span and a maximum speed of 1,100 r.p.m. delivers stable, precise workholding for varied turning operations; secure the unit from Metav Werkzeuge for reliable supply or speak with our consultants for application advice. VKC-10 Independent Four-Jaw Chuck, Ø250 mm, Vertex The VKC-10 independent four-jaw chuck for lathe applications provides flexible, accurate clamping of irregular and prismatic workpieces in workshop and light industrial use Independent jaw operation for irregular parts Ø250 mm nominal chuck diameter Max speed 1,100 r.p.m. for standard lathes T-slots 4-M12 for secure mounting Faster set-ups through adjustable jaws The independent jaws allow each jaw to be positioned separately, which reduces time spent fitting off-centre or odd-shaped stock and supports quick, incremental alignment. This approach increases process efficiency by removing the need for bespoke fixtures for every non-cylindrical component. The feature improves throughput where repeat clamping accuracy and adaptability are required, while the robust design contributes to consistent repeatability across batches. Stable performance for everyday workshop demands Built to provide a solid interface between machine spindle and workpiece, the chuck’s Ø250 mm diameter and overall mass yield improved stability during machining. The specified 1,100 r.p.m. maximum speed is suitable for a broad range of turning operations on standard lathes, balancing cutting performance and safe rotational limits. Integration with existing setups is simplified by the T-slots 4‑M12, which permit positive, repeatable mounting and reduce vibration for cleaner surface finishes and longer tool life. Versatility that reduces tooling complexity Independent clamping means one device handles a wider variety of geometries, from asymmetric castings to square bar, decreasing the requirement for multiple dedicated fixtures. The design supports stepwise jaw adjustment and controlled clamping pressure, which helps protect delicate faces while ensuring secure holding for more aggressive cuts. As a result, workshops achieve greater flexibility without sacrificing process control. Contact Metav Werkzeuge in Emmerich to discuss specifying the Vertex VKC-10 independent four-jaw chuck for stable, adaptable clamping and dependable delivery from our European warehouse Technical Data Article number: VKC-10 GTIN: 4061905086267 Manufacturer: Vertex Core specifications Diameter: 250 mm Max speed: 1,100 r.p.m. Weight: 21.8 kg Special features Independent four-jaw configuration T-slots 4-M12 SKU: VKC-10 FAQ How does an independent four-jaw chuck differ from a self‑centering chuck? An independent four-jaw chuck allows each jaw to be adjusted separately, while a self‑centering chuck moves all jaws simultaneously; the VKC-10 independent four-jaw chuck by Vertex therefore enables precise off‑centre clamping for irregular workpieces. What maximum spindle speed is recommended for the VKC-10? The VKC-10 is specified for a maximum of 1,100 r.p.m., matching common lathe speeds where stability and safe clamping are priorities. Can the VKC-10 be mounted on standard lathe spindles? Yes, the VKC-10 features mounting provisions and T-slots 4‑M12 to facilitate secure attachment to compatible spindle mounts or backplates. Is the VKC-10 suitable for holding asymmetric or square stock? The independent jaw operation of the VKC-10 is specifically intended for irregular and prismatic stock, offering controlled and repeatable clamping for such geometries. What identifiers should be quoted when ordering this chuck? Please reference the Vertex VKC-10 independent four-jaw chuck and the SKU VKC-10 or GTIN 4061905086267 when enquiring or ordering. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
250mm Jaw Set For 250mm Chuck Undrilled 3 Pieces - RÖHM
Taking advantage of a robust, three-piece block jaw solution and precise compatibility with a 250 mm chuck, this set supports efficient jaw replacement and flexible gripping arrangements. Combine secure clamping, straightforward fitting and genuine RÖHM quality — order the RÖHM block jaw set directly via Metav Werkzeuge or ask our consultants if needed RÖHM Block Jaw Set for 250 mm Chuck, Unstepped, Unhardened The RÖHM Block Jaw Set is an unstepped, unhardened jaw set designed for secure workholding and easy jaw replacement on 250 mm chucks Compatible with 250 mm chucks Unstepped design for customised gripping Three-piece set for complete jaw replacement Precise workholding for 250 mm chucks The three-piece block jaw set provides a practical, machine-shop-ready option where compatibility with a 250 mm chuck is required. Supplied as a complete three-piece set, the jaws allow fast replacement of worn elements and facilitate a repeatable clamping setup. The unstepped, unhardened design permits straightforward finishing or modification on the bench or in a toolroom, so workshop teams can adapt the gripping surface to the workpiece without being limited by pre-ground contours. This results in efficient preparation of bespoke clamping solutions and reduced downtime during tooling changes. Flexible machining and straightforward adaptation Because the jaws arrive unhardened, they can be finished or hardened to suit specific production demands, enabling adaptation for different cycles or materials. The unstepped geometry is especially useful where customised contact faces are required, as it allows for direct machining of the jaw profile to match bespoke fixturing. This flexibility supports varied turning and milling applications where standard stepped jaws would otherwise restrict clamping options, delivering a pragmatic balance between adaptability and workshop efficiency. Practical sourcing and workshop integration Sourcing genuine clamping parts matters for operational reliability. The set is produced under the RÖHM name and supplied as a standard replacement set that integrates with typical 250 mm chucks. The compact pack simplifies inventory management while allowing rapid replenishment of worn jaws. For users seeking dependable spare parts, the assembly-friendly format and clear specification reduce procurement friction and help maintain consistent machine availability across shifts and projects. For genuine RÖHM clamping reliability and to confirm suitability for existing chucks, contact Metav Werkzeuge for availability and expert advice on the block jaw set Technical data Article number: 4121270250NW Brand: RÖHM Product type: Block jaw set Facts Suitable for chuck diameter: 250 mm Pack contents: 3 pieces Packaging unit: 1 Special features Unstepped design Unhardened version as delivered Designed for straightforward jaw replacement FAQ Are these jaws compatible with any 250 mm chuck? Compatibility is intended for chucks with a 250 mm diameter; actual fit depends on the chuck model and the jaw mounting form, so checking the interface is recommended for full compatibility with the RÖHM block jaw set. What is included in the delivery? The delivery comprises a three-piece block jaw set as specified by the article number 4121270250NW, supplied in a single packaging unit. Can the jaws be machined or hardened after delivery? Yes, the jaws are supplied unhardened and are suitable for post-delivery machining or heat treatment where a hardened service condition is required. Is this set suitable for custom gripping profiles? The unstepped geometry is intended for customised gripping, enabling direct machining of the contact faces to produce tailored clamping profiles without pre-existing steps or contours Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
250mm Jaw Set Three Pieces For Lathe Chuck, Hardened - RÖHM
Take advantage of robust, hardened clamping surfaces and precise seating for consistent machining cycles; this combination reduces rework and keeps setup times low. Order the set directly via Metav Werkzeuge or contact the technical team for compatibility checks. RÖHM Base jaw set – hardened, for 250 mm chuck A RÖHM base jaw set engineered for secure workholding on a 250 mm chuck, supplied as a three-piece set for straightforward installation in standard chucks. Hardened jaws for long service life For 250 mm chuck diameter Set of three for immediate replacement Consistent clamping for repeatable machining The hardened jaw faces deliver stable contact and resist wear across repeated cycles, ensuring repeatability in series production. Designed for conventional three-jaw chucks with a 250 mm diameter, the set provides uniform bite and reduces runout, which translates into fewer scrap parts and lower inspection overhead. By relying on proven surface treatment and geometry, machining tolerances remain stable over time, improving throughput in both jobbing and production environments. Faster changeover and reduced downtime A three-piece configuration allows straightforward removal and replacement during maintenance intervals, shortening machine downtime. The modular nature of the jaws supports quick alignment and mounting, so workshop personnel can restore full clamping capability without lengthy adjustments. This practical design contributes to improved machine utilisation and helps maintain a predictable production rhythm, supporting lean workflows and efficient shift planning. Broad compatibility with standard chucks and simple verification Prepared for use with a 250 mm chuck, the set fits common clamping systems and is suitable as a service spare or for upgrading worn components. Clear, measurable dimensions and hardened contact surfaces make it easy to verify seating and concentricity during installation. For applications where chuck performance is critical, these jaws offer a direct way to restore precision and minimise the need for regrinding or trial-and-error setups. Contact Metav Werkzeuge for a compatibility check or to arrange supply of the matching jaw set; technical advice and delivery options are available from Metav Werkzeuge's team in Emmerich Technical data Article number: 4121273250NW Label: Grundbackensatz f. Futter-D.250mm geh.3St./VE RÖHM Product type: Base jaw set Facts Suitable for chuck diameter: 250 mm Set content: 3 pieces Packaging unit: 1 Special features Hardened jaw faces Designed for standard 250 mm three-jaw chucks Immediate replacement set FAQ What chuck size is this jaw set intended for? The jaw set is intended for use with a 250 mm chuck and provides hardened contact surfaces for reliable clamping. How many jaws are included in the set? The delivery contains a set of three jaws, supplied as a single packaging unit for direct replacement. Are the jaws hardened for wear resistance? Yes, the jaws feature hardened faces to extend service life and maintain seating accuracy during repetitive machining. Can these jaws restore reduced chuck concentricity? Fitting the new hardened jaws can help restore concentric seating and reduce runout when correctly mounted in a compatible 250 mm chuck. Is this product available through Metav Werkzeuge? The jaw set with article number 4121273250NW can be supplied via Metav Werkzeuge; contact their technical team for fit confirmation and delivery details. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
250mm Stepped Hardened Chuck Jaws Outward‑Mounting, Set of 3 - RÖHM
Take advantage of the combination of secure external clamping, hardened wear resistance and compatibility with a 250 mm chuck for dependable operation in turning applications; order the jaw set directly via Metav Werkzeuge or consult our specialists for suitability and availability. RÖHM jaw set for 250 mm chuck — outward stepped, hardened A RÖHM jaw set designed for external clamping on a 250 mm lathe chuck, featuring outward stepped, hardened jaws in a three-piece configuration for consistent gripping of larger workpieces For chuck Ø 250 mm Outward stepped jaws, hardened 3 pieces per pack Reliable external gripping that stabilises machining The outward-stepped design of these jaws provides a clear mechanical advantage when clamping on to external diameters: the stepped profile increases contact area while keeping the workpiece concentric in the chuck. Combined with the hardened finish, this configuration reduces wear and maintains repeatable seating over many cycles. For workshops focused on high uptimes, the direct result is fewer re‑set operations and improved process stability when turning and facing larger components. Built for longevity to reduce maintenance intervals A hardened surface treatment enhances wear resistance, so the jaw faces retain their geometry for longer under normal lathe use. The set is supplied as a three-piece set, allowing full replacement of a jaw row rather than piecemeal repairs, which simplifies stock management and speeds return to production. This durability translates into a lower total cost of ownership for repetitive, high‑use clamping tasks where consistent repeatability is required. Straightforward integration into standard chucks and workflows Specified for use with a 250 mm chuck, the jaw geometry fits existing mounting interfaces for quick installation and interchange. The set is intended for external clamping duties on conventional chucks and is particularly suitable where stepped jaw profiles give better seating on stepped or uneven diameters. For additional technical clarification or to confirm compatibility with a specific chuck model, Metav’s advisers can provide measured guidance and supply options that match workshop requirements. For tailored clamping solutions, stock information or application advice on the RÖHM jaw set for 250 mm chucks, contact Metav Werkzeuge GmbH at info@metav-werkzeuge.com or call +49 2822 7131930 to discuss suitability and availability Technical data SKU: 4121268250NW Item: Jaw set Brand: RÖHM Description: For chuck Ø 250 mm; outward stepped jaws; hardened; 3 pieces per pack Packaging unit: 1 Measurements / Core data Compatible chuck diameter: 250 mm Pack contents: 3 pieces per pack Packaging unit: 1 Special features Outward stepped jaws Hardened Intended for external clamping on 250 mm chucks FAQ What does "outward stepped jaws" mean for clamping? Outward stepped jaws have a staged profile that increases external contact on the workpiece; the RÖHM jaw set uses this shape to improve gripping stability on external diameters. Is this jaw set suitable for a standard 250 mm lathe chuck? Yes, the set is specified for chuck Ø 250 mm and is designed to fit conventional mounting seats for that chuck size. How many pieces are included with one pack? Each pack contains three pieces, providing a complete row of jaws for installation on the chuck. Are the jaws heat treated or surface hardened? The jaw set is described as hardened, which improves wear resistance and helps preserve clamping geometry during repetitive use. Can the jaws be replaced individually if damaged? The supply format is a three‑piece set; replacing the full set restores uniform contact geometry and is the recommended approach for consistent clamping behaviour. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
250x310x122mm Self-Centring Four-Jaw Square Chuck, 1800 kgf Clamping Force - Vertex
Take advantage of the combination of self‑centring four‑jaw clamping, a 1,800 kgf clamping force and dependable repeatability of 0.03 mm for stable machining and consistent results; order the unit directly via Metav Werkzeuge or consult the Metav team for application advice. VMJ-10 Clamping Chuck – 4‑jaw Self‑centring, Square Jaws by Vertex A VMJ-10 clamping chuck designed for heavy‑duty machining, offering precise self‑centring gripping of square and irregular stock for reliable production use Four‑jaw self‑centring design 1,800 kgf clamping force High repeatability: 0.03 mm Robust build, 36.1 kg mass Precise repeatability that stabilises machining results The chuck provides high repeatability, specified at 0.03 mm, which translates into consistent part positioning across repeated setups. This level of precision reduces scrap rates and supports tight tolerance work. The self‑centring mechanism ensures that concentricity is achieved quickly, which shortens setup time compared with manual centring methods. For production environments where cycle‑to‑cycle consistency is required, the combination of mechanical repeatability and a rigid jaw system ensures reproducible clamping without complex adjustments. Secure gripping for square and irregular stock Equipped with square jaws in a four‑jaw arrangement, this workholding solution delivers stable contact on flat‑sided components and improved grip on non‑cylindrical pieces. The specified 1,800 kgf clamping force provides the necessary holding power for demanding cuts and interrupted machining, improving operator confidence in process stability. The square‑jaw format positions the part firmly and resists rotation under load, which benefits milling, drilling and turning operations that impose lateral cutting forces. Compact footprint and robust construction for workshop integration With overall dimensions of 250 x 310 x 122 mm and a mass of 36.1 kg, the chuck offers a compact footprint combined with sufficient inertia to damp vibrations during machining. The robust construction supports heavy‑duty use and contributes to repeatable results across shifts. The physical size and mass also make the unit straightforward to integrate into existing fixtures or lathe spindles where space is constrained. Clear dimensional data enables planners to verify compatibility with machine interfaces before procurement. For machine shops requiring dependable heavy‑duty workholding, contact Metav Werkzeuge in Emmerich to discuss the Vertex VMJ‑10 clamping chuck and receive tailored application advice; Metav’s specialists can provide further technical details and supply options. Technical data Article number: VMJ-10 GTIN: 4061905085376 Brand: Vertex Type: Clamping chuck, 4‑jaw, square, self‑centring Dimensions: 250 x 310 x 122 mm Weight: 36.1 kg Repeatability: 0.03 mm Clamping force: 1,800 kgf Facts Repeatability / accuracy: 0.03 mm Clamping force: 1,800 kgf Mass: 36.1 kg Footprint (L x W x H): 250 x 310 x 122 mm Special features Four‑jaw, self‑centring mechanism Square jaws for flat or square stock SKU: VMJ-10 GTIN: 4061905085376 FAQ What is the declared repeatability of the chuck? The declared repeatability is 0.03 mm for the Vertex VMJ‑10 clamping chuck, which supports consistent positioning for precision machining. Can the chuck handle heavy cutting forces? Yes, the VMJ‑10 offers a clamping force of 1,800 kgf, providing secure grip for operations that generate substantial lateral or axial loads. Is the jaw format suitable for square stock? The square jaws are specifically designed to hold flat or square workpieces securely, improving resistance to rotation during machining. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
258mm Clamping Ring For Soft Jaw Inserts – Vertex
Taking advantage of its precise fit and measurable dimensions, the clamping ring ensures repeatable, secure holding of soft jaw attachments to speed up setup times and reduce rework. Order the item directly via Metav Werkzeuge or consult our advisors for compatibility checks. Clamping ring VFR-10 – Ø 258 mm, for soft jaws | Vertex Clamping ring VFR-10 for secure retention of soft jaw attachments in workshop chucks Clamping ring for soft jaw attachments Diameter 258 mm for medium chucks Fits 10 in clamping jaws Robust 3 kg construction Reliable precision for soft-jaw clamping The VFR-10 clamping ring delivers a stable interface between the chuck and soft jaws, providing consistent seating and repeatable clamping positions. With a clearly stated Ø 258 mm diameter, the part supports predictable set-up routines and reduces the need for iterative adjustments. This measurable dimension enables straightforward planning in jigging and fixture design, helping to maintain process repeatability and part quality in serial operations. Faster changeovers and reduced machining downtime Designed for seamless integration into existing chuck arrangements that accept 10 in jaws, the ring shortens changeover times by enabling secure attachment of soft jaw inserts without additional adapters. The combination of defined diameter and compatibility with standard jaw sizes supports lean workflows; fewer tools are required for a given task, and machine uptime improves. This efficiency argument is backed by the ring’s straightforward mechanical function rather than by subjective claims. Clear compatibility and safe handling explained Compatibility is communicated through standardised values: fits 10 in clamping jaws and weighs 3 kg, which allows planners to assess handling and storage requirements in advance. Soft jaws are removable jaw inserts used to protect delicate workpieces or to provide specific clamping contours; the clamping ring creates a stable mounting surface for these inserts, preventing unwanted movement during machining. The concise, factual presentation of these data supports informed purchasing and operational decisions. Practical durability and straightforward maintenance Engineered to function as a workshop-grade component, the ring’s robust construction reduces the frequency of replacement and supports consistent clamping behaviour over time. Routine inspection focuses on seating surfaces and the interface with soft jaws; maintenance is limited to keeping the contact areas clean and free from chips or coolant residues. This pragmatic approach ensures long-term reliability without complex servicing schedules. Contact Metav Werkzeuge today for compatibility verification and prompt delivery from Emmerich — ask about the Vertex VFR-10 clamping ring and its fit with existing 10 in jaws Technical data SKU: VFR-10 GTIN: 4061905087608 ECLASS: 20069202 Facts Diameter: 258 mm Weight: 3 kg Special features For soft jaw attachments Suitable for 10 in clamping jaws Brand: Vertex FAQ What is the primary use of this clamping ring? The clamping ring is intended to provide a stable mounting surface for soft jaw attachments, improving repeatability when securing delicate or shaped workpieces. Will the VFR-10 fit existing 10 in chucks? Yes, the VFR-10 is specified to fit 10 in clamping jaws and is designed for direct integration with compatible chuck systems. How heavy is the clamping ring and what does that mean for handling? The ring weighs 3 kg, which informs manual handling considerations and storage; lighter lifting aids or two-person handling may be used depending on workshop practice. Does the clamping ring require special maintenance? Maintenance is limited to routine cleaning of the seating surfaces and inspection for wear; no specialised servicing is required for normal workshop use. Can the ring be used with custom soft jaws or only standard types? The ring is designed to accept soft jaw attachments; compatibility with custom jaws depends on the jaw design but the Ø 258 mm datum and the 10 in jaw compatibility provide the key interfaces for assessment. Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
