200mm Tool Holder SK40 Table Block 12-Slot, Polypropylene Black - TECWERK
Take advantage of a durable, polypropylene construction combined with SK40 compatibility for orderly tool storage and faster changeovers; order directly via Metav Werkzeuge or consult the team for application advice. Tool holder SK40 — 12-way polypropylene desk block, 360×245×200 mm (TECWERK) A Tool holder SK40 built to organise SK40 toolholders at the workshop bench, offering robust protection and resistance where coolants and mild acids are present. SK40-compatible holders organised safely Polypropylene, shock- and break-resistant Acid- and coolant-resistant construction Space-saving 360×245 mm bench footprint Reduce downtime with organised SK40 tool storage The compact bench block is designed to speed up tool changes by keeping all SK40 holders immediately accessible and visible. By avoiding misplaced holders and unnecessary searches, the system contributes to measurable efficiency gains during production runs. The 360×245×200 mm footprint combines a small workplace presence with orderly storage, making tool retrieval quicker and reducing cycle interruptions in mixed-production environments. Work reliably in wet or chemically exposed areas Constructed from polypropylene, the block resists shock and breakage and stands up to routine exposure to coolants and many workshop acids. This material choice ensures long-term dimensional stability and makes routine cleaning straightforward, so hygiene and maintenance cycles are shortened. The acid- and coolant-resistant properties protect both the block and the mounted holders, preserving tool integrity and minimising corrosion-related downtime. Compact, lightweight design that supports flexible workshop layouts At approximately 0.48 kg, the block is light enough to reposition while remaining stable on the bench. The shallow footprint permits placement close to machining centres, enabling ergonomic tool changes and optimised work flow without sacrificing bench space. The design supports tidy workflows, freeing up room for clamping or inspection tools and contributing to an organised, safe workspace. Simple upkeep and broad suitability across workshops The bench block accepts standard SK40 toolholders and requires no special maintenance beyond periodic cleaning; its shock-resistant design reduces the likelihood of damage from incidental knocks. The robust, hygienic material suits a range of industrial environments from light engineering to maintenance bays, offering consistent protection for expensive holders and helping to maintain tool life and cutting-edge performance. Choose the TECWERK SK40 bench block for reliable, space-efficient tool organisation and contact Metav Werkzeuge for tailored advice or rapid dispatch from Emmerich. Technical data Article number: 9000453681NW Type: Tool holder Brand: TECWERK Facts Width: 360 mm Depth: 245 mm Height: 200 mm Weight: 0.48 kg SKU / UID: 9000453681NW Special features Material: Polypropylene Colour: black Execution: Desk block, 12-way Mounting: for SK40 toolholders Resistance: acid- and coolant-resistant Mechanical: shock- and break-resistant FAQ Which toolholders fit this bench block? The bench block accepts standard SK40 toolholders; the design secures each holder in an organised layout suitable for machining environments. Is the block suitable near coolant systems? Yes, the polypropylene construction is acid- and coolant-resistant, making the bench block appropriate for use in wet machining zones. How should the block be cleaned and maintained? Cleaning requires only routine wiping with compatible detergents; the material resists common workshop fluids and is designed for low-maintenance operation. Can the bench block be relocated between workstations? The lightweight design (approx. 0.48 kg) allows easy repositioning on the workbench to support changing workflow demands. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
20mm Clamping Screw M18x2 For 25mm Collet Chuck, Length 20mm - TECWERK
Reliable compatibility with 25 mm collet chucks, combined with a standard M18 x 2 thread and compact 20 mm length, ensures consistent tool retention and easy interchange in clamping systems. Order the clamping screw directly via Metav Werkzeuge or consult our advisers for application support. Clamping screw M18 x 2 L 20 mm for 25 mm collet chuck — TECWERK A Clamping screw M18 x 2 L 20 mm designed for use with Ø 25 mm collet chucks, suitable for clamping tools with cylindrical shanks featuring a lateral drive surface to DIN 1835-B. M18 x 2 thread for standardised fit Compact 20 mm overall length Compatible with Ø 25 mm collet chucks Conforms to DIN 1835-B drive geometry Precise interfacing with standard collet systems The clamping screw provides a standardised M18 x 2 connection and a short, defined 20 mm overall length that supports reproducible seating in collet-based holders. By matching the nominal thread and the specified dimensions, the component minimises axial play and ensures repeatable positioning when used with Ø 25 mm collet chucks. This leads to reliable concentricity during spindle rotation and reduces the need for frequent re-centring, which is particularly valuable in batch production and high-precision workshop settings. Secure torque transfer and reliable tool retention Designed for tools with a cylindrical shank and a lateral drive surface to DIN 1835-B, the screw facilitates positive torque transmission between chuck and tool; the lateral drive surface prevents slippage under cutting loads. When installed correctly in a compatible chuck, the part supports consistent clamping force and reduces the risk of tool runout. This mechanical clarity simplifies setup procedures and contributes to predictable machining outcomes, improving process stability on the shop floor. Streamlined integration and lower downtime With a compact profile and standard thread form, the component fits established clamping workflows without custom adaptation. Parts exchange is straightforward, which shortens maintenance intervals and keeps spindle idle time to a minimum — a clear efficiency advantage for production environments. Combined with Metav’s logistics and supply reliability, procurement and replenishment become a predictable part of workshop planning, supporting continuous operation and straightforward stock management. Application scope and practical considerations The screw is intended for use with face-style clamping chucks and for securing tools that comply with the DIN 1835-B shank specification; it is therefore well suited to general-purpose turning and milling tool clamping where a lateral drive surface is present. As material information is not specified in the available data, verification against the chuck manufacturer’s recommendations is advised when specific material or heat-treatment properties are required. Where interchangeability with existing tooling is a concern, refer to chuck diameter and drive-surface compatibility first to confirm fit. Contact Metav Werkzeuge for tailored technical advice and reliable supply of TECWERK clamping screws for Ø 25 mm collet chucks Technical data SKU: 2000834140NW Label: Spannschraube M18x2 L.20mm f.Spannfutter-D.25mm TECWERK Product type: Clamping screw Manufacturer: TECWERK Thread: M18 x 2 Overall length: 20 mm Suitable for: Collet chuck Ø 25 mm Packaging unit: 1 UID: 2000834140NW Facts Thread nominal diameter: M18 x 2 Length (L): 20 mm Compatible chuck diameter: 25 mm Packaging unit: 1 Special features For face clamping chucks For clamping tools with cylindrical shank and lateral drive surface to DIN 1835-B Compact design for minimal axial play FAQ Is this screw compatible with collet chucks other than 25 mm? Compatibility is determined by the chuck’s specified clamping diameter; this clamping screw is intended for use with collet chucks of Ø 25 mm and may not seat correctly in other sizes. What does DIN 1835-B mean for tool shanks? DIN 1835-B specifies a cylindrical shank with a lateral drive surface; the clamping screw and matching chuck transmit torque via that drive surface to prevent slippage during machining. Can the screw be used with any face clamping chuck? The screw is designed for face clamping chucks that accept an M18 x 2 fixing and a 25 mm clamping interface; verification against the chuck manufacturer’s specifications is recommended. How many items are supplied per packaging unit? The packaging unit is 1, so each shipment contains a single clamping screw. Is special installation tooling required? No special tooling is listed for basic installation; standard tightening procedures for screws with an M18 x 2 thread are applicable, though adherence to the chuck supplier’s assembly instructions is advised. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
20mm Clamping Screw M20x2 For 32mm Chuck, L20mm - TECWERK
Benefit from secure, repeatable clamping thanks to the M20 x 2 thread and compact 20 mm overall length, optimised for 32 mm clamping chucks. Order this clamping element directly via Metav Werkzeuge or consult our specialists for application-specific guidance. Clamping screw M20 x 2 x 20, L 20 mm by TECWERK — for 32 mm clamping chucks The clamping screw M20 x 2 x 20 is a compact securing element designed for face chucks and for clamping tools with cylindrical shanks featuring a lateral driving surface to DIN 1835-B. M20 x 2 thread for secure clamping Length 20 mm for compact toolholders Designed for 32 mm clamping chuck Suitable for cylindrical shank tools DIN 1835-B Consistent clamping where space is limited The design delivers a compact 20 mm overall length that permits robust fastening within tight toolholder assemblies. The defined M20 x 2 thread provides reliable axial engagement, reducing play during torque transfer and supporting consistent repeatability in short-stroke clamping operations. For workshops that prioritise efficient set-up and minimal intrusion into the tool envelope, this compact clamping element helps maintain process stability and reduces rework. Broad compatibility with standard tool systems Built for use with 32 mm clamping chucks, this component is suitable where tools with cylindrical shanks and a lateral driving surface according to DIN 1835-B are employed. The geometry supports common clamping strategies in metalworking and maintenance shops, allowing integration into existing face-chuck systems without adapter modifications. Compatibility like this streamlines inventory and simplifies procurement for maintenance departments and small production cells. Durable function and straightforward integration Though compact, the clamping screw is engineered for dependable engagement under regular workshop loads. The standardised thread and dimensions enable simple replacement and interchangeability, which minimises downtime. Clear nominal values and standard interfaces mean inspection and checks can be performed with routine gauges, supporting quality assurance workflows and ensuring measurable, verifiable clamping performance across batches. Procurement confidence and technical support from Metav Metav combines a wide product range with practical purchasing support to make precision components accessible to every workshop. The availability of standardised fastening elements, paired with transparent logistics from Emmerich, reduces supplier complexity and helps maintain production continuity. For specific application questions or to confirm fitment in specialised setups, technical advice is readily available to complement the product documentation. For reliable integration of TECWERK clamping components, contact Metav Werkzeuge for tailored advice and quick supply from Emmerich: info@metav-werkzeuge.com, +49 2822 7131930 Technical data Article number: 2000834141NW Label: Clamping screw M20 x 2 x 20 L 20 mm TECWERK Product type: Clamping screw Brand: TECWERK Facts Thread: M20 x 2 x 20 Overall length: 20 mm Suitable for chuck Ø: 32 mm Packaging unit: 1 Special features For face chucks For clamping tools with cylindrical shank Lateral driving surface to DIN 1835-B Nominal thread diameter M20 x 2 x 20 FAQ What chuck size is this clamping screw made for? This clamping screw is specified for use with a 32 mm clamping chuck and suits systems designed for that chuck diameter. Can the clamping screw be used with tools to DIN 1835-B? Yes, the component is intended for clamping tools with a cylindrical shank and lateral driving surface according to DIN 1835-B. What is the product identification for ordering? Order using SKU 2000834141NW for the TECWERK clamping screw M20 x 2 x 20. Is the thread specification standardised for workshop replacement? The M20 x 2 thread follows standard nominal values, enabling straightforward replacement and interchange in compatible toolholders. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
20mm ER 25 Collet Clamping Range 40mm Length, 5 µm Runout Accuracy - TECWERK
Data inconsistency detected: the product data contains conflicting ER sizes (field "typ" indicates ER 25 while the label references ER 32); please verify the product information to ensure accuracy and consistency, as discrepancies like this can lead to errors in manufacturing, assembly, or customer satisfaction, potentially causing delays or additional costs; it is crucial to cross-check all relevant details, including specifications, labels, and associated documentation, to resolve this issue promptly and prevent further complications; if necessary, consult the original source or supplier for clarification and update the records accordingly to maintain data integrity and avoid similar problems in the future.

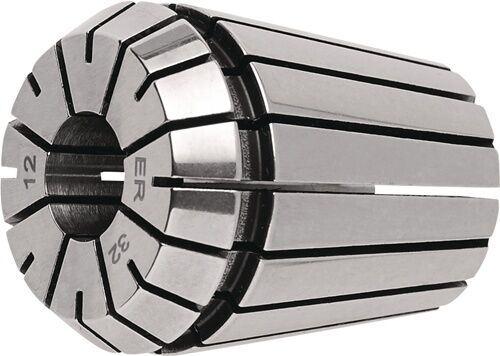

20mm ER Collet Precision Clamping, 5 µm Runout, L46mm - TECWERK
Data inconsistency detected for SKU 2000832984NW: the field "typ" specifies ER 32 while the product label indicates "Typ ER 40/472 E". Please verify the correct ER size and definitive product designation before further processing, as this discrepancy could lead to errors in inventory management, order fulfilment, or customer satisfaction if not resolved promptly. It is essential to cross-check the database entry with the physical product and any associated documentation to ensure accuracy. If necessary, consult with the relevant department or supplier to clarify the correct specifications and update the records accordingly to prevent future issues.
20mm Quick-Change Insert SES 16mm Square for DIN 374/376 M27, Adjustable Safety Clutch - TECWERK
Benefit from a combination of adjustable safety clutch and secure four-square shank torque transmission that reduces tap breakage and keeps production running. Order the quick-change insert directly from Metav Werkzeuge or consult the advisers for specification support. Quick-change insert SES 20 mm x 16 mm, Size 3 — adjustable safety clutch, for DIN 374/376 M27 (TECWERK) The Quick-change insert SES 20 mm x 16 mm (Size 3) is a tapping accessory engineered to limit torque and protect taps during manual and machine tapping applications compliant with DIN 374/376 M27. Adjustable safety clutch for torque limitation Prevents tap breakage during tapping operations Torque transmission via 16 mm four-square shank Compatible with DIN 374/376 M27 taps Controlled torque to prevent tool failure The core advantage is the adjustable safety clutch which limits the torque applied to the tap, preventing sudden overloads and the consequent tap breakage. This function converts an unpredictable failure mode into a manageable operational parameter, lowering scrap rates and downtime. The torque is transferred via a four-square shank, ensuring direct, backlash-free transmission to the tap shank for consistent thread quality. For technicians unfamiliar with torque-limiting systems: the clutch disengages when the preset torque threshold is reached, protecting both the tap and the workpiece while allowing rapid continuation of the process. Standardised fit for common tapping tasks Designed around industry standards, the insert suits taps manufactured to DIN 374/376 M27 and is prepared for workshop environments where repeatable fits are essential. The 20 mm diameter working face and the 16 mm square shank provide a compact interface that matches common drive systems. Because torque is taken through the square shank, different drive sizes require the corresponding insert variants; this modular approach maintains secure engagement and simplifies stock management when multiple shank standards are in use. Compact dimensions that integrate easily into tool setups The component’s geometry is optimised for insertion and removal in quick-change systems without compromising strength. Key dimensions (detailed below) show a compact profile suitable for tight assemblies while offering sufficient mass to stabilise the tap during engagement. The design keeps the centre of mass close to the drive axis, which reduces eccentric loads and supports consistent thread formation. Workshop operators benefit from reduced setup complexity and straightforward replacement when different shank sizes are required. Operational reliability and workflow benefits Integrating an insert with a torque-limiting mechanism translates directly into operational gains: fewer broken taps, fewer interrupted cycles and a safer working environment. The straightforward mechanical concept requires no electrical supply and is low-maintenance, making it a pragmatic choice for busy production floors. When paired with Metav’s distribution and advisory services, the solution supports predictable supply, technical guidance and a single-source procurement model that simplifies tooling logistics. For specification advice or to secure supply of the TECWERK SES quick-change insert with its adjustable safety clutch, contact Metav Werkzeuge in Emmerich at info@metav-werkzeuge.com or by phone on +49 2822 7131930 for prompt technical assistance and reliable delivery. Technical data Article number: 4000832690NW Label: Quick-change insert SES 20 mm x 16 mm Size 3 for DIN 374/376 M27 Product type: Quick-change insert SES Manufacturer: TECWERK Packaging unit: 1 Facts Diameter: 20 mm Square shank: 16 mm L1: 45.2 mm L3: 41 mm L4: 55.5 mm L5: 45 mm D: 72 mm D1: 48 mm Special features Adjustable safety clutch for torque limitation Prevents tap breakage during tapping Torque transmission via four-square shank Suitable for DIN 374/376 M27 taps Different inserts required for other shank sizes FAQ What safety function does this insert provide? The insert incorporates an adjustable safety clutch which limits torque to protect taps from overload and to reduce the risk of tap breakage during tapping operations. Is the insert compatible with standard M27 taps? Yes, the insert is intended for use with taps to DIN 374/376 M27 and is designed to interface via a 16 mm square shank. How is the torque transmitted to the tap? Torque is transmitted directly through the four-square shank, providing a positive drive with minimal play for reliable thread cutting. Are different shank sizes available? Different shank sizes require matching inserts; the current item uses a 16 mm square drive and other sizes must be ordered as separate insert variants. Where can the exact dimensions and specification be found? Exact dimensions, including L1, L3, L4, L5, D and D1, are provided above in the technical data and support accurate integration into existing tooling setups. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
20mm Reduction Bushing Form 2, Bore 20mm AD 25mm Clamping Length 46mm - TECWERK
A hardened, ground reducer sleeve delivers a precise interface between a 20 mm tool shank and a 25 mm toolholder while the 46 mm clamping length ensures stable support under load. Benefit from improved repeatability and reduced runout for consistent machining results. Order the reducer sleeve directly via Metav Werkzeuge or ask our consultants for tailored application advice. Reducer sleeve Form 2 – 20 mm bore, 25 mm outer diameter (TECWERK) A Reducer sleeve Form 2 engineered to adapt a 20 mm shank to a 25 mm holder, providing secure clamping in machining and tooling applications Hardened and ground finish for wear resistance Adapts 20 mm shanks to 25 mm holders 46 mm clamping length for stable support Compatible with Form E 2 toolholders Precision fit and secure clamping for reliable setups The hardened and ground surface of the reducer sleeve guarantees a tight, repeatable fit between the tool shank and holder. With a 20 mm bore matched to a 25 mm outer diameter, the component minimises radial play and contributes directly to reduced runout. Designed for use with Form E 2 toolholders, this bushing improves concentricity and helps maintain cutting accuracy over multiple tool changes, which is critical for consistent part quality. Stable support through optimised clamping length A 46 mm clamping length provides a broad contact area that enhances axial and radial stability during machining. The extended engagement reduces bending loads on the tool shank and spreads clamping forces, which helps to lower vibration and tool deflection. Engineers and technicians benefit from fewer setup adjustments and longer tool life because the increased support transfers load evenly across the interface. Simple integration into existing toolholder systems The reducer sleeve fits directly into standard toolholders conforming to the specified form, allowing easy replacement of worn adaptors without redesigning the spindle or holder stack. The element functions as a compact adaptor that restores compatibility between differing shank and holder diameters, reducing the need for multiple custom holders and simplifying tool inventory management. This pragmatic approach lowers downtime and streamlines workshop logistics. Consistent machining performance and operational confidence By combining a precise bore finish with heat treatment and grinding, the reducer sleeve delivers predictable behaviour across repeated cycles. The TECWERK reducer sleeve supports consistent setups and measurable improvements in process stability, helping to reduce scrap rates and rework. For production environments where repeatability is paramount, this bushing is a straightforward way to enhance throughput and maintain dimensional tolerances. For precision clamping tasks, request TECWERK reducer sleeves through Metav Werkzeuge—contact Metav Werkzeuge by e‑mail at info@metav-werkzeuge.com or by phone on +49 2822 7131930 to check stock and receive application advice Technical Data Article number: 2000834206NW Brand: TECWERK Product type: Reducer sleeve Facts Bore diameter: 20 mm Outer diameter: 25 mm Clamping length: 46 mm Form: 2 Packaging unit: 1 Special features Hardened and ground For toolholder Form E 2 Label: Reduzierbuchse Form 2 Bohrungs-D.20mm AD 25mm Einspann-L.46mm TECWERK UID: 2000834206NW FAQ What is the primary function of the reducer sleeve? The reducer sleeve provides a precise mechanical interface that adapts a 20 mm shank to a 25 mm toolholder, improving clamping security and reducing runout for repeatable machining. Which toolholders are compatible with this sleeve? Compatibility is specified for Form E 2 toolholders; the TECWERK reducer sleeve (SKU 2000834206NW) is designed to seat directly into holders built to that form. How does the 46 mm clamping length affect stability? A 46 mm clamping length increases contact area between shank and holder, distributing forces more evenly, reducing deflection and vibration, and therefore improving tool life and surface finish. Is this sleeve suitable for heavy-duty or high-wear applications? The hardened and ground finish enhances wear resistance and dimensional stability, making the sleeve suitable for demanding machining cycles where consistent performance is required. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
20mm Tool Holder E1 For Indexable Drill With Internal Coolant, DIN 69880 - TECWERK
Take advantage of the combination of standardised compatibility, rigid VDI40 support and internal coolant routing for reliable cycle times and extended tool life; order the holder directly via Metav Werkzeuge or consult the advisers for application-specific guidance. TECWERK E1 Tool Holder VDI40 — DIN 69880, 20 mm clamping The TECWERK E1 tool holder is a DIN 69880-compatible VDI40 holder engineered for indexable drills and coolant-fed drilling and turning applications. DIN 69880 compatibility for system interchange VDI40 shank for rigid, repeatable clamping Internal coolant supply for longer tool life 20 mm clamping diameter for indexable drills Consistent interfaces reduce setup time and uncertainty The holder is built to the DIN 69880 interface, which guarantees mechanical and dimensional compatibility across machines and adaptors. This standardised connection simplifies tooling choices and shortens setup times in mixed-machine environments. The standard interface means fewer adaptor checks, reduced fixture changes and a clearer procurement process; the result is improved machine uptime and more predictable production schedules. Coolant-fed drilling that protects inserts and cuts cycle costs Designed for tools with internal coolant feed, the holder channels cooling fluid directly to the cutting edge. Direct internal coolant reduces cutting temperatures and improves chip evacuation, which extends the life of indexable inserts and lowers tooling expenditure per hole. In practical terms, better cooling leads to fewer insert changes and more consistent hole quality, supporting leaner production runs and a stronger return on tooling investment. Rigidity and repeatability for precision holes The VDI40 shank geometry provides a secure mechanical interface that resists vibration and runout during heavy drilling. Rigid clamping minimises tool deflection, which directly benefits hole circularity and positional accuracy when using 20 mm indexable drills. For workshops that require repeatable tolerances, a stable holder is a straightforward way to reduce scrap and rework without complex process changes. Practical integration into workshop toolsets Form E1 and a cylindrical shank make the holder easy to combine with existing adaptors and tool magazines. Dimensional clarity (see technical data) permits straightforward storage and line-side organisation, while the construction supports both drilling and certain turn/drill tool combinations where internal coolant is advantageous. The component is a practical choice for production lines aiming to harmonise tooling standards and simplify maintenance procedures. Contact Metav Werkzeuge for application advice, compatibility checks or a tailored quotation for the TECWERK E1 tool holder with VDI40 shank Technical Data Article number: 2000833667NW Label: Werkzg.h.E1 DIN 69880 Spann-D.20mm VDI40 z.Wendeplattenbohrer TECWERK Product type: Tool holder for indexable drills Form: E1 Core dimensions Clamping diameter d2: 20 mm h1: 32.5 mm d1: 40 mm d3: 40 mm l3: 22 mm d6: 83 mm l1: 67 mm Design and special features DIN 69880 interface VDI40 shank Suitable for indexable drills Cylindrical shank Internal coolant supply Compatible with drilling and turning tools with coolant feed FAQ What machines will this holder fit? The holder is designed to the DIN 69880 interface and VDI40 shank standard, so the TECWERK E1 tool holder will fit spindles and adaptors that accept VDI40 tooling with DIN 69880 interfaces. Does the holder support internal coolant? Yes. The TECWERK E1 tool holder provides internal coolant routing to feed tools with through-coolant capability, improving chip removal and insert life. What clamping diameter is supported? The holder is specified for a 20 mm clamping diameter (d2 20 mm), intended for indexable drills designed for that bore size. Which tooling types are compatible with this holder? This E1-form holder is intended for indexable drills and compatible turn/drill tooling that require internal coolant and a VDI40 connection. How are the dimensions helpful for workshop planning? The clear dimensional data (d1, d3, l1, l3, etc.) facilitate magazine layout, storage and checking of machine-tool interfaces to avoid mismatches during setup. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
20mm Tool Holder E1 For Indexable Drills With Internal Coolant, DIN 69880 - TECWERK
Taking advantage of a standardised interface and coolant-through capability ensures consistent chip evacuation and stable clamping for insert drilling applications; the combination of VDI30 taper, DIN 69880 compliance and Form E1 shank supports reliable tool life and repeatable performance. Order the holder via Metav Werkzeuge or consult the Metav team for application matching and delivery options. Werkzeughalter E1 VDI30 for indexable insert drills — TECWERK tool holder with coolant-through and DIN 69880 interface Werkzeughalter E1 VDI30 for indexable insert drills provides a rigid, standardised connection for indexable insert drilling and compatible turning operations, optimised for internal coolant supply. *DIN 69880 interface for standard tooling *VDI30 taper for secure clamping and repeatability *Coolant-through feed for improved chip control *Cylindrical shank Form E1 for straightforward mounting Increase machining reliability with a standard interface The holder is built to the DIN 69880 specification, providing a dependable mechanical interface that reduces setup variability and eases tool changes. By using the VDI30 taper, the assembly achieves high radial rigidity and repeatable concentricity, which translates into improved hole quality and extended tool life. The standardised connection also simplifies tooling logistics in mixed-machine environments, allowing workshops and production cells to maintain consistent process parameters across different machines and operators. Controlled cooling and chip evacuation for cleaner holes Designed for tools with internal coolant supply, the holder’s coolant-through capability keeps the cutting zone flushed and temperatures under control. Forced coolant at the cutting edge reduces built-up edge formation and helps with chip evacuation when drilling deep or in difficult materials. For teams aiming for repeatable hole diameters and surface finish, the combination of internal coolant feed and a stable holder reduces rework and increases first-pass yield, particularly in series production or when processing heat-sensitive alloys. Compact geometry with clear dimensional references The compact Form E1 cylindrical shank keeps the overall tool projection short while preserving accessibility in tight setups. Key measures such as d2 = 20 mm and l1 = 67 mm define the coupling and projection geometry, aiding in fixture planning and collision checks. Clear dimensional data supports CAM programming and offline simulation, so the holder integrates smoothly into existing tool lists and NC setups. The design is compatible with indexable insert drills and similar modular tools, helping to standardise holder inventories for faster changeovers. Contact Metav Werkzeuge in Emmerich for technical advice or a tailored quotation via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data SKU: 2000833662NW Manufacturer: TECWERK Product type: Tool holder for indexable insert drills Form: E1 Standard: DIN 69880 Shank interface: VDI30 Packaging unit: 1 Dimensions and key measures d2: 20 mm h1: 28 mm d1: 30 mm d3: 40 mm h2: 30 mm l3: 22 mm d6: 68 mm l1: 67 mm Features and suitability Compatible with indexable insert drills Cylindrical shank (Form E1) For tools with internal coolant supply Suitable for drilling and turning applications FAQ What machines is this holder compatible with? This TECWERK E1 tool holder with VDI30 interface (SKU 2000833662NW) is compatible with machines that accept VDI30 tool holders and DIN 69880-style connections; machine spindle specifications must match VDI30. Can the holder be used with coolant-through indexable drills? Yes, the holder is designed for tools with internal coolant supply and supports coolant-through operation to improve chip evacuation and cooling. Which tool types fit this holder? The holder is intended for indexable insert drills and similar modular drilling/turning tools that match the Form E1 and VDI30 interface standards. Are the exact dimensions available for CAM and setup planning? Dimensional data such as d2 = 20 mm and l1 = 67 mm are provided in the technical section to support fixture design, CAM programming and collision checks. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
20mm Tool Holder E2 With Internal And External Coolant Through 83mm, DIN 69880 - TECWERK
Take advantage of the secure clamping of the Form E2 design combined with the VDI40 interface and integrated coolant paths for consistent machining results; the through-drilled construction and 20 mm boring-bar capability reduce setup time and avoid unnecessary modifications to tooling. Order the holder directly via Metav Werkzeuge or consult our specialists for application advice. TECWERK Tool holder E2 VDI40 for 20 mm boring bars The TECWERK tool holder E2 VDI40 is a standard-compliant clamping solution for boring-bar applications, designed to secure 20 mm bars with axial coolant supply for precise internal machining in workshop and production environments. Form E2 design for secure seating VDI40 interface for standard toolholders Internal and external coolant supply No shortening of boring bar required Stable clamping for repeatable boring results The E2-style holder is engineered for consistent axial alignment and minimal runout, making it suitable where repeatable hole geometry is required. Its VDI40 interface provides compatibility with common CNC tool turrets and adaptors, while the cylindrical shank design ensures a reliable fit in standard spindles. The arrangement minimises vibration and supports longer tool life, so operators benefit from fewer regrinds and more predictable cycle times. The construction focuses on functional precision rather than decorative finishes, delivering measurable improvements in process stability. Effective coolant routing to protect inserts and workpieces Integrated internal and external coolant supply channels permit targeted flushing at the cutting edge, removing chips and reducing thermal load during deep boring operations. The through-drilled design allows coolant to reach the bar tip directly, which helps maintain cutting-edge integrity and reduces the risk of built-up edge or workpiece distortion. Effective coolant management translates into lower scrap rates and fewer secondary operations, supporting a more efficient production flow and less manual intervention between operations. Designed for quick setup and workshop integration Compatibility with the DIN 69880 standard and the nominal 20 mm bar diameter simplify tool selection and mounting in mixed fleets. The holder’s geometry eliminates the need to shorten the boring bar prior to insertion, saving assembly time and preserving bar length for future use. With straightforward dimensions and standard interfaces, the component slots into existing toolholders and changeover routines with minimal adjustment, helping to reduce machine downtime and streamline daily workflows while supporting high-precision results. Contact Metav Werkzeuge for tailored advice on integrating this TECWERK tool holder into production or for compatibility checks with existing tool systems. The Metav team in Emmerich is available to clarify specifications and application scenarios. Technical data Article number: 2000833682NW Manufacturer brand: TECWERK Product type: Werkzeughalter für Bohrstangen Form designation: E2 Packaging unit: 1 UID: 2000833682NW Core dimensions d2: 20 mm h1: 32.5 mm d1: 40 mm d8: 55 mm l6: 75 mm l3: 22 mm d6: 83 mm Standard: DIN 69880 Features and compatibility Through-drilled (axial coolant) Internal and external coolant supply Suitable for boring bars Cylindrical shank No shortening of boring bar necessary VDI40 interface FAQ Is this holder compatible with standard VDI turrets? The TECWERK tool holder E2 VDI40 is designed for VDI40 interfaces and fits standard VDI turrets that accept that interface size. Can coolant be supplied through the tool holder? Yes, the holder provides both internal and external coolant supply via a through-drilled channel to the boring bar tip. Does the boring bar require modification before mounting? No, shortening of the boring bar is not required; the holder accepts a 20 mm bar without additional machining. Which standard governs this holder’s interface and form? The holder conforms to DIN 69880 and uses the Form E2 specification for axial mounting and compatibility. What benefits does the through-drilled design bring? Through-drilled coolant delivery improves chip evacuation and reduces thermal stress at the cutting zone, which supports longer tool life and better surface finish. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
225mm Milling Arbor Wrench DIN 6368 For 27mm Arbor, Hardened Special Steel - TECWERK
Take advantage of a robust, standards‑compliant tool that combines DIN 6368 conformity with a hardened, blued finish and a practical 225 mm length for dependable tightening and loosening of milling arbor drawbar screws; order or request advice via Metav Werkzeuge for seamless workshop integration. Milling arbor wrench DIN 6368 — for arbor Ø 27 mm (TECWERK) The milling arbor wrench DIN 6368 designed for tightening and loosening milling arbor drawbar screws, suitable for arbors with a 27 mm diameter and workshop use Conforms to DIN 6368 Suitable for arbor Ø 27 mm Hardened special steel, blued finish 225 mm overall length Secure clamping through standardised design A tool engineered to meet DIN 6368 ensures consistent, reproducible results when securing milling cutters. The standardised geometry reduces the risk of incorrect engagement with drawbar screws and supports reliable torque application. By using a wrench that matches recognised norms, machine changeovers become more predictable and process control improves, which in turn reduces rework and downtime. The clear alignment to standards delivers a measurable increase in operational consistency for production environments. Durable construction for everyday workshop use Crafted from special steel, the tool is hardened and finished in a blued tone to provide corrosion resistance and wear protection during repeated use. This robust treatment extends service life in harsh conditions and supports long intervals between replacements, making the wrench a cost‑effective choice for maintenance teams. The solid construction contributes to dependable mechanical behaviour when tensioning and loosening fastenings, reducing the likelihood of deformation under load. Straightforward compatibility with common arbor sizes Designed specifically for arbors of 27 mm diameter, the wrench matches the seating and engagement requirements of typical milling drawbar screws produced to DIN 6367 dimensions. The defined fit minimises stripping and slippage, which helps preserve both the tool and the arbor interface. Clear specification reduces the time spent verifying suitability: technicians can identify compatibility from the marked diameter and the referenced standard, simplifying tool allocation in mixed‑equipment workshops. Ergonomic handling and practical dimensions With an overall length of 225 mm, the tool balances reach and control for both bench and machine‑mounted operations. The length offers sufficient leverage for efficient torque application without compromising manoeuvrability in confined setups. The compact but solid profile supports fast, repeatable interventions during cutter changes, contributing to smoother workflow in milling operations. The familiar form factor integrates easily into existing tool trolleys and maintenance kits, supporting rapid access when needed. For reliable tightening and loosening of milling arbor drawbar screws, request the TECWERK milling arbor wrench via Metav Werkzeuge — contact our advisors at info@metav-werkzeuge.com or call +49 2822 7131930 for precise application guidance and supply from Emmerich. Technical data Article number: 4000832447NW Type: Milling arbor wrench Standard: DIN 6368 Core specifications Overall length: 225 mm Suitable for arbor diameter: 27 mm Application: tightening and loosening milling arbor drawbar screws Materials / Special features Special steel, hardened and blued finish Conforms to DIN 6367 dimensions where applicable Pack unit: 1 FAQ What is the intended use of the wrench? The wrench is intended for tightening and loosening milling arbor drawbar screws and is specified for this application in the product documentation. Which arbor diameter does the tool fit? The tool fits arbors with a 27 mm diameter; compatibility is stamped and listed to ensure correct selection. Is the wrench suitable for continuous industrial use? The hardened special steel construction and blued finish make the wrench suitable for regular workshop use and repeated tool changes. Does the tool comply with recognised standards? Yes, the wrench is manufactured to DIN 6368 and intended to be used in conjunction with drawbar screws produced to DIN 6367. What is the overall length and why does it matter? The overall length is 225 mm, which provides a balance of leverage and accessibility for typical milling setups. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
22mm ER Collet Precision Clamping, 5 µm Runout Accuracy, L46mm - TECWERK
Achieve dependable toolholding with 5 µm runout and full clamping length support; the 22 mm TECWERK ER collet meets DIN 6499-B and bridges up to nominal minus 1.0 mm — order the collet directly via Metav Werkzeuge or ask our consultants for application advice. TECWERK ER collet Type ER 40/472 E — 22 mm clamping diameter The TECWERK ER collet Type ER 40/472 E is a precision ER collet engineered for secure, repeatable toolholding in machining centres and ER collet chucks. Conforms to DIN 6499-B 5 µm runout and repeatability Holds tools along full clamping length 22 mm nominal clamping diameter Maximise machining accuracy through consistent holding The TECWERK ER collet is designed for precision toolholding where repeatability matters. Its adherence to DIN 6499-B guarantees dimensional compatibility with standard ER collet systems, while the specified 5 µm runout and repeatability minimise part deviation and tool vibration during cutting. For production runs and setups where tolerances are tight, the combination of standard conformity and low runout translates into fewer rejected parts and longer tool life, supporting reliable throughput on milling and machining applications. Faster set-ups and secure grip reduce machining interruptions Clamping is simplified by the ability to grip tools along the full clamping length, enabling stable contact and reducing axial and radial play. The collet permits clamping on the guiding chamfer and covers intermediate sizes by a bridging nominal minus 1.0 mm, lowering the need for multiple intermediate collet sizes and accelerating changeovers. These characteristics shorten preparation time and reduce inventory complexity, which benefits workshop efficiency and keeps production moving with fewer interruptions. Built for compatibility and clear specification in the workshop Specified dimensions and measurable data make integration straightforward: the collet delivers a compact footprint while providing defined performance. Key dimensional values such as L: 46 mm and D: 41 mm support correct selection for existing chucks and toolholders, and the nominal 22 mm clamping diameter is suitable for a broad range of tooling. The simple, standard-based design ensures the ER collet is a practical choice for both maintenance of existing equipment and upgrade paths in small to medium production environments. For dependable clamping performance with TECWERK ER collets, contact Metav Werkzeuge for tailored advice and qualification at info@metav-werkzeuge.com or call +49 2822 7131930 — technical consultation and supply coordination available from our Emmerich centre Technical Data Article number: 2000832986NW Manufacturer: TECWERK Product type: ER collet Packaging unit: 1 Facts Clamping diameter: 22 mm Length L: 46 mm Diameter D: 41 mm Runout / repeatability: 5 µm Clamping-bridge: nominal minus 1.0 mm Special features Conforms to DIN 6499-B Holds tools along full clamping length Can be clamped on the guiding chamfer Suitable for ER collet chucks FAQ What clamping range does the collet cover? The TECWERK ER collet provides a nominal clamping diameter of 22 mm and bridges down to nominal minus 1.0 mm, enabling secure clamping across intermediate tool sizes. How precise is the toolholding? Runout and repeatability are specified at 5 µm for the TECWERK ER collet Type ER 40/472 E (SKU 2000832986NW), supporting consistent machining accuracy. Can the collet be clamped on the chamfer? Yes, the design allows clamping on the guiding chamfer, which assists in stable axial positioning and secure gripping along the full clamping length. Which standards and chuck types is it compatible with? The collet conforms to DIN 6499-B and is intended for use with standard ER collet chucks and holders in machining centres and similar toolholding systems. What are the key dimensions for installation planning? Relevant dimensions include a clamping diameter of 22 mm, length L: 46 mm and outer diameter D: 41 mm, which facilitate compatibility checks with existing toolholders. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
22mm Quick-Change Insert SES Size 3 for DIN 374/376 M30, 18mm Square, Adjustable Torque Safety Clutch - TECWERK
Take advantage of the combination of an adjustable safety coupling, robust torque transmission via an 18 mm shaft square, and a compact design that reduces tap breakage and downtime; order the insert directly via Metav Werkzeuge or consult our specialists for matching inserts and shank sizes. Quick-change insert SES 22 mm × 18 mm, Size 3 — TECWERK for DIN 374/376 M30 with adjustable safety coupling The Quick-change insert SES 22 mm × 18 mm, Size 3 is a compact adapter designed for safe torque-limited threading operations with taps conforming to DIN 374/376 M30. Adjustable safety coupling for torque limitation Prevents thread tap breakage during operation Torque transmitted via 18 mm shaft square Consistent torque control to protect tooling and processes The adjustable safety coupling provides a precise torque limit mechanism so that the tap slips before catastrophic failure occurs. This torque-limiting function reduces tool replacement frequency and minimises unscheduled machine downtime, which translates into measurable savings in cycle time and maintenance. In practice, a correctly set coupling prevents sudden overloads on the tap, preserving thread quality and extending component service life while maintaining production rhythm. Reliable transmission via the square shank for clean torque transfer Torque is transmitted through the shaft square, ensuring a positive drive and minimising torsional play during threading. The combination of a 22 mm body diameter with an 18 mm square provides a stable connection suitable for standard tapping fixtures. This means consistent cutting conditions and reproducible results in both single-station and multi-spindle setups. The secure mechanical interface supports higher process reliability and reduces the risk of misalignment-related tool wear. Designed for compatibility with DIN 374/376 M30 and modular workflows Compatibility with DIN 374/376 M30 makes the unit suitable for many industrial tapping applications. Different shank sizes require corresponding inserts, allowing workshops to assemble a modular set tailored to the machine and tap shank used. The modular approach streamlines tool change routines and reduces inventory complexity: one coupling type serves several tap families when paired with the appropriate insert, improving operational flexibility. Compact dimensions for straightforward integration into existing tool chains The compact overall dimensions and clear specification of critical lengths facilitate installation and space planning in toolholders and tapping heads. Key dimensions such as L3: 41 mm, L4: 55.5 mm and D: 72 mm define the envelope required for mounting and ensure compatibility with common tapping units. Clear dimensional data aids engineers when designing fixtures or selecting spindles, reducing trial fits and accelerating setup times on the shop floor. Discuss the TECWERK Quick-change insert SES 22 mm × 18 mm Size 3 with Metav Werkzeuge for tailored advice and fast delivery from our Emmerich stock, ensuring the correct insert selection for each shank size and tapping requirement Technical data Article number: 4000832691NW Product type: Quick-change insert SES Size: Size 3 Brand: TECWERK Suitable for: DIN 374/376 M30 Packaging unit: 1 SKU/UID: 4000832691NW Core measurements Diameter (D): 72 mm Diameter (D1): 48 mm L1: 45.2 mm L3: 41 mm L4: 55.5 mm L5: 45 mm Shank square: 18 mm Body diameter: 22 mm Special features Adjustable safety coupling for torque limitation Prevents thread tap breakage Torque transmission via shaft square Requires specific inserts for different shank sizes Compact, workshop-friendly geometry FAQ What is the primary purpose of this quick-change insert? The TECWERK quick-change insert is designed to limit torque during tapping operations and thereby protect taps from breakage while ensuring consistent thread quality. Which tap standards is the insert compatible with? The insert is suitable for taps conforming to DIN 374/376 M30 and is intended for use where that thread interface is specified. How does the adjustable safety coupling improve production reliability? By setting a defined torque threshold, the coupling slips before the tap is overloaded, reducing unexpected tool failure and improving overall machine uptime. Are different shank sizes supported with the same coupling? Yes, the coupling transmits torque via the shaft square, and different inserts are required for different shank measurements to ensure a secure fit. What are the key dimensions to verify before installation? Refer to the core measurements such as D, D1, L1, L3, L4, L5 and the shank square (18 mm) to confirm compatibility with the intended toolholder and tapping head. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
22mm Thread Cutting Synchronised Chuck With Coolant Feed, 0.5mm Axial Compensation, DIN 69893 Form A - TECWERK
Benefit from the combination of HSK‑A63 compatibility, ±0.5 mm axial compensation and integrated coolant feed for reliable synchronised tapping on CNC machines; order the synchronised tapping chuck directly via Metav Werkzeuge or consult the specialists for application advice. Synchronised Thread‑Cutting Chuck HSK‑A63 – TECWERK (M3–M12, A=93 mm) The synchronised tapping chuck (DIN 69893 A) by TECWERK is a precision accessory for CNC machines with synchronised tapping spindles, designed for reliable thread cutting across small metric sizes. HSK‑A63 interface, DIN 69893 A Suitable for M3–M12 threads Internal coolant supply for chip control Axial compensation ±0.5 mm Accurate synchronization reduces rejected parts and rework The synchronised tapping chuck delivers controlled axial compensation, specified as ±0.5 mm, to absorb small pitch mismatches between the tap and the synchronised spindle. This compensation reduces stress on the tap and the spindle drive, decreasing the risk of broken taps and dropped threads. The result is fewer rejected parts, improved first‑pass yield and more predictable cycle times on high‑mix CNC production runs. Compact HSK‑A63 design improves spindle compatibility and rigidity Built to DIN 69893 A with an HSK‑A63 mounting, the chuck offers the mechanical stiffness expected from HSK interfaces while maintaining compact dimensions (A = 93 mm, outside Ø 22 mm). The short, rigid design reduces overhang and vibration, which directly contributes to high runout accuracy and consistent thread quality. For workshops upgrading to synchronised tapping, the interface simplifies retrofit and tool change procedures. Integrated coolant feed and secure clamping for process reliability An internal coolant channel enables directed lubrication and chip evacuation at the cutting zone, supporting longer tap life and cleaner thread forms. The chuck achieves high clamping force through a tensioned tap collet with an integrated square drive, ensuring secure holding for both right‑ and left‑hand threads. These features together lower maintenance frequency and support uninterrupted production cycles. Suitable thread range and operational versatility Designed for metric threads from M3 to M12, the chuck covers the small to medium sizes commonly used in component manufacturing and assembly parts. Compatibility with right and left‑hand tapping broadens application scope. The combination of precise axial compensation, coolant supply and HSK mounting makes this accessory a pragmatic choice where synchronisation errors must be mitigated without adding complex electronics or external mechanisms. Contact Metav Werkzeuge for tailored technical consultation on the TECWERK synchronised tapping chuck (SKU 2000834924NW); email info@metav-werkzeuge.com or call +49 2822 7131930 to discuss compatibility with existing synchronised tapping systems Technical Data Article number: 2000834924NW SKU: 2000834924NW Manufacturer: TECWERK Product type: synchronised tapping chuck Standard: DIN 69893 A Facts Outside diameter: 22 mm Length A: 93 mm Length compensation: +0.5 / -0.5 mm Thread range: M3–M12 Special features HSK‑A63 interface (DIN 69893 A) Internal coolant feed Compensates pitch differences between tap and synchron spindle Suitable for right‑ and left‑hand threads High runout accuracy High clamping force via tensioned tap collet with integrated square FAQ What spindle interface does the chuck use? The synchronised tapping chuck is supplied with an HSK‑A63 interface conforming to DIN 69893 A, ensuring direct fit to compatible CNC spindle tap adaptors. Which thread sizes are covered by this chuck? The chuck supports metric thread tapping from M3 to M12, suitable for common small and medium machine components. Can the chuck handle both right‑ and left‑hand tapping? Yes, the design permits use for both right‑hand and left‑hand threads without modification, providing flexibility in mixed production environments. How does the chuck manage pitch mismatch during synchronised tapping? Axial compensation of ±0.5 mm allows the chuck to absorb small synchronisation errors in tension and compression, protecting taps and reducing broken‑tool incidents. Is coolant supply integrated in the chuck? An internal coolant feed is provided to lubricate the tap and assist chip evacuation, contributing to longer tool life and improved thread quality. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
24mm Drill Chuck Mount DIN 69871A B16 SK40 A25mm - TECWERK
Combining a DIN 69871 Form A steep taper with an SK40 shank and a B16 chuck interface yields a compact, repeatable solution for secure drill-chuck mounting; order the drill chuck arbor directly via Metav Werkzeuge or consult our specialists for application advice. TECWERK drill chuck arbor — DIN 69871 Form A, SK40 to B16 A TECWERK drill chuck arbor designed for secure mounting of B16 chucks on SK40 spindles, engineered for standard machining and retrofit applications. Steep taper to DIN 69871 Form A Accepts drill chucks to DIN 238 taper SK40 shank with B16 chuck cone Reliable, repeatable chuck mounting for precision machining The adaptor's steep taper compliant with DIN 69871 ensures a tight machine-to-tool interface that reduces runout and maintains concentricity during drilling and light milling. By using an industry-standard taper seat, the arbor provides mechanical rigidity and a predictable contact surface, which translates into more consistent hole quality and longer useful life for both chucks and spindles. The short overall length contributes to reduced overhang and improved stability in close-tolerance operations. Broad compatibility for seamless integration into existing tooling Designed to accept drill chucks made to DIN 238, the adaptor bridges common chuck cones and machine spindles without complex modifications. The SK40 shank delivers compatibility with a wide range of collet and taper holders, while the B16 chuck cone interface preserves established chuck mounting practice. This combination simplifies tool changes and reduces set-up times, offering a straightforward path to retrofit older machines or unify fixtures across a production group. Practical shop design for dependable everyday use With an effective length of 24 mm and a chuck-seat diameter A = 25 mm, the adaptor is compact and suited to workshops where space and accessibility matter. The single-piece configuration and standardised interfaces make it easy to store and identify among tooling sets; packaged per unit, it is ready for immediate use. For demanding production routines, the arbor supports predictable performance and helps to maintain process stability over repeated changeovers — a pragmatic choice for engineering and maintenance teams. For reliable spindle-to-chuck interfaces and stock availability of the TECWERK SK40 to B16 drill chuck arbor, contact Metav Werkzeuge in Emmerich for tailored advice and rapid supply. Technical data Article number: 2000832821NW Item label: Bohrfutteraufnahme DIN 69871A B16 SK40 A.-L.25mm TECWERK Manufacturer: TECWERK Facts Norm: DIN 69871 L: 24 mm A: 25 mm D: B16 Special features Steep taper DIN 69871 Form A For drill chucks with taper to DIN 238 Shank: SK40 Packaging unit: 1 FAQ What machine spindles is this arbor compatible with? The TECWERK drill chuck arbor is compatible with spindles accepting an SK40 taper; the adaptor provides the DIN 69871 Form A interface and a B16 chuck cone for standard chuck mounting. Can standard drill chucks be fitted to this adaptor? Yes. The arbor accepts drill chucks produced to DIN 238, enabling direct mounting of industry-standard chucks onto an SK40 shank via the B16 interface. What are the key dimensions to check before ordering? Check the taper standard (DIN 69871), the shank type (SK40), and the chuck cone (B16). Relevant dimensions include the effective length L = 24 mm and the seat diameter A = 25 mm for correct fitment. Is the adaptor suitable for heavy milling or only drilling? The compact design and steep taper provide good rigidity for drilling and light milling; for heavy milling, select tooling specified for higher radial loads. The TECWERK arbor is optimised for stable chuck mounting and repeatable holemaking. How is the item supplied? The product is supplied as a single unit (packaging unit: 1) and is ready for installation in compatible tool-holding systems; refer to the item label for exact identification (SKU 2000832821NW). Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
250mm Arbor Wrench For Collet Ø32mm, DIN 6368 Hardened Steel - TECWERK
Take advantage of the DIN 6368 conformity, the fit for a 32 mm arbor and the 250 mm length to ensure secure tightening and safe access to cutter clamping screws; order the item directly via Metav Werkzeuge or ask the consultants for further specification support. TECWERK milling arbor key DIN 6368 – for 32 mm arbor, 250 mm length The milling arbor key DIN 6368 is designed for tightening and loosening milling cutter clamping screws on 32 mm arbors, ensuring compliant and repeatable clamping in production and workshop environments. DIN 6368 standardised design For arbors with 32 mm diameter 250 mm overall length for good reach Special hardened steel with blued finish Precision fit reduces setup time and rejects The tool delivers a DIN 6368 conforming interface that matches industry-standard arbors and clamping screws, which reduces calibration and setup variance. Because the key is matched to a 32 mm arbor diameter, spindle interfaces seat consistently, lowering the risk of incorrect torque application and minimising costly rework. The standardised design supports leaner changeover routines and contributes directly to steady production flow. Robust construction for long service life Manufactured from special hardened steel and finished to a blued tone, the implement resists wear and surface corrosion under workshop conditions. The heat-treated core increases resistance to edge deformation during repeated use, so tool life is extended and replacement intervals are reduced. This durability translates into lower downtime and a more predictable maintenance cadence for machining operations. Designed for safe access and confident handling The 250 mm overall length provides additional reach for cutters recessed in adapters or tight set-ups, while preserving manual control during torque application. The geometry focuses force transfer to the clamping interface, making the action of tightening and loosening the clamping screws efficient without overstressing adjacent components. In practice, this improves operator comfort and reduces the chance of slippage that could damage tooling. Standards compliance and clear application scope Tool function is specified for use with cutter clamping screws in accordance with DIN 6367, ensuring compatibility with common arbor assemblies. Marked conformity gives procurement and quality teams an objective reference when specifying tools for machining stations, enabling straightforward integration into existing tool inventories and maintenance procedures. The compact specification supports both production lines and specialist workshops requiring reliable, standards-based equipment. For reliable DIN 6368 conformity and efficient arbor servicing, contact Metav Werkzeuge GmbH in Emmerich at info@metav-werkzeuge.com or +49 2822 7131930 for procurement and technical guidance on the TECWERK milling arbor key (SKU 4000832441NW). Technical data Article number: 4000832441NW Product type: Milling arbor key Manufacturer: TECWERK Standard: DIN 6368 Packaging unit: 1 Core measurements Overall length: 250 mm Suitable for arbor diameter: 32 mm Special features For tightening and loosening cutter clamping screws (DIN 6367) Special steel, hardened and blued finish Conforms to DIN 6368 FAQ What arbor diameter is this key intended for? The TECWERK milling arbor key is intended for arbors with a 32 mm diameter and is specified accordingly in the product documentation. Does the tool meet an industry standard? Yes, the key is manufactured to DIN 6368 and is suitable for use with clamping screws specified under DIN 6367. What is the total length and why does it matter? The overall length is 250 mm, which gives improved reach into recessed assemblies while maintaining control during tightening and loosening. What material and finish are used for durability? The key is made from special hardened steel and is tempered to a blued finish to enhance wear resistance and surface protection. Can this key be used for other arbor sizes? The tool is dimensioned for a 32 mm arbor; use on non‑specified diameters is not recommended as it may compromise clamping security and compliance. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
250mm ER Collet Wrench For ER 25 Collets, Hardened Zinc Plated With Hanging Hole - TECWERK
The combination of an ER 25 key size, hardened and zinc-plated special steel, and an integrated hanging hole ensures dependable clamping of ER/ESX collet nuts to DIN 6499 while simplifying storage and handling; order directly via Metav Werkzeuge or consult the technical team for specification checks. Collet Spanner ER 250 (ER 25) — TECWERK, hardened & zinc-plated The Collet Spanner ER 250 (ER 25) is a workshop tool designed for secure tightening of ER/ESX collet nuts in machining and toolroom applications, compliant with DIN 6499. Secure clamping of ER/ESX collet nuts Hardened, zinc-plated special steel construction Designed for ER 25 collet systems Built-in hanging hole for convenient storage Precision clamping that supports consistent machining results The span key is engineered for reliable torque application when securing ER/ESX collet nuts; its compatibility with DIN 6499 ensures correct fit and repeatable clamping performance across standard collet systems. Manufactured from special steel that is hardened for wear resistance and zinc-plated for corrosion protection, the tool reduces the risk of slippage and deformation during routine use. This results in fewer re-adjustments, less downtime and a more predictable machining process — a direct efficiency advantage in production and maintenance environments. Durable design for a long service life and low maintenance Constructed with longevity in mind, the spanner’s hardened core resists rounding and mechanical wear, while the zinc-plated finish provides an added layer of corrosion resistance in mixed workshop conditions. The robust material choice minimises the need for frequent replacement and helps contain operating costs over time. By selecting a tool that resists wear, the workshop benefits from consistent clamping accuracy and reduced spare-part turnover — practical advantages that support steady productivity. Ergonomic handling and organised storage for faster workflows The tool’s form factor supports quick engagement with ER 25 collet nuts, allowing for efficient operation during routine changeover and maintenance tasks. A practical hanging hole is incorporated for easy storage at the bench or on pegboards, keeping the tool accessible and reducing search time. Clear labelling of the key size and the simple, sturdy construction mean less guesswork during busy shifts, helping to streamline workflow and improve operator satisfaction. For specification queries, supply options or to request technical advice on the TECWERK collet spanner, contact Metav Werkzeuge in Emmerich by e-mail at info@metav-werkzeuge.com or by telephone on +49 2822 7131930 — assistance and fast delivery options are available from the Emmerich site. Technical data Article number: 4000832444NW Product name: Collet spanner ER 250 (ER 25) AMF Product type: Collet spanner Core data Key size: ER 25 Packaging unit: 1 Materials & special features Special steel, hardened and zinc-plated For secure clamping of ER/ESX collet nuts to DIN 6499 Integrated hanging hole FAQ Which collet systems are compatible with this spanner? The TECWERK collet spanner is intended for ER/ESX collet nuts and conforms to DIN 6499, ensuring compatibility with standard ER 25 systems. Is the tool protected against corrosion in workshop conditions? Yes, the spanner features a zinc-plated surface that provides corrosion resistance for general workshop environments. Can the spanner be used for heavy-handed tightening? The spanner’s hardened construction resists deformation under normal tightening loads; however, torque should follow the clamping recommendations for ER 25 collets to avoid overloading. How does the hanging hole benefit everyday use? The integrated hanging hole permits convenient storage on pegboards or racks, keeping the spanner readily accessible and reducing downtime spent searching for tools. Is this product supplied as a single unit or in sets? The item is supplied as a single unit; the packaging unit is listed as 1 (one). Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
25mm Adapter Sleeve Form 2 Hardened And Ground, L71mm D40mm - TECWERK
Take advantage of a hardened and ground clamping solution with a 25 mm bore and 71 mm clamping length for reliable, repeatable setups in production. Order directly via Metav Werkzeuge or consult our technical advisers for application support. Reduction sleeve Form 2 (Ø25 mm, L 71 mm) – TECWERK A reduction sleeve Form 2 designed to adapt a 25 mm drill rod to a 40 mm holder, hardened and ground for demanding clamping applications Hardened and ground finish Bore Ø 25 mm Outer Ø 40 mm Clamping length 71 mm Consistent concentricity for repeatable machining The precisely hardened and ground inner bore minimises variance in runout and delivers stable concentricity when reducing a larger holder to a smaller shank. For workshops and production lines this means fewer setup checks and a lower scrap rate, since the component that secures the tool is produced to tight geometric tolerances. The Form 2 design integrates with standard clamping systems and is intended for use with Form E 2 drill rod holders, ensuring a defined mechanical fit and predictable behaviour under load. Clear dimensional compatibility for reliable integration With an inner diameter of 25 mm, an outer diameter of 40 mm and a clamping length of 71 mm, the sleeve offers a balanced contact length that helps increase axial grip and reduce vibration during cutting or drilling operations. These measurable values make it straightforward to assess compatibility with existing toolholders and machine spindles. The specification-driven approach aids planning for tool assemblies and retrofit tasks, so the reduction sleeve can be selected and fitted without guesswork. Robust design that supports uptime and handling The component's finish and form provide a durable interface that resists wear across repeated tool changes, translating into longer service intervals and lower maintenance effort for the clamping system. The robust construction is particularly valuable where frequent changeovers occur or when handling heavy-duty drilling operations. For technical clarification or to confirm suitability for a specific application, the Metav Werkzeuge team is available by email at info@metav-werkzeuge.com or by phone at +49 2822 7131930. For reliable integration and expert advice on the TECWERK reduction sleeve, contact Metav Werkzeuge for tailored guidance and supply options Technical data Article number: 2000834227NW Label: Reduction sleeve Form 2, bore Ø25 mm, outer Ø40 mm, clamping L 71 mm, TECWERK Type: Reduction sleeve Form: 2 Manufacturer: TECWERK Packaging unit: 1 Core dimensions Bore diameter: 25 mm Outer diameter: 40 mm Clamping length: 71 mm Special features Hardened and ground For drill rod holder Form E 2 FAQ Which holder types is this sleeve compatible with? The reduction sleeve is intended for use with Form E 2 drill rod holders and fits an outer holder diameter of 40 mm while reducing to a 25 mm shank. Does the sleeve improve runout accuracy? Yes, the hardened and ground bore of the TECWERK reduction sleeve reduces runout compared with untreated adapters, improving concentricity in the clamped tool assembly. What are the critical dimensions to check before ordering? Confirm the 25 mm bore, 40 mm outer diameter and 71 mm clamping length against the toolholder and shank to ensure proper fit and sufficient contact length. Is the sleeve suitable for frequent tool changes? The robust finish and form are designed to withstand repeated changeovers, helping to maintain reliable clamping over many cycles. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
25mm ER Collet For ER 25 Collet Chuck, 5 µm Runout Accuracy, L 46mm - TECWERK
Inconsistent product information detected for this collet: the product label indicates an ER 40 variant while the specified collet type is ER 25, and the listed clamping diameter of 25 mm with dimensions L 46 mm and D 41 mm does not clearly reconcile these entries. Because ER series sizes determine chuck compatibility and clamping ranges, these conflicting details prevent a reliable identification of the correct part and could lead to an incorrect order or unsafe assembly. Please have the item specification verified and provide the confirmed ER series, nominal clamping diameter and full dimensions so the entry can be corrected. For verification or further technical clarification, contact Metav Werkzeuge by e‑mail at info@metav-werkzeuge.com or by telephone on +49 2822 7131930—our team will assist in resolving the discrepancy.
25mm Face Clamping Chuck DIN 69871 AD/B With 6mm Weldon Shank, Central Coolant Channels - TECWERK
Engineered for rigid fixation with a steep SK40 taper and a precise H4 bore tolerance, this face clamping chuck delivers consistent, vibration‑resistant toolholding and improved coolant control. Order the TECWERK unit via Metav Werkzeuge or consult the specialists for application‑specific guidance. TECWERK face clamping chuck DIN 69871 AD/B — SK40, 6 mm Weldon The TECWERK face clamping chuck designed for SK40 spindles combines a steep taper to DIN 69871 Form AD/B with central and lateral coolant feeds for precision milling applications. DIN 69871 Form AD/B taper Central coolant supply, resealable channels Lateral coolant channels for cylindrical shanks Bore tolerance H4 for accurate seating Rigid toolholding that meets industry standards The holder is built to DIN 69871 Form AD/B and fitted to an SK40 shank, delivering a steep taper that prioritises axial rigidity and repeatability. The internal bore is finished to H4 tolerance, ensuring a concentric, low‑runout fit with cutters and shanks. With a clamping diameter of 6 mm and flange dimensions A = 50 mm and D = 25 mm, the design reduces micro‑movement during heavy cuts, which supports higher surface quality and predictable cycle times. Integrated coolant management to protect cutters and workpieces A central coolant supply and resealable coolant channels at the flange keep cutting edges cooled directly through the tool, while additional lateral coolant channels accommodate tools with cylindrical shanks and a lateral drive flat to DIN 1835‑B. This configuration improves chip evacuation and temperature control at the cutting zone, which lowers thermal expansion and extends insert and tool life. The combination of internal feed and lateral delivery supports demanding operations where coolant penetration and stable cutting conditions are essential. Workshop efficiency and compatibility for production use Equipped with a Weldon drive for the 6 mm clamping diameter and matching the SK40 interface, the chuck offers straightforward integration with existing milling setups. The compact flange and standardised interface simplify tool changes and reduce spindle downtime, making it suitable for both precision jobbing and serial production. As a standardised toolholder, it supports consistent setup routines and predictable maintenance intervals, helping to streamline the supply chain and keep machining processes steady. Request a technical consultation or specification sheet from Metav Werkzeuge in Emmerich to confirm suitability and delivery options for the TECWERK face clamping chuck (SKU 2000833769NW) Technical data SKU: 2000833769NW Standard: DIN 69871 Form AD/B Shank: SK40 Clamping type: face clamping chuck Dimensional data A (projection): 50 mm D (flange Ø): 25 mm Clamping Ø d: 6 mm Bore tolerance: H4 Features Central coolant supply Resealable coolant channels at flange Lateral coolant channels for cylindrical shanks Lateral drive flat compatible with DIN 1835‑B Weldon drive for 6 mm clamping FAQ What taper and spindle interface does this holder use? The TECWERK face clamping chuck uses a steep taper to DIN 69871 Form AD/B and fits an SK40 spindle interface (SKU 2000833769NW). How is coolant delivered to the cutting edge? Coolant is routed via a central coolant supply with resealable channels at the flange and lateral coolant channels that service tools with a cylindrical shank and lateral drive flat per DIN 1835‑B. What ensures precise seating of the tool in the holder? A bore finished to H4 tolerance provides a concentric fit, combined with the DIN 69871 taper geometry to reduce runout and improve machining accuracy. Which tool shank types are compatible with the lateral channels? Tools with cylindrical shanks and a lateral drive flat (Weldon) to DIN 1835‑B are compatible with the lateral coolant channels and drive arrangement of this chuck. What are the key flange and clamping dimensions to consider when planning setups? Relevant dimensions are A = 50 mm, flange Ø D = 25 mm, and clamping diameter 6 mm, which inform tool projection and clearance requirements. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
25mm Face Clamping Chuck Weldon 6mm Bore, HSK-A63 DIN 69893 Form A - TECWERK
Take advantage of robust HSK‑A63 compatibility and precise 6 mm clamping for reliable tool retention; order directly via Metav Werkzeuge or contact our consultants for application advice. Face-clamping chuck DIN 69893 Form A (Weldon) – HSK‑A63, 6 mm clamping diameter — TECWERK A face-clamping chuck DIN 69893 Form A designed for HSK‑A63 toolholders to secure cylindrical‑shank tools with a Weldon drive flat, ensuring repeatable, vibration‑resistant clamping in machining centres Weldon flat for positive axial drive HSK‑A63 hollow shank taper DIN 69893 Form A 6 mm clamping diameter with H4 bore tolerance For cylindrical shanks to DIN 1835‑B Secure compatibility for HSK‑A63 systems The face‑clamping chuck is engineered around the HSK‑A63 interface and DIN 69893 Form A, delivering a precise mechanical fit that reduces run‑out and improves tool life. The combination of a hollow shank taper and a Weldon style lateral drive flat ensures axial and rotational positive drive for tools with cylindrical shanks to DIN 1835‑B. This compatibility means fewer setup checks, predictable repeatability and a measurable reduction in rework for production runs. Design features that reduce setup time and vibration Built for stability, the chuck’s 6 mm clamping diameter and H4 bore tolerance provide tight concentricity and consistent gripping force across batches. The Weldon flat offers an anti‑rotation interface that converts torque into controlled axial contact, diminishing micro‑slip under load. The result is lower tool wear, quieter operation and less need for frequent torque re‑checks, which together improve throughput and lower total operating cost. Where this clamp delivers practical benefits Ideal for machining tasks that use cylindrical shank cutting tools, the chuck supports secure holding during milling, drilling and finishing operations where positional accuracy matters. The hollow shank taper design allows rapid tool change while maintaining repeatability, making it well suited to CNC machining centres and automated tool magazines. For workshops seeking a durable, straightforward clamping solution, this clamp balances simplicity with industrial‑grade precision. For assured compatibility and application guidance for the TECWERK HSK‑A63 face‑clamping chuck, contact Metav Werkzeuge — technical consultants are available at info@metav-werkzeuge.com or by phone at +49 2822 7131930 to discuss specifications and integration into existing setups Technical Data Article number: 2000832385NW Standard: DIN 69893 Form A Mount: HSK‑A63 Manufacturer: TECWERK Facts Clamping diameter: 6 mm Body diameter (D): 25 mm Length (A): 65 mm Bore tolerance: H4 Special features Weldon lateral drive flat for positive torque transmission Hollow shank taper according to DIN 69893 Form A For tools with cylindrical shank and lateral drive flat to DIN 1835‑B SKU: 2000832385NW FAQ What interfaces does this chuck support? The TECWERK face‑clamping chuck is built for HSK‑A63 toolholders (DIN 69893 Form A), providing a precise mechanical fit. Can the chuck hold tools with a Weldon flat? Yes, the clamp is specified with a Weldon lateral drive flat to engage tools complying with DIN 1835‑B. What is the clamping diameter and tolerance? The clamping diameter is 6 mm with a H4 bore tolerance, ensuring close concentricity. Is this chuck suitable for automated tool change systems? The hollow shank taper and consistent clamping interface make the chuck suitable for CNC tool magazines and automated change‑over in production settings. How can the SKU be referenced for ordering or compatibility checks? Refer to SKU 2000832385NW when enquiring about the TECWERK face‑clamping chuck to ensure correct identification. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
25mm Face Clamping Chuck Weldon Shaft 6mm Bore, HSK-A63 DIN 69893 Form A - TECWERK
Take advantage of the combination of HSK‑A63 precision, a Weldon flat for positive lateral drive and a 6 mm clamping diameter to achieve repeatable toolholding and reduced setup time. Order the face clamping holder directly via Metav Werkzeuge or ask the consultants if application advice is required. Face clamping holder HSK‑A63, Weldon flat, 6 mm clamping – TECWERK Face clamping holder HSK‑A63, Weldon flat, ideal for clamping DIN 1835‑B cylindrical shanks in milling and drilling toolholders HSK‑A63 interface to DIN 69893 Form A Weldon flat for secure lateral drive Clamping Ø 6 mm for cylindrical shanks Bore tolerance H4 for precision fit Precise, repeatable clamping for productive setups The HSK‑A63 taper in accordance with DIN 69893 Form A provides a defined seating that improves repeatability between tool changes. Combined with the specified bore tolerance H4, the holder ensures a tight, consistent fit of the clamping element, which reduces runout and the need for frequent readjustment. This leads to shorter setup times and more predictable machining results when processing batches or switching tools frequently. Secure drive and broad compatibility with cylindrical shanks Equipped with a Weldon flat, the holder provides positive lateral engagement for tools with a driving face as per DIN 1835‑B, avoiding slippage under torque. The clamping Ø 6 mm is suited to common tool shank sizes that rely on a Weldon-style side drive, while the HSK‑A63 interface guarantees compatibility with machines designed for DIN 69893 Form A toolholders. The specified dimensions (A = 100 mm; D = 25 mm) support integration into standard tool chains without modification. Designed for workshop efficiency and confident procurement A compact length and standardised interface mean easier stock management and faster replacement when tools need swapping. The combination of a standardised HSK connection and a Weldon lateral drive delivers operational security for a wide range of milling and drilling operations. Where tolerance-sensitive applications are required, the bore tolerance H4 and the secure drive design contribute directly to consistent part quality and reduced scrap rates. Contact Metav Werkzeuge today for tailored advice on integrating TECWERK HSK‑A63 holders into the toolroom and to check immediate availability from our Emmerich warehouse Technical Data Article number: 2000832368NW Label: Flächenspannfutter DIN 69893A Weldon Spann-D.6mm HSK-A63 A.-L.100mm TECWERK Manufacturer: TECWERK Interface: HSK‑A Facts Norm: DIN 69893 Form A Length (A): 100 mm Outer diameter (D): 25 mm Clamping diameter (d): 6 mm Special features Weldon flat for lateral drive according to DIN 1835‑B Bore tolerance H4 Suitable for clamping tools with cylindrical shank and lateral driving face Conforms to DIN 69893 FAQ What spindle interface does this holder use? The holder uses an HSK‑A63 interface in line with DIN 69893 Form A, ensuring a defined seating for quick and precise tool changes. Can tools with a Weldon shank be clamped securely? Yes, the Weldon flat incorporated in the holder provides positive lateral engagement for tools with a driving face as specified in DIN 1835‑B, enabling secure torque transmission. What does the bore tolerance H4 mean for performance? A bore tolerance H4 indicates a tight, repeatable fit between the clamping element and holder bore, contributing to reduced runout and greater machining accuracy. Which shank diameter is supported by this holder? The face clamping holder is specified with a clamping Ø 6 mm, intended for cylindrical shanks that use a Weldon-style lateral drive. Are the dimensions compatible with standard tool assemblies? Yes, the listed dimensions (A = 100 mm, D = 25 mm) are aligned with common toolholder configurations and facilitate straightforward integration. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
25mm Face Clamping Chuck Weldon Shank DIN 69871 Form AD, 6mm Shank Bore - TECWERK
Benefit from precise clamping via the SK40 interface, the 6 mm clamping diameter and the H4 bore tolerance for consistently accurate tool positioning; order the face clamping chuck directly via Metav Werkzeuge or consult our advisers for tailored support. TECWERK face clamping chuck — SK40, Weldon, 6 mm clamping The TECWERK face clamping chuck is a DIN 69871 Form AD toolholder for secure mounting of cylindrical-shank cutters with lateral drive flat. Weldon shank for positive drive and axial security DIN 69871 Form AD steep taper for machine spindle compatibility 6 mm clamping diameter, H4 bore tolerance for concentricity SK40 taper with 50 mm projection length for deeper tool reach Precision alignment for repeatable machining The DIN 69871 Form AD interface combined with the SK40 taper ensures a stable machine-to-tool connection that reduces runout and improves reproducibility. With a 6 mm clamping diameter and H4 bore tolerance, the holder delivers consistent concentricity across tool changes, so the machining process requires fewer adjustments and yields more predictable part quality. This precision is especially beneficial where tight tolerances are demanded and where repeatable setup saves time in series production. Fast, secure tool retention for reduced downtime Equipped with a Weldon shank (drive flat) and designed to accept cylindrical shank cutters to DIN 1835‑B, the chuck provides positive lateral drive and reliable torque transmission. The 50 mm projection (A: 50 mm) gives extra reach while keeping the tool firmly seated, which reduces the risk of slippage under cutting loads. Faster tool exchanges and secure retention translate into improved throughput and less unplanned downtime during machining cycles. Built for standardised workflows and dependable supply The holder is manufactured to familiar industry norms, supporting straightforward integration into existing tool inventories and machine setups. The combination of standard conformity and measurable specifications—such as the H4 bore tolerance and the 25 mm body diameter—facilitates predictable performance across tool fleets. Supplied through Metav Werkzeuge from Emmerich, the product benefits from a quality filter and a dependable logistics backbone that helps maintain uninterrupted workshop operation. For enquiries about SK40 tooling, spindle compatibility or delivery from Metav Werkzeuge, contact our advisers for a personalised recommendation and prompt supply from Emmerich. Technical Data Article number: 2000833717NW Norm: DIN 69871 Form AD Product type: Face clamping chuck (Flächenspannfutter) Brand: TECWERK Facts Diameter (D): 25 mm Clamping diameter (d): 6 mm Projection/length (A): 50 mm Bore tolerance: H4 Spindle taper: SK40 Special features Weldon shank (lateral drive flat) For tools with cylindrical shank to DIN 1835‑B Steep taper per DIN 69871 Form AD Designed for repeatable, positive drive and secure retention FAQ What machines are compatible with this holder? The TECWERK face clamping chuck is designed for machines with an SK40 spindle taper and a DIN 69871 Form AD interface; compatibility depends on the machine spindle matching these standards. Which tool shank types can be used with this chuck? Tools with a cylindrical shank and a lateral drive flat to DIN 1835‑B are suitable for this Weldon-style face clamping chuck (SKU 2000833717NW). How does the H4 bore tolerance affect performance? The H4 bore tolerance ensures a tight, concentric fit around the clamping bore, reducing runout and improving repeatability during tool changes for consistent machining results. Is the 50 mm projection suitable for deep operations? The A: 50 mm projection provides extra reach while maintaining a secure connection; it is suitable for operations requiring modest additional tool length without compromising stability. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
25mm Face Clamping Chuck With 6mm Weldon Collet, Internal Coolant, DIN 69893 Form A - TECWERK
Benefit from a HSK‑A63 interface built to DIN 69893 Form A and integrated internal cooling for stable runs and effective chip evacuation; the Weldon 6 mm clamping diameter and lateral drive to DIN 1835 B ensure secure tool holding and repeatable positioning. Order this face clamping chuck directly via Metav Werkzeuge or consult their specialists for application advice. Face clamping chuck DIN 69893 Form A — HSK‑A63, 6 mm Weldon (TECWERK) A Face clamping chuck DIN 69893 Form A for HSK‑A spindles, designed to clamp cylindrical‑shank tools with internal coolant and side cooling channels for improved tool life and process stability HSK‑A63 interface (DIN 69893 Form A) — compact design Internal coolant for efficient chip removal Weldon clamp with 6 mm clamping diameter Side drive surface to DIN 1835 B specification Stable interface for consistent machining quality The hollow shank taper to DIN 69893 Form A provides a rigid and concentric connection to the spindle, which reduces runout and vibration. This stable interface supports consistent cutting conditions, helping to maintain dimensional accuracy and surface finish across production runs. The combination of standard conformity and solid mechanical design means the holder is suitable for machining environments that demand precision and repeatability. Integrated coolant and cooling channels extend tool life Equipped with internal coolant and side cooling channels, the holder actively directs cutting fluid to the cutting edge and the clamped area. This targeted coolant flow improves chip evacuation, lowers cutting temperatures and reduces thermal distortion during high‑load operations. The result is extended tool life and fewer unplanned tool changes, which supports higher uptime and lower operating costs over time. Secure clamping and standardised drive for reliable power transmission The Weldon clamping arrangement with a 6 mm clamping diameter provides secure axial and radial retention for cylindrical‑shank tools, while the lateral drive face conforms to DIN 1835 B, ensuring positive torque transmission. Bore tolerance H4 ensures a precise fit for tool shanks, reducing micro‑movement under load. These features together provide robust load transfer and make the holder appropriate for moderate to heavy milling and drilling tasks. Designed for workshop and production use with trusted supply This tool holder is engineered for integration into both busy shop floors and organised production lines: compact dimensions (A = 65 mm, D = 25 mm) allow close tool spacing, while standard interfaces simplify tool‑presetting and inventory management. Supplied by Metav Werkzeuge, the offering is backed by a broad portfolio and decades of distribution experience — a combination that supports dependable supply and a practical "quality filter" for the European market. The holder blends practical durability with industrial standards to meet modern machining demands. Contact Metav Werkzeuge in Emmerich for tailored advice on integrating this TECWERK HSK‑A63 holder into production. Technical Data Article number: 2000833835NW Manufacturer: TECWERK Product type: Face clamping chuck Interface: HSK‑A Data Length A: 65 mm Diameter D: 25 mm Clamping Ø d: 6 mm Bore tolerance: H4 Special features Hollow shank taper to DIN 69893 Form A Internal coolant Side cooling channels for cylindrical shank tools Lateral drive surface to DIN 1835 B FAQ What spindle interface does this holder use? The holder uses an HSK‑A63 spindle interface, compliant with DIN 69893 Form A, which is specified for rigid, low‑runout tool connections. Can this chuck supply coolant to the cutting zone? Yes, the TECWERK face clamping chuck is equipped with internal coolant and side cooling channels that deliver coolant directly to cylindrical‑shank tools to aid chip evacuation. What clamping diameter is supported by the Weldon feature? The Weldon clamping arrangement accommodates a 6 mm clamping diameter, ensuring secure retention for suitable tool shanks. Is the drive transmitted via a standardised lateral face? Drive is transmitted via a lateral drive surface conforming to DIN 1835 B, providing positive torque transfer for typical milling and drilling tasks. Which SKU identifies this product for ordering? This product is listed under SKU 2000833835NW and described as a face clamping chuck by TECWERK for HSK‑A63 spindles. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
