150mm Drawbar Pull Stud With Bore, ISO 7388-3 Form AD DIN 69872 Form A, SK50 Thread M24 - TECWERK
Take advantage of a hardened, standardised retention solution that ensures consistent clamping with steep‑taper toolholders and straightforward replacement logistics; the combination of proven ISO compatibility and measured heat treatment supports longer service life and predictable maintenance intervals. Order directly via Metav Werkzeuge or consult our specialists for application-specific guidance. Retention knob ISO 7388-3 Form AD for SK50 (with bore) — TECWERK A retention knob designed for SK50 steep‑taper toolholders, compliant with ISO 7388‑3 Form AD and DIN 69872 Form A, for secure spindle clamping in heavy‑duty machining Hardened to 58± HRC for wear resistance M24 thread, ground for repeatable seating Parallel ground and blued finish for corrosion protection ISO 7388‑3 Form AD compatible with DIN 69872 Form A Secure clamping for steep‑taper toolholders The retention knob fulfils the primary need for secure, repeatable clamping of toolholders with a steep taper according to DIN 69871. Fitted to an SK50 taper, the component transfers axial pull‑out force from the spindle drawbar to the toolholder body; this results in consistent seating and minimised run‑out during machining. Specified to ISO 7388‑3 Form AD (equivalent to DIN 69872 Form A), the part ensures interchangeability across compliant systems, reducing setup time and the risk of incompatibility when replacing worn or damaged knobs. Durable construction that reduces maintenance intervals Heat treatment to 58± HRC with a controlled case depth of 0.5–0.8 mm provides a hard wearing surface at the contact zones while retaining a tough core to resist impact loads. The thread is soft‑ground to DIN tolerances to preserve engagement accuracy, and the stem is parallel ground then brünniert (blued) to offer basic corrosion protection and smooth insertion. These manufacturing steps combine to reduce fretting and galling at the clamping interface, which in turn lowers the frequency of replacements and supports uninterrupted production cycles. Clear dimensional data for correct selection and fitting Key dimensions are measured and stated to help confirm suitability for specific toolholder assemblies: M24 thread, overall length L1 74 mm, shoulder length L2 34 mm, and diameters d1 28 mm, d2 21 mm, d3 25 mm, d4 11.5 mm. Such figures allow quick cross‑checking against machine and toolholder drawings so that the correct retention geometry is chosen on first attempt. The standardised form designation further assists procurement and inventory management by matching items to existing ISO and DIN references. Operational benefits that support workflow efficiency By specifying a component that is standardised, hardened and finish‑treated, workshops gain predictable service intervals and consistent clamping performance — two factors that contribute directly to process stability and quality output. The standard form and thread mean spares can be stocked without bespoke machining or fitting, shortening downtime when a replacement is required. Coupled with Metav’s distribution and quality‑filtering approach, the solution supports reliable supply and reduces administrative overhead for maintenance planners. For technical enquiries or to source TECWERK retention knobs directly, contact Metav Werkzeuge for application advice and reliable delivery from Emmerich via info@metav-werkzeuge.com or call +49 2822 7131930 — Metav’s precision‑focused team will recommend the best option for specific spindle and toolholder combinations Technical data Article number: 2000832701NW Label: Anzugsbolzen ISO 7388-3 Form AD SK50 m.Bohr.TECWERK Manufacturer: TECWERK Product type: Retention knob Numbers / Core technical data Thread: M24 L1: 74 mm L2: 34 mm d1: 28 mm d2: 21 mm d3: 25 mm d4: 11.5 mm Hardness: 58 ± HRC Case depth: 0.5–0.8 mm Standard: ISO 7388-3 Form AD (DIN 69872 Form A) Special features / Design For toolholders with steep taper per DIN 69871 Hardened in service for wear resistance Thread soft‑ground to DIN tolerances Parallel ground and blued finish Supplied with bore for fitting Compatible with SK50 taper assemblies FAQ What taper types is this retention knob compatible with? The retention knob is intended for SK50 steep‑taper toolholders and is designed for use where DIN 69871 tapers are specified; the ISO 7388‑3 Form AD geometry matches compliant systems. What does the heat treatment specification mean for service life? A hardness of 58± HRC with a case depth of 0.5–0.8 mm gives a hardened wearing surface while preserving a tough core, which improves resistance to wear and helps extend the interval between replacements of the retention knob. Can the M24 thread be used in all drawbar systems? The M24 thread and soft‑ground machining follow DIN practices for accurate engagement; compatibility depends on the spindle drawbar thread and the toolholder assembly — confirm the M24 specification against machine documentation. How does the ISO form designation affect interchangeability? The ISO 7388‑3 Form AD designation (corresponding to DIN 69872 Form A) guarantees a standard geometry so the retention knob can be replaced with the same form across machines and suppliers without custom adaptation. Are the dimensions suitable for inventory management? Yes — stated dimensions (L1, L2, d1–d4) allow direct cross‑reference with toolholder drawings and support standard spare‑parts stocking for maintenance planning. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
150mm ER 32 Collet Set 18-Piece 3–20mm Clamping Range, 5 µm Runout Accuracy - TECWERK
Take advantage of precise clamping, broad diameter coverage and organised storage to keep machining runs reliable and efficient; order directly via Metav Werkzeuge or consult the Metav team for specification advice. TECWERK ER 32 Collet Set (470 E) — 3–20 mm range The TECWERK ER 32 Collet Set (470 E) is a compact clamping kit for general workshop milling and turning, offering precise concentricity across a broad diameter range Precise runout & repeatability 5 µm Comprehensive 18-piece range 3–20 mm Delivered in durable wooden base Designed for ER 32 collet chucks Keep spindle concentricity and tool life under control Consistent concentricity is a core factor in stable machining. The set delivers a documented runout and repeatability of 5 µm, which reduces vibration and improves surface finish on turned and milled parts. In practical terms, this level of accuracy helps maintain cutter geometry and extends tool life, while also reducing rework rates on precision components. For workshops aiming to control tolerances without complex measuring protocols, the measurable concentricity performance provides an objective basis for process decisions. One set to cover common workshop diameters A single kit that covers a wide spectrum of sizes simplifies tooling logistics. The collets span 3–20 mm in single-millimetre steps, allowing uninterrupted operation across typical bar work and small component machining. By consolidating frequently used diameters into a complete set, machining centres and small workshops reduce changeover time and the need for ad hoc purchases. This practical coverage supports leaner inventory management and helps maintain throughput on mixed-production days. Robust presentation that protects precision Supplied in a wooden base, the collets remain protected and organised when not in use, which preserves the seating faces and prevents accidental knocks that can degrade accuracy. The compact footprint (150 x 30 x 190 mm) makes bench-top storage straightforward, while clear placement prevents lost items and speeds up tool changes. Maintaining an organised toolset contributes directly to uptime: less searching, fewer damaged collets and a tidier workbench mean faster setup and more consistent machining results. Compatibility and simple integration into existing toolrooms Designed for ER 32 systems, the set is compatible with ER 32 collet chucks and integrates seamlessly into standard spindle and toolholding arrangements. The kit supports common workshop operations in both milling and turning applications and is suitable for a wide range of ferrous and non-ferrous workpieces where ER 32 clamping is specified. For buyers seeking a pragmatic balance between accuracy and usability, this collet assortment offers a straightforward route to repeatable clamping without specialised fixtures or complex changeover procedures. For purchase enquiries or technical guidance on the TECWERK ER 32 Collet Set (470 E), contact Metav Werkzeuge for personalised advice and reliable supply from Emmerich Technical Data Article number: 2000832784NW Model: ER 32 (470 E) Product type: Collet set Manufacturer: TECWERK Dimensions: 150 x 30 x 190 mm Facts Clamping range: 3–20 mm Runout / Repeatability: 5 µm Content: 18 pieces Height: 30 mm Width: 150 mm Length: 190 mm Special features Delivered in wooden base Compatible with ER 32 collet chucks Sizes supplied: 3–20 mm (3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20) Packaging: wooden base FAQ What sizes are included in the set? The TECWERK ER 32 collet set (470 E) includes collets covering the range 3–20 mm in single-millimetre steps; the SKU is 2000832784NW. Is the set suitable for ER 32 chucks used in milling spindles? Yes, the set is designed for compatibility with ER 32 collet chucks and can be used in standard milling and turning toolholding applications. What accuracy can be expected from the collets? Measured runout and repeatability are specified at 5 µm, providing tight concentricity for precision machining tasks. How are the collets supplied and stored? The collets are supplied in a wooden base, which protects the clamping faces and keeps the set organised for the workshop. Can this set reduce tool change and setup times? By covering a broad diameter range in one kit and keeping sizes clearly arranged, the set helps to reduce changeover time and simplify setup procedures. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
150mm ER Collet Chuck 1–7mm Clamping Range Cylindrical Shank 16mm - TECWERK
Take advantage of precise, repeatable clamping and a compact shank design for reliable small-tool machining; order the chuck via Metav Werkzeuge or consult the team for application advice. TECWERK ER collet chuck – 16 mm shank, 1–7 mm clamping range A TECWERK ER collet chuck designed to clamp cylindrical-shank tools securely in ER collets, suitable for general workshop and light production use ER 11 collet interface, DIN 6499 compatible Cylindrical shank D 16 mm, shank length 150 mm Clamping range 1–7 mm for small-diameter tools Precise clamping for repeatable machining outcomes The ER 11 interface in this collet chuck provides a high degree of concentricity, making it suitable for operations where runout and repeatability matter. With a clamping range of 1–7 mm, the chuck accommodates a wide selection of small drills, reamers and end mills, while ensuring secure axial grip. The design minimises vibration and improves surface finish by keeping radial runout low; this is a practical advantage for shorter tools and fine-detail work. The compact size and standard interface also support straightforward replacement of worn collets and predictable tool behaviour across production runs. Robust shank and geometry for stable toolholding Built with a cylindrical shank (D 16 mm) and a lateral clamping surface, the chuck offers stable seating in toolholders and spindles that accept a 16 mm straight shank. The extended shank length (150 mm) and an indicated L1: 20 mm datum allow reliable axial positioning and force transmission during cutting. Compatibility with collets to DIN 6499 simplifies integration into existing fixtures and reduces the need for special adaptors. This construction translates directly into less tool chatter, improved dimensional control and a consistent feel during machining tasks. Practical benefits for workshops and small production runs The compact form factor and standardised interface make this chuck a pragmatic choice for machining shops, maintenance departments and toolrooms that require fast changeovers and dependable clamping of small-diameter tools. The mechanical simplicity supports low-maintenance operation and easy inspection; worn or damaged collets can be replaced quickly to restore original performance. For operations aiming to reduce downtime and maintain consistent part quality, the combination of ER collet technology and a straight 16 mm shank offers a balanced solution between flexibility and stability. Contact Metav Werkzeuge for tailored technical advice and to arrange supply of the TECWERK ER collet chuck through the Metav distribution network. Technical data Article number: 2120619001NW Product designation: TECWERK ER collet chuck Collet interface: ER 11 Manufacturer: TECWERK Facts Clamping range: 1–7 mm Shank diameter: 16 mm Shank length: 150 mm L1: 20 mm Special features Cylindrical shank with lateral clamping surface For clamping cylindrical-shank tools Compatible with collets to DIN 6499 FAQ Which collet series fits this chuck? The chuck uses ER 11 collets in accordance with DIN 6499, so ER 11 collets sized for the required tool diameters are compatible with the TECWERK ER collet chuck (SKU 2120619001NW). What tool diameters can be clamped? The clamping range is 1–7 mm, allowing secure holding of small drills, reamers and miniature end mills within that diameter span when the appropriate ER 11 collet is fitted. Is the chuck suitable for heavy milling operations? This collet chuck is optimised for small-diameter toolholding and light to moderate machining; for heavy milling with larger cutters, a chuck with a larger interface or different clamping concept would be more suitable than the TECWERK ER collet chuck. How does the 16 mm shank affect installation? The 16 mm cylindrical shank provides a standardised mounting diameter for toolholders and adaptors; its length and lateral clamping surface support stable seating and simple integration into compatible spindles or adaptors. Can worn collets be replaced to restore performance? Yes, replacing worn ER 11 collets restores clamping accuracy and concentricity; the chuck is designed for routine collet replacement to maintain consistent machining quality. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
150mm ER Collet Chuck 2-20mm Clamping Range Cylindrical Shank D50 L35 - TECWERK
Take advantage of a robust combination of precise clamping, a wide clamping range, and proven compatibility with ER32 collets for a dependable toolholding solution in workshops and production lines. Order the chuck directly via Metav Werkzeuge or consult the Metav team for specification matching and procurement. TECWERK ER collet chuck — clamping range 2–20 mm, Ø 50 mm body A TECWERK ER collet chuck designed for secure clamping of cylindrical‑shank tools in ER32 collets, suitable for workshop and CNC toolholding applications ER 32 compatibility, DIN 6499 Clamping range 2–20 mm Diameter 50 mm body Cylindrical shank with lateral clamp face Accuracy that improves part quality and repeatability The ER collet chuck delivers a concentrated clamping force across the tool shank, which reduces runout and supports consistent machining results. Compatibility with ER32 collets and adherence to DIN 6499 ensure standardised interfaces, simplifying collet selection and replacement. The compact diameter 50 mm body provides torsional rigidity, so cutters and drills run truer and produce a finer surface finish with less rework. Secure grip and fast tool changes for higher uptime Featuring a cylindrical shank and a lateral clamping surface, the chuck offers reliable axial and radial support for cylindrical‑shank tools. The wide clamping range 2–20 mm covers a broad selection of tool diameters without frequent collet swaps, reducing set‑up time. The result is improved machine availability and a measurable increase in productivity when scheduling short production runs or rapid tool changes. Designed for straightforward integration into existing toolholding systems The chuck is prepared for use with standard ER collets and common toolholders, allowing smooth insertion into established workflows and quick retrofits on milling spindles and adaptors. Its standardised interface and compact form factor enable simple alignment and predictable concentricity. The use of standard collets supports stock consolidation and lowers tooling overhead in the long term. Trusted supply and expert support from Metav Metav combines wide product availability with an emphasis on accessible precision. With a broad range of metrology and workshop solutions, Metav supplies consistent stock levels from Emmerich and provides clear ordering and delivery information. For customers requiring specification matching or clarification of application suitability, Metav offers direct consultation and transparent order handling to keep production moving. For procurement of the TECWERK ER collet chuck with ER32 compatibility, contact Metav Werkzeuge for specification advice and ordering — eMail info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 2120620191NW Product: Spannzangenfutter ER (ER collet chuck) Brand: TECWERK Facts Collet size: ER 32 Clamping range: 2–20 mm Diameter: 50 mm Special features Cylindrical shank Lateral clamping surface For tools with cylindrical shank to DIN 6499 FAQ What collet size is required for this chuck? This chuck is specified for ER32 collets; ER32 collets to DIN 6499 match the chuck interface. Which tool diameters can be clamped with this chuck? The clamping range covers 2–20 mm, allowing secure holding of many common cutter and drill shank sizes. Is the chuck suitable for CNC milling and workshop use? Yes, the design and standard ER32 interface make the chuck suitable for both CNC and manual workshop applications where cylindrical‑shank tools are used. How does the chuck improve machining repeatability? The concentrated clamping and rigid diameter 50 mm body reduce runout and slippage, which improves repeatability and surface finish consistency. Can this chuck be ordered through Metav Werkzeuge? The item with SKU 2120620191NW (TECWERK ER collet chuck) is available via Metav Werkzeuge; contact info@metav-werkzeuge.com or phone +49 2822 7131930 for assistance Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
150mm HSK63 Tool Holder Table Block 15-Slot, Polypropylene, Acid and Coolant Resistant - TECWERK
Take advantage of a compact, chemical‑resistant polypropylene table block that organises HSK63 tool fittings while remaining lightweight and robust; order the tool directly via Metav Werkzeuge or ask our consultants for application advice. Tool holder HSK63 polypropylene table block – 15-place, compact footprint (TECWERK) The tool holder HSK63 polypropylene table block is a compact storage solution designed to keep HSK63 tool fittings organised and protected at the workstation or in CNC toolrooms. HSK63-compatible storage system Polypropylene, chemical-resistant construction Impact- and shatter-resistant design Compact footprint 360 x 245 x 150 mm Lightweight at 360 g Organised storage that speeds up workflow A dedicated table block for HSK63 shanks ensures fast access to frequently used tool fittings, reducing search time and supporting a smoother production flow. The design focuses on clear tool allocation and quick visual identification, which helps standardise tool handling across a bench or toolroom. With a layout for multiple positions, the block improves inventory control and keeps the working area tidy while supporting consistent machining setup routines. Durable, chemically resistant material for workshop use Manufactured from polypropylene, the block combines low weight with high resistance to common workshop fluids. The acid- and coolant-resistant composition means the unit endures exposure to cutting fluids without degrading, while the impact- and shatter-resistant properties reduce the risk of damage during daily handling. For maintenance staff and production teams, this translates into a storage solution that remains serviceable under typical industrial stresses and simplifies cleaning and chemical exposure management. Practical dimensions and ergonomic handling With a compact footprint of 360 x 245 x 150 mm and a gross mass of 360 g, the storage block is easy to position on benches, inside cabinets or close to a CNC machine for immediate access. The moderate size preserves valuable bench space while offering multiple tool positions in a single block, enabling shorter tool-change distances and a neater layout. The lightweight construction supports flexible placement and straightforward repositioning when workflows change. Suitable applications and workshop integration The product is tailored to production and maintenance environments that use HSK63 toolholders, such as CNC workshops, precision maintenance stations and assembly benches. Its polypropylene construction is particularly advantageous where resistance to lubricants and cleaning agents is required. The table block's layout supports orderly tool storage and clear tool identification, aiding setup consistency and lowering the likelihood of handling errors during shift changes or batch operations. For enquiries about suitability, compatibility or delivery of this TECWERK HSK63 storage solution, contact Metav Werkzeuge for expert advice and ordering at info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 9000453683NW Manufacturer: TECWERK Product type: Tool holder Dimensions & weight Width: 360 mm Depth: 245 mm Height: 150 mm Weight: 360 g Features & materials Shank type: HSK63 Table block for 15 tool positions Material: Polypropylene Colour: black Acid- and coolant-resistant Impact- and break-resistant FAQ What shank type is this storage block designed for? The storage block is designed for HSK63 shank tool fittings and positions compatible HSK63 holders securely. Is the block resistant to cutting fluids and cleaning agents? Yes, the polypropylene construction is acid- and coolant-resistant, making the block suitable for environments where exposure to lubricants and coolants occurs. How portable is the table block for repositioning at the workbench? At around 360 g, the block is lightweight and easy to move, allowing flexible placement near machines or on benches as workflow requires. Can the block withstand everyday workshop impacts? The unit is specified as impact- and shatter-resistant, providing robust performance under normal handling and reducing the risk of damage. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
150mm Radial Tool Holder B1 DIN 69880 VDI30 Right-Hand Short External Coolant - TECWERK
Take advantage of the combination of a VDI30 interface, robust short design and external coolant supply for reliable radial machining operations; order directly via Metav Werkzeuge or consult the specialists for integration advice. Radial tool holder B1 DIN 69880 VDI30 (right) — TECWERK A compact radial tool holder, Radial tool holder B1 DIN 69880 VDI30 (right) — TECWERK, designed for short, right-hand radial turning with external coolant feed for improved tool life and process stability. Form B1 short right-hand design External coolant supply for chip evacuation VDI30 interface for secure clamping Conforms to DIN 69880 standard Accurate radial turning through a rigid VDI30 interface The short B1 design combined with the VDI30 interface delivers a stable connection between turret and tool body, which reduces vibration and increases repeatability in radial operations. For production environments where setup time and tolerance adherence are critical, this configuration improves component consistency and minimises rework. The compact geometry also supports tighter tool-to-workpiece clearances, enabling efficient turning cycles without compromising rigidity. Coolant-through design that protects inserts and improves finishes Built with an external coolant supply, the holder guides cutting fluid directly to the cutting edge, promoting effective cooling and chip evacuation. This targeted coolant delivery helps to preserve insert life and maintain surface quality on turned parts, especially during longer cycles. The coolant provision also reduces thermal distortion of the tool assembly, which supports dimensional stability across batches and contributes to predictable machining outcomes. Standard conformity for straightforward integration and tooling choice Conformity with DIN 69880 ensures compatibility with established turret systems and facilitates tool planning across machines that accept the standard. The holder’s Form B1 layout and right-hand orientation make it suitable for conventional radial operations where space is constrained but reliable clamping is required. Clear, standardised dimensions simplify fixture planning and spare-part management, reducing procurement complexity and downtime in production. Designed for workshop efficiency and reliable performance The assembly’s short form factor and external coolant feature contribute to leaner setups and easier access when adjusting tool positions. The construction focuses on secure clamping and uncomplicated replacement, which aids maintenance cycles and keeps machine availability high. For workshops seeking a low-friction route to consistent radial machining, the combination of compact design and standard interfaces offers both operational predictability and straightforward serviceability. Contact Metav Werkzeuge in Emmerich for stock and technical integration support — phone +49 2822 7131930 or eMail info@metav-werkzeuge.com — specialists available to advise on fitment and application. Technical Data Article number: 2000833588NW Label: Radial tool holder B1 DIN 69880 VDI30 right, TECWERK Product type: Radial tool holder Form: B1 Packaging unit: 1 UID: 2000833588NW Dimensions & Core Data h1: 20 mm b2: 35 mm d1: 30 mm h5: 28 mm b3: 10 mm h6: 38 mm l2: 40 mm l1: 22 mm b1: 70 mm Special features Right-hand, short design External coolant supply Standard: DIN 69880 Interface: VDI30 Form: B1 FAQ What turret interface does this holder use? The holder uses the VDI30 interface, enabling secure and standardised clamping on compatible turrets. Is the coolant supplied through the tool? Yes. The radial tool holder provides an external coolant supply that directs fluid toward the cutting zone to aid chip removal and cooling. Does this holder follow an industry standard? The design conforms to DIN 69880, allowing straightforward integration with machines and tool systems that rely on this standard. Is the design suitable for left-hand turning? No. The design is a right-hand short form (Form B1); left-hand operations require a corresponding left-hand holder. Which identifier should be quoted when ordering or enquiring? Reference the article number 2000833588NW and the label Radial tool holder B1 DIN 69880 VDI30 right, TECWERK for clear identification. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
150mm Radial Tool Holder B2 DIN 69880 VDI40 Left Coolant Through, Short Form B2 - TECWERK
Take advantage of the short left‑hand B2 design and external coolant supply for compact, high‑precision toolset-ups; the holder’s VDI40 interface and DIN 69880 conformity enable fast integration into standard turret systems. Order the radial tool holder directly via Metav Werkzeuge or consult our specialists for configuration advice. Radial tool holder B2 DIN 69880 VDI40 (left‑hand) — short, external coolant by TECWERK Radial tool holder B2 DIN 69880 VDI40 (left‑hand) is a compact, short radial holder intended for VDI40 tool turrets and designed for applications requiring external coolant delivery and space‑saving orientation Short left‑hand B2 design for compact set‑ups External coolant supply for improved tool life VDI40 interface, DIN 69880 standardised Precision dimensions: h1 25 mm, d1 40 mm Space‑saving design that simplifies turret integration The short B2 geometry reduces projection length while maintaining robust support for tool assemblies, making it suitable for confined machining cells and multi‑tool turrets. Thanks to the VDI40 interface and adherence to DIN 69880, the holder allows quick mechanical interchangeability and predictable positioning accuracy. This compact form helps to reduce vibration and facilitates closer tool spacing, which benefits cycle times and process stability. Controlled coolant delivery for longer cutting life External coolant routing channels in the holder provide a consistent supply to the cutting edge, supporting improved chip evacuation and local temperature control. The combination of directed coolant and reduced overhang diminishes thermal stress on inserts, which often translates into longer tool life and fewer tool changes in serial production. For operations that depend on repeatability, this feature contributes directly to predictable maintenance intervals. Precise dimensions for predictable set‑ups Key measurements such as h1 = 25 mm, d1 = 40 mm and a compact body width ensure repeatable seating and alignment in standard VDI40 turrets. These measurable specifications make it straightforward to plan fixture clearances and to calculate avoidance of collisions during tool changes. Where process engineers require exacting data for CAM simulation or turret layout, the clear dimension set reduces uncertainty and planning iterations. Robust standardisation and application versatility Conforming to DIN 69880 and the VDI40 mounting standard, this radial holder integrates into a wide range of lathes and multi‑tasking machines without custom adaptors. The left‑hand orientation is ideal for certain turning and mill‑turn tool sequences where approach angles and toolpaths demand mirrored tool positions. As a standardised component, it supports modular toolroom strategies and simplifies inventory management for workshops and subcontractors. For guidance on selecting the TECWERK left‑hand B2 radial holder and to arrange prompt delivery from Metav Werkzeuge in Emmerich, contact info@metav-werkzeuge.com or call +49 2822 7131930. Technical data Article number: 2000833648NW Product name: Radial tool holder B2 DIN 69880 VDI40 left‑hand Product type: Radial tool holder Form: B2 Manufacturer: TECWERK Packaging unit: 1 Core dimensions h1: 25 mm b2: 42.5 mm d1: 40 mm h5: 32.5 mm b3: 12.5 mm h6: 48 mm l2: 44 mm l1: 22 mm b1: 85 mm Features / Standards Left‑hand orientation Short design for compact assemblies External coolant supply (outer coolant feed) Standard: DIN 69880 Interface: VDI40 FAQ What turret interface does this holder use? The holder uses the VDI40 interface in accordance with DIN 69880, ensuring compatibility with standard VDI40 turrets. Is the coolant routed internally or externally? This TECWERK radial holder provides external coolant supply (outer coolant feed) to support directed coolant delivery to the cutting zone. For which tool orientation is this holder designed? The component is a left‑hand B2 radial tool holder, intended for applications that require mirrored tool placement. Can this holder be used in compact multi‑tool turrets? Yes, the short B2 design is specifically intended to save space and allow closer tool spacing in multi‑tool turrets and tight set‑ups. Which dimensions are critical for planning the turret layout? Primary planning values include h1 = 25 mm and d1 = 40 mm, alongside the listed body widths and lengths for collision checking and CAM setup. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
150mm Radial Tool Holder B2 Left Short External Coolant DIN 69880 - TECWERK
Take advantage of the compact B2 geometry and the VDI30 / DIN 69880 interface for reliable left‑hand radial operations; the short design and external coolant feed improve rigidity and tool life while keeping setup time to a minimum — order or request advice via Metav Werkzeuge if further details are required. Radial tool holder B2 VDI30 (left‑hand, short) by TECWERK The Radial tool holder B2 DIN 69880 VDI30 is a compact left‑hand holder for radial tool mounting in CNC machines, designed for short overhangs and external coolant supply to support precise milling and turning operations Form B2, short left‑hand design External coolant supply (outer feed) DIN 69880 interface, VDI30 taper Compact geometry for improved rigidity Standardised interface for predictable repeatability The holder uses the VDI30 taper and complies with DIN 69880, which guarantees repeatable seating and straightforward interchangeability across compatible tool turrets and adaptors. This standardisation reduces changeover times and simplifies tool management in production environments. With a defined seating height and interface specification, fixture repeatability is improved, leading to more consistent component quality and fewer rework cycles. The specification supports efficient process planning in mixed‑machine workshops and small series manufacturing. External coolant and left‑hand orientation for cleaner cuts The left‑hand configuration combined with external coolant feed enables targeted coolant delivery to the cutting zone while keeping chips directed away from the spindle. Focused coolant supply reduces tool wear and helps maintain surface finish, which is particularly beneficial when working with challenging materials or when tight tolerances are required. The external feed also minimises internal passages that can clog, offering a pragmatic advantage for operations that prioritise uptime and predictable maintenance intervals. Short overhang and compact dimensions for greater rigidity The short B2 form factor with a reduced overhang improves stiffness at the cutting edge, translating into better vibration damping and enhanced surface quality. Key dimensions such as h1: 20 mm, b1: 70 mm, l1: 22 mm and l2: 40 mm define a compact envelope that supports radial tool positions close to the turret face. This geometry is ideal for applications where space is limited but high stiffness is required, for example in precision toolrooms, contract machining shops and production cells aiming for consistent tool life and reduced scrap rates. Choose the TECWERK radial tool holder for robust left‑hand radial operations and contact Metav Werkzeuge for specification support and ordering at info@metav-werkzeuge.com or +49 2822 7131930 Technical data Article number: 2000833647NW Product type: Radial tool holder Brand: TECWERK Form: B2 Standard: DIN 69880 / VDI30 Dimensions h1: 20 mm b1: 70 mm b2: 35 mm d1: 30 mm h5: 28 mm h6: 38 mm l2: 40 mm l1: 22 mm b3: 10 mm Special features Left‑hand orientation Short design (compact overhang) External coolant feed (outer supply) Suitable for radial mounting in turret systems FAQ Is this holder compatible with VDI30 tool turrets? The radial tool holder B2 DIN 69880 VDI30 is designed for VDI30 interfaces and fits turrets and adaptors that follow the same standard. Does the holder provide internal coolant or external coolant only? This variant features external coolant supply (outer feed) to deliver coolant directly to the cutting zone while avoiding internal coolant passages. Can this left‑hand holder be used for right‑hand operations? The unit is a left‑hand configuration; for right‑hand radial operations a corresponding right‑hand holder is required. What advantages does the short B2 form offer in practice? The short B2 geometry reduces overhang, increasing rigidity and improving vibration control for finer surface finishes and longer tool life. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
150mm Radial Tool Holder B3 DIN 69880 VDI30 Right Overhead Short External Coolant - TECWERK
Take advantage of the combination of VDI30 compatibility, compact form B3 geometry and integrated external coolant routing to secure consistent process results and reduced tool change times. Order the holder through Metav Werkzeuge or consult our team for technical advice and delivery from Emmerich. Radial Tool Holder B3 DIN 69880 VDI30 – right-handed, short, external coolant (TECWERK) The Radial Tool Holder B3 DIN 69880 VDI30 is a right-handed, short over‑head holder designed for turret tool posts on CNC lathes and machining centres, offering standardised mounting and an outer coolant feed for stable, high‑precision turning. Form B3, right-handed overhead design External coolant feed for focused cooling VDI30 interface for standard tool posts Short overhang to reduce deflection Improved rigidity for consistent surface finish The holder is built to the DIN 69880 specification with a VDI30 interface, providing a standardised connection that reduces setup variability and keeps runout low. The compact form B3 geometry and short overhang minimise bending moments during cutting; this translates into more consistent surface finish and extended insert life. For production environments where repeatability matters, the mechanical design supports stable machining cycles and predictable part quality. Controlled coolant delivery to extend tool life With an external coolant feed, the coolant is routed directly towards the cutting edge rather than relying on through‑tool passages. Focused coolant application helps to control temperatures and clear chips from the cutting zone, which reduces thermal wear and edge degradation. The result is improved cycle times and lower tooling costs per component when machining steels and non-ferrous materials under moderate to heavy cutting conditions. Compact layout for tight turret configurations The short, overhead arrangement permits closer tool spacing on VDI turrets and reduces interference with adjacent tools and workpieces. The compact dimensions—such as h1 20 mm, b1 70 mm and d1 30 mm—enable denser toolpacks and faster tool index times, supporting efficient multi‑operation turning programmes. Compatibility with common turret standards simplifies retrofitting and shortens commissioning on new installations. Practical benefits for the workshop The radial holder’s standard format cuts down on custom adaptation and supports predictable maintenance cycles. Its clear, standard interfaces and measured dimensions make tool planning straightforward and reduce setup errors. When combined with a reliable procurement partner, this holder becomes a simple way to increase throughput without complex machine modification, while maintaining the repeatability demanded in small‑batch and series production. Contact Metav Werkzeuge for technical matching, availability and rapid delivery from Emmerich—our experts will advise on integration into existing VDI30 turrets and help specify the right holder geometry for the process. Technical Data SKU: 2000833649NW Article name: Radial tool holder B3 DIN 69880 VDI30 right overhead TECWERK Manufacturer: TECWERK Product type: Radial tool holder Packaging unit: 1 UID: 2000833649NW Facts h1: 20 mm b1: 70 mm b2: 35 mm d1: 30 mm h5: 38 mm b3: 10 mm h6: 35 mm l2: 40 mm l1: 22 mm Special features Form B3 Right-handed, overhead orientation Short overhang design External coolant feed (outer coolant routing) Standard: DIN 69880 Interface: VDI30 FAQ What machines is this holder compatible with? The holder is designed for turrets with a VDI30 interface and is suitable for CNC lathes and machining centres that accept standard VDI tool posts; the short form B3 geometry aids integration in compact turret layouts. Does the holder provide internal coolant supply? This version features an external coolant feed (outer coolant routing) that directs coolant to the cutting zone rather than through the shank. How does the short overhang affect machining? A reduced overhang lowers bending forces and vibration, improving surface finish and extending insert life when machining with the Radial Tool Holder B3 DIN 69880 VDI30. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
150mm Radial Tool Holder B3 Right Overhead Short External Coolant DIN 69880 - TECWERK
Take advantage of the combination of VDI40 standard compatibility, compact Form B3 geometry and direct external coolant feed for efficient turret tooling and low changeover times. Order the radial tool holder directly via Metav Werkzeuge or consult our advisors for integration support. Radial tool holder B3 DIN 69880 VDI40 — right‑handed, short (TECWERK) A radial tool holder B3 DIN 69880 VDI40 crafted for short, right‑handed over‑head turret applications with external coolant supply, ideal for compact milling stations and CNC turret lathes Form B3, short design for compact setups Right‑hand orientation for over‑head machining External coolant supply for direct lubrication Precision and repeatability for turret-mounted tooling The VDI40 interface and DIN 69880 conformity ensure consistent seating and repeatable concentricity when mounted in turret stations, which translates into reliable machining tolerances and fewer rejects. The axial and radial design parameters minimise runout and vibration during high‑speed indexing, so cycle times remain stable. This precision component is particularly relevant for shops requiring tight positional accuracy in multi‑tool turning and milling operations. Compact layout that reduces set‑up time and improves coolant delivery Designed as a short radial holder in Form B3, the geometry reduces tool overhang while providing an external coolant channel for direct lubricant delivery to the cutter. Reduced overhang lowers bending moments and extends cutter life, while the targeted coolant path helps evacuate chips and maintain cutting edge temperature, improving surface finish and productivity. The compact configuration supports denser tool layouts on the turret, enabling more tools per station and fewer turret changes. Practical installation and compatibility benefits The component's dimensions (e.g. h1 25 mm) and standardised VDI40 mounting simplify selection and integration into existing systems. The right‑hand over‑head orientation suits machining centres and turret lathes configured for external‑tool access, and the short length shortens tool projection, helping to avoid collisions in confined set‑ups. Where machine operators require predictable behaviour under cutting forces, this holder offers a conservative, mechanical solution that prioritises stability and serviceability. Operational advantages and workshop value Using a standardised radial holder like this one reduces inventory complexity, as the VDI40/DIN 69880 interface is widely adopted in industry, enabling cross‑compatibility with many turrets and adapters. The combination of compact form, direct coolant feed and repeatable mounting lowers total operating cost by reducing tool wear and machine downtime. For procurement and maintenance teams, the unit supports a pragmatic approach to tooling standardisation without compromising on performance. Contact Metav Werkzeuge today for fitting advice or to discuss integration with existing turret tooling — Metav’s specialists in Emmerich provide practical recommendations and rapid delivery solutions Technical data Article number: 2000833650NW Product type: Radial tool holder Standard: DIN 69880 Form: B3 Orientation: Right‑hand, over‑head Coolant: External feed Dimensions h1: 25 mm b2: 42.5 mm d1: 40 mm h5: 48 mm b3: 12.5 mm Features Short design for compact tool projection External coolant supply for direct lubrication Right‑hand over‑head configuration VDI40 interface compatibility l2: 44 mm, l1: 22 mm, b1: 85 mm, h6: 42.5 mm FAQ What machines is this radial tool holder compatible with? The radial tool holder B3 DIN 69880 VDI40 is compatible with turret lathes and machining centres that accept VDI40 interfaces and are configured for right‑hand, over‑head radial tooling. Does the tool holder provide coolant to the cutting edge? Yes, the unit features an external coolant feed that channels lubricant directly towards the cutter, improving chip evacuation and tool life. How does the short Form B3 benefit workshop efficiency? The short design reduces tool overhang, lowers bending moments and enables denser tool layouts on the turret, which can shorten changeover frequency and improve throughput. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
150mm Radial Tool Holder B4 DIN 69880 VDI40 Left Overhead Short External Coolant - TECWERK
Take advantage of a compact, standardised tooling solution that combines VDI40 compatibility, DIN 69880 conformity and an external coolant supply for consistent machining results; order directly via Metav Werkzeuge or contact the consultants for application advice. Radial tool holder B4 VDI40 (left, over-head) – TECWERK, DIN 69880, short The Radial tool holder B4 VDI40 is a short, left-hand, over-head tool mount designed for standardised turret interfaces and radial machining in compact tool stations. Form B4, left-hand over-head design VDI40 interface for standard turrets External coolant delivery for improved tool life Short version for confined tool setups Precision and compatibility for dependable machining The holder is engineered around the VDI40 taper and the DIN 69880 standard, which together ensure repeatable seating and straightforward interchangeability across compatible turret systems. By adopting a standard interface and Form B4 geometry, the design reduces setup variability and supports consistent concentricity during radial operations. This repeatability contributes directly to predictable part tolerances and lower scrap rates, making the component suitable for production and repair environments that require reliable fixture behaviour. Effective coolant delivery that supports longer tool life An external coolant channel feeds directly to the cutting edge area, enabling targeted flushing of chips and improved heat dissipation. Focused coolant supply minimises thermal growth and helps maintain cutting-edge integrity, which in turn reduces wear and the frequency of tool changes. For operations where surface finish and tool longevity matter, the combination of directed cooling and secure tool mounting yields tangible efficiency gains and more stable cycle times. Compact format for constrained tool stations The short over-head design reduces overhang and increases rigidity compared with longer radial holders, aiding vibration suppression in tight setups. Reduced projection is particularly useful on multi-tool turrets or small lathes where clearance is limited; it permits more aggressive feeds without sacrificing stability. The compact form therefore supports higher effective cutting parameters on small to medium-sized workpieces while keeping the machine envelope optimised. Robust mounting and straightforward integration The component provides a secure interface for radial tooling with dimensions tailored for quick installation and dependable repeatability. Constructed to align with DIN 69880 specifications, the mount integrates into established tooling systems without the need for bespoke adapters. As a TECWERK product, it combines proven mechanical standards with practical design choices to simplify inventory and maintenance planning in production workshops. For tailored advice on integrating the TECWERK radial tool holder into existing turret systems, contact Metav Werkzeuge for a consultation and prompt supply from Emmerich — eMail: info@metav-werkzeuge.com · Tel: +49 2822 7131930 Technical data Article number: 2000833652NW Label: Radialwerkzeughalter B4 DIN 69880 VDI40 li.Überkopf TECWERK Product type: Radial tool holder Manufacturer: TECWERK Packaging unit: 1 Dimensions / Key measurements h1: 25 mm b1: 85 mm b2: 42.5 mm b3: 12.5 mm d1: 40 mm h5: 48 mm h6: 42.5 mm l1: 22 mm l2: 44 mm Standards / Special features Form B4 Left-hand orientation, over-head, short version External coolant supply Norm: DIN 69880 Interface: VDI40 FAQ Is this holder compatible with all VDI40 turrets? The Radial tool holder B4 VDI40 is designed to the VDI40 interface and DIN 69880 standard, so it fits turrets and adaptors that conform to those specifications. What benefit does the external coolant provide? External coolant delivery in this holder directs fluid to the cutting zone, improving chip evacuation and thermal control to extend tool life when using the Radial tool holder B4 VDI40. Can the short over-head format be used on small lathes? Yes; the short over-head design reduces overhang and increases rigidity, making it suitable for constrained tool stations and smaller turning centres. Which mounting dimensions are critical for integration? Critical measurements include the interface type VDI40 and the key geometry values listed in the technical data, which determine seating and clearance for the holder. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
150mm SK40 Tool Holder For Assembly System, Compatible With DIN 69871/JIS B/DIN 2080 - TECWERK
Take advantage of a standards-based interface and trouble-free integration for consistent production results; the combination of a true SK40 taper, conformity to DIN 69871 / JIS B / DIN 2080, and a compact single-piece design supports reliable toolholding and efficient setup. Order the adapter directly via Metav Werkzeuge or consult the team for application advice. SK40 Mounting Adapter (Holder for Montagesystem) — SK40 taper, TECWERK compatibility SK40 Mounting Adapter for mounting-system use; provides a standardised toolholder interface for machine and workshop installations. SK40 taper according to DIN 69871 / JIS B / DIN 2080 Compatible with Montagesystem Art.-Nr. 2000832115 Precision interface for reliable toolholding Single-piece design for straightforward mounting Engineered for dependable, low run-out toolholding The adapter uses the SK40 taper standard to create a repeatable, concentric connection between spindle and tooling. Conformity with DIN 69871, JIS B and DIN 2080 means the interface matches common international tooling systems, reducing adaptation time and enabling predictable machining results. The standardised taper reduces radial run-out and vibration risk, which leads to improved surface finish and longer tool life — a clear efficiency gain for production and maintenance processes. Fast integration with existing TECWERK mounting systems Designed specifically for the TECWERK mounting environment, the interface is marked as compatible with the Montagesystem Art.-Nr. 2000 832 115, facilitating direct replacement or upgrade without redesign. The precision interface and compact construction support quick installation on existing fixtures and jigs, minimising machine downtime. For workshops seeking straightforward retrofits, the adapter’s adherence to established standards simplifies procurement and inventory management by enabling cross-compatibility with other SK40 tooling. Stability and workshop supply confidence for continuous operation A robust, single-piece construction delivers mechanical stability under typical workshop loads while keeping the mounting routine uncomplicated. Combined with Metav’s role as a precision partner — offering broad product range and dependable logistics from Emmerich — buyers gain both product quality and supply-chain reliability. The adapter’s standards compliance and design focus help secure process stability, so production planners can prioritise throughput and repeatability with confidence. Contact Metav Werkzeuge for tailored integration advice and secure the TECWERK SK40 adapter for swift incorporation into the mounting system. Technical data Article number: 2000832116NW Label: Aufnahme SK40 (DIN 69871, JIS B, DIN 2080) z.Montagesystem TECWERK Manufacturer: TECWERK Facts SKU / UID: 2000832116NW Packaging unit: 1 Special features Taper: SK40 (DIN 69871, JIS B, DIN 2080) Compatible with Montagesystem Art.-Nr. 2000 832 115 Product type: Holder for mounting system Enrichment note: for Montagesystem Art.-Nr. 2000 832 115 FAQ What taper standards does the adapter follow? The adapter follows the SK40 taper standard and is specified to DIN 69871, JIS B and DIN 2080 for interchangeability. Is this adapter compatible with the TECWERK mounting system? Yes — the product is described as compatible with the Montagesystem referenced as Art.-Nr. 2000 832 115 and intended for use in that mounting environment. What is the item number for ordering or reference? The SKU for the TECWERK mounting adapter is 2000832116NW and can be used for ordering and inventory tracking. Is the material specified for the adapter? The supplied product data does not include a material specification for this adapter. How many units are supplied per package? The packaging unit indicated in the product data is 1. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
150mm Swivel Assembly System Quick-Change Aluminium Housing, Indexable 4x90° - TECWERK
Combining the swivel indexing and interchangeable steel tool holders with an aluminium housing delivers a compact, robust mounting solution that enables safe, seconds-fast tool changes and minimal footprint; order the TECWERK mounting system directly via Metav Werkzeuge or consult our specialists for application advice. TECWERK Swivel Base Mounting System – Base Unit with Indexing The TECWERK swivel base mounting system is a compact clamping solution for secure and rapid exchange of tool holders in workshop and assembly environments. Swivel base with 4 x 90° indexing Aluminium housing, low space requirement Interchangeable steel tool holders Seconds-fast, secure tool change Speed up changeovers and keep production moving The swivel base is designed for fast tool changeovers, providing indexable positions that cut changeover time and reduce machine downtime. The unit’s indexable 4 x 90° arrangement offers repeatable, clearly defined tool positions, which simplifies process planning and minimises setup errors. With a form-fit fixing system, the mounting frame ensures that tools are held securely during operation, supporting consistent cycle times and reliable part quality. The overall result is a measurable improvement in operational throughput and predictable production flow. Robust, compact construction for confined workspaces A lightweight aluminium housing combines corrosion resistance with stiffness, allowing the unit to be installed where space is limited without compromising rigidity. The compact footprint makes the mounting frame suitable for dense tooling stations and multi-spindle arrangements. The construction reduces the need for additional clearance and enables closer placement of fixtures, supporting more efficient use of floor and workbench space while maintaining the structural properties required for accurate positioning. Preserve tool integrity and ensure repeatable accuracy The mounting system features interchangeable steel tool holders and a form-fit fixation that prevents slippage and avoids damage to the spindle taper. By eliminating direct cone abrasion, the design extends the service life of both tools and machine interfaces, lowering maintenance frequency and cost. The positive-lock clamping principle supplies consistent concentricity and repeatability, which is essential for applications where tool runout and positioning precision affect part tolerances. Ergonomic handling for faster, safer workflows Ergonomics are built into the device to reduce operator effort during tool changes, requiring lower handling force and enabling safe, efficient swaps in seconds. The pivoting base allows simple access to each indexed position, while the quick-release concept lowers the physical strain associated with repetitive changes. These features support higher uptime and a better working environment, helping teams to maintain pace without sacrificing safety or introducing handling-related errors. Choose the TECWERK swivel base unit for compact, reliable tool changes and contact Metav Werkzeuge for tailored advice and supply from Emmerich. Technical data Article number: 2000832115NW Manufacturer: TECWERK Product type: Mounting system – base unit (swivel) Facts Indexing positions: 4 x 90° Packaging unit: 1 Special features Aluminium housing Interchangeable steel tool holders Swivelable and indexable Form-fit fixation of tools No spindle taper damage Low space requirement Reduced handling force through ergonomic design Tool change in seconds FAQ How is the indexing arranged and how many positions are available? The unit offers an indexable arrangement with four positions at 90° increments, enabling clear, repeatable tool locations for the TECWERK swivel base mounting system (SKU 2000832115NW). Can the system prevent damage to the machine taper? Yes, the mounting solution uses a form-fit fixation that avoids cone abrasion, so the design protects the spindle taper and prolongs interface life. What materials are used for the housing and tool holders? The base features an aluminium housing for a compact, rigid assembly, while the tool holders are supplied as interchangeable steel components for durability and precision. Is the mounting system suitable for small workshops with limited space? The compact design and low footprint make the unit suitable for confined work areas where space efficiency is required without loss of functionality. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
150mm Thread Cutting Chuck Synchronised DIN 1835 B+E With Coolant Feed, Compensation ±0.5mm - TECWERK
Take advantage of the combination of precise synchronisation, robust clamping and integrated coolant management for reliable thread production on CNC machines; order directly via Metav Werkzeuge or consult Metav’s specialists for application support. TECWERK synchronised thread‑cutting chuck DIN 1835 B+E – Weldon shank, coolant feed The TECWERK synchronised thread‑cutting chuck DIN 1835 B+E is a purpose‑built clamping solution for CNC machines with synchronised thread‑cutting spindles, optimised for M3–M20 threading tasks Weldon shank to DIN 1835 B+E Integrated coolant feed Compensates synchronization errors ±0.5 mm Supports right‑ and left‑hand threads Consistent synchronisation reduces rejects and downtime The synchronised chuck is engineered to compensate pitch differences between the tap and the machine spindle, which significantly reduces the risk of cross‑threading and broken taps. By allowing a length compensation of ±0.5 mm, the device absorbs minor timing mismatches that can occur during synchronous thread cutting. This mechanical tolerance translates into fewer scrapped parts and a steadier production flow, particularly where high repeatability is required. The DIN standardised interface ensures predictable behaviour when integrated with existing CNC synchronised spindles. Industrial build for secure clamping and precision Designed with a Weldon shank to DIN 1835 B+E, the chuck delivers a reliable mechanical interface for automated toolholders. The construction promotes high runout accuracy, which is essential for thread geometry and surface finish. Clamping is achieved through a tensioned tap collet with an integrated square, producing high clamping force and secure tool retention even under axial loads. This combination of features enables steady performance in repetitive operations and supports long tool life by limiting unwanted vibration and movement. Coolant control and versatile thread capability An integrated coolant feed permits through‑tool lubrication and improved chip evacuation, reducing heat build‑up and wear on cutting edges. The chuck is dimensioned for a broad thread range (M3–M20) and supports both right‑ and left‑hand threads, making it suitable for diverse production demands without frequent tooling changes. For users processing small to medium metric threads, the design balances flexibility and process reliability: coolant management improves cutting conditions, and the mechanical compensation feature maintains profile accuracy across varying pitch leads. Simple integration and dependable operation Compatibility with DIN 1835 B+E interfaces and a compact nominal outer diameter ensure straightforward mounting in most synchronised tooling setups on CNC machines. The unit is intended for use with a synchronised thread‑cutting arrangement and will typically replace a standard chuck where pitch mismatch or spindle synchronisation problems occur. For workshops seeking a dependable clamping solution, this synchronisation compensating chuck offers a direct performance uplift without complex retooling. Metav’s role as a precision partner provides further assurance: decades of distribution experience and a broad product range support seamless procurement and stocked availability for production needs. Contact Metav Werkzeuge today for tailored advice on integrating the TECWERK synchronised thread‑cutting chuck into an existing synchronised CNC setup and to discuss suitable collets and mounting options. Technical data Article number: 2000834905NW Designation: Gewindeschneidfutter Synchron DIN 1835 B+E M3-M20 Schaft D.20mm A. L.63mm TW Brand: TECWERK Packaging unit: 1 Core specifications Outer diameter: 42 mm Shank diameter: 20 mm Length A: 63 mm Length compensation: +0.5 / −0.5 mm Thread range: M3–M20 Standard: DIN 1835 B+E Special features Weldon shank to DIN 1835 B+E Integrated coolant feed Compensates pitch differences of tool and synchronised spindle Suitable for CNC machines with synchronised thread‑cutting equipment Compensates synchronisation errors under thrust and pull Suitable for right‑ and left‑hand threads High runout accuracy High clamping force via tensioned tap collets with integrated square FAQ What machines is this chuck designed for? The TECWERK synchronised thread‑cutting chuck is designed for CNC machines fitted with a synchronised thread‑cutting spindle and a DIN 1835 B+E interface. Can the chuck handle left‑hand threads? Yes, the chuck supports both right‑hand and left‑hand threading applications for versatile shop use. How much synchronisation error can it tolerate? The chuck compensates synchronisation errors up to ±0.5 mm, which absorbs small timing mismatches during synchronous cutting. Does the chuck allow coolant through the tool? The unit includes an integrated coolant feed to support through‑tool lubrication and improved chip evacuation. Which thread sizes are supported? The clamping system is specified for metric threads from M3 to M20, covering common production ranges. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
150mm Tool Holder For Boring Bars E2 With Through Coolant, VDI40 DIN 69880 - TECWERK
Take advantage of a secure, standardised VDI40 clamping solution combined with through‑coolant capability and a design that removes the need to shorten boring bars, improving setup speed and process reliability; order the holder directly via Metav Werkzeuge or consult our specialists for integration advice. TECWERK Tool Holder for Boring Bars E2 — VDI40, Through‑Coolant, 10 mm The TECWERK tool holder E2 is a VDI40 clamping solution for boring bars, designed to deliver secure clamping, internal and external coolant supply and plug‑and‑play compatibility with DIN 69880 systems. Form E2 with VDI40 taper Through‑coolant, internal and external supply Suitable for 10 mm boring bars No shortening of boring bar required Secure clamping and standardized compatibility for predictable results The E2 configuration with VDI40 taper ensures a stable and repeatable interface with machine turrets and tool posts. Conformance to DIN 69880 provides compatibility across a wide range of toolholders and boring bar systems, reducing set‑up errors and interchange costs. The clamping geometry is engineered to maintain concentricity under cutting loads, which supports consistent run‑out values and helps protect spindle bearings. For production environments where tool change frequency and repeatability matter, this holder offers measurable gains in process control and part quality. Faster set‑up and improved coolant performance for higher productivity A through‑drilled design supplies internal and external coolant, optimising chip evacuation directly at the cutting edge and extending tool life by keeping working temperatures down. Because the holder is specified for use with a 10 mm boring bar in a cylindrical shank configuration, no shortening of the boring bar is required, saving preparation time and reducing handling. The combination of direct coolant feed and reduced preparatory work translates into shorter cycle interruptions and a more efficient workflow on the shop floor. Practical benefits for workshops and production lines The holder’s construction focuses on practical usability: a cylindrical shank, a through‑coolant bore and the E2 clamping form simplify both installation and maintenance. Operators gain from easier alignment and fewer adjustments during initial trials, while maintenance teams value the straightforward geometry when inspecting or replacing components. The design supports stable cutting conditions, making it suitable for precision boring tasks where surface finish and dimensional accuracy are required. Clear standards and proven mounting principles reduce the learning curve for new staff and support predictable outcomes over many production runs. For tailored advice on integrating this VDI40 E2 tool holder from TECWERK into existing setups, and for swift supply from Metav Werkzeuge in Emmerich, contact Metav Werkzeuge at info@metav-werkzeuge.com or +49 2822 7131930 for a personalised recommendation and delivery options Technical data Article number: 2000833679NW SKU: 2000833679NW Form: E2 Product type: Tool holder for boring bars Manufacturer: TECWERK Packaging unit: 1 Facts d2: 10 mm h1: 32.5 mm d1: 40 mm d8: 55 mm l6: 75 mm l3: 22 mm d6: 83 mm Special features Through‑drilled (yes) Internal and external coolant supply Cylindrical shank No boring bar shortening required Complies with DIN 69880 Suitable for boring bars FAQ Is this holder compatible with standard VDI40 turrets? Yes. The holder is a VDI40 E2 configuration that complies with DIN 69880 and is intended for integration with standard VDI40 turrets and tool systems. Can coolant be delivered directly to the cutting edge? Yes. The through‑drilled design provides internal and external coolant supply to aid chip evacuation and temperature control at the cutting zone. Does the boring bar need to be shortened before installation? No. The holder is designed so that no shortening of the boring bar is required, which reduces set‑up time and preparation work. What bar diameter is this holder specified for? The holder is specified for a 10 mm boring bar (d2 = 10 mm) and accepts a cylindrical shank for that diameter. Which standard ensures interchangeability with other holders? Compliance with DIN 69880 ensures standardised interfaces and interchangeability across compatible toolholders. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
150mm Tool Holder SK50 Compact 6-Unit Impact-Resistant Polypropylene, Black - TECWERK
Take advantage of a compact, SK50-compatible storage system that combines impact‑resistant polypropylene construction with chemical resilience and space-saving dimensions for streamlined tool handling; order directly via Metav Werkzeuge or request consultancy for system integration. Tool holder SK50 — compact 6‑slot polypropylene tray by TECWERK The Tool holder SK50 organises SK50 taper tool shanks in a compact, chemical‑resistant polypropylene tray designed for workshop and CNC storage. Compact 6‑slot design for SK50 tapers Polypropylene, impact and break resistant Acid and coolant resistant material Space‑saving dimensions 390×260×150 mm Organised storage that speeds up changeovers A well-ordered tooling area reduces machine downtime and accelerates set‑up procedures. The compact tray provides six dedicated positions for SK50 tapers, enabling quick visual checks and immediate access to the required shank. By keeping holders secured in a single, marked tray, the risk of damage during staging is reduced and tool change routines become more predictable, which supports higher workshop throughput and more efficient shift planning. Robust polypropylene construction for harsh shop environments Made from polypropylene, the tray resists impacts and breakage while maintaining shape under frequent handling. The material’s acid and coolant resistance prevents degradation in environments where lubricants and machining fluids are present. For workshops requiring a low‑maintenance storage solution, this robustness translates into a longer service life and fewer replacements, lowering total cost of ownership through reliable, uninterrupted use. Clear compatibility and practical dimensions for integration With external dimensions of 390×260×150 mm, the tray fits standard tool cupboards and workbench shelves without occupying excess space. The dedicated interface for SK50 taper shanks ensures secure seating and minimal lateral movement, protecting precision alignment during storage. The low weight of approximately 0.55 kg makes handling and repositioning straightforward while preserving stability when loaded with holders. Practical benefits for production and workshop management Beyond storage, the tray supports orderly logistics: centralised tool staging, easier inventory checks, and simplified transport between storage and machines. The compact design allows multiple trays to be stacked or lined up, creating modular storage arrays. Backed by Metav’s focus on accessible precision and a European quality‑filter located in Emmerich, this solution fits both independent workshops and production lines seeking dependable, easy‑to‑implement tooling organisation. For a tailored recommendation or to procure this TECWERK SK50 tool holder directly from Metav Werkzeuge’s Emmerich warehouse, contact our consultants for practical advice and delivery options Technical data Article number: 9000453682NW Manufacturer: TECWERK Product type: Werkzeugträger Facts Width: 390 mm Depth: 260 mm Height: 150 mm Weight: 0.55 kg Packaging unit: 1 Special features Material: polypropylene Colour: black Design: compact 6‑slot Tool interface: SK50 taper Properties: impact and break resistant Chemical resistance: acid and coolant resistant FAQ Is this tray compatible with all SK50 toolholders? The tray accepts SK50 taper shanks; compatibility depends on holder diameter and flange design, but it is designed specifically for standard SK50 interfaces and typical holder profiles. How durable is the polypropylene in a coolant‑exposed environment? Polypropylene used in this tray is acid and coolant resistant, so the material withstands common machining fluids and daily workshop exposure without rapid degradation. Can multiple trays be stacked or stored together? The compact dimensions and low weight allow modular arrangement; trays can be placed side by side or stacked where shelving accommodates the combined height. What are the transport and handling advantages of the tray? At approximately 0.55 kg, the tray is easy to handle when staging tools between storage and machine, and the individual slots secure shanks to reduce handling damage. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
155mm x 97mm x 180mm Assembly Block SK50 Aluminium For Safe Tool Mounting, Securing Screw - TECWERK
Take advantage of a compact, aluminium mounting solution that enables safe assembly and disassembly of steep‑taper tool holders in both horizontal and vertical positions; the built‑in safety screw and bench‑mountable design support fast changeovers and reliable workshop handling. Order the unit directly via Metav Werkzeuge or consult our experts for application advice. Mounting Block SK50 TECWERK — Aluminium mount for SK50 tool holders, bench‑mountable The Mounting Block SK50 TECWERK is a workshop fixture designed for secure and effortless assembly and disassembly of tool holders with a steep taper, suitable for use in both horizontal and vertical orientations. Aluminium construction for low weight and durability Secure fitting for SK50 steep-taper tool holders Suitable for horizontal and vertical mounting Bench-mountable with safety screw to prevent fall-out Secure handling for steep‑taper tool holders with reduced downtime The fixture delivers a practical solution for handling steep‑taper (SK) tool holders: by providing a stable support for insertion and removal, the device reduces the risk of accidental drops and misalignment during tool change procedures. The design focuses on dependable clamping of the taper interface; this ensures consistent seating and quick, repeatable operations, which directly shortens machine downtime and streamlines workshop workflows. The combination of a dedicated taper interface and a retention mechanism translates into safer, quicker tool changes and improved process reliability. Durable aluminium construction that stays reliable in daily use Manufactured from aluminium, the block balances lightweight handling with the rigidity required for workshop environments. The material choice reduces lifting effort when positioning the fixture on the bench, while offering good resistance to corrosion and wear typical of metalworking settings. The robust body resists deformation under normal use, preserving accurate alignment over repeated cycles. This longevity lowers the need for frequent replacement, supporting a cost‑effective workshop routine without compromising on operational stability. Flexible mounting orientation and a safety‑first retention concept Designed for both horizontal and vertical use, the mount allows versatile positioning to match the workflow of assembly benches or tooling stations. The integrated safety screw secures the tool holder during horizontal operations, preventing inadvertent fall‑out and improving operator safety. Its bench‑mountable configuration ensures a stable working base, enabling controlled insertion and removal even under constrained conditions. These features combine to reduce the chance of damage to tool holders and to the workbench, while making changeovers more predictable and controlled. Exact dimensions for consistent positioning and compatibility The block’s measured footprint of 97 x 155 x 180 mm supports a compact but stable platform for tool handling; the specified height of 155 mm provides a practical working elevation for most bench setups. The fixture is purpose‑matched to accept SK50 taper interfaces and is tailored to the spatial demands of steep‑taper tool holders. Clear dimensional data allows planners to incorporate the mount into existing tooling stations or fixturing systems without guesswork, ensuring predictable positioning and straightforward integration into workshop routines. For reliable, bench‑ready handling of SK50 tool holders, contact Metav Werkzeuge for technical guidance and to secure supply through their European distribution. Technical Data Article number: 2000832878NW Product: Mounting block Taper interface: SK50 Packing unit: 1 Facts Dimensions: 97 x 155 x 180 mm Height: 155 mm Width: 97 mm Length: 180 mm Special features Material: Aluminium For secure assembly and disassembly of steep‑taper tool holders Suitable for horizontal and vertical mounting Stable and trouble‑free bench mounting Safety screw to secure tool holder against fall‑out during horizontal use FAQ Which taper sizes does the mount accept? The mount is specified for the SK50 taper interface and is designed to accommodate SK50 steep‑taper tool holders. Is the fixture suitable for both horizontal and vertical tool change operations? Yes; the unit supports both horizontal and vertical mounting and includes a safety screw to prevent the tool holder from falling out during horizontal use. What material is the block made from and what are the benefits? The block is made from aluminium, offering a lightweight yet rigid support that resists corrosion and reduces handling effort in everyday workshop tasks. How does the safety screw improve operational safety? The safety screw secures the tool holder in the mount during horizontal operations, preventing accidental disengagement and reducing the risk of damage to tooling or injury. Can the mounting block be fixed to a workbench? The design allows stable bench mounting for reliable positioning during assembly and disassembly procedures. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
15mm ER Collet Precision Clamping, 5 µm Runout, L 40mm - TECWERK
Take advantage of the proven combination of DIN 6499‑B compatibility, precise 15 mm clamping, and a secure hold along the full clamping length for consistent machining results; order via Metav Werkzeuge or request guidance from the consultants. TECWERK ER collet ER 32/470 E — 15 mm clamping diameter, DIN 6499‑B The TECWERK ER collet ER 32/470 E is a precision clamping collet for ER‑style collet chucks, engineered to secure tools along the entire clamping length in machining operations. DIN 6499‑B standardised profile Holds tools along full clamping length Runout and repeatability 5 µm Clamping diameter 15 mm nominal Secure precision for repeatable machining The collet conforms to the DIN 6499‑B profile, which ensures a defined interface to ER‑type chucks and consistent contact geometry. That standardisation, together with a specified runout and repeatability of 5 µm, reduces vibration and tool deflection, translating directly into improved surface finish and tighter dimensional control. The result is fewer rejects and less rework, making the clamping solution a rational choice for production environments where accuracy and throughput matter. Built for compatibility and straightforward integration Designed to engage with ER collet chucks, this clamping element accepts a 15 mm tool shank and offers an external form that matches common ER systems. With a length of L: 40 mm and an outer diameter of D: 33 mm, the geometry permits reliable seating in standard holders without requiring intermediate sizes. Because the tools are held along the full clamping length, stability is increased and sensitive tools can be clamped on the lead chamfer where necessary, simplifying setup and reducing handling time. Faster setup and predictable clamping range The collet bridges a clamping range described as the nominal diameter minus 1.0 mm; this clamping diameter bridging characteristic allows slight variations in shank size to be accommodated without changing the collet. That flexibility shortens machine downtime during tool changes and supports a steady production rhythm. The combination of secure axial grip and defined radial contact ensures predictable tool runout over repeated cycles, helping planners and operators to rely on stable process windows. Practical reliability for everyday workshop use Although tailored for ER‑style systems, the component’s design focuses on practical workshop demands: consistent repeatability, simple interchangeability and sturdy engagement with the tool shank. The specification supports a wide range of routine milling and drilling tasks where axial stability and radial precision are required. For businesses seeking accessible precision, this collet aligns with the ethos of supply partners who prioritise dependable stock and quality control. For tailored advice on integrating the TECWERK ER collet ER 32/470 E into existing ER tooling systems, contact Metav Werkzeuge in Emmerich for technical consultation and prompt supply assistance Technical data Article number: 2000832952NW Product type: ER collet Label: Spannzange Typ ER 32/470 E Spann‑D.15mm TECWERK Packaging unit: 1 Numbers Clamping diameter (d): 15 mm Length (L): 40 mm Outer diameter (D): 33 mm Runout / repeatability: 5 µm Clamping diameter bridging: nominal minus 1.0 mm Special features Standard: DIN 6499‑B Suitable for ER collet chucks; no intermediate sizes required Tools held along whole clamping length; clamping possible on lead chamfer Matches ER 32/470 E specification FAQ What tolerance can be expected for runout with this collet? The specified runout and repeatability for the TECWERK ER collet ER 32/470 E is 5 µm, providing a reliable baseline for precision machining. Can the collet compensate for slight variations in tool shank diameter? Yes. The clamping diameter bridging feature (nominal minus 1.0 mm) allows the collet to accommodate small shank deviations without replacing the collet. Is this collet compatible with standard ER chucks? The collet is manufactured to the DIN 6499‑B form and is suitable for use with ER‑style collet chucks that accept the ER 32/470 E specification. What are the key dimensions to check for holder compatibility? Relevant dimensions are d = 15 mm, L = 40 mm and D = 33 mm; these determine seating and axial engagement in the holder. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund

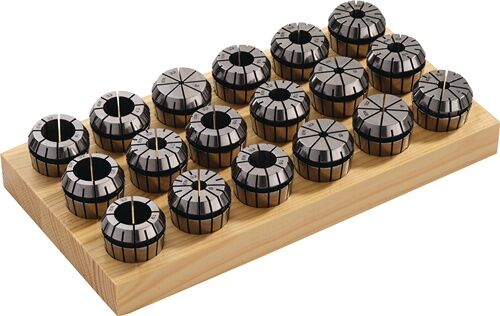

15mm ER25 Collet Set 2–16mm Clamping Range, 15-Piece Wooden Case - TECWERK
Benefit from the combination of 5 µm repeat accuracy and a 2–16 mm clamping range that reduces rework and speeds tool changes; the compact wooden storage block keeps all items organised for repeatable results. Order the TECWERK ER 25 collet set directly via Metav Werkzeuge or ask our consultants if needed. TECWERK ER 25 (430 E) Collet set — 15-piece, 2–16 mm clamping range TECWERK ER 25 (430 E) — a collet set designed for secure tool holding in workshop and light production applications ER 25 collet system compatibility Clamping range 2–16 mm Roundness and repeat accuracy 5 µm Supplied in a solid wooden block Improve machining consistency with repeatable clamping accuracy High-precision tool holding directly reduces scrap and rework. The ER 25 collet configuration offers a broad 2–16 mm clamping range, enabling standardisation across common small-diameter tooling. With a documented roundness and repeat accuracy of 5 µm, the assembly supports tighter tolerances and predictable results on milling and drilling spindles. This level of control translates into fewer part rejections and lower downtime for remeasurement, delivering a measurable improvement to production efficiency. Faster changeovers and better organisation on the bench A well-ordered toolset shortens set-up times. The set is supplied in a solid wooden block that keeps the components accessible and protected between shifts. Clear arrangement of the 15 pieces minimises search time and reduces the risk of misplacing sizes, which supports faster changeovers. For workshops aiming to increase throughput without investing in new machines, a compact, organised collet set provides practical gains in day-to-day operation and ergonomics at the machine station. Durable compatibility for routine workshop use The ER 25 (430 E) designation indicates compatibility with standard ER collet chucks and most ER25 spindles, helping to preserve tool concentricity under load. The included collets cover sizes from 2 mm to 16 mm in single-millimetre increments, which suits a wide range of small-diameter cutters and holders. Robust construction and precise gripping behaviour reduce slippage during conventional and higher-feed operations, meaning fewer interruptions and safer handling for operators. Practical benefit for maintenance and calibration regimes A repeatable clamping system simplifies quality workflows: consistent tool runout assists in quicker verification of fixtures and cutters during inspection rounds. The 5 µm repeatability helps to keep measurement checks stable, easing the burden on calibration schedules. For maintenance teams, a standardised ER 25 collet set streamlines inventory and replacement planning, while the wooden storage base provides a secure location to log and manage tooling condition between preventive maintenance cycles. Contact Metav Werkzeuge for tailored advice and to request availability of the TECWERK ER 25 15-piece collet set; our specialists at Metav Werkzeuge can recommend the right configuration for specific machine interfaces and production needs. Technical data Article number: 2000832782NW Model: ER 25 (430 E) Product type: Collet set Manufacturer: TECWERK Facts Dimensions: 195 x 25 x 150 mm (L x W x H) Clamping range: 2–16 mm Content: 15 pieces Roundness / repeat accuracy: 5 µm Packaging unit: 1 Special features Supplied in wooden storage block Includes collets 2–3–4–5–6–7–8–9–10–11–12–13–14–15–16 mm Suitable for ER 25 collet chucks Model designation: ER 25 (430 E) FAQ What clamping sizes are included in the set? The set includes collets in single-millimetre increments from 2 mm up to 16 mm, covering a wide range of common small-diameter tooling for ER 25 applications. Is the set suitable for standard ER 25 chucks? Yes, the TECWERK ER 25 (430 E) collet set is designed for compatibility with standard ER 25 collet chucks and will integrate with matching spindles and chucks. How accurate is the clamping and runout performance? The assembly is specified with a repeat accuracy of 5 µm, which supports consistent concentricity for precision machining and reduces variation between tool changes. How is the set supplied and stored? The collets are supplied in a solid wooden storage block that organises each size and protects the tools from damage when not in use. Can this set reduce changeover times at the machine? Yes, the organised layout and full coverage of common diameters help to shorten changeover and set-up times, improving overall workshop throughput. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
160mm Machine Foot Size 3 Zinc Plated M20 x 1.5 x 170, 59mm Height - TECWERK
Robust galvanised levelling support with a Ø 160 mm base and an M20 x 1.5 x 170 mm threaded bolt for secure machine placement; suitable for static loads from 800–2,500 kg and designed to isolate vibrations both from the machine and from outside sources. Order the Maschinenschuh Size 3 ALBRECHT directly via Metav Werkzeuge or consult our specialists for application guidance. Maschinenschuh Size 3 ALBRECHT — galvanised levelling foot, Ø 160 mm, M20 thread (TECWERK) The Maschinenschuh Size 3 ALBRECHT is a galvanised levelling foot engineered to give lathes, milling machines, saws and similar equipment a secure, vibration-isolating base suitable for heavy industrial use Galvanised finish for corrosion resistance Ø 160 mm base for stable support M20 x 1.5 x 170 mm threaded bolt Rated for 800–2,500 kg static load Stable support for heavy machinery and safer workflows A levelling foot with a Ø 160 mm base and a robust threaded stud provides a wide contact area that improves load distribution and reduces surface pressure. The M20 x 1.5 x 170 mm bolt enables precise height adjustment while the built-in levelling plate maintains stability under heavy loads. For workshops that demand repeatable positioning and a reliable foundation, this design reduces the risk of uneven settling and contributes to safer, more consistent machining outcomes. Effective vibration isolation for improved accuracy By isolating vibrations both from the machine to its surroundings and from external sources into the machine, this mount aids in preserving the accuracy of precision equipment. The combination of the wide base and a levelling compensation of 25 mm dampens transmission of oscillations so that spindles and tools remain steadier during operation. The result is fewer rejects, reduced tool wear and a quieter working environment — advantages that translate into measurable gains in production quality and operator comfort. Choosing the right levelling foot for an application Selection is based on the machine’s total weight and the number of fixing points: divide the machine weight by the number of mounting holes to determine the required capacity per foot. The Size 3 model covers a max static load per foot of 800–2,500 kg, which suits many medium‑ to heavy‑duty machines. Where uncertain, refer to the machine’s specification plate and compare the calculated load per fixing point against the rated capacity of the mount to ensure a safe margin of use. Durable finish and straightforward installation The galvanised finish provides long-term corrosion resistance for workshop environments, while the threaded stud and levelling plate simplify installation on machine bases or frames. Fixing requires standard fastening practices and basic tools; final levelling is achieved via the stud adjustment. The construction supports reliable operation over time with minimal maintenance, which helps to keep machine downtime and service interventions to a minimum. For product availability, application advice or to place an order for the TECWERK levelling foot, contact Metav Werkzeuge in Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930 for expert guidance and quick supply. Technical Data Article number: 4000832074NW Product: Maschinenschuh Size 3 ALBRECHT Manufacturer: TECWERK Facts Height including levelling plate H: 59 mm Base diameter Ø D: 160 mm Threaded bolt G: M20 x 1.5 x 170 mm Levelling compensation N: 25 mm Max static load per foot: 800–2,500 kg Special features Galvanised finish Suitable for lathes, milling machines, saws and similar machinery Reduces vibration transmission in both directions Packaging unit: 1 FAQ What static load can a single levelling foot carry? A single Maschinenschuh Size 3 ALBRECHT is rated for a max static load of 800–2,500 kg, depending on installation and safety factors; calculate the load per fixing point to confirm suitability. Is the levelling foot suitable for precision machines? Yes. The galvanised levelling foot is designed to isolate vibrations and provide a stable base, helping to preserve the accuracy of precision equipment when used correctly. How much vertical adjustment is available? The levelling arrangement provides 25 mm of levelling compensation, with a total height including the levelling plate of 59 mm, enabling fine height adjustments during set-up. Which machines are compatible with this mount? The mount is appropriate for lathes, milling machines, saws and other industrial machines where a secure, vibration-isolating support is required. What does the threaded specification M20 x 1.5 x 170 mm mean for installation? The designation indicates an M20 metric thread with a 1.5 mm pitch and a 170 mm stud length; this determines the fixing method and the depth required for secure mounting of the foot. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
16mm Clamping Screw M12 for 12/14mm Collet Chuck, Cylinder Shaft Clamping - TECWERK
Take advantage of the M12 thread, compact L 16 mm length and compatibility with 12/14 mm chucks for consistent, secure clamping in production settings; order direct via Metav Werkzeuge or consult the technical team for application guidance. Clamping screw M12 L16 mm for chuck Ø12/14 mm (TECWERK) — precision clamping fastener for face-type chucks The Clamping screw M12 L16 mm for chuck Ø12/14 mm (TECWERK) is a purpose-built clamping fastener for face-type chucks, intended to secure tools with a cylindrical shank and a lateral drive flat in accordance with DIN 1835-B. M12 thread for secure clamping Compatible with chuck Ø 12/14 mm Length L 16 mm for compact installations Suited to DIN 1835-B tool shanks Secure retention that improves machining reliability The Clamping screw M12 L16 mm for chuck Ø12/14 mm (TECWERK) combines a standard M12 thread with a compact geometry to deliver secure retention of rotating tools. A positive clamping fit reduces micro-movement between tool and chuck, which helps to maintain concentricity and therefore improves machining accuracy. For production environments where repeatability matters, this specification supports stable cutting conditions and reduced scrap rates. Compact form factor for tight setups and retrofits With a nominal length of L 16 mm, the fastener is designed for installations where projection and clearance are limited. The short overall length minimises overhang, which contributes to better dynamic behaviour during machining and easier balancing of assemblies. This compact design is beneficial for retrofitting existing spindle or chuck configurations where space is at a premium, enabling reliable clamping without extensive rework. Conforms to established tool shank standards for torque transfer Compatibility with tools that feature a cylindrical shank and a lateral drive flat to DIN 1835-B ensures secure torque transmission under load. The lateral flat engages with the chuck mechanism, preventing slippage and supporting repeatable tool indexing. Specifying components that match recognised standards simplifies procurement and guarantees interchangeability across common collet and chuck systems. Ready for straightforward integration and reliable supply Supplied as single units, the clamping screw suits focused replacement needs and small-batch maintenance tasks. The compact specification and standard thread make the component straightforward to add to existing spare-part inventories and facilitates predictable stock management. For workshops and production facilities seeking consistent availability, sourcing via an established distributor helps to ensure continuity of supply and documented product traceability. Contact Metav Werkzeuge for tailored advice on integrating the TECWERK clamping screw M12 L16 mm (SKU 2000834137NW); eMail info@metav-werkzeuge.com or call +49 2822 7131930 for rapid technical guidance and order support Technical data Article number: 2000834137NW Product: Clamping screw Label: Clamping screw M12 L16 mm for chuck Ø12/14 mm TECWERK Brand: TECWERK Facts Thread nominal Ø: M12 Length: 16 mm Suitable for chuck Ø D: 12/14 mm Package unit: 1 Special features For face-type chucks For clamping tools with cylindrical shank with lateral drive flat Conforms to DIN 1835-B FAQ Is this clamping screw compatible with standard 12/14 mm chucks? Yes. The component is specified for use with chucks of Ø 12/14 mm and is intended for face-type chuck assemblies as noted in the technical data (SKU 2000834137NW). Can the clamping screw be used with tools to DIN 1835-B? Yes. It is designed to clamp tools that have a cylindrical shank with a lateral drive flat according to DIN 1835-B, ensuring correct engagement and torque transfer. What are the thread size and overall length of the fastener? The fastener features an M12 thread and an overall length of 16 mm, providing a compact solution for standard clamping applications. How is the item supplied for maintenance and replacement? The product is supplied as single units (package unit 1), which suits selective replacement of worn or lost clamping screws. Is the clamping screw intended for heavy-duty machining tasks? The fastener is designed for reliable clamping in standard machining operations where compatibility with DIN 1835-B shanks is required; for high‑demand or specialised applications, component selection should align with the specific machine and process parameters. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
16mm Clamping Screw M14 For 16/18mm Collet Chuck - TECWERK
Take advantage of a compact, industry-proven fastener that combines precise thread engagement and direct compatibility with Ø 16/18 mm face clamping chucks for steady tool retention. Order supply or request consultancy directly via Metav Werkzeuge for a seamless addition to the workshop inventory. Clamping screw M14, length 16 mm — for chuck Ø 16/18 mm (TECWERK) The Clamping screw M14 L16 mm for chuck Ø 16/18 mm is a purpose-built clamping fastener for face clamping chucks, designed to secure cylindrical-shank tools with a lateral drive flat in accordance with DIN 1835-B. M14 threaded connection for secure fixation Compact 16 mm overall length for tight setups Compatible with chuck diameters Ø 16/18 mm Suited to DIN 1835-B cylindrical shank tools Reliable thread and geometry for consistent clamping results The component uses an M14 thread together with a short 16 mm overall length to deliver reliable axial preload in confined assemblies. This geometry reduces axial play and helps maintain concentricity during rotating operations, which in turn lowers the risk of vibration and tool runout. Specifying the correct fastener minimises rework and supports continuous production by ensuring repeatable clamping performance. Designed for face clamping chucks and DIN-compliant tools Compatibility with face clamping chucks and tools featuring a lateral drive flat per DIN 1835‑B ensures positive torque transfer and axial restraint for cylindrical shank tooling. The lateral drive flat prevents rotation within the chuck seating, so the fastener secures the tool reliably under load. Explaining DIN 1835‑B in practical terms: it standardises the contact geometry for safe mechanical drive between chuck and tool, reducing slippage and improving machining accuracy. Simple specification supports quick selection and inventory control The compact specification — thread M14, length 16 mm, suitable for Ø 16/18 mm chucks — simplifies procurement and inventory decisions in production and maintenance settings. The straightforward characteristic set reduces ordering errors and shortens lead times, while the single-item packaging unit facilitates stock keeping for small batches or one-off replacements. Choosing a standardised clamping fastener like this also reduces the variety of spare parts needed on the shop floor, improving overall operational efficiency. Confidence through compatibility and supply reliability Selecting a recognised fastener from an established brand supports workshop reliability and peace of mind during demanding operations. The product’s straightforward mechanical function and standard compliance make it a pragmatic choice for engineering shops and maintenance departments that value durable, predictable clamping. Combined with Metav’s role as a quality filter for European supply, procurement benefits from consistent availability and documented conformity to industry norms. Contact Metav Werkzeuge for supply and technical advice on the TECWERK clamping screw M14 L16 mm to ensure compatibility with specific chuck models and to arrange prompt delivery from stock. Technical data Article number: 2000834138NW Product: Clamping screw, fastener Brand: TECWERK Facts Thread: M14 Overall length: 16 mm Suitable for chuck Ø: 16/18 mm Special features For face clamping chucks For cylindrical-shank tools with lateral drive flat per DIN 1835‑B Packaging unit: 1 FAQ What chuck diameters is this fastener suitable for? The clamping screw is suitable for chucks with an internal diameter of Ø 16/18 mm and secures tools accordingly. Which thread and overall length are specified for this product? This TECWERK clamping screw features an M14 thread and an overall length of 16 mm (SKU 2000834138NW). Can this fastener be used with tools to DIN 1835‑B? Yes — the fastener is intended for use with cylindrical-shank tools that have a lateral drive flat as specified by DIN 1835‑B. How does the lateral drive flat affect clamping performance? The lateral drive flat provides positive drive engagement with the chuck seating, improving torque transfer and preventing rotational slippage under load. Is this component suitable for confined or compact assemblies? The short 16 mm length is optimised for compact setups where axial space is limited while still providing secure clamping. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
16mm Clamping Screw M16 for 20mm Collet Chuck, For Cylindrical Shank Tools DIN 1835-B - TECWERK
Take advantage of a compact, standardised clamping solution that combines precise thread engagement and space-saving design for efficient workshop setups; order directly via Metav Werkzeuge or ask the consultants for tailored advice. TECWERK Clamping Screw M16, L 16 mm for Ø 20 mm Chucks The Clamping screw M16 L 16 mm for Ø 20 mm chucks is a compact clamping component for flat-jaw chucks, engineered to secure tools with cylindrical shanks and lateral drive according to DIN 1835‑B. For flat-jaw chucks with Ø 20 mm Thread nominal diameter M16 Short overall length L 16 mm Compatible with DIN 1835‑B shank tools Precision hold for repeatable machining results A compact clamping screw with a defined M16 thread provides a reliable mechanical connection between chuck and tool, reducing runout and improving repeatability. The compatibility with a Ø 20 mm chuck ensures standardised seating, which is particularly valuable for series production and frequent tool changes. Because the component is designed for tools with a cylindrical shank and a lateral drive in accordance with DIN 1835‑B, the user benefits from predictable torque transmission and secure axial retention—both essential for maintaining consistent part quality across batches. Space-saving design that simplifies setups With an overall length of L 16 mm, this clamping bolt suits assemblies where installation space is limited. The short profile minimises tool overhang and helps keep the centre of gravity close to the spindle, which lowers vibration and supports higher precision at the cutting edge. For workshops and production cells that prioritise compact tooling and quick changeover, the reduced length translates directly into faster set-ups and fewer collisions, enhancing operational efficiency without compromising secure clamping. Clear conformity and practical workshop benefits Adherence to the lateral-drive specification of DIN 1835‑B means the component integrates with a wide range of modern toolholders and collets, simplifying procurement and inventory management. Supplied as single units, the part is useful for targeted replacements or gradual fleet standardisation. The straightforward geometry and standard thread allow technicians to assess compatibility at a glance, reducing downtime during maintenance and contributing to steady throughput in day-to-day machining operations. For secure, space-efficient clamping with TECWERK quality, contact Metav Werkzeuge for product advice or to arrange supply; email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 2000834139NW Label: Spannschraube M16 L.16mm f.Spannfutter-D.20mm TECWERK Manufacturer: TECWERK Packaging unit: 1 Core data Thread: M16 Overall length: 16 mm Suitable for chuck Ø: 20 mm Special features For flat-jaw chucks For cylindrical shank tools with lateral drive (DIN 1835‑B) Short overall length for compact setups FAQ What chuck size is this clamping screw compatible with? The clamping screw is specified for use with chucks of Ø 20 mm, ensuring standard compatibility for many flat-jaw chuck systems. Which thread and length does the part use? This component features an M16 thread and an overall length of 16 mm, as indicated on the product label (SKU 2000834139NW). Can this be used with tools that follow DIN 1835‑B? Yes, the design is suitable for tools with cylindrical shanks and lateral drive in accordance with DIN 1835‑B, providing secure drive engagement. Is the clamping screw suitable for compact installations? The short profile (L 16 mm) is intended for installations with limited axial space, helping to reduce tool overhang and potential interference. How is the item supplied in terms of packaging? The part is supplied as a single unit (packaging unit 1), suitable for replacement or incremental fleet update. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
16mm E1 Tool Holder For Indexable Drill With Internal Coolant, DIN 69880 - TECWERK
Efficient spindle connection via the VDI40 interface and a compact clamping Ø16 mm deliver repeatable results and reduced setup time; combined with internal coolant and compliance with DIN 69880, the holder improves tool life and process reliability. Order the tool directly via Metav Werkzeuge or ask our consultants if needed. Tool holder E1 VDI40 – clamping Ø16 mm, internal coolant (TECWERK) The Tool holder E1 VDI40 is a VDI40 tool holder designed for indexable insert drills, with a cylindrical shank and internal coolant supply for reliable drilling and turning operations. VDI40 interface for secure spindle connection Clamping diameter Ø16 mm for insert drills Internal coolant supply for optimised chip control Conforms to DIN 69880 for standardised tooling Precision clamping for repeatable machining results The VDI40 interface and the Ø16 mm clamping diameter provide a compact coupling that prioritises repeatability and concentricity. A stable spindle connection reduces runout and vibration, which translates into consistent hole quality and longer insert life. Where fixture time and part tolerances matter, the combination of a standardised interface and tight clamping ensures faster setups and fewer rejected parts, supporting productivity in small-batch and series production alike. Internal coolant improves cutting performance and tool life Integrated internal coolant channels direct cutting fluid close to the cutting edge, improving cooling and chip evacuation. That targeted lubrication lowers cutting temperatures, reduces built-up edge and extends the service intervals of the cutting inserts. For applications that demand consistent surface finish and reliable cycle times, the internal coolant feature contributes to process stability and fewer interruptions for rework or sharpening. Standard conformity and system compatibility cut inventory complexity Compliance with DIN 69880 and the VDI40 mounting datum makes the holder broadly compatible with standard tool turrets and drilling systems. Compatibility with indexable insert drills simplifies tool management by allowing the same holder to accept widely used drill bodies and inserts. The standard form E1 and cylindrical shank ensure predictable interfacing, reducing the need for bespoke adaptors and minimising stock variants in the tooling cabinet. Robust design for workshop efficiency and easy handling Designed for routine industrial use, the holder balances compactness with mechanical stability to support precise drilling and light turning tasks. The construction supports repeatable positioning and straightforward handling during tool changes, which keeps downtimes to a minimum. By focusing on solid mechanics and standard interfaces, the solution delivers dependable performance for workshops and toolrooms aiming to streamline production workflows. For advice on selecting the right TECWERK tool holder E1 VDI40 and for fast supply from Metav Werkzeuge in Emmerich, contact info@metav-werkzeuge.com or call +49 2822 7131930 to discuss compatibility and delivery options Technical data SKU: 2000833666NW UID: 2000833666NW Form: E1 Product type: Tool holder for indexable insert drills Brand: TECWERK Label: Werkzg.h.E1 DIN 69880 Spann-D.16mm VDI40 z.Wendeplattenbohrer TECWERK Packing unit: 1 Core dimensions Clamping diameter d2: 16 mm h1: 32.5 mm d1: 40 mm d3: 36 mm l3: 22 mm d6: 83 mm l1: 67 mm Special features VDI40 interface Internal coolant supply for drilling and turning tools Cylindrical shank Form E1 Suitable for indexable insert drills Standard: DIN 69880 FAQ What mounting interface does this holder use? The holder uses a VDI40 interface compatible with standard VDI turrets and spindles, designed for secure and repeatable mounting. Is this holder suitable for indexable insert drills? Yes, the Tool holder E1 VDI40 is intended for use with indexable insert drills, offering a clamping diameter of Ø16 mm and support for internal coolant. How does the internal coolant feature benefit machining? Internal coolant on the TECWERK holder directs fluid close to the cutting edge, improving cooling and chip evacuation to prolong insert life and enhance surface finish. Which standard does the holder comply with? The holder is built to DIN 69880, ensuring compatibility with standard tooling systems and simplifying tooling logistics. What are the key dimensions to check for machine compatibility? Key dimensions include the clamping diameter d2 = 16 mm, overall shank and interface measures (d1, d3, l1, l3) listed in the technical data for machine-side compatibility verification. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
