High-precision caliper gauges for rapid, repeatable measurements
Specialist caliper gauges and quick-test probes deliver fast, reliable geometry checks in production, incoming inspection and workshop use by mechanically or digitally capturing hard-to-reach features such as deep internal grooves, bore depths, tube wall thicknesses and freeform surfaces. Their spring-loaded lever mechanism ensures a defined contact force for absolutely repeatable results independent of the operator, while ergonomic designs allow one-handed operation with the workpiece remaining in the machine or on the inspection table. Available in a range of contact shapes and probe arm geometries, these precision calipers include analogue dial options for robust continuous use and digital models with tolerance signalling and data interfaces for seamless integration into quality control systems.
18-160mm Internal Dial Bore Gauge Set 10mm Dial, 0.01mm Resolution, Repeatability 0.005mm, Supplied in Case - Metav IndustryLine
Take advantage of high repeatability, fine 0.01 mm resolution and a broad 18–160 mm measuring scope for reliable internal measurements in production and inspection. Order the set directly via Metav Werkzeuge or consult the team for application advice. M208.055 Dial Bore Gauge Set — 18–160 mm, 0.01 mm resolution (Metav IndustryLine) The M208.055 dial bore gauge set offers a mechanical solution for precise internal diameter checks across small to medium bores in workshop and production environments High precision repeatability 0.005 mm 0.01 mm resolution dial reading Measuring range 18–160 mm, three inserts Precision where reproducibility matters The kit delivers consistent internal measurements across a wide range thanks to a repeatability of 0.005 mm and a 0.01 mm dial graduation. The mechanical dial translates small positional changes into clear readings on a 10 mm dial face, making it straightforward to compare bores against gauges or drawing tolerances. Such consistency reduces rework and supports quality control routines by ensuring that consecutive checks return compatible values. Ready-to-use set for efficient inspection workflows Configured as a three-piece set covering 18–160 mm via dedicated measuring inserts (18–35 mm, 35–50 mm, 50–160 mm), the kit minimises setup time during batch inspection or maintenance tasks. The modular design allows quick changeover between diameter ranges, which streamlines throughput on the shop floor. The mechanical construction requires no batteries and is well suited for inspection benches and portable measurement stations alike. Built and finished for everyday shop use The gauges are supplied together with a matte chrome-plated device holder, providing a stable interface for repeatable contact pressure and wear resistance in daily handling. The solid construction and clear dial face support reliable readings under workshop conditions, while the overall kit weight of around 2.45 kg balances portability and robustness for routine transport between machines and inspection tables. Practical handling and storage for longevity Designed as a complete set for internal measurement tasks, the package contains three instruments that cover typical bore sizes encountered in engineering and maintenance. The layout simplifies organisation, protects individual gauges during transport and helps keep inspection routines traceable and reproducible. Where rapid comparative checks are required, the dial indication and stable holder markedly reduce operator-induced variability. Contact Metav Werkzeuge for tailored application advice and request the Metav IndustryLine M208.055 dial bore gauge set to secure consistent internal measurements for production and inspection tasks Technical Data Article number: M208.055 GTIN: 4054469104096 Manufacturer: Metav IndustryLine Set contents: 3 internal gauges (ranges 18–35 mm; 35–50 mm; 50–160 mm) Delivery: protective case Facts Measuring range: 18–160 mm Resolution: 0.01 mm Repeatability: 0.005 mm Dial diameter: 10 mm Weight: 2.45 kg Pieces per set: 3 Special features Analog dial display Matte chrome-plated device holder Suitable for workshop and quality control Protective transport case Mechanical operation (no batteries) FAQ What range of diameters does the set cover? The M208.055 dial bore gauge set covers internal diameters from 18 mm to 160 mm using three dedicated measuring inserts. How fine are the readings from the dial? Readings are taken at 0.01 mm increments on a 10 mm diameter dial, with a repeatability of 0.005 mm ensuring consistent comparisons. Is the set suitable for workshop use? Yes, the set is designed for workshop and quality-control environments; the matte chrome-plated device holder and mechanical dial are robust for daily use. How many instruments are included in the set? The package comprises three instruments covering the ranges 18–35 mm, 35–50 mm and 50–160 mm. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
18-160mm Internal Micrometer 0.01mm Resolution Measuring Depth 150mm, 25 Anvils - TECWERK
Take advantage of precise internal measurement from 18–160 mm, a fine 0.01 mm scale and a 150 mm measuring depth for consistent bore checks; order directly via Metav Werkzeuge or consult our specialists for application-specific advice. Precision inside micrometer 18–160 mm, 0.01 mm resolution — TECWERK The Precision inside micrometer 18–160 mm is a compact internal measuring instrument designed for accurate bore and internal diameter inspection in workshop and production environments Measuring range 18–160 mm Resolution 0.01 mm Measuring depth 150 mm 25 interchangeable measuring rods Enhanced accuracy for reliable process control The internal gauge offers repeatable measurement across its 18–160 mm range, delivering a resolution of 0.01 mm that supports tight tolerances in machining and assembly workflows. The fine graduation enables clear interpretation of dimensional deviations, reducing rework and quality issues. For operators new to internal gauges, the term resolution denotes the smallest increment the device can display; here, that increment is 0.01 mm, which is suitable for precision mechanical work and routine quality checks. Practical design that speeds routine checks A measuring depth of 150 mm and a set of 25 interchangeable measuring rods provide flexibility for different bore lengths and access conditions. The modular rod system allows quick configuration without complex tools, saving setup time during batch inspection. The instrument’s compact frame supports working in confined spaces while the rod set helps avoid repeated repositioning, streamlining measurement of stepped bores and internal shoulders. Clear benefits for workshop and small-scale production Built for consistency rather than spectacle, this internal micrometer focuses on durable performance and straightforward operation. The combination of a robust measuring mechanism and a clear scale reduces operator error and supports consistent data collection for process documentation. Where traceable measurement is required, the stable mechanical reading aids in establishing reliable inspection routines and contributes to overall production efficiency. Simple maintenance and calibration guidance Routine care consists of keeping contact surfaces clean and protecting the measuring rods from knocks and corrosion. The modular rods can be inspected individually and replaced if wear is evident, preserving measurement integrity. For formal calibration cycles, the device can be checked against gauge blocks or calibrated reference rings; regular checks ensure the 0.01 mm resolution remains trustworthy over time and preserves measurement confidence across production runs. Choose TECWERK precision for internal diameter measurement and contact Metav Werkzeuge for tailored advice and supply from Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 2000851490NW Name: Precision inside micrometer 18–160 mm, measuring depth 150 mm Manufacturer: TECWERK Product type: Internal fine measuring instrument Measuring range: 18-160 mm Resolution: 0.01 mm Packaging unit: 1 UID: 2000851490NW Core technical data Measuring range: 18–160 mm Resolution: 0.01 mm Measuring depth: 150 mm Measuring rods: 25 Packaging unit: 1 Special features 25 interchangeable measuring rods Fine graduation for accurate readout Compact design for confined spaces Original label: Innenfeinmessgerät 18-160mm Mess-T.150mm TECWERK FAQ How precise is the measurement with this internal gauge? The instrument delivers a resolution of 0.01 mm, which means the smallest readable increment is 0.01 mm and is suitable for many workshop and production tolerance checks using the TECWERK internal fine measuring instrument. What does the measuring depth of 150 mm mean in practice? A measuring depth of 150 mm indicates the usable reach into a bore; with the supplied set of 25 measuring rods, various bore lengths up to 150 mm can be accessed without additional extensions when using the Precision inside micrometer 18–160 mm. Can the measuring rods be replaced individually? Yes, the 25 interchangeable measuring rods are designed for modular replacement so individual rods can be inspected and changed as required to maintain accurate measurements. Is this instrument suitable for use in small workshops? The compact design and straightforward rod system make the device appropriate for workshop use and small-scale production where space is limited and reliable internal measurements are needed. What verification method is recommended for calibration checks? Calibration can be performed using gauge blocks or calibrated reference rings to verify the 0.01 mm resolution and ensure measurement traceability for the TECWERK internal fine measuring instrument (SKU 2000851490NW). Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
18-160mm Internal Micrometer Carbide Measuring Faces Touchscreen Display Wireless/USB - Microtech Metrology
Combine high-precision measurement with robust construction and modern data transfer: the internal bore gauge set offers ±0.003 mm accuracy, carbide measuring faces and Wireless + USB output for seamless data capture. Order the set directly via Metav Werkzeuge or consult our specialists for configuration and delivery options. Internal bore gauge set 18–160 mm — Colour touchscreen and Wireless/USB data output The internal bore gauge set provides precise internal measurements for workshop, toolroom and quality‑control applications, combining a compact colour touchscreen with analogue indication and digital data transfer. High accuracy ±0.003 mm Colour 1.54" touchscreen display Wireless and USB data output Carbide measuring faces for wear resistance Precision that supports dependable quality control Designed for consistent dimensional inspection, this fine measuring instrument delivers an accuracy of ±0.003 mm and a reading resolution of 0.0001 mm, which together ensure reliable repeatability across serial checks. The numerical values state the device’s performance and allow planners to assess process capability and measurement uncertainty; a tighter accuracy figure reduces the need for repeated verification and shortens inspection cycles. Used within standard workshop and quality contexts, the gauge suits comparative checks and tighter tolerance control in machining and assembly operations. Streamlined measurement workflow and traceable data capture A colour 1.54" touchscreen simplifies setup, display switching and immediate readout interpretation, while the combination of analogue indication and digital output supports mixed workflows. Wireless + USB data output enables direct transfer of readings into spreadsheets or quality software, reducing transcription errors and accelerating traceability. The dual-mode readout keeps familiar mechanical cues available while providing modern connectivity for statistical process control and documentation. Durable set coverage for typical workshop ranges Supplied as a set covering 18–160 mm, the instrument meets the common requirements of general machining and inspection tasks in the standard measurement class. The modular configuration and measuring depth 130–2000 mm allow access to deeper bores when extensions are required, supporting components from compact housings to longer cylindrical parts. Carbide measuring faces protect contact areas from wear, maintaining calibration stability over prolonged use and reducing maintenance intervals—benefits that sustain uptime in busy production environments. Discuss specification and availability with Metav Werkzeuge to ensure the set matches the intended application and data workflow; Metav Werkzeuge can advise on delivery and calibration options from their Emmerich facility. Technical Data Article number: 132160705 GTIN: 4061905453823 Manufacturer: Microtech Metrology Facts Measuring range: 18–160 mm Accuracy: ±0.003 mm Resolution: 0.0001 mm Measuring depth: 130–2000 mm Display: Colour 1.54" touchscreen Data output: Wireless + USB Analogue readout: yes Special features Carbide measuring faces Supplied as a set Category: fine measuring instruments SKU: 132160705 FAQ What accuracy can be expected from this instrument? The internal bore gauge set specifies an accuracy of ±0.003 mm, suitable for standard workshop quality control and tighter tolerance checks. How are readings exported for documentation? Readings can be exported via the unit’s Wireless and USB interfaces, enabling direct transfer from the instrument into inspection logs or quality software. What measuring range and depth does the set cover? The supplied set covers 18–160 mm and supports measuring depths from 130 to 2000 mm with appropriate extensions. Are the contact surfaces resistant to wear? Yes, the instrument is fitted with carbide measuring faces to increase durability and preserve measurement stability under regular use. Is calibration information provided with the product data? Calibration status is not specified in the provided product data; confirm the required calibration scope before purchase. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
18-160mm Internal Micrometer Set Carbide Measuring Faces, Analog 0.003mm Accuracy - Microtech Metrology
Combine high wear resistance with proven measuring accuracy: the set’s carbide measuring faces, ±0.003 mm accuracy and fine 0.001 mm reading enable consistent internal measurements across a wide bore range. Order the set directly via Metav Werkzeuge or consult our specialists for application-specific advice. Internal Micrometer Set by Microtech Metrology — carbide faces, 18–160 mm The Internal Micrometer Set from Microtech Metrology offers robust, high-precision internal measurement for bores and recesses in workshop and production environments, combining fine resolution with durable carbide contact faces. Carbide measuring faces for long life Accuracy of ±0.003 mm for repeatable results Set covering 18–160 mm for workshop versatility Measuring depth 130–2000 mm for extended reach Consistent accuracy that reduces rework and inspection time The set delivers a declared accuracy of ±0.003 mm, supported by a fine 0.001 mm reading capability, giving a reliable basis for quality decisions on small to medium bores. The analogue measuring system with a clear dial provides stable indication under service conditions where electronic displays can be affected by coolant or greasy hands. The result is fewer measurement-related rejects and less rework, which translates directly into improved process efficiency and predictable output quality. Durable contact surfaces and practical workshop range The tool set is fitted with carbide measuring faces, chosen for their resistance to wear and repeatable contact geometry. This makes the set well suited to routine inspection in machine shops and toolrooms where throughput and longevity matter. With a coverage of 18–160 mm, the kit falls into the Standard range, balancing reach and rigidity for typical engineering components such as housings, bearings and stepped bores. Designed for everyday use and easy verification Delivered as a complete set, the system allows quick changeover between sizes and maintains measuring consistency across multiple components. The extended measuring depth 130–2000 mm offers flexibility for deeper bores or components with recessed features. For traceable quality assurance, calibration status and periodic verification can be arranged; for specific calibration requirements or integration into inspection routines, Metav’s technical advisers provide tailored guidance. For reliable internal measurement with industrial durability, choose the Microtech Metrology internal micrometer set and contact Metav Werkzeuge for application advice and purchasing details at info@metav-werkzeuge.com or by telephone on +49 2822 7131930 Technical Data Article number: 132160805 GTIN: 4061905453984 Manufacturer: Microtech Metrology Facts Measuring range: 18–160 mm Measuring depth: 130–2000 mm Resolution/reading: 0.001 mm Accuracy: ±0.003 mm Set: yes Special features Carbide measuring faces Analogue dial gauge display Set configuration for stepwise ranges Suitable for workshop and production inspection FAQ What measuring range does the kit cover? The set covers an internal diameter range from 18 to 160 mm, delivered as a matched set for consecutive bore sizes. How precise are the measurements with this instrument? The instrument achieves an accuracy of ±0.003 mm with a fine 0.001 mm reading, making it suitable for demanding workshop inspections. Are the measuring faces durable for high-use environments? Yes, the micrometer set is supplied with carbide measuring faces, which are wear-resistant and maintain repeatable contact geometry in regular use. Is the display electronic or mechanical? The unit features an analogue dial gauge, chosen for robustness in environments where electronics might be exposed to coolant or contaminants. Can the set measure deep or recessed bores? The configuration supports measuring depths from 130 up to 2000 mm, allowing assessment of recessed features and deeper bores. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
18-160mm Internal Precision Bore Gauge Set Digital 10×0.01mm (18–35, 35–50, 50–160mm) Supplied in Case - Metav IndustryLine
The combination of a digital dial readout, 0.01 mm resolution and proven repeatability provides dependable internal measurement across a wide working range. Benefit from a robust matt‑chrome instrument holder and a set that covers small to medium bores for consistent production checks. Order the set directly via Metav Werkzeuge or consult our specialists for application advice. Internal Fine Measuring Set 18–160 mm, Digital — Digital internal dial gauge set with 0.01 mm resolution (Metav IndustryLine) The Internal Fine Measuring Set 18–160 mm, Digital is a compact instrument set intended for precise internal dimension checks in machine workshops, toolrooms and quality control environments, offering a practical range for common bore and cavity measurements. Digital display with mm/inch switch High resolution: 0.01 mm Measuring range 18–160 mm Repeatability 0.01 mm Reliable precision for routine quality control The set centres on digital dial indicators that deliver a clear, switchable readout and an incremental/absolute (ABS/PRESET) function to speed repeat measurements. With a resolution of 0.01 mm and a documented repeatability of 0.01 mm, the instruments are designed to reduce reading uncertainty and support fast decision‑making on the shop floor. The electronics include a mm/inch toggle and a 0/ON function to establish reference points rapidly, making comparative checks and presetting simpler during inspection cycles. Stable mounting and ergonomic handling that reduce measurement error A matt‑chrome instrument holder provides a rigid support that keeps the gauge steady during internal checks, which helps to maintain measurement consistency over repeated operations. The gauges are engineered so that the measuring direction can be reversed, enabling flexible positioning inside bores and recesses without losing accuracy. These mechanical choices minimise operator‑induced variability and speed up the inspection process, making the set well suited to busy production and maintenance environments. Practical range and workshop suitability Classified within the standard measuring category (measuring range up to 100–300 mm), this set bridges fine internal work and broader workshop needs. The three gauges cover stepped ranges from small to medium bores, enabling measurement of narrow apertures as well as larger internal diameters commonly encountered in assemblies and housing components. The compact dial diameter and digital readout make the instruments appropriate for both bench inspections and in‑machine checks where clear readability and repeatable data are essential. Contact Metav Werkzeuge today for tailored advice on application and to request a detailed quotation for the Metav IndustryLine internal gauge set M208.056 Technical data Article number: M208.056 GTIN: 4054469104102 Brand: Metav IndustryLine Facts Measuring range: 18–160 mm Resolution: 0.01 mm Repeatability: 0.01 mm Dial diameter: 12.7 mm Weight: 2.45 kg Pieces per set: 3 Resolution (inch): 0.0005 in Special features Digital display with 0/ON, ABS/PRESET and mm/inch button Matt‑chrome instrument holder Reversible measuring direction possible Set covers ranges 18–35 mm, 35–50 mm and 50–160 mm Designed for internal measurement tasks FAQ What measurement accuracy can be expected from these gauges? The repeatability for the Internal Fine Measuring Set 18–160 mm, Digital is specified as 0.01 mm with a resolution of 0.01 mm, providing reliable repeat readings for routine quality checks. Which internal dimensions can be measured with this set? The set contains gauges that together cover internal ranges from small apertures up to medium bores (18–160 mm), making it suitable for bores, recesses and similar internal features encountered in machining and assembly. Is the display switchable between metric and imperial units? Yes. The digital display includes an mm/inch button together with 0/ON and ABS/PRESET functions for quick unit switching and zero setting. Can the gauges measure in both directions inside a bore? The instruments allow reversal of the measuring direction, which aids measurement in confined spaces and supports versatile positioning without loss of reading integrity. What does the set include in terms of ranges? The Internal Fine Measuring Set 18–160 mm, Digital is supplied as a three‑part set covering the ranges 18–35 mm, 35–50 mm and 50–160 mm, enabling staged inspection across typical workshop requirements. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
18-35 mm Gauge Pins Set, 9-Piece For Internal Fine Measurement Fixtures - Metav IndustryLine
Take advantage of a compact, workshop-ready accessory that extends the functionality of the M208.021 measuring system: a nine-piece set of gauge pins covering 18–35 mm, offering precise incremental sizes and simple mounting for faster inspection cycles. Order the set directly via Metav Werkzeuge or consult the technical team for compatibility guidance. 9-piece measuring pin set for 208.021 (18–35 mm) — gauge pins, Metav IndustryLine Measuring pin set for 208.021 (18–35 mm) is a dedicated accessory for internal gauging tasks on compatible measuring fixtures, designed to simplify repeatable checks in production and quality environments. Precision pins covering 18–35 mm range Compatible with M208.021 measuring system Delivered as a nine-piece set Consistent internal gauging with defined increments The set provides a series of precision gauge pins that span the 18–35 mm interval in regular steps, enabling quick selection of the closest nominal size for internal measurements. Fitted to the M208.021 interface with an M4/4.5 mounting specification, the pins allow rapid exchange and reduce fixture rework time. Because each pin is dedicated to one nominal diameter, measurement routines become more repeatable and less prone to setup variance, which supports higher throughput in routine inspection tasks. Compact set design that speeds up workflow Supplied as a nine-piece set, the collection brings immediate practical value: fewer tool changes, simplified inventory, and straightforward traceability for common internal diameters. The lightweight nature (listed weight 0.02 kg) keeps handling effortless during repetitive checks, and the compact format is convenient for storage alongside other metrology accessories. For day-to-day workshop use this arrangement reduces downtime between checks and helps maintain a steady production rhythm. Ease of integration into quality processes As an accessory from Metav IndustryLine, the pins are intended to integrate smoothly into established measurement setups. The modular approach to internal gauging reduces the need for frequent adjustments to master gauges and supports consistent documentation of inspection steps. When used within an organised quality workflow, the set contributes to measurable gains in inspection efficiency and lowers the risk of undetected dimensional deviations on machined components. Contact Metav Werkzeuge for tailored accessory recommendations or to order the Metav IndustryLine gauge pin set for extending M208.021 functionality and ensuring consistent internal measurements Technical Data SKU: M208.021.BZ GTIN: 4054469146638 Customs tariff number: 90179000 Description: Measuring pins for 208.021 Weight: 0.02 kg Facts Measuring range: 18–35 mm Pieces per set: 9 Mounting interface: M4/4.5 Special features Accessory for M208.021 measuring devices Designed for internal gauging tasks Compact, workshop-oriented set FAQ What diameters are covered by the set? The nine-piece set covers diameters across the 18–35 mm range, supplied as incremental gauge pins for straightforward selection during internal measurements. Is the set compatible with my M208.021 fixture? Yes — the pins are specified for use with the M208.021 measuring system and use an M4/4.5 mounting interface for secure attachment. How many pieces are included and how does that help workflow? Nine pins are included; this range and quantity reduce the number of tool changes and support faster inspection cycles in routine quality checks. Is a calibration certificate supplied with the set? No explicit calibration certificate is listed for this accessory; the product is supplied as a set of measuring pins for the 208.021 system. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
18-450mm Internal Micrometer Set Carbide Measuring Faces Analog 0.008mm Accuracy 130–2000mm Depth Range - Microtech Metrology
Take advantage of a compact, workshop-ready internal micrometer set that combines industrial-grade carbide measuring faces with a fine 0.001 mm readout and an accuracy of ±0.008 mm for reliable internal dimensions; order directly via Metav Werkzeuge or consult the Metav team for tailored technical advice. Internal micrometer set by Microtech Metrology — 18–450 mm, carbide measuring faces The internal micrometer set provides precise internal diameter measurement across a broad span for workshop and inspection use, combining a finely graduated mechanical dial with wear‑resistant carbide contact faces for repeatable results in jigs, housings and bearing bores. Internal micrometer set 18–450 mm measuring range Carbide measuring faces for long wear life 0.001 mm readout resolution on mechanical dial Medium class range for fixtures and housings High precision where internal geometry matters This set delivers ±0.008 mm accuracy and a 0.001 mm readout resolution on an analogue dial, offering the combination of tactile control and measurable repeatability expected in production control. The fine graduation on the dial and the mechanically stable spindle permit robust comparison measurements and traceable inspection steps; the design reduces operator-induced variation by favouring a steady measuring action, so recurring checks on internal diameters become faster and more reliable. The result is measurable process stability in assembly or incoming inspection tasks. Versatile set format for workshop measurement tasks Supplied as a set covering 18–450 mm, the kit falls into the Medium (300–500 mm) class of internal measuring instruments: it balances reach and stiffness for larger components such as housings, flanges and precision fixtures. The specified measuring depth 130–2000 mm allows access into deeper bores and stepped parts without improvised extensions. Delivered in matched increments, the set enables quick selection of the correct gauge for different bore sizes and reduces changeover time during serial checks. Durable contact geometry and service-friendly handling The instrument's carbide measuring faces resist wear and preserve measuring reliability over long service intervals, which reduces recalibration frequency and lowers lifetime cost of ownership. The analogue dial provides an immediate visual readout that is simple to interpret on the shop floor; the mechanical construction keeps maintenance straightforward and supports rapid field checks. For production environments prioritising uptime, the robust contact surfaces and solid construction contribute directly to fewer measurement-related stops. How this improves process control Incorporating a purpose-built internal measuring set into quality workflows shortens inspection cycles and improves first-pass yield by delivering consistent bore assessments at the point of manufacture. The clear dial reference and precise spindle travel help technicians detect small deviations early, enabling corrective actions before components proceed down the line. This contributes to operational efficiency and reduces rework costs in machining and assembly operations. Contact Metav Werkzeuge for product staging, in‑house compatibility checks or to order this Microtech Metrology internal micrometer set with expert guidance from Emmerich. Technical data Article number: 132450805 GTIN: 4061905453991 Manufacturer: Microtech Metrology Core data Measuring range: 18–450 mm Resolution / readout: 0.001 mm Accuracy: ±0.008 mm Measuring depth: 130–2000 mm Type: analogue/dial internal micrometer set Special features Carbide measuring faces Delivered as a set Category: fine measuring instruments ECLASS: 21170310 FAQ What measuring range does the set cover? The set covers an 18–450 mm measuring range, supplied in matched increments suitable for workshop and inspection tasks. What accuracy and resolution can be expected? This internal micrometer set offers an accuracy of ±0.008 mm with a mechanical dial resolution of 0.001 mm for fine internal dimension control. Are the measuring faces wear resistant? Yes, the contact faces are made of carbide, providing high wear resistance and extended service life for repeated internal measurements. Is this instrument suitable for deep bores? The design specifies a measuring depth of 130–2000 mm, making it suitable for deeper internal measurements and stepped bore geometries. Does the set include all sizes for production use? The set is supplied as a complete range from 18 to 450 mm, intended to cover common internal diameters in machining and fixture work. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
18-450mm Internal Micrometer Set With Carbide Measuring Faces, 0.0001mm Resolution Color Touchscreen Wireless+USB - Microtech Metrology
Take advantage of 0.008 mm accuracy and durable carbide measuring faces, plus integrated Wireless + USB data transfer for faster quality control. Order the instrument directly via Metav Werkzeuge or consult our specialists for precise configuration advice. Internal fine measuring instrument — Microtech Metrology set with carbide measuring faces and colour touchscreen Internal fine measuring instrument for precise internal diameter and depth checks in machine shops and production inspection, supplied as a multi-depth set for flexible workshop use Set covering 18–450 mm range Carbide measuring faces for durability Wireless + USB data output integration Repeatable internal measurements with laboratory precision This analogue–digital measuring set delivers 0.008 mm accuracy with a reading resolution of 0.0001 mm, combining a traditional analogue mechanism and a colour 1.54" touchscreen for clear indication. The hybrid display preserves familiar tactile control while offering immediate digital readout, which reduces interpretation errors in fast inspection cycles. As a result, routine checks and first-article inspections become both faster and more reliable, supporting consistent production tolerances. Seamless data capture for traceable quality control Integrated Wireless + USB output enables direct transfer of measurement logs to inspection software and SPC systems, eliminating time-consuming manual recording. The set’s data interface supports batch reporting and traceability, which simplifies audit preparation and reduces administrative overhead. With clear digital export options and an analogue fallback, the system balances modern data workflows with workshop robustness for uninterrupted measurement chains. Built to withstand workshop use while preserving accuracy Durable carbide measuring faces protect contact surfaces from wear and maintain gauge repeatability over prolonged use. The configuration supplied as a set covers a wide span of internal diameters while the specified measuring depth 130–2000 mm accommodates recessed bores and deep housings. These design choices reduce rework and tool change frequency, delivering long-term economy through fewer replacements and stable metrology performance. Medium-range versatility for daily production tasks Classified as a medium-range instrument (measuring range 18–450 mm), this set is ideal for general machine‑shop and metalwork applications where reach and stiffness must be balanced. It suits measurement of bearings, bores, spacers and housings in small to medium assemblies. The combination of a compact mechanical feel, extended depth capability and digital data output positions the set as a reliable workshop standard for quality control and routine inspection tasks. Contact Metav Werkzeuge to discuss the Microtech Metrology internal fine measuring instrument set with carbide faces and integrated Wireless + USB output for specification and supply Technical data Article number: 132450705 GTIN: 4061905453830 Manufacturer: Microtech Metrology Set: Yes Display: Colour 1.54" touchscreen Data output: Wireless + USB Core measurements Measuring range: 18–450 mm Min measuring range: 18 mm Max measuring range: 450 mm Measuring depth: 130–2000 mm Reading resolution: 0.0001 mm Accuracy: 0.008 mm Analogue indication: Yes Materials and features Carbide measuring faces Analogue + digital indication Wireless connectivity USB data output Set configuration for stepped depths FAQ What level of accuracy can be expected from this internal measuring set? The set achieves an accuracy of 0.008 mm with a reading resolution of 0.0001 mm, making it suitable for routine quality control in machining and assembly operations. Does the instrument support digital data transfer to inspection software? Yes, the instrument provides Wireless + USB data output so measurement results can be exported directly into SPC and inspection systems. Are the contact faces resistant to wear? The gauge is fitted with carbide measuring faces, which significantly improve wear resistance and help preserve repeatable results over extended use. What measuring depths and ranges are covered by the set? The supplied set covers a measuring range of 18–450 mm with a measuring depth capability of 130–2000 mm, suitable for many internal bores and recessed features. Is an ISO 17025 calibration certificate included? The product is supplied in standard inspection condition; an ISO 17025 certificate is not included by default. Please enquire if an accredited calibration is required. Microtech Metrology: Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools

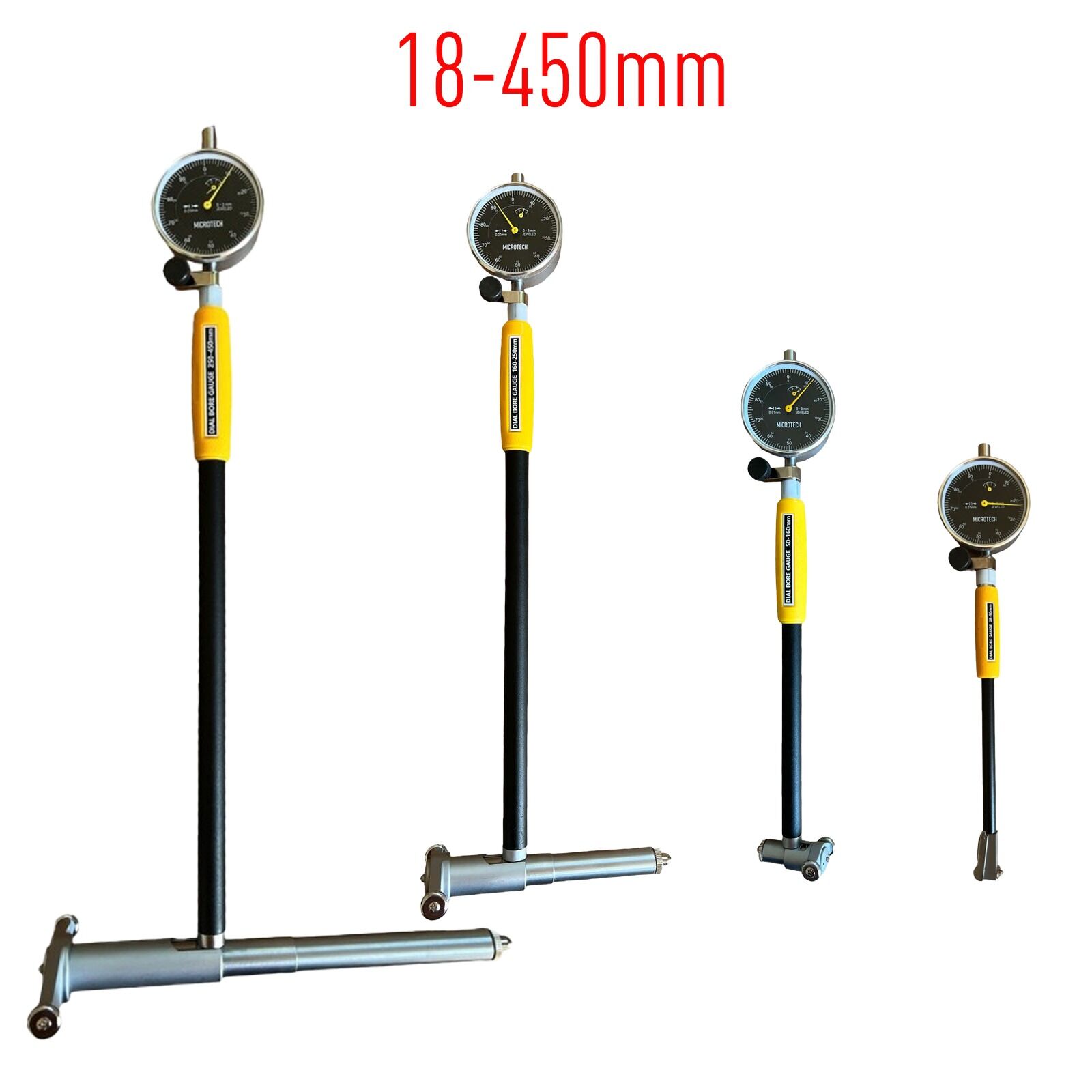

18-450mm Internal Precision Bore Gauge Set With Carbide Measuring Faces, 0.01mm Resolution - Microtech Metrology
Take advantage of high repeatability and a wide coverage from 18–450 mm, combined with carbide measuring faces for long-term wear resistance and stable results. Order the set directly via Metav Werkzeuge or consult our specialists for application advice. Internal Precision Bore Gauge Set — analogue dial, carbide measuring faces (Microtech Metrology) The Internal Precision Bore Gauge Set is an analogue inside-measuring set intended for internal diameter inspection in workshop and quality‑control environments, offering a modular 18–450 mm measuring span with extended reach options. Wide 18–450 mm range Carbide measuring faces for durability Analogue dial with 0.01 mm reading Suitable for mid-range component inspection Reliable measurement accuracy for routine quality checks The set delivers a resolution of 0.01 mm and a nominal accuracy of ±0.022 mm, values that support routine dimensional control in machine building and component manufacture. The analogue dial indicator provides an immediate visual result without reliance on electronics, enabling fast comparative checks and pass/fail assessment at the bench. Classified as a mid-range instrument (300–500 mm category), this modular set balances reach and stiffness so that repeatable internal measurements are achievable across a wide range of bore sizes. Modular design and application reach for efficient workflows Supplied as a set that covers the full 18–450 mm span, the instrument is configured to address typical workshop tasks from small bores up to larger housings. The documented measuring depth of 130–2000 mm allows inspection of components with substantial internal depth when used with appropriate extension elements. Carbide measuring faces reduce wear and maintain measurement integrity under frequent use, which lengthens service intervals and supports consistent process control in production and inspection areas. Practical robustness and where this instrument fits Being an analogue internal measuring instrument means reduced dependency on batteries and simpler maintenance routines, attributes appreciated in busy shop-floor settings. The construction and components are aimed at everyday metrology in production, toolmaking and fixture assembly where dependable comparative measurement and quick verification are required. As a precision measuring set from Microtech Metrology, it is positioned for inspectors and machinists who need a durable, mid-range solution that integrates easily with existing quality workflows. Choose the Microtech Metrology internal measuring set for dependable bore checks and contact Metav Werkzeuge in Emmerich for tailored advice or to arrange supply: info@metav-werkzeuge.com | +49 2822 7131930 Technical Data Article number: 132450105 GTIN: 4061905454073 Manufacturer: Microtech Metrology Facts Measurement range: 18–450 mm Measuring depth: 130–2000 mm Resolution: 0.01 mm Accuracy: ±0.022 mm Special features Carbide measuring faces Analogue dial reading Supplied as a set Category: Precision measuring instruments FAQ What measuring range does this set cover? The internal precision bore gauge set covers a measuring span from 18 to 450 mm, supplied as a set to bridge small and mid-range internal diameters. What resolution and accuracy can be expected? Resolution is 0.01 mm with a nominal accuracy of ±0.022 mm, suitable for routine workshop inspection and quality control tasks. Are the measuring faces wear-resistant? Yes, the instrument is fitted with carbide measuring faces to improve wear resistance and prolong stable measurement performance. Can it inspect deep bores and recesses? The set supports measuring depths between 130 and 2000 mm, enabling checks in components with extended internal reach when used with compatible extensions. Is this set suitable for production and toolroom use? The analogue design, durable measuring faces and mid-range coverage make the set appropriate for production, toolroom and fixture inspection activities. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine; tool@microtech.tools
18-50 mm Internal Micrometer Carbide Measuring Faces, 0.001 mm Dial Reading, 2000 mm Depth Stop - Microtech Metrology
Data conflict: the product is listed as analogue but is also described as having a digital dial indicator; this creates uncertainty regarding the type of measurement display. Please verify whether the measurement display is analogue, digital, or possibly a combination of both. Clarifying this detail is essential to ensure accurate product information and avoid confusion for potential users. If the display is indeed digital, the product description may need to be updated to reflect this accurately. Conversely, if the display is analogue, the mention of a digital dial indicator should be reviewed and corrected to prevent any misrepresentation.
18-50mm Internal Bore Gauge Carbide Measuring Faces Color Touchscreen Wireless/USB - Microtech Metrology
Data inconsistency detected for SKU 132050700: the record is flagged as an analogue instrument while simultaneously listing a Color 1.54" touchscreen display and Wireless + USB data output. These entries are contradictory and prevent a reliable product description. The presence of a touchscreen display and advanced output options typically aligns with digital devices, which raises questions about the accuracy of the analogue classification. Please confirm whether the device is analogue or digital and clarify the intended reading resolution and output options. This clarification is essential to ensure a complete, accurate product text can be produced, avoiding confusion and ensuring proper representation of the item's specifications.
18-50mm Internal Fine Measuring Gauge Carbide Measuring Faces, 0.01mm Vernier Resolution - Microtech Metrology
Take advantage of precise analogue measurement, wear‑resistant carbide measuring faces and a compact 18–50 mm range to streamline internal checks in the workshop; order directly via Metav Werkzeuge or consult our technical team for compatibility advice. Internal precision gauge — analogue internal measuring instrument, 18–50 mm range, carbide measuring faces (Microtech Metrology) The internal precision gauge is an analogue instrument for quick and accurate internal diameter checks in precision engineering, toolrooms and quality control applications. Analogue readout with 0.01 mm resolution Accuracy ±0.012 mm for reliable repeatability Carbide measuring faces for long service life Measuring range 18–50 mm for micro applications Reliable micro‑range measurement for precision tasks The instrument delivers a high level of reproducibility by combining an 0.01 mm resolution with an accuracy of ±0.012 mm, making it suitable for fine internal checks where small deviations matter. Designed for the "Micro" class of gauges (measuring ranges from 10–100 mm), this device covers the typical workshop needs for small bores and fine mechanical parts while maintaining low thermal and handling sensitivity. The compact range supports rapid comparative checks and pass/fail assessments without the overhead of larger systems, improving throughput in routine inspection tasks. Durable construction for frequent shop use Hard wearing carbide measuring faces protect the contact surfaces against abrasion and edge damage, extending service intervals and keeping measurement uncertainty low over time. The instrument features an analogue mechanism that is straightforward to read and maintain, with a long measuring depth of 1000 mm enabling access to recessed bores where a short stem would be restrictive. Together these elements reduce downtime for replacement parts and help sustain consistent results across production batches. Quick integration into inspection workflows Compatible with standard dial indicators and shop measurement routines, the gauge pairs well with bench fixtures and simple comparison jigs to form an efficient inspection station. The analogue readout simplifies training for technicians familiar with mechanical gauges, while the compact 18–50 mm span allows a small set of gauges to cover the most common internal dimensions. For documented quality control, measurements can be logged manually alongside batch records, supporting traceability and process control in small to medium production runs. Contact Metav Werkzeuge for a technical consultation or a tailored quotation to ensure the internal precision gauge meets specific bore measurement requirements Technical data SKU: 132050122 GTIN: 4061905453687 Manufacturer: Microtech Metrology Category: precision gauges Facts Measuring range: 18–50 mm Resolution / readout: 0.01 mm Accuracy: ±0.012 mm Measuring depth: 1000 mm Display: analogue Special features Carbide measuring faces Designed for internal diameter checks Dial gauge compatibility Compact micro‑range instrument FAQ What measuring range does this gauge cover? The internal precision gauge has a measuring range of 18–50 mm, suitable for micro‑range internal measurements. How precise is the analogue readout? The device provides a 0.01 mm resolution and an accuracy of ±0.012 mm when used under standard workshop conditions. Are the contact faces replaceable and durable? Yes, the gauge is fitted with carbide measuring faces to ensure wear resistance during frequent use. Can this instrument be used with a dial indicator? The design is compatible with dial indicators, allowing use in common comparative and fixture‑based inspection setups. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
18-50mm Internal Micrometer Carbide Faces, Mechanical 0.003mm Resolution, 130mm Depth - Microtech Metrology
Take advantage of 0.003 mm accuracy and carbide measuring faces for reproducible internal measurements; the compact design with a 130 mm measurement depth keeps inspection times short and reduces rework. Order the instrument directly via Metav Werkzeuge or consult our advisors for application-specific advice. Internal fine measuring instrument by Microtech Metrology — 18–50 mm range, 0.003 mm accuracy The internal fine measuring instrument is a precision gauge for measuring internal diameters and bores in production and laboratory settings, designed for repeatable results across medium-depth workpieces. High precision: 0.003 mm accuracy Measuring range 18–50 mm Carbide measuring faces for wear resistance 130 mm measurement depth Measure small bores with metrological confidence This gauge delivers 0.003 mm accuracy with a fine 0.001 mm resolution, ensuring that measured values are directly comparable across inspection routines. The instrument’s 18–50 mm measuring range covers a common inspection band in mechanical workshops and quality control departments, making it suitable for batch sampling and first-article checks. By limiting measurement uncertainty, the device helps to reduce downstream rework and supports consistent production decisions based on objective numeric results. Robust contact for long service life Equipped with carbide measuring faces, the gauge resists wear where dimensional integrity matters most. The hardened contact surfaces maintain geometry over repeated cycles, which preserves traceability and reduces the need for frequent recalibration. The mechanical display uses a fine graduation that allows rapid visual readings while keeping the measuring routine simple and reliable; this combination of durable contacts and precise indication supports a high throughput in routine inspection tasks. Integrates into workshop and inspection workflows A 130 mm measurement depth allows checking internal features that are beyond reach of short probes, while the compact frame aids handling in tight setups. The design suits both bench-top metrology and in-process spot checks at the machine, offering a balance of accessibility and stiffness for stable measurements. For teams standardising inspection protocols, the instrument provides a measurable performance uplift in both acceptance testing and routine quality control, helping to maintain production tolerances with repeatable outcomes. For assessment or a quotation, contact Metav Werkzeuge to discuss the Microtech Metrology internal fine measuring instrument (SKU 132050800) and its fit for specific inspection tasks — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical Data Article number: 132050800 GTIN: 4061905454172 Classification: 21170310 Facts Measuring range: 18–50 mm Measurement depth: 130 mm Resolution: 0.001 mm Accuracy: 0.003 mm Display type: analog, fine graduation Special features Carbide measuring faces Category: Fine measuring device Manufacturer: Microtech Metrology FAQ What accuracy can be expected from this internal gauge? The Microtech Metrology internal fine measuring instrument offers an accuracy of 0.003 mm, making it suitable for precision checks in machining and quality control (SKU 132050800). Is the device suitable for deeper bores and recesses? Yes — the 130 mm measurement depth permits inspection of deeper internal features, so the instrument can be used for a wide range of bore and internal-diameter checks in workshop environments. How wear-resistant are the measuring faces? The carbide measuring faces provide high wear resistance, ensuring dimensional stability of contact geometry over prolonged use with reduced maintenance needs. Can this gauge be used for routine production checks? The instrument is designed for production and laboratory use, offering the repeatability and resolution required for routine inspection and batch sampling. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
18-50mm Internal Micrometer Carbide Measuring Faces, 0.003mm Accuracy, Touchscreen Display - Microtech Metrology
Take advantage of the combination of ultra‑fine ±0.003 mm accuracy, carbide measuring faces and integrated Wireless + USB data transfer for reliable internal measurements in precision workshops; order directly via Metav Werkzeuge or contact our consultants for advice. Internal Fine Measuring Instrument — compact internal gauge with carbide measuring faces and Wireless + USB (Microtech Metrology) The Internal Fine Measuring Instrument is a compact internal gauge engineered for fine mechanical and workshop metrology, providing high repeatability across its 18–50 mm measuring range. ±0.003 mm high precision accuracy Carbide measuring faces for durability Wireless + USB data output for traceability Colour 1.54" touchscreen for clear readout Precision that supports production decisions This instrument delivers an accuracy of ±0.003 mm, combining mechanical stability with a measured resolution of 0.0001 mm for repeatable internal dimension checks. The short measuring span classifies the gauge in the Mikro segment (max. 10–100 mm), which is ideal where stiffness, minimal lever deflection and fine detail count most. The presence of carbide measuring faces increases wear resistance, so tolerances remain stable during routine quality control. Engineers and inspection staff benefit from objective measurement values that directly support go/no‑go decisions on the shop floor. Streamlined data capture and process integration Equipped with Wireless + USB output and a colour 1.54" touchscreen, the device simplifies documentation and reduces transcription errors. Data can be logged directly into inspection software or exported for statistical process control, shortening the feedback loop between measurement and corrective action. The mixed readout capability—mechanical feel combined with a modern display—helps retain familiar handling while enabling digital workflows, improving throughput and auditability in systematic quality regimes. Robust build for daily workshop use Constructed with hardwearing contact faces and an inspection‑oriented design, the instrument is suited to frequent use in machine shops and metrology benches. The compact form and reliable contact geometry make it particularly useful for internal bores, stepped diameters and small assemblies. Maintenance is straightforward: wear‑resistant surfaces and simple cleaning preserve measurement integrity, while the clear display reduces operator interpretation errors. The result is predictable performance that supports production continuity and quality assurance. Contact Metav Werkzeuge for a technical consultation and supply options for the Microtech Metrology internal fine measuring instrument, including details on delivery and integration into existing inspection routines Technical data Article number: 132050744 GTIN: 4061905454134 Manufacturer: Microtech Metrology Product: Internal fine measuring instrument Core measurements Measuring range: 18–50 mm Accuracy: ±0.003 mm Resolution: 0.0001 mm Display: Colour 1.54" touchscreen Measuring depth: 2000 mm Special features Carbide measuring faces (hardmetal) Data output: Wireless + USB Analog readout present Classification: Mikro (compact fine measuring) FAQ What accuracy can be expected from this internal gauge? The internal gauge from Microtech Metrology achieves an accuracy of ±0.003 mm, making it suitable for high‑precision internal dimension checks within its 18–50 mm range. Is the device suitable for daily workshop use? Yes. The combination of carbide measuring faces and a compact design ensures durability and repeatable readings in routine shop‑floor inspection tasks. How is measurement data exported from the instrument? Measurement values can be transmitted via Wireless + USB, enabling direct logging into inspection software or export for traceability and SPC processes. Can this instrument measure very small internal diameters? The instrument covers internal diameters from 18 to 50 mm, classified in the Mikro segment for fine mechanical components and micro‑assemblies. Does the instrument include a digital display for easier reading? A colour 1.54" touchscreen provides clear, immediate readout alongside the mechanical measuring capability for improved operator ergonomics. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
18-50mm Internal Micrometer Carbide Measuring Faces, 0.003mm Accuracy, Touchscreen Display, Wireless+USB - Microtech Metrology
Product data inconsistent: 'analog' is true while 'digital_anzeige' specifies a digital display — please check the product information thoroughly to ensure accuracy. It is important to verify whether the product is indeed analog or digital, as conflicting information can lead to confusion for customers and potential issues in product categorisation. Double-check the specifications provided in the product description and ensure they align with the actual features of the item. If necessary, consult the manufacturer or supplier for clarification. Resolving this inconsistency promptly will help maintain the integrity of the product data and improve customer trust in the information provided.
18-50mm Internal Micrometer Carbide Measuring Faces, Analog 0.001mm Resolution - Microtech Metrology
Data inconsistency detected: the item is marked as analogue while the product description references a digital dial indicator, and the price fields contain conflicting values. This discrepancy may lead to confusion for customers and hinder accurate product categorisation. To ensure clarity and reliability, it is essential to review and correct the provided product data. Please verify whether the item is indeed analogue or digital, update the product description to match the correct specification, and resolve the conflicting price fields. Accurate and consistent product information is crucial for maintaining trust and ensuring a seamless customer experience.
18-50mm Internal Precision Bore Gauge Carbide Measuring Faces 0.003mm Resolution - Microtech Metrology
Take advantage of the combination of ±0.003 mm accuracy, carbide measuring faces and a compact 18–50 mm measuring range for reliable internal inspection of small components. Order the (Internal Precision Gauge) directly via (Metav Werkzeuge) or ask our consultants if needed. Internal Precision Gauge — analogue internal measuring instrument with carbide faces (Microtech Metrology) The Internal Precision Gauge is an analogue internal measuring instrument designed for precise inspection of small bores and fine mechanical components, offering a compact 18–50 mm range and carbide measuring faces for long-term wear resistance. Analogue dial with ±0.003 mm accuracy Carbide measuring faces for high wear resistance Measuring range 18–50 mm Measuring depth 1,000 mm capability Accurate results for precision inspection The instrument delivers repeatable internal measurements with a stated accuracy of ±0.003 mm, making it suitable where micrometre-level control is required. The analogue dial construction keeps the measurement process straightforward and robust: readings are taken directly from the mechanical indicator, which reduces reliance on electronics in harsh workshop environments. Classified in the Micro (10–100 mm) range, this design is tailored for fine mechanical work and quality control tasks where compactness and stiffness are decisive for reproducible results. Durable construction that reduces downtime Carbide measuring faces ensure long service life and consistent contact geometry, which is essential when inspections are performed frequently. The use of carbide on the contact surfaces minimises wear and preserves accuracy across repeated cycles, so maintenance intervals are extended and tool-related variation is reduced. The instrument’s construction supports a measuring depth of 1,000 mm, enabling access to recessed bores while keeping the measurement interface stable for reliable readings. Workflow advantages and practical application Designed for workshop integration, the gauge combines a compact measuring envelope with robust mechanical operation. The 18–50 mm measuring range covers common small-bore dimensions found in precision parts, tooling and assemblies, while the analogue dial offers intuitive feedback during setup and adjustment. For users migrating from calipers or legacy gauges, the mechanical indicator simplifies training and supports quick acceptance in production or inspection routines. Traceability and repeatability are improved when the tool is used within a calibrated environment and consistent measuring technique. For advice on integrating Microtech Metrology’s analogue internal gauge with carbide faces into inspection processes, or to request specific documentation, contact Metav Werkzeuge in Emmerich by phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical Data Article number: 132050822 GTIN: 4061905453496 Manufacturer: Microtech Metrology Facts Accuracy: 0.003 mm Measuring range: 18–50 mm Measuring depth: 1,000 mm Category: Micro (10–100 mm) Special features Carbide measuring faces Analogue operation (mechanical dial indicator) Designed for internal precision measurement FAQ What is the stated accuracy of this internal gauge? The instrument from Microtech Metrology provides an accuracy of ±0.003 mm, suitable for micrometre-level internal inspections (SKU 132050822). Which measuring range does the gauge cover? The device covers an 18–50 mm range, placing it in the Micro classification for compact, high-precision work. Are the contact surfaces wear-resistant? Yes, the gauge is fitted with carbide measuring faces to maintain contact geometry and accuracy during repetitive inspections. Can this instrument reach recessed bores? The construction allows for a measuring depth of 1,000 mm, enabling measurement of deeper internal features while preserving stability. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
18-50mm Internal Precision Bore Gauge Carbide Measuring Faces 130mm Depth 0.01mm Resolution - Microtech Metrology
Robust analogue performance meets workshop practicality: the internal micrometer combines carbide measuring faces with a 130 mm reach to inspect bores from 18–50 mm reliably. Paired with a fine 0.01 mm dial reading and an accuracy of ±0.012 mm, this gauge supports consistent in-process checks — order via Metav Werkzeuge or consult our specialists for application advice. Internal Micrometer (Analogue Bore Gauge) by Microtech Metrology — Carbide Faces, 18–50 mm The internal micrometer is an analogue bore gauge for precise internal diameter inspection in workshops and quality control environments. Analogue dial with 0.01 mm resolution Measuring range 18–50 mm Carbide measuring faces for wear resistance 130 mm measuring depth for deep bores Reliable readings for everyday inspection The instrument delivers dependable numerical discrimination thanks to its 0.01 mm dial graduation and an overall accuracy of ±0.012 mm, making it suitable for routine quality checks and workshop inspections. The analogue display provides an immediate visual result that is easy to interpret on the shop floor, reducing measurement time compared with more elaborate setups. As an entry-level fine measuring device with mechanical indication, the gauge supports swift go/no-go decisions while maintaining traceable measurement quality. Wear-resistant contact for sustained performance Equipped with carbide measuring faces, the gauge is designed to withstand repeated contact with metal surfaces without rapid wear. This hard material ensures that nominal geometry of the contact points remains stable over prolonged use, minimising drift in results and preserving repeatability across long production runs. The robust contact surfaces make the instrument especially appropriate where frequent checks of small-diameter bores are required and where replacement of softer contacts would otherwise increase downtime. Reach and handling for confined bores A 130 mm measuring depth provides access to deeper bores and recessed features that are common in assemblies and fixtures, while the 18–50 mm measuring range covers many common internal diameter checks found in precision components. The gauge’s slender profile and mechanical construction facilitate use in restricted spaces where larger instruments cannot reach, allowing technicians to measure internal diameters without dismantling assemblies or using complex adaptors. Shop-friendly operation and maintenance Designed for straightforward handling, the analogue mechanism requires minimal setup and is easy to maintain in a production environment. With a mechanical indicator that reads in fine steps, the device reduces reliance on batteries and electronics, offering continuity in rougher conditions. Routine checks of contact cleanliness and correct seating of the measuring faces are sufficient to keep the gauge within expected performance. For organisations seeking consistent in-process control with low operational overhead, this fine measuring instrument balances ease of use with professional-grade durability. For precise bore checks supplied by Microtech Metrology, contact Metav Werkzeuge to discuss fitment to specific parts or to arrange procurement through our Emmerich distribution — Metav’s specialists can advise on integration into existing inspection routines Technical Data Article number: 132050100 GTIN: 4061905453663 Manufacturer: Microtech Metrology Facts Measuring range: 18–50 mm Measuring depth: 130 mm Resolution: 0.01 mm Accuracy: ±0.012 mm Special features Carbide measuring faces Analogue dial indicator Mechanical fine measuring instrument Category: Fine measuring instruments FAQ How accurate is the instrument for routine checks? The internal micrometer from Microtech Metrology achieves an accuracy of ±0.012 mm, suitable for standard workshop inspection and quality-control applications. What measuring range and reach does the gauge offer? Measuring range is 18–50 mm with a measuring depth of 130 mm, allowing access to recessed bores and small-diameter components. How is the measurement displayed and read? Readings are shown on an analogue dial with a graduation of 0.01 mm, providing clear, immediate visual results for quick decision-making. Are the contact points durable for frequent use? Yes — the gauge features carbide measuring faces, offering enhanced wear resistance and stable contact geometry during repeated measurements. Is this instrument suitable for fine mechanical and small-bore work? The instrument qualifies as a micro-range fine measuring device (max 50 mm), making it well suited to fine mechanical tasks and precise internal diameter checks in small components (SKU: 132050100). Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
18-50mm Internal Precision Bore Gauge Carbide Measuring Faces, 0.003mm Accuracy, Colour Touch Display, Wireless/USB - Microtech Metrology
Take advantage of the combination of high measurement fidelity, wear-resistant carbide faces, and seamless data transfer to keep inspection workflows efficient and traceable; order directly via Metav Werkzeuge or consult the technical team for integration support. Internal Fine Measuring Instrument — 18–50 mm, carbide faces, Wireless + USB (Microtech Metrology) The Internal Fine Measuring Instrument is a precision tool for internal diameter inspection, designed for workshop quality control and laboratory use where reproducible, traceable results are required Carbide measuring faces for long service life Accuracy to ±0.003 mm Wireless + USB data output for SPC integration 1.54" colour touchscreen for fast readout Reproducible measurements through verifiable accuracy The primary advantage of this instrument is its measurement reliability: an indicated accuracy of ±0.003 mm combined with a fine display resolution of 0.0001 mm supplies the numeric basis required for tight tolerance control. Such specifications mean that small deviations in internal diameters are detectable and documentable, which benefits quality assurance and process stability. The presence of carbide measuring faces reduces wear over repeated cycles, sustaining dimensional consistency and lowering recalibration frequency. Measured values can be relied upon for pass/fail decisions and batch acceptance criteria in production environments. Efficient data capture and reduced transcription effort Integrated Wireless + USB outputs and a 1.54" colour touchscreen transform manual readings into ready-to-use digital records, accelerating the transfer of measurement data to inspection software or SPC systems. Direct data transfer reduces transcription errors and shortens inspection cycles, supporting lean workflows and traceable audit trails. The clear on‑instrument display speeds operation at the bench, while the electronic interface allows straightforward logging of results for statistical evaluation and long-term process monitoring. Built for repetitive use and deeper bores The gauge is engineered for everyday shop handling: wear-resistant carbide faces tolerate abrasive use, and the instrument's mechanical robustness maintains stability under repeated contact. A noted measuring depth of 1,000 mm extends application into longer internal cavities and assemblies, enabling inspection of components that would otherwise require specialised setups. The result is a dependable balance between tactile handling and technical endurance that reduces downtime and preserves instrument performance in demanding tasks. Where this instrument adds value in practice Ideal applications include toolroom inspection, mould-and-die component control, maintenance checks on assembled parts and laboratory verification tasks where internal diameters must be logged and trended. The instrument supports quality-driven teams that need fast, defensible data rather than ad hoc readings. Combined with Metav’s distribution and advisory services, the gauge forms part of a supply chain aimed at democratising precision: precise metrology tools made accessible to workshops and industrial users without compromising traceability or support. Contact Metav Werkzeuge for specialist advice and to arrange procurement or technical consultation via info@metav-werkzeuge.com or by telephone at +49 2822 7131930 Technical data Article number: 132050722 GTIN: 4061905454127 Manufacturer: Microtech Metrology Category: Feinmessgeräte Core technical data Measuring range: 18–50 mm Measuring depth: 1,000 mm Accuracy: 0.003 mm Resolution / reading: 0.0001 mm Display: 1.54" colour touchscreen Special features Carbide measuring faces Wireless + USB data output Digital colour touchscreen readout Analog indication present (hybrid functionality) SKU: 132050722 FAQ What measurement range does this instrument cover? The Internal Fine Measuring Instrument covers an internal diameter range of 18–50 mm, suitable for small bores and precision components. How precise are the readings and what is the display resolution? Readings are specified to ±0.003 mm with a display resolution of 0.0001 mm, enabling detection of fine deviations for quality control tasks. Can measurement data be exported to inspection software? Yes, the gauge supports Wireless + USB outputs for direct transfer of readings into SPC or inspection systems, simplifying data logging and analysis. Are the measuring faces durable for repetitive shop use? The instrument is fitted with carbide measuring faces, offering enhanced wear resistance and longevity under regular contact measurement cycles. Is this instrument suitable for workshop and laboratory use? The combination of stable mechanical design, high resolution and digital data output makes the gauge appropriate for both workshop inspection and laboratory verification work. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
18-50mm Internal Precision Gauge Carbide Measuring Faces, 0.01mm Vernier Resolution - Microtech Metrology
Take advantage of precise bore measurement with a compact analogue instrument that combines 0.012 mm accuracy, a practical 18–50 mm measuring range and durable carbide measuring faces for long service life; order directly via Metav Werkzeuge or request advice from our consultants for application-specific guidance. Inside Fine Measuring Instrument — 18–50 mm, carbide measuring faces (Microtech Metrology) The Inside Fine Measuring Instrument is an analogue inside gauge designed for accurate bore and internal dimension checks in workshops and inspection labs. Analogue dial with 0.01 mm resolution Robust carbide measuring faces for repeatability Measurement range 18–50 mm Accuracy 0.012 mm Repeatable bore checks that speed up inspection routines The gauge delivers consistent results thanks to its finely tuned analogue mechanism and a 0.01 mm resolution display that supports short cycle inspections without overcomplication. Where frequent checks on batches or fixture set-ups are required, the compact design and clear dial reduce handling time and lower the risk of reading errors, enabling faster throughput in routine quality control. The specified 0.012 mm accuracy positions the instrument for precise workshop-level verification rather than laboratory substitution. Durable contacts for long-term stability and fewer recalibrations Equipped with carbide measuring faces, the instrument resists wear during repetitive contact against bore surfaces, preserving the reference geometry and extending the interval between maintenance actions. Carbide tips maintain contact integrity on a variety of materials and help avoid premature surface deformation; this supports repeatable measurements on production parts and tooling. The robust contact material is particularly beneficial in environments with frequent use and variable handling. Practical analogue operation for robust workshop use The analogue dial indicator concept keeps operation straightforward: no batteries, no menu navigation, just a direct mechanical readout that is familiar to seasoned technicians. The instrument’s analogue dial is advantageous where environmental conditions or supply chain constraints make electronic devices less desirable. For users migrating from traditional inspection tools, the familiar feel and immediate feedback of the dial help maintain productivity while ensuring metrology standards are observed. For a detailed specification check or to discuss which measuring solution fits an inspection workflow best, contact Metav Werkzeuge for tailored advice and a procurement proposal at info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data SKU: 132050144 GTIN: 4061905453694 Manufacturer: Microtech Metrology ECLASS: 21170310 Core specifications Measurement range: 18–50 mm Resolution/display: 0.01 mm Accuracy: 0.012 mm Measuring depth: 2000 Special features Carbide measuring faces Analogue instrument Category: Fine measuring instrument Story trigger: dial indicator FAQ How precise is the instrument for bore verification? The Inside Fine Measuring Instrument from Microtech Metrology provides an accuracy of 0.012 mm with a 0.01 mm dial resolution, suitable for workshop and standard quality-control tasks (SKU 132050144). Are the measuring faces wear-resistant? Yes, the gauge is fitted with carbide measuring faces which preserve contact geometry and improve longevity under frequent use. Is the instrument suitable for high-volume production checks? Its analogue readout and robust construction make the gauge well suited to repetitive inspection cycles and rapid go/no-go checks on the shop floor. Can the instrument be used without electronics on site? The analogue dial operation requires no power source, providing reliable measurement feedback where electronic tools are impractical. What materials can be measured with this gauge? The instrument is designed for internal dimension checks across typical engineering materials; carbide faces help maintain performance on harder surfaces. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
18-50mm Internal Precision Gauge With Carbide Measuring Faces 0.01mm Graduation, Depth 500mm - Microtech Metrology
The combination of a compact 18–50 mm measuring range, carbide contact faces and a fine 0.01 mm dial resolution ensures repeatable internal measurements with low wear and long service life. Order the instrument directly via Metav Werkzeuge or consult our specialists for integration advice. Microtech Metrology Internal Precision Bore Gauge – 18–50 mm, carbide contact faces A compact internal precision bore gauge from Microtech Metrology for fine workshop and inspection tasks, designed to measure internal diameters between 18 and 50 mm with a durable carbide contact and an analogue dial readout. 18–50 mm measuring range Carbide measuring faces for reduced wear 0.01 mm resolution, ±0.012 mm accuracy Reliable bore measurement for compact components The internal measuring instrument offers a measuring range of 18–50 mm, placing it in the micro-range ideal for small assemblies and precision components. With a resolution of 0.01 mm and an indicated accuracy of ±0.012 mm, the gauge provides dependable numerical information for quality control and set-up routines. The analogue dial format simplifies trend observation during serial inspections, while the compact construction helps to keep measuring motion stable, reducing the influence of hand-borne disturbance. Durable contact surfaces that keep tolerances The device is equipped with carbide measuring faces, which resist wear and maintain consistent contact geometry over prolonged use. This increases reproducibility of internal diameter readings and reduces the need for frequent replacement of contact points. For production environments where repeat readings are required, carbide faces mean less drift over time and reduced maintenance, ensuring that process tolerances remain achievable without constant tool change. Extended reach and clear analogue feedback for practical use A measuring depth of 500 mm provides extended reach for deeper bores or recessed features, while the robust dial display gives immediate visual feedback during alignment and measurement runs. The analogue mechanism, together with a finely graduated scale, supports quick decision-making on the shop floor where visual trend cues can be as valuable as single numeric outputs. The instrument’s form factor balances reach and rigidity, offering practical handling for bench and in-situ checks. Built for inspection routines and workshop integration Designed as an inspection tool for internal diameters, the gauge combines a small footprint with workshop-grade durability. Its mechanical dial and carbide contact set-up make it well suited to serial checks, fixture set-ups and final inspection tasks in metalworking and precision engineering shops. The instrument supports efficient measurement cycles, and its specifications make it a reliable choice for technicians who require both repeatability and straightforward operation. Contact Metav Werkzeuge in Emmerich for a technical consultation or to arrange supply of this Microtech Metrology internal precision bore gauge (SKU 132050111) and discuss delivery options close to your production site Technical Data Article number: 132050111 GTIN: 4061905453670 Manufacturer: Microtech Metrology Type: analogue internal bore gauge Resolution: 0.01 mm Specified accuracy: ±0.012 mm Facts Measuring range: 18–50 mm Minimum range: 18 mm Maximum range: 50 mm Measuring depth (reach): 500 mm Special features Carbide measuring faces Analogue dial indicator format Suitable for micro-range precision work (18–50 mm) Durable construction for workshop use FAQ What is the usable measuring range of the bore gauge? The instrument covers internal diameters from 18 to 50 mm, making it suitable for small to medium bores within the micro-range. How fine is the display and what accuracy can be expected? The dial provides a 0.01 mm resolution and the device is specified with an accuracy of ±0.012 mm, which supports routine inspection and set-up tasks. Are the contact faces hard-wearing? Yes, the gauge is fitted with carbide measuring faces, designed to reduce wear and preserve contact geometry for consistent readings. Can this gauge reach recessed bores? The tool offers a measuring depth of 500 mm, allowing measurements in deeper bores or recessed features where standard short-reach gauges would not suffice. Is the instrument suitable for serial inspection on the shop floor? The combination of a clear analogue dial, carbide contacts and a compact, rigid design makes this instrument well suited to serial checks and workshop inspection routines. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
18.6mm Internal Precision Gauge Three-Point Colour Touchscreen Wireless USB - Microtech Metrology
Take advantage of the combination of high-resolution measurement, wireless data transfer and a long 760 mm measuring depth for reliable, repeatable checks of barrel bores and other narrow internal features. Order the instrument directly via Metav Werkzeuge or consult our specialists for specification matching. Internal bore fine measuring instrument — Digital internal gauge with 18.2–18.6 mm range and colour touchscreen (Microtech Metrology) The Internal bore fine measuring instrument is a compact, digital gauge designed for precise inspection of narrow internal bores such as gun barrels and similar components where controlled, repeatable results are required High-resolution 0.0001 mm display Colour 1.54" touchscreen Wireless and USB data transfer Consistent, traceable precision for narrow bores This measuring system delivers high resolution readings (0.0001 mm) across an 18.2–18.6 mm range, which places it firmly in the micro class of internal gauges used for fine mechanical work. The small measurement window is ideal for tasks where tight tolerances matter, for example bore profiling in armament maintenance or precision engineering. The compact sensor geometry reduces flexing and helps preserve repeatability, so inspection cycles become a verifiable part of quality control rather than an uncertain step in production. Where repeatable internal measurement is critical, the instrument provides a measurable improvement in process control and documentation. Fast data capture and integration to speed workflows A colour 1.54" touchscreen simplifies interaction, while wireless plus USB outputs let measurement data flow directly into inspection logs or SPC systems without manual transcription. The combination of an intuitive display and digital transfer reduces cycle time and the risk of transcription errors, supporting lean inspection routines. Readings are captured at the instrument and exported in a structured format, enabling faster analysis and quicker decision-making during acceptance testing or maintenance checks. Long reach reduces handling and accelerates inspection With a measuring depth of 760 mm, long internal runs can be checked in situ rather than requiring disassembly or multiple probe changes. Fewer handling steps reduce the chance of damage and lower total inspection time, particularly for elongated components such as barrels or long housings. The unit’s reach allows for single-pass measurements along bore length, helping to identify profile changes or wear without repeated set-ups, which benefits throughput and reduces overall inspection cost per part. Designed for professional inspection environments Built by Microtech Metrology, this digital internal gauge is configured for demanding shop- and field-level inspection environments. Compatibility with calibre 12 gauge setups makes it straightforward to integrate into existing metrology benches. The robust digital interface and secure data outputs ensure measured values are suitable for traceable records and regulatory documentation where required. The instrument’s specification supports methodical quality control rather than informal gauging, making it a practical choice for workshops and maintenance facilities that require documented, reproducible results. For specification advice tailored to the application or to arrange a technical consultation, contact Metav Werkzeuge — our specialists support selection and integration from Emmerich to your workshop. Technical data Article number: 138012007 GTIN: 4061905453212 Manufacturer: Microtech Metrology Facts Measurement range: 18.2–18.6 mm Measuring depth: 760 mm Resolution: 0.0001 mm eClass: 21170310 Special features Digital display: Colour 1.54" touchscreen Data output: Wireless and USB Suitable for calibre 12 gauges Category: Fine measuring instruments FAQ How accurate is the instrument for internal bore measurement? The instrument provides a resolution of 0.0001 mm and is specified for precision internal measurements within the 18.2–18.6 mm range, making it suitable for fine inspection tasks where tight tolerances apply. Can measurement data be exported to a PC or network? Yes — the device supports both wireless and USB data output, allowing direct transfer of readings into inspection software or databases for traceability and analysis. Is the gauge suitable for gun barrel inspection? The design and measuring envelope are intended for narrow-bore applications; the unit’s reach and resolution suit barrel profiling and similar internal inspections. What does the 760 mm measuring depth mean in practice? A measuring depth of 760 mm allows the probe to inspect deep internal features in a single set-up, reducing the need for repeated repositioning when assessing long components. Which accessory gauges is the device compatible with? The instrument is listed as compatible with calibre 12 gauge fittings, facilitating integration into established metrology arrangements and fixtures. Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
180mm Internal Calibration Set With 33 Parallel Gauge Blocks, Lapped Jaws, Packed Case - Metav IndustryLine
Reliable setting for internal dial gauges combines a wide 6–180 mm range with a set of 33 parallel end gauges and lapped measuring faces to ensure repeatable adjustments and stable reference points. Order the setting device directly via Metav Werkzeuge or contact our consultants for application-specific advice. Setting device for internal fine measuring instruments M208.031.N — 6–180 mm range, 33 end gauges (Metav IndustryLine) The Setting device for internal fine measuring instruments M208.031.N provides a compact, stable reference for the calibration and adjustment of internal dial gauges and fine bore measurement tools. Setting range 6–180 mm 33 parallel end gauges included Lapped measuring faces for stability Robust 3.8 kg base for repeatable use Precision setting across the standard workshop range The unit covers the Standard measurement band (maximum 180 mm), offering a practical compromise between reach and stiffness that suits everyday workshop and machine‑shop tasks. The integrated set of 33 parallel end gauges, graded Grade 2, simplifies stepwise setting across small to mid‑sized bores and internal features, reducing changeover time. As a dedicated adjustment standard for internal dial gauges and fine measuring instruments, the device streamlines setup work and strengthens process reliability by providing defined reference points for repeat checks. Repeatable results through engineered contact and stability Key to consistent settings are the lapped measuring faces and the solid construction that yields low deformation under clamping. The lapped jaws (measuring faces) and the specified jaw block size (9 × 10 × 60 mm) maintain contact geometry and reduce wear over repeated use, while the 25 mm effective setting depth provides a controlled engagement for many internal gauges. The mass of the base (3.8 kg) contributes to mechanical stability, meaning fewer micro‑movements during adjustment and therefore better reproducibility of the reference setting. Faster inspection workflows and clear workshop benefits By combining a broad setting span with a complete set of parallel end gauges, the device reduces the number of individual spare parts needed during setup and minimises downtime between checks. The practical configuration suits quality control benches and toolrooms where internal dial indicators require quick, reliable comparison against a stable master. Alongside the tangible productivity gains, the clear specification and robust contact surfaces support straightforward integration into routine inspection procedures and make the tool a dependable element of the measuring kit. Request application guidance from Metav Werkzeuge for this Metav IndustryLine setting device M208.031.N with its 6–180 mm range and 33 parallel end gauges — our specialists in Emmerich will advise on fit and use for your inspection tasks Technical data SKU: M208.031.N GTIN: 4061905045141 Brand: Metav IndustryLine Core specifications Setting range: 6–180 mm Setting depth: 25 mm Weight: 3.8 kg Measuring jaws: 9 × 10 × 60 mm End gauges: 33 parallel pieces Grade: Grade 2 Materials & features Lapped measuring faces Intended for internal fine measuring instruments / internal dial gauges Robust base for repeatable adjustments FAQ What setting range does the device cover? The setting device M208.031.N covers a range from 6 to 180 mm, making it suitable for standard workshop measurement tasks. What is included in the delivery? Delivery comprises the setting device itself and a set of 33 parallel end gauges supplied as the reference accessories for stepwise internal settings. What tolerance or grade applies to the end gauges? The included parallel end gauges are supplied to Grade 2, providing defined increments for reliable comparative adjustments. Are the measuring faces treated to reduce wear? Yes, the device features lapped measuring faces, providing stable contact geometry and enhanced durability for repeated use. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
180mm Internal Setting Device For Fine Bore Gauge Base Unit, Lap-Finished Jaws 9x10x60, Supplied In Case - Metav IndustryLine
Take advantage of the combination of a broad 6–180 mm setting range, lapped measuring jaws and a robust protective case for reproducible internal gauge setup; order directly via Metav Werkzeuge or ask the consultants for application advice. Setting fixture for internal dial gauges M208.031.1 — 6–180 mm range, lapped measuring jaws (Metav IndustryLine) The Setting fixture for internal dial gauges M208.031.1 is a compact maintenance and setup tool designed for precise adjustment of internal measuring heads and dial gauges used in shop-floor and inspection environments. Wide measuring range 6–180 mm Lapped measuring jaws for high accuracy Compact 25 mm setting depth Delivered in a protective transport case Achieve reproducible internal gauge settings with less effort The fixture provides a 6–180 mm setting range that places it in the Standard range for workshop metrology, offering the best compromise between reach and stiffness for everyday machine‑shop tasks. The lapped measuring jaws guarantee flat, parallel contact faces and reduce local deformation when setting internal measuring probes; this translates into a measurable reduction in setup scatter and more reliable repeatability for production checks. As a base device supplied without end measures, the unit is suited to modular calibration workflows where specific end pieces are added to match different gauge geometries. Robust handling and defined geometry for consistent results Built to withstand regular use, the unit features a 25 mm setting depth and a stable aluminium-steel assembly that keeps the alignment during adjustment cycles. At 3.8 kg the device remains portable while providing sufficient mass to resist small disturbances during fine adjustments. The measuring jaws (9 x 10 x 60 mm) present a stable contact area, and the protective transport case included with delivery preserves the geometry during storage and transit. This configuration reduces downtime caused by damaged fixtures and supports a predictable inspection routine on the shop floor. Streamlined workflow that reduces inspection uncertainty By standardising the reference for internal gauge setup, the fixture shortens the time needed for each adjustment and lowers the probability of human-induced variation. The clear, mechanically defined contact surfaces simplify training for technicians and assist quality teams in documenting repeatable procedures. Combining precise geometry with a compact footprint, the device supports faster gauge changeovers and smoother integration into existing measurement processes involving dial gauges and internal measuring heads. For customers seeking dependable daily performance, the fixture acts as a pragmatic efficiency enhancer in the metrology bench. Discuss application requirements with Metav Werkzeuge to confirm the M208.031.1 matches specific inspection needs and to arrange supply from Emmerich. Technical Data Article number: M208.031.1 GTIN: 4061905043369 Manufacturer: Metav IndustryLine Weight: 3.8 kg Facts Measuring range: 6–180 mm Setting depth: 25 mm Measuring jaws: 9 x 10 x 60 mm Delivery: protective case Special features Lapped measuring jaws Base unit (without end measures) Category: Dial gauges accessory FAQ What measuring range does the fixture cover? The fixture covers a 6–180 mm measuring range suitable for standard internal gauge adjustments; this range is stated for the M208.031.1 setting device. Are the contact surfaces finished for precision work? Yes, the unit is supplied with lapped measuring jaws to ensure flat, repeatable contact faces for internal dial gauge setup. Is a transport or storage case included? A protective case is included with delivery to keep the geometry intact during transport and storage. Can this device be used directly with standard dial gauges? The M208.031.1 is intended as a setting fixture for internal dial gauges and internal measuring heads; adaptations or end pieces may be added depending on the gauge geometry. Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
Fast, repeatable geometry checks in seconds
Caliper gauges (also referred to as precision calipers or quick-action gauges) are high-efficiency fine measuring instruments designed for precise geometry control in the production environment. Need to verify internal grooves, pipe wall thickness or small bores quickly? These tools deliver reliable results at sampling speed, making them ideal for series production, incoming goods inspection and workshop testing.
How they work and where they belong
The core of these devices is a spring-loaded lever system that applies a defined contact force, so measurements remain repeatable and independent of the operator’s feel. Caliper gauges capture hard-to-reach features — deep internal grooves, notches, freeform surfaces and thin walls — either mechanically or in digital form. Ergonomic one-handed operation allows the workpiece to stay in the machine or on the test table while checks are performed, reducing handling and downtime.
Practical advantages that improve throughput
- Consistent repeatability due to defined contact force, lowering measurement scatter.
- Rapid sampling: geometry checks are performed in the time of a few seconds, reducing cycle times.
- Flexible contact options such as ball, blade or disc contacts, matching different workpiece geometries.
- Choice of robust analog models or digital units with Go/NoGo tolerance indication and interfaces for direct integration into digital quality assurance.
- Ergonomic design that shortens set-up and inspection times, increasing shop-floor productivity.
Metav: a reliable precision partner for industry
Metav combines decades of metrology experience with a broad offering from Emmerich, acting as a quality filter for the European market. With more than 48,000 customers and over 250,000 products, Metav supplies a comprehensive selection of caliper gauges and accessories, helping purchasing managers reduce supplier complexity while securing reliable supply and technical competence.
Summary
Caliper gauges — precision calipers and quick-action gauges — provide fast, repeatable and operator-independent measurements for demanding industrial inspection tasks, delivering measurable gains in throughput and quality control.
FAQ
What makes caliper gauges suitable for deep internal measurements?
The spring-loaded lever system in caliper gauges ensures a defined contact force while specialised stylus geometries (ball, blade, disc) reach deep grooves and notches, enabling precise capture of internal features.
Can digital caliper gauges be integrated into existing quality systems?
Yes. Digital caliper gauges often include tolerance indication (Go/NoGo) and data interfaces, allowing direct connection to digital quality assurance systems for automated logging and analysis.
Which contact form should I choose for thin-walled parts?
For thin or delicate walls, disc or ball contacts minimise local deformation; Metav’s product range lists the available contact geometries so you can match the caliper gauge to the application.
How do caliper gauges maintain operator-independent repeatability?
Defined contact force from the spring-loaded lever system removes variability caused by hand pressure, so caliper gauges deliver consistent measurements across different operators and cycles.
